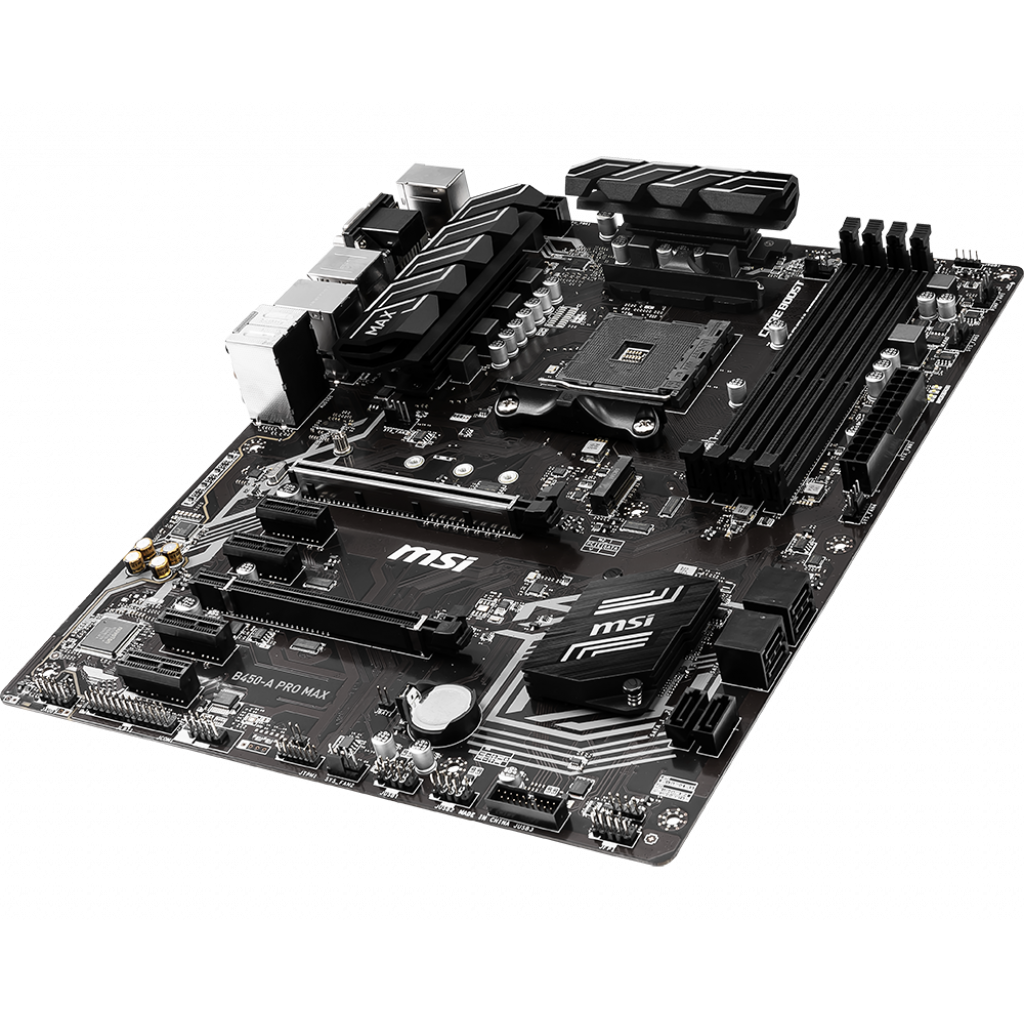

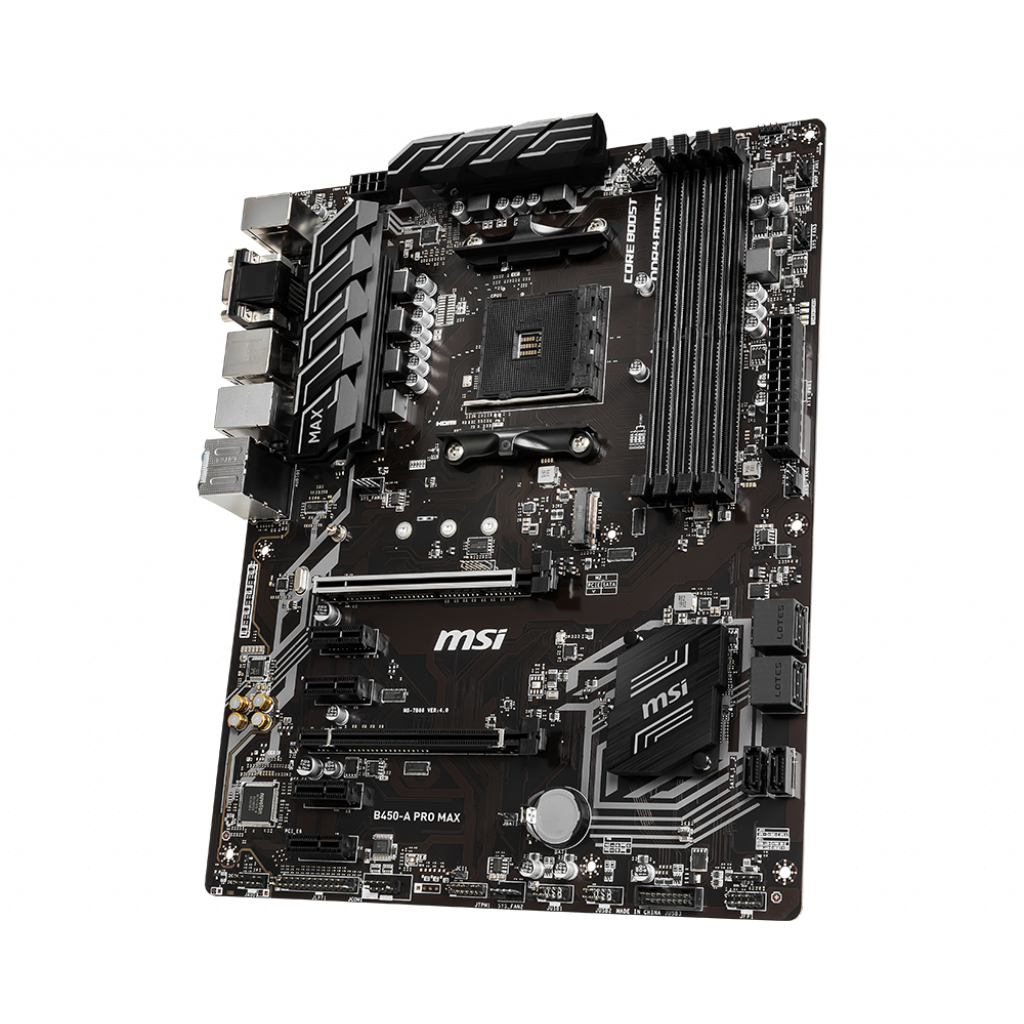

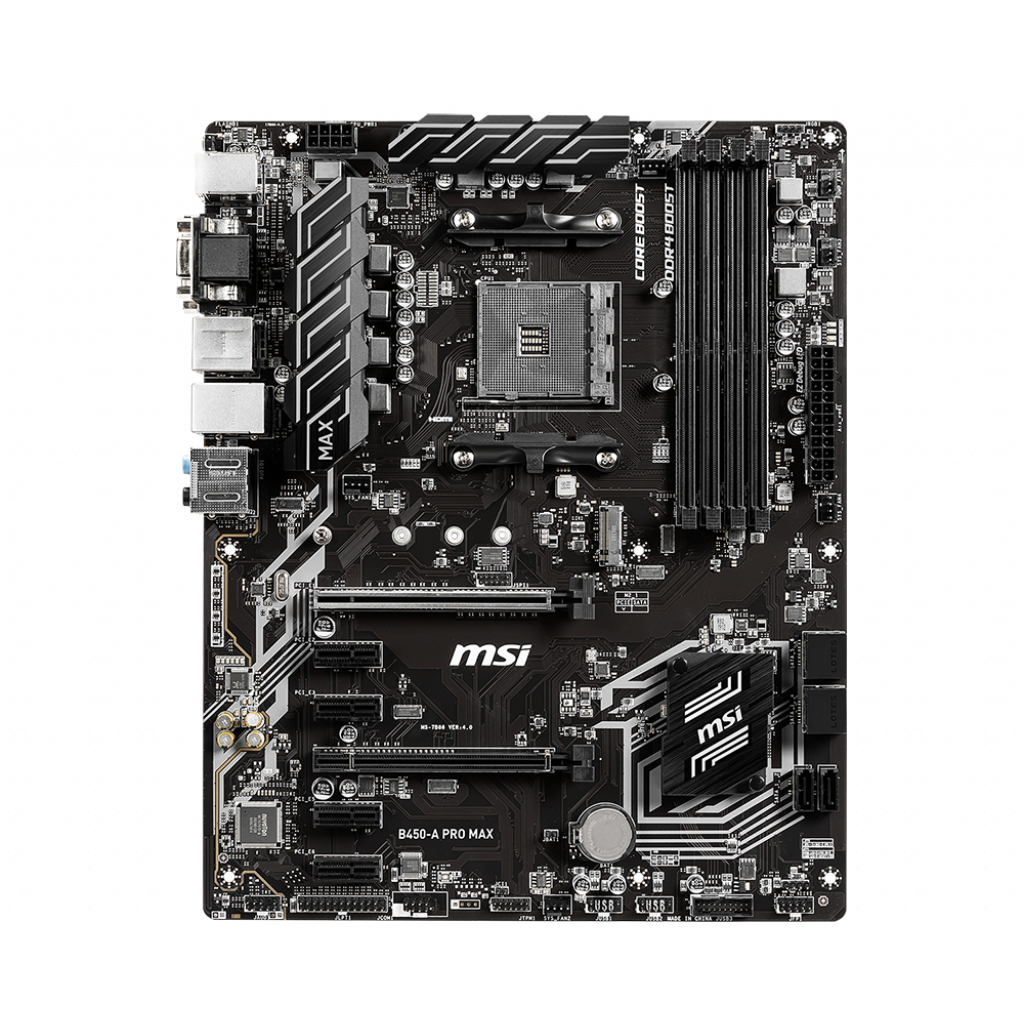

Built on the AMD B450 chipset, the MSI B450-A PRO MAX AM4 ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are six SATA III ports as well as a M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D, VGA, and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include Realtek ALC 892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
Product Condition | New |
---|---|
Manufacturer Part # | B450-A PRO MAX |
OPERATING SYSTEM | Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
|
CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
Chipset | AMD® B450 Chipset |
CPU Socket | AM4 |
Form Factor | ATX |
Memory | 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required
|
LAN | 1 x Realtek® 8111H Gigabit LAN controller |
Wireless LAN | N/A |
Bluetooth | N/A |
Audio | Realtek® ALC892 Codec
|
MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
---|---|
STORAGE | 1 x M.2 slots 6 x SATA 6Gb/s |
Onboard Graphics | 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200 @60H
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
|
RAID | Supports RAID 0, RAID 1 and RAID 10 |
I/O (Rear) | Flash BIOS Button PS/2 Combo Port VGA Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 ports DVI-D Port HDMI Port USB 3.2 Gen2 |
Expansion Slots | 1 x PCIe 3.0 x16 slot (PCI_E1) 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots |
USB (Front) | 2 x (Gen1, Type A) 4 x (v2.0) |
USB (Rear) | 2 x (Gen2, Type A) 2 x (Gen1, Type A) 2 x (v2.0) |
Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector |
Dimensions | 12.00" x 9.60" |
Manufacturer Warranty | 3 Year |
