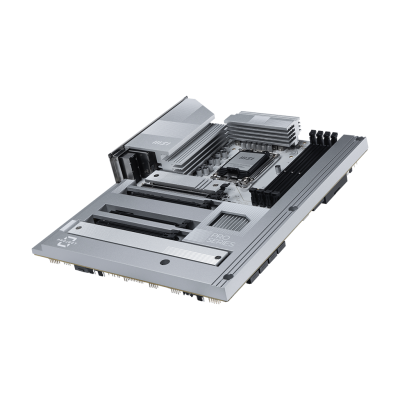

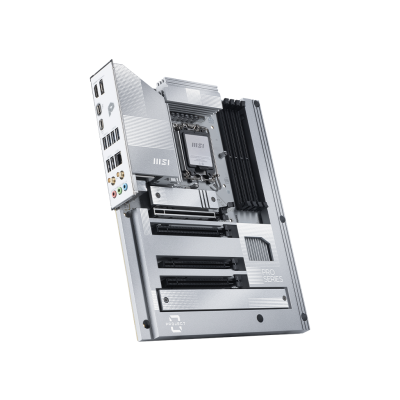

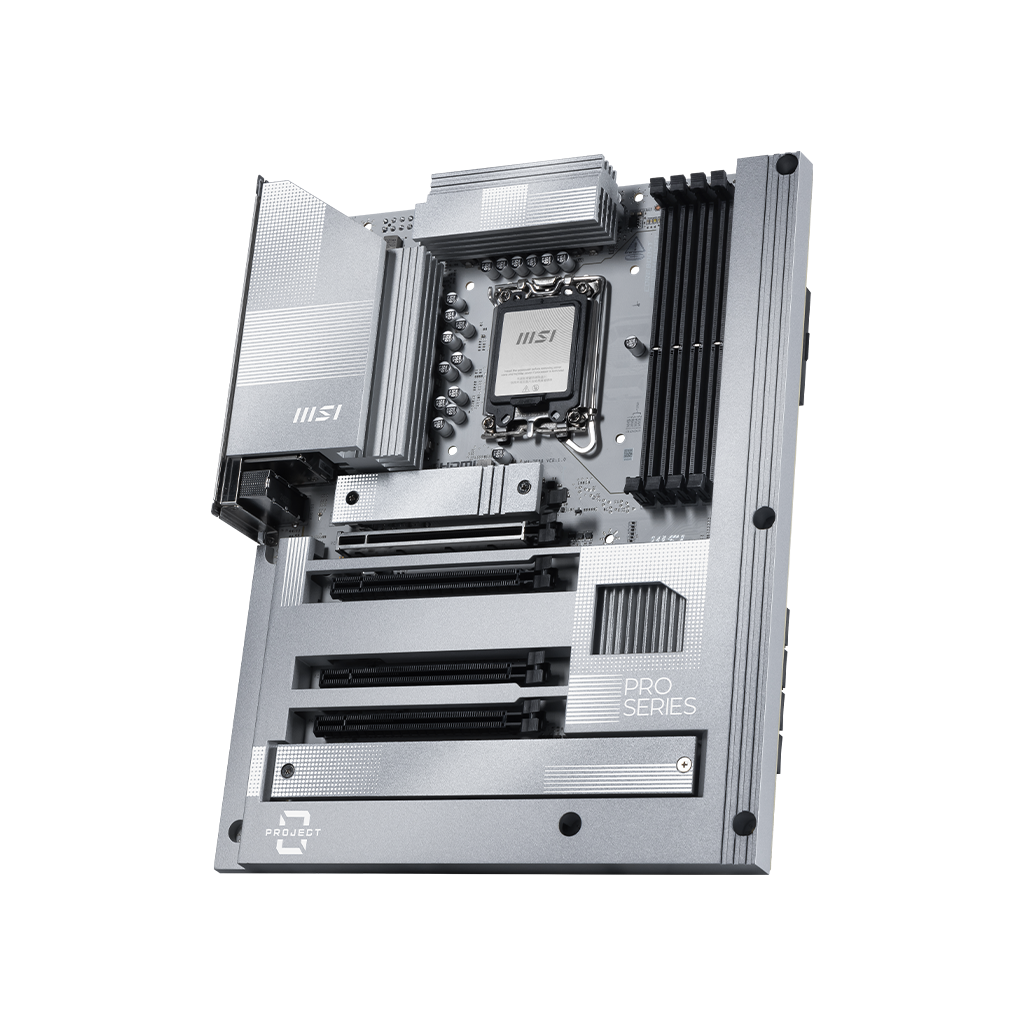

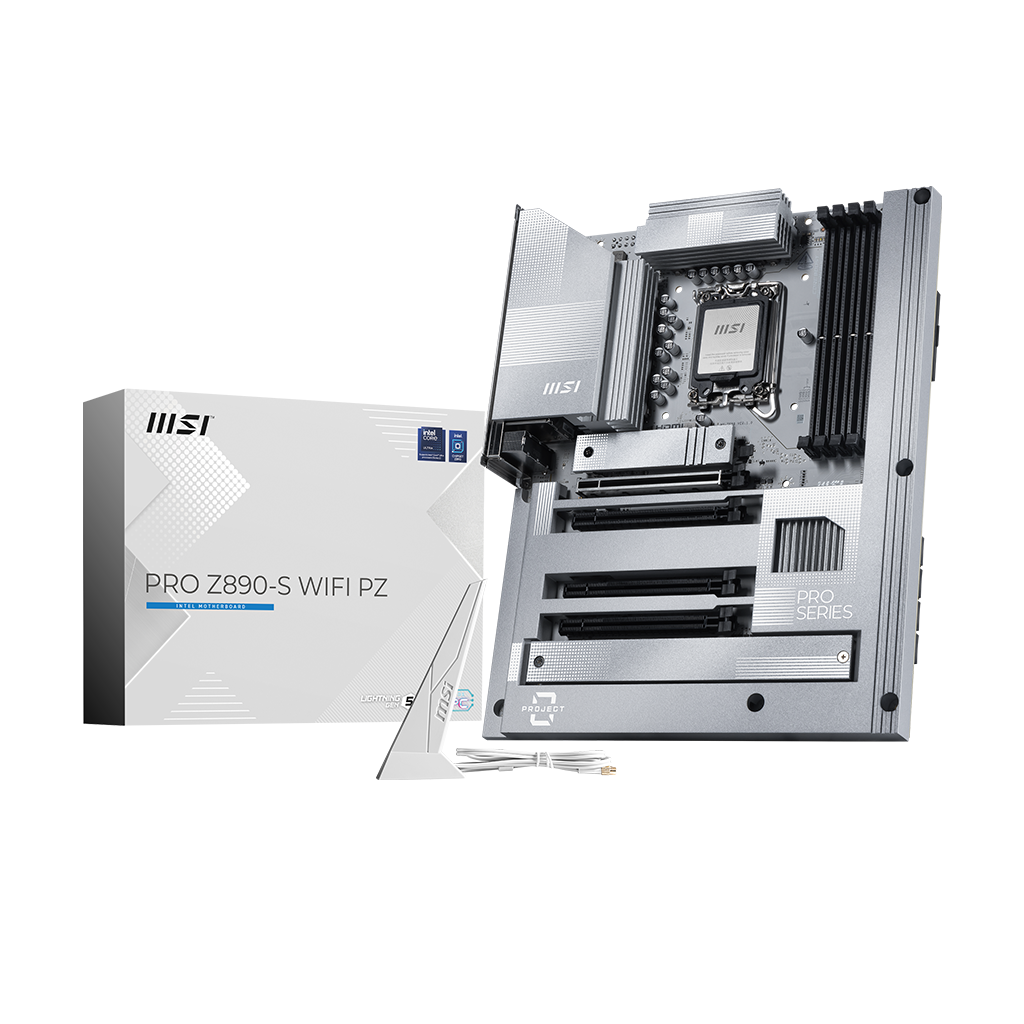

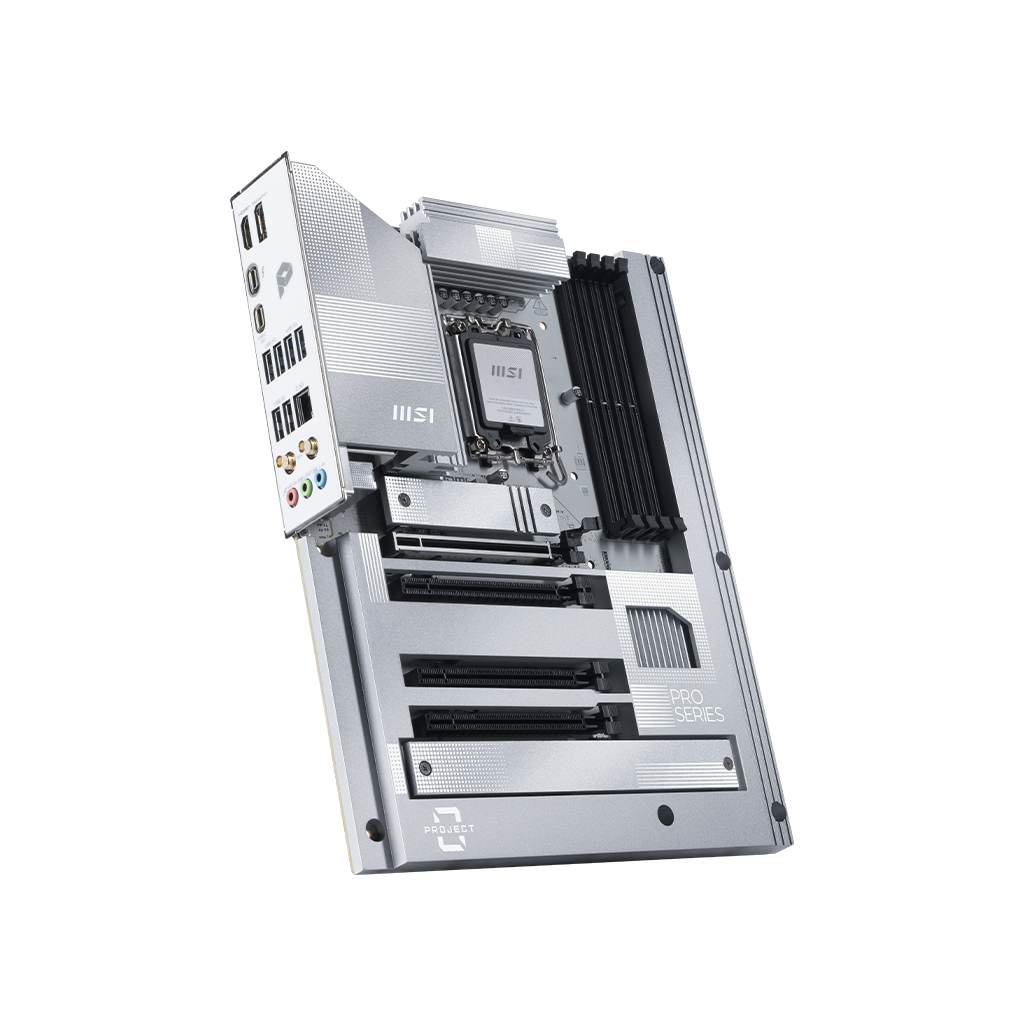

PRO Z890-S WIFI PZ

PRO Z890-S WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Free Shipping

On order over $25

Return for Refund

Within 30 days

3-YEARS Limited Warranty

Base-on purchase date

$249.99
In Stock

RECOMMENDED FOR YOU

DETAIL SPECIFICATION

OPERATING SYSTEM	Support for Windows® 11 64-bit
Manufacturer Number	PRO Z890-S WIFI PZ
Product Condition	New
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset	INTEL Z890
CPU Socket	LGA 1851
Form Factor	ATX Form Factor
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
LAN	Realtek® 8125D 2.5Gbps LAN
Wireless LAN	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth	Supports Bluetooth® 5.4**, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio

MULTI-GPU	-
STORAGE	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) Please refer to the manual for M.2 SSD heatsink restrictions.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

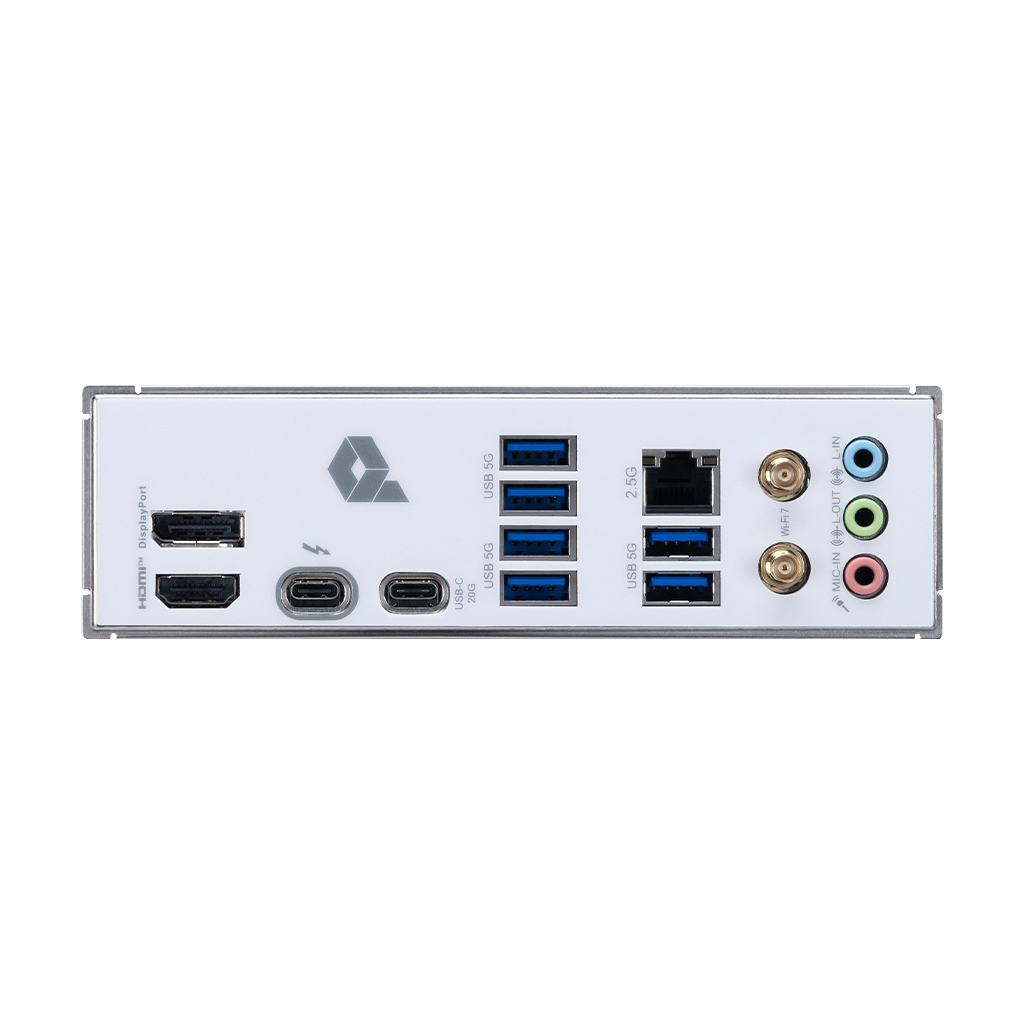

I/O (Rear)	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 20Gbps Type-C USB 5Gbps Type-A
Expansion Slots	4x PCI-E x16 slot (Qty)/br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)/br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)/br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)/br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
USB (Front)	4x USB 2.0 2x USB 5Gbps Type A 1x USB 20Gbps Type C
USB (Rear)	6x USB 5Gbps Type A 1x USB 20Gbps Type C
TYPE-C PORT	1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Internal Connectors	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Dimensions	12.00" x 9.60"
Manufacturer Warranty	3 Year

TECHNICAL FEATURES

Document

Business Elegance

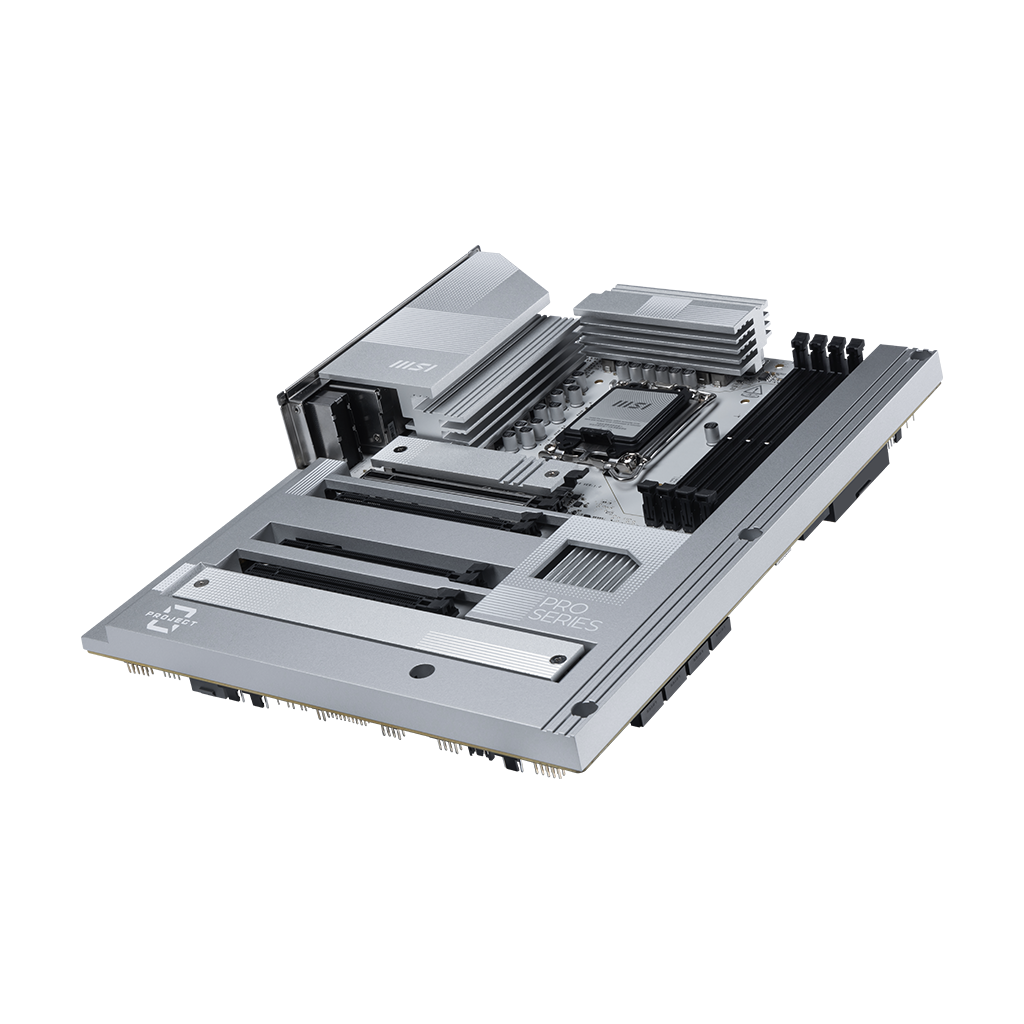

The PRO Z890-S WIFI PZ is a creation-oriented ATX motherboard, featuring the back-connect design, which allows for a cleaner front view and easier cable management. With a 12 Duet Rail Power System, the PRO Z890-S WIFI PZ is constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

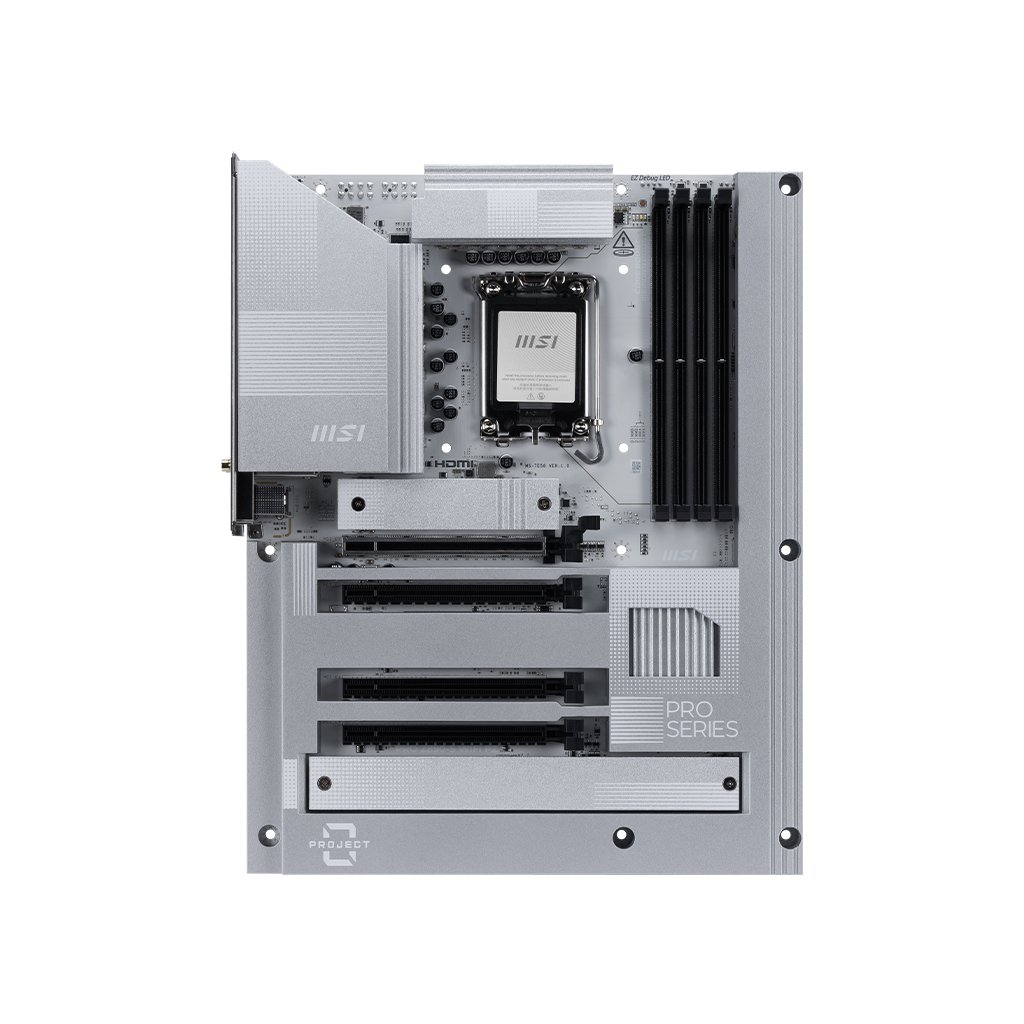

Cleaner Front View

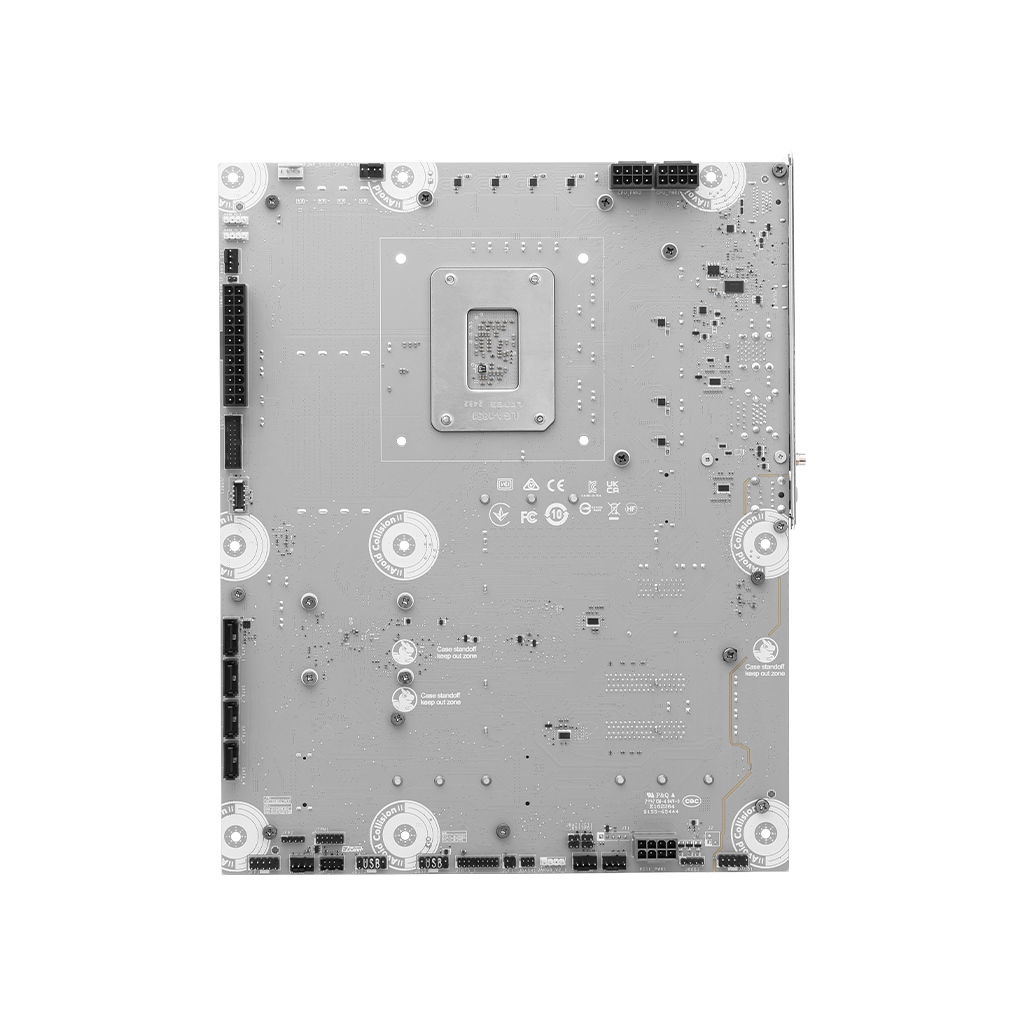

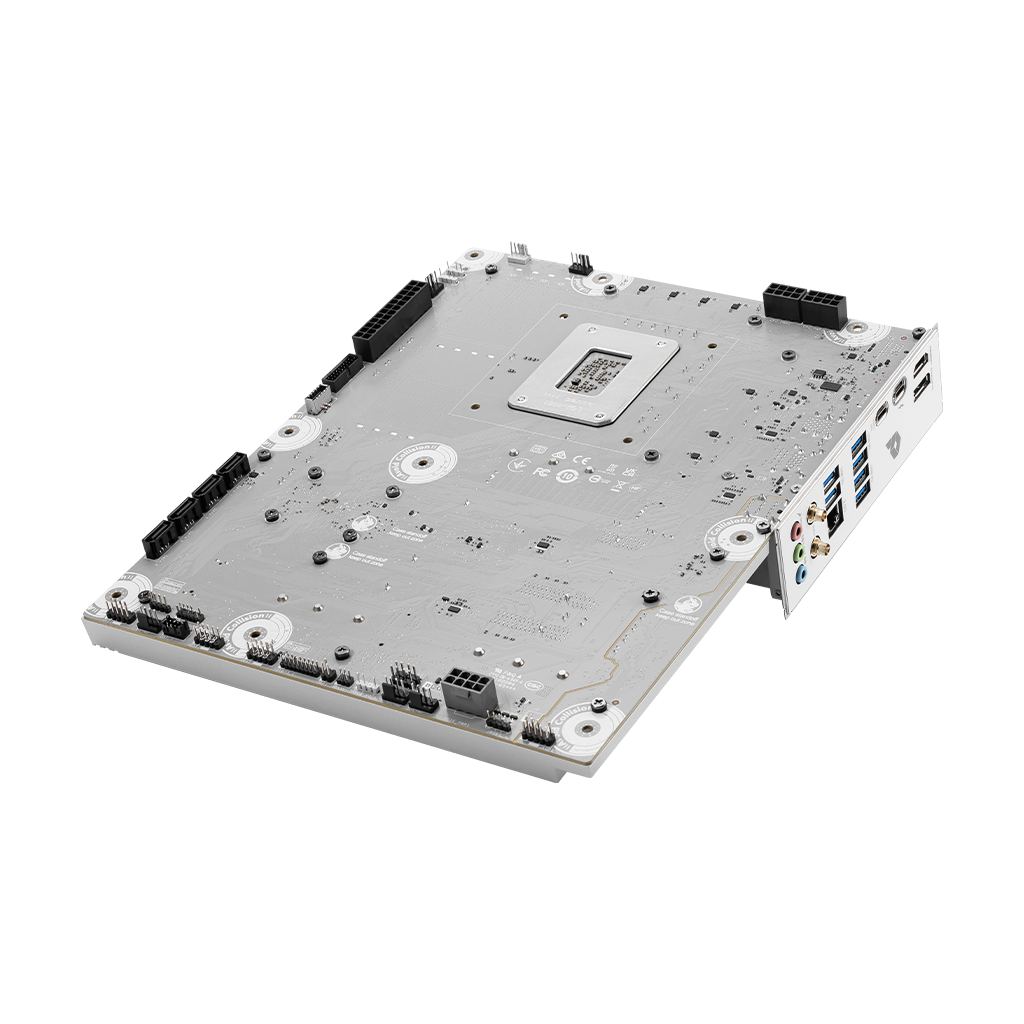

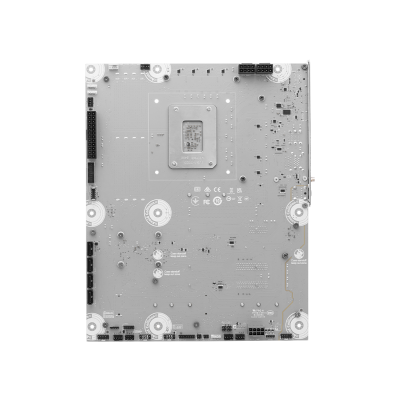

The PRO Z890-S WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Back-Connect Design

Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.

Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.

Supports Intel Core Ultra Processors (Series 2)

The PRO Z890-S WIFI PZ motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: Back-connect ATX*
Socket Type: LGA 1851
Chipset: Intel Z890

*Requires a compatible case.

Ultra Power - 12 Duet Rail Power System with P-PAK

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO Z890-S WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC
12 Duet Rail Power System (P-PAK)
1-Phase SA Power
1-Phase GT Power
1-Phase VNNAON Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8600+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
2 x PCIe 4.0/3.0 x16 slots*
1 x PCIe 3.0 x1 slot

*Support x16/x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The PRO Z890-S WIFI PZ motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot*
2 x Gen4 x4 64Gbps slots*

*With M.2 Shield Frozr

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
