The MEG Z790 ACE MAX motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
- Form Factor: E-ATX
- Socket Type: LGA 1700
- Chipset: Intel Z790

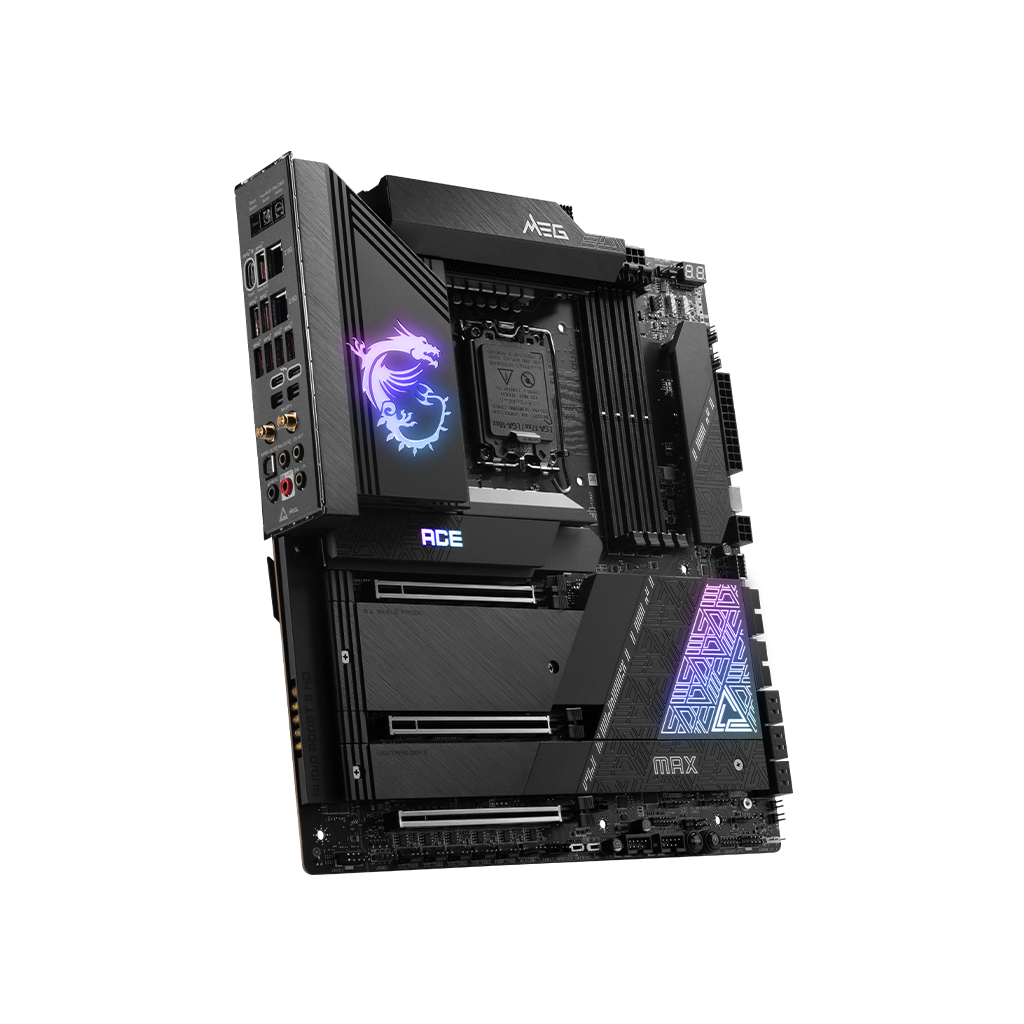

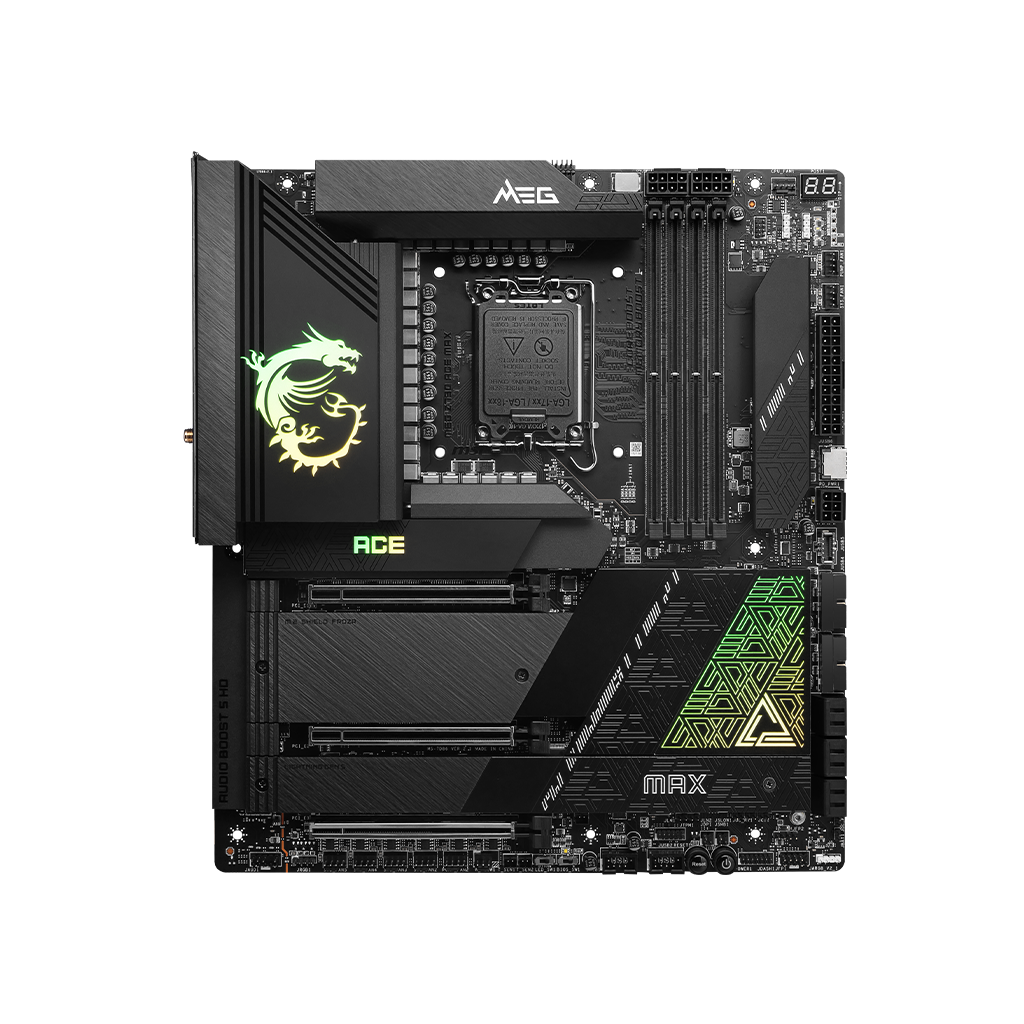

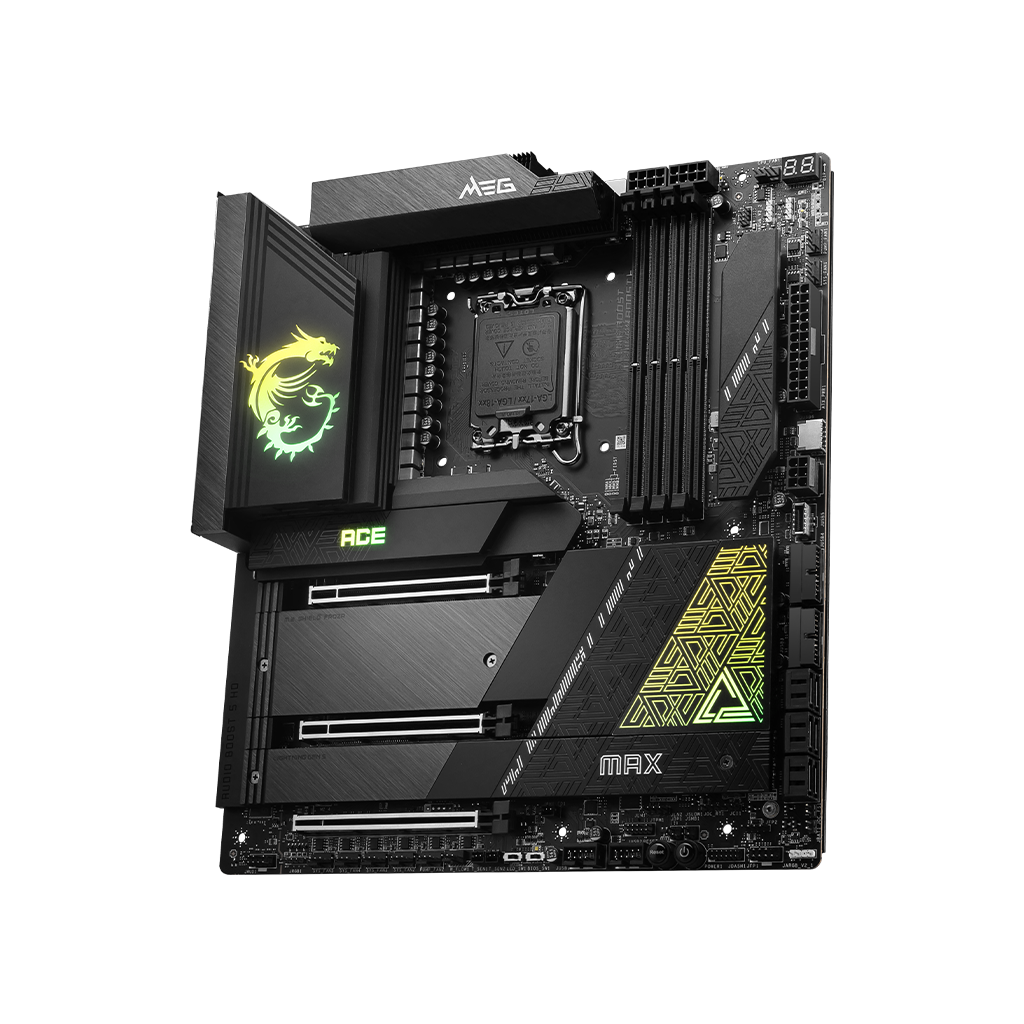

Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel®'s 14th Gen and 13th Gen Core processors to new heights. With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 11 64-bit |
---|---|
Manufacturer Number | MEG Z790 ACE MAX |
Product Condition | New |
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
Chipset | Intel® Z790 Chipset |
CPU Socket | LGA1700 |
Form Factor | E-ATX Form Factor |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
|
LAN | 2x Intel® 2.5Gbps LAN |
Wireless LAN | Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
|
Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM
|
Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
|
MULTI-GPU | AMD MULTI-GPU Support |
STORAGE | 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
6x SATA 6G
|
---|---|
Onboard Graphics | 1x Type-C DisplayPort
Supports a maximum resolution of 4K 60Hz
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|

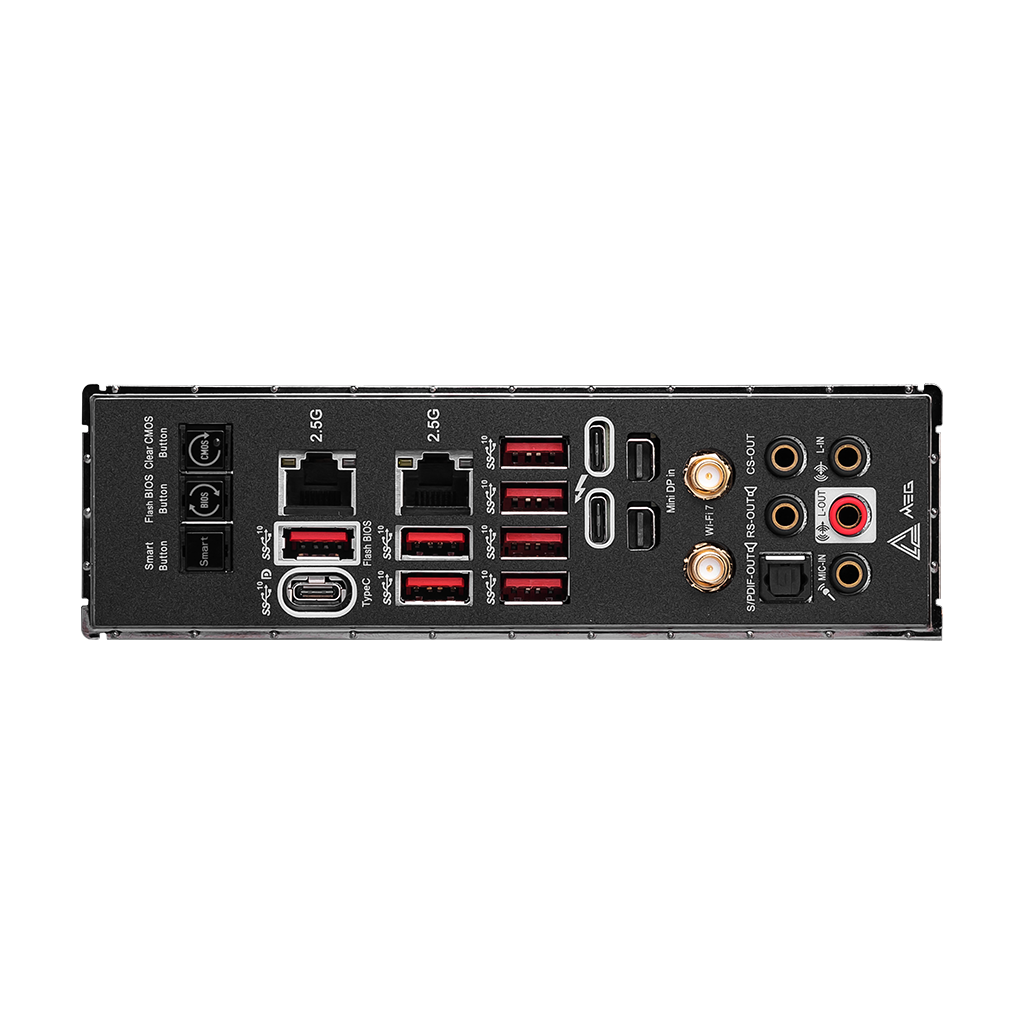

I/O (Rear) | Clear CMOS Button Flash BIOS Button 2.5G LAN 2.5G LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
Expansion Slots | 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
USB (Front) | 4 x USB 2.0 4 x USB 3.2 Gen1 Type A 2 x USB 3.2 Gen2x2 Type C |
USB (Rear) | 7 x USB 3.2 Gen2 Type A 1 x USB 3.2 Gen2 Type C |
TYPE-C PORT | 2 x Thunderbolt 4 40Gbps (Type-C) 1 x USB 3.2 Gen 2 10Gbps (Type-C Display port) |
Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) |
LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
Dimensions | 12.00" x 10.90" |
Manufacturer Warranty | 3 Year |
The MEG Z790 ACE MAX boasts premium aesthetics with its sleek black finish and silver embellishments. Developed to unleash maximum power, this E-ATX gaming motherboard features exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.
The MEG Z790 ACE MAX motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
With its dual 8 pin power connectors and exclusive Core Boost technology, the MEG Z790 ACE MAX is able to release maximum CPU power loads to support system-demanding game settings:
VRM Cooling: Features Stacked Fin Array, Direct-touch Cross Heat-pipe, Aluminum Backplate and Frozr AI software for improved thermal dissipation.
PCB Cooling: Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling and protects SSDs.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including dual pump-fan headers.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP Profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
*Supports x16/x0, x8/x8
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The MEG Z790 ACE MAX motherboard features MSI's latest M.2 slots:
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Magnetic Tool-Free M.2 Design: This patented design enables true “wire-less” RGB function, while the screwless design provides the easiest way for M.2 installation.
EZ M.2 Clip: Install or replace M.2 SSD quickly and effortlessly without ever having to hunt for a screwdriver.
Dual 2.5G LAN: Dual Intel 2.5Gbps LAN controllers deliver a premium network gaming experience.
Dual Thunderbolt 4: Supports true 40Gbps transfer rates and 8K display support.
Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
