The MEG Z790 GODLIKE MAX motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: E-ATX
Socket Type: LGA 1700
Chipset: Intel Z790

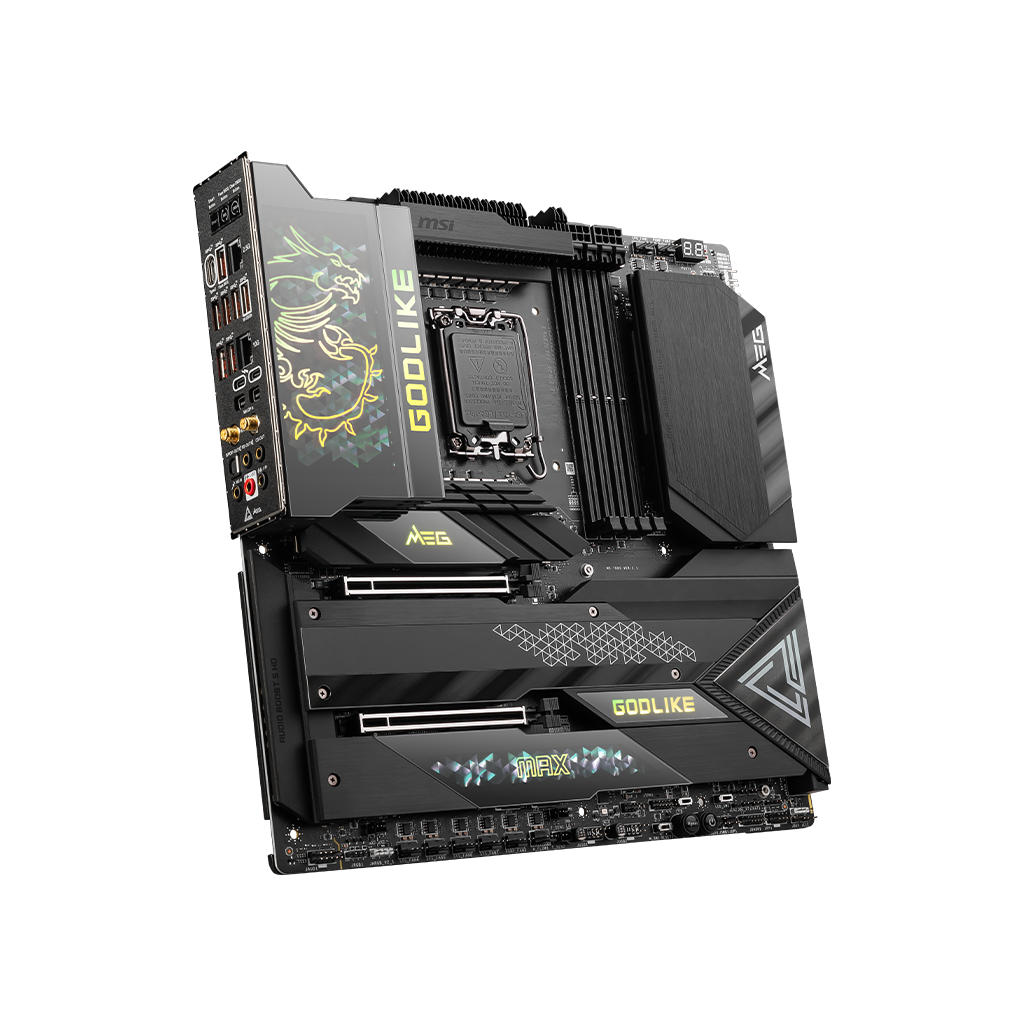

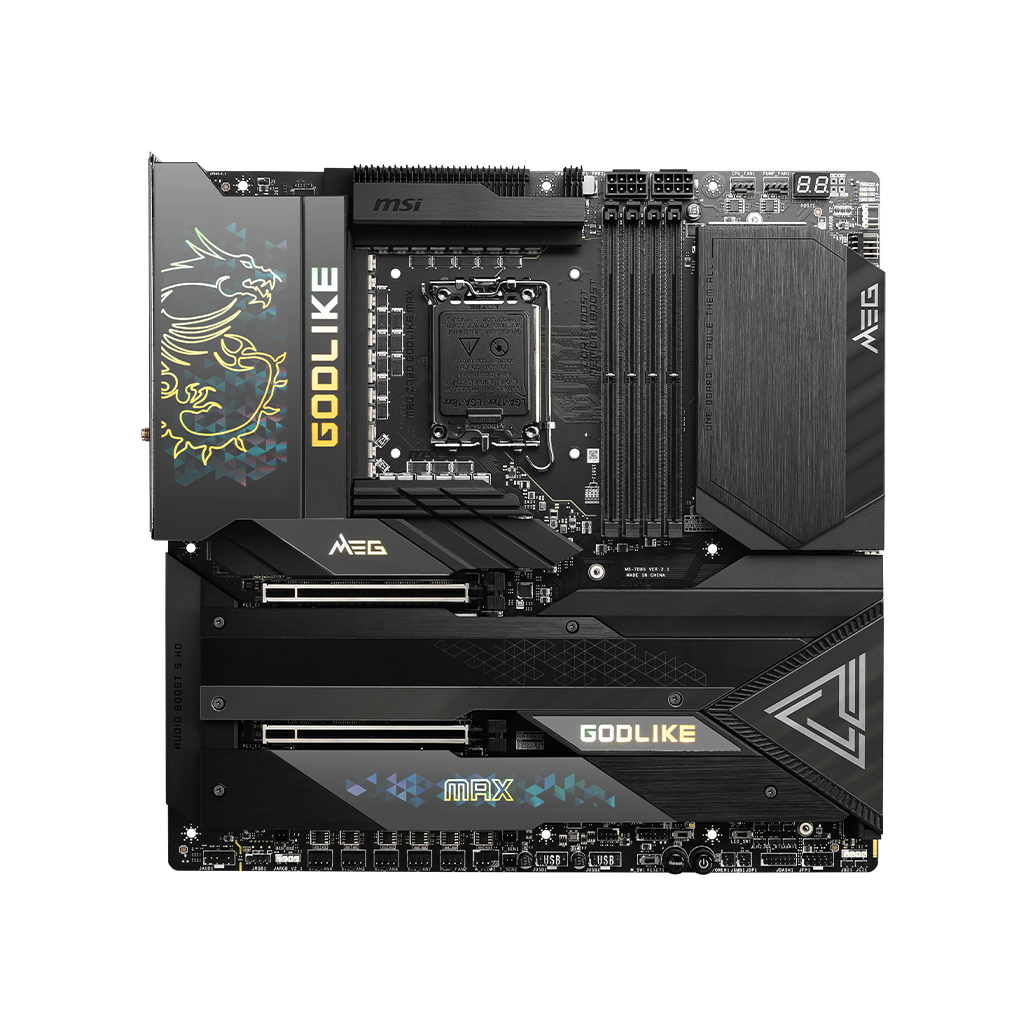

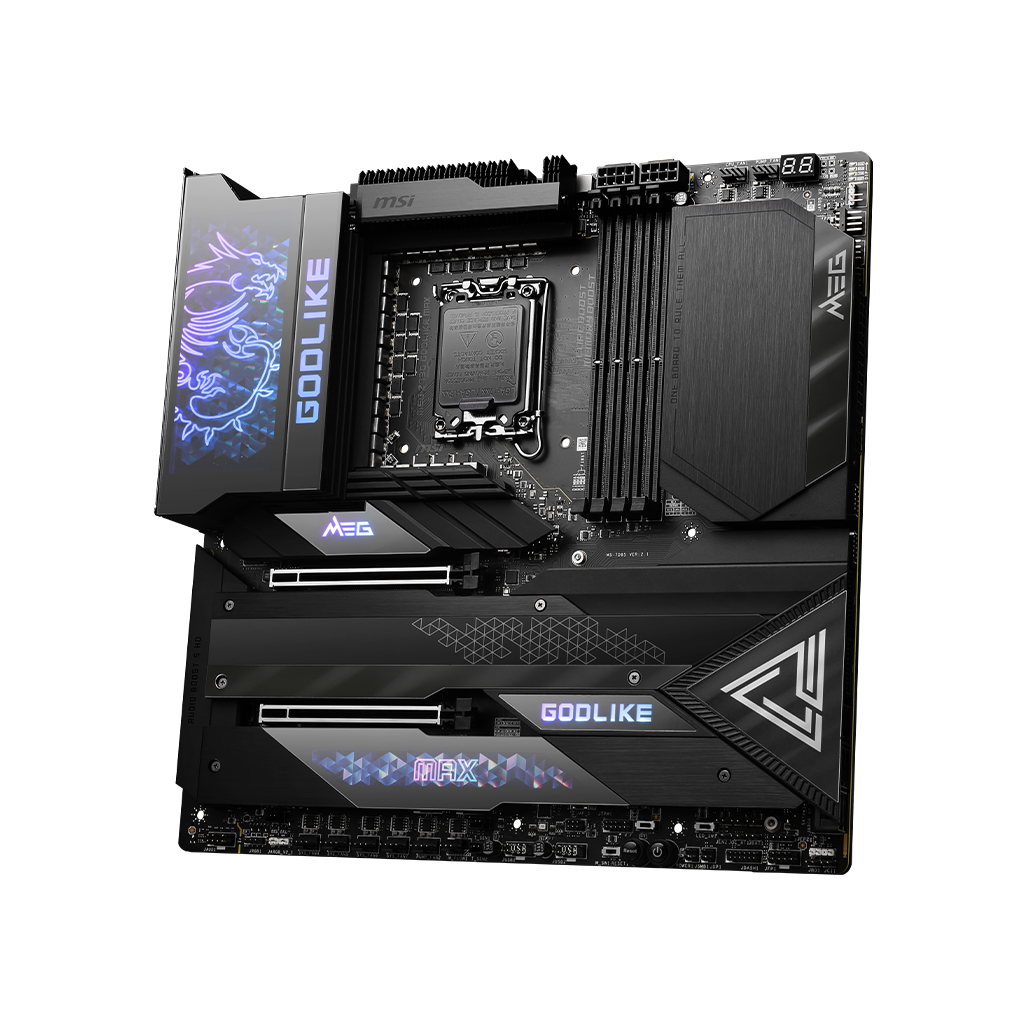

Experience the pinnacle of innovation with the best of the best MEG Z790 GODLIKE MAX Gaming Motherboard. Its black and robust heatsink design features an embedded crystal cutting pattern within black mirrors, setting a new standard for Intel Z790 motherboards. Equipped with Wi-Fi 7, high-speed data transmission, and the groundbreaking M-Vision Dashboard, this board is engineered to unleash the gaming potential of Intel® 14th Gen and 13th Gen Core processors. Dominate competitive tournaments and immerse yourself in unrivaled performance. Step into the future of gaming with MEG Z790 GODLIKE MAX.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 11 64-bit |
---|---|
Manufacturer Number | MEG Z790 GODLIKE MAX |
Product Condition | New |
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
Chipset | Intel® Z790 Chipset |
CPU Socket | LGA1700 |
Form Factor | E-ATX Form Factor |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
|
LAN | Marvell® AQC113CS-B1-C 10Gbps LAN Intel® 2.5Gbps LAN |
Wireless LAN | Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
|
Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM
|
Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
|
MULTI-GPU | AMD MULTI-GPU Support |
STORAGE | 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
6x SATA 6G
|
---|---|
Onboard Graphics | 1x Type-C DisplayPort
Supports a maximum resolution of 4K 60Hz
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|
I/O (Rear) | Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
Expansion Slots | 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
USB (Front) | 4 x USB 2.0 4 x USB 3.2 Gen1 Type A 2 x USB 3.2 Gen2x2 Type C |
USB (Rear) | 7 x USB 3.2 Gen2 Type A 1 x USB 3.2 Gen2 Type C |
TYPE-C PORT | 2 x Thunderbolt 4 40Gbps (Type-C) 1 x USB 3.2 Gen 2 10Gbps (Type-C) |
Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) |
LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
Dimensions | 12.00" x 12.20" |
Manufacturer Warranty | 3 Year |
Experience the pinnacle of innovation with the best of the best MEG Z790 GODLIKE MAX Gaming Motherboard. Equipped with Wi-Fi 7, high-speed data transmission, and the groundbreaking M-Vision Dashboard, this board is engineered to unleash the gaming potential of Intel 13th Gen Core processors. Dominate competitive tournaments and immerse yourself in unrivaled performance. Step into the future of gaming with the MEG Z790 GODLIKE MAX.
The MEG Z790 GODLIKE MAX motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: E-ATX
Socket Type: LGA 1700
Chipset: Intel Z790
The 4.5-inch full-color IPS touchscreen does not only indicate the status of your gaming rig, but also allows system operation and customization with touch control.
The dashboard supports system operation, OC tuning, hardware monitor, debug function, live weather, system clock, countdown timer, media controller and multiple functions with touch control. Moreover, the detached mode brings a new way for your PC operation.
With its dual 8 pin power connectors and exclusive Core Boost technology, the MEG Z790 GODLIKE MAX is able to release maximum CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 26-Phase Duet Rail CPU Power (Smart Power Stage / 105A)
3. 2-Phase AUX Power
4. Dual 8 Pin Power Connectors
VRM Cooling: Features Wavy Fin, Aluminum Cover, Direct-touch Cross heat-pipe, 7W/mK MOSFET thermal pads with extra choke thermal pads and Frozr AI software for improved thermal dissipation.
PCB Cooling: Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling and protects SSDs.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including dual pump-fan headers.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP Profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
2 x PCI-e 5.0/4.0/3.0 x16 slots* (with Steel Armor**)
*Supports x16/x0, x8/x8
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The MEG Z790 GODLIKE MAX motherboard features MSI's latest M.2 slots:
1 x Gen5 x4 128Gbps slot (with double-sided M.2 Shield Frozr)
5 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
1 x Gen3 x4 32Gbps slot (with double-sided M.2 Shield Frozr)
10G Super LAN + 2.5G LAN: Premium Marvell 10Gbps Super LAN plus Intel 2.5Gbps LAN controllers deliver an utmost network gaming experience.
Dual Thunderbolt 4: Supports true 40Gbps transfer rates and 8K display support.
Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
