B450 GAMING PLUS MAX
B450 GAMING PLUS MAX
B450 GAMING PLUS MAX
B450 GAMING PLUS MAX
B450 GAMING PLUS MAX
B450 GAMING PLUS MAX

B450 GAMING PLUS MAX

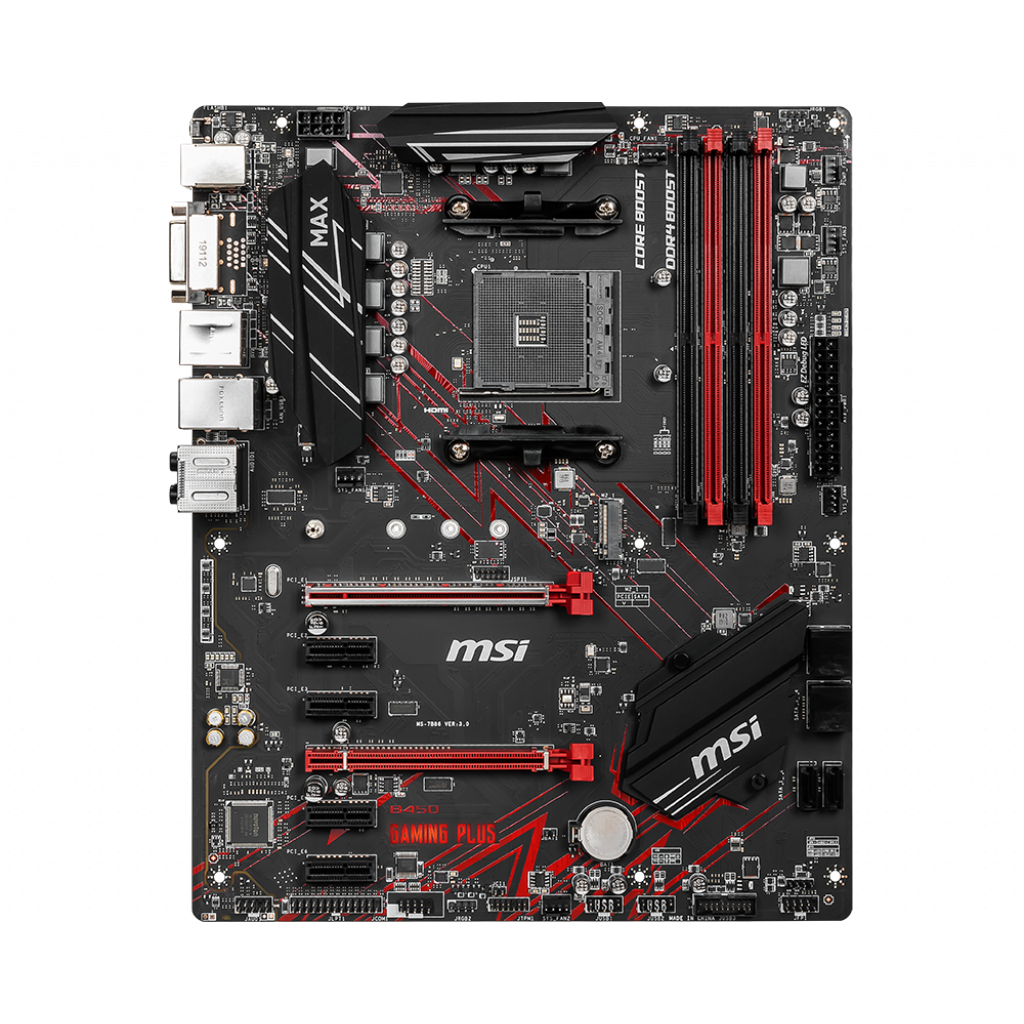

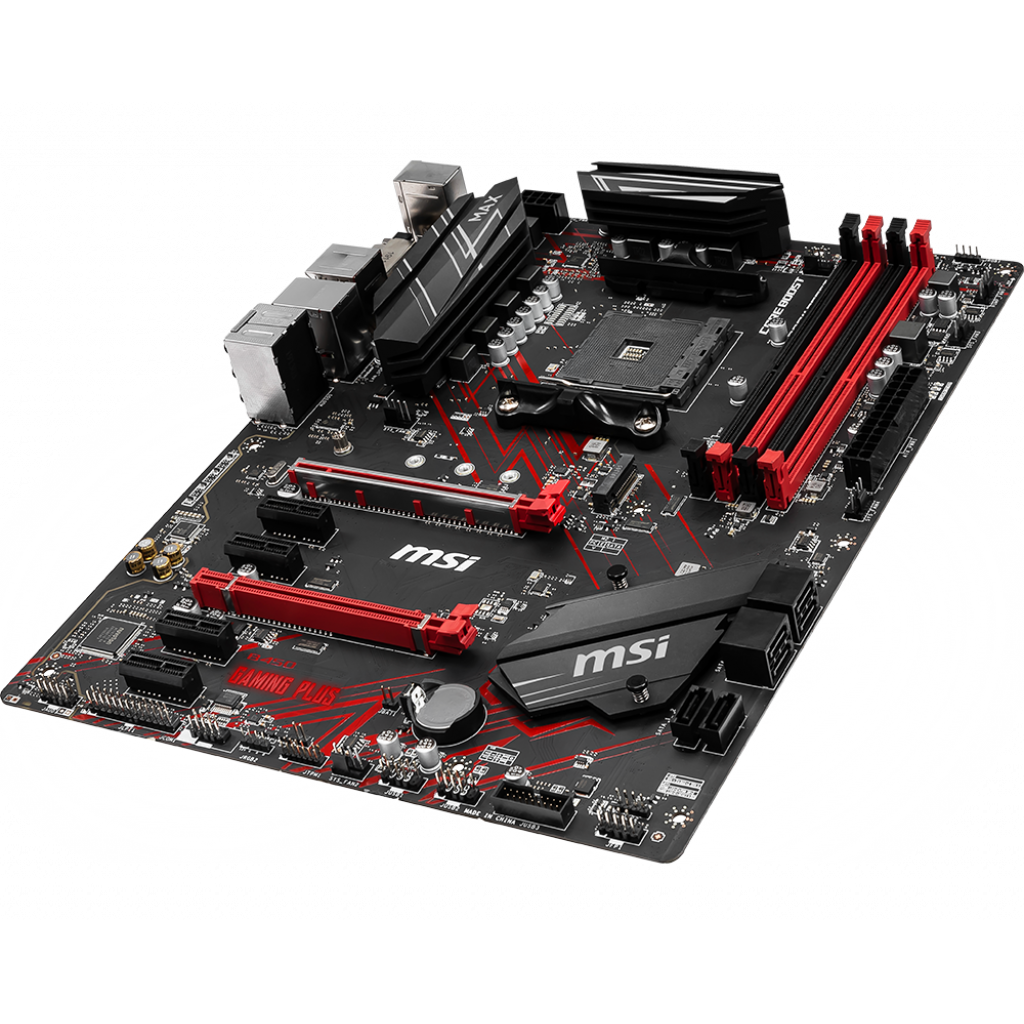

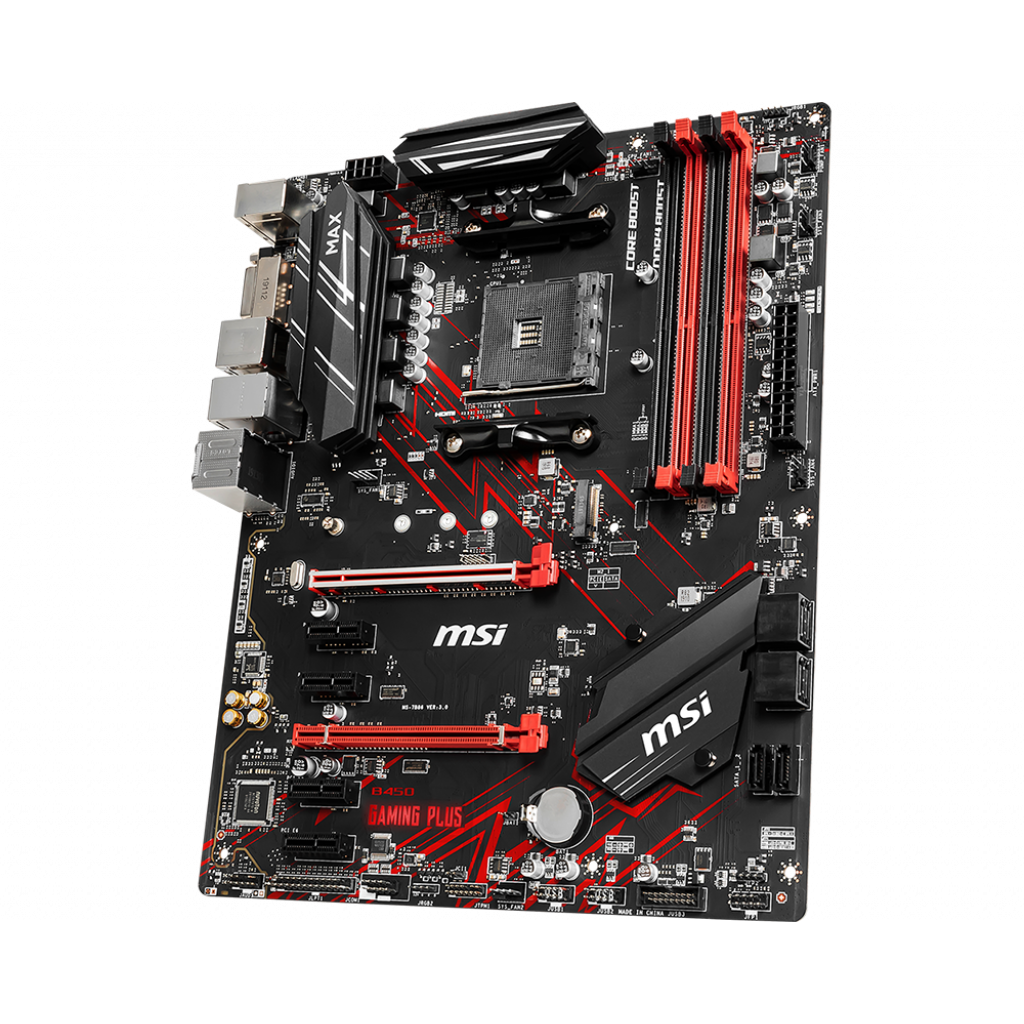

Built on the AMD B450 chipset, the MSI B450 GAMING PLUS MAX AM4 ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are six SATA III ports as well as an M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include Realtek ALC 892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN.


  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

Limited Time Offer
$99.99 $89.99
In Stock

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
  • To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU
  • Manufacturer Number B450 GAMING PLUS MAX
    Product Condition New
    CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
    Chipset AMD® B450 Chipset
    CPU Socket AM4
    Form Factor ATX
    Memory 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

  • For AMD Ryzen Gen3 (R5/R7/R9)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
  • For AMD Other CPU
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)

  • Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    LAN 1 x Realtek® 8111H Gigabit LAN controller
    Wireless LAN N/A
    Bluetooth N/A
    Audio Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
  • MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
    STORAGE 1 x M.2 slots
    6 x SATA 6Gb/s
    Onboard Graphics 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
    1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

  • Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  • Maximum shared memory of 2048 MB
  • RAID Supports RAID 0, RAID 1 and RAID 10

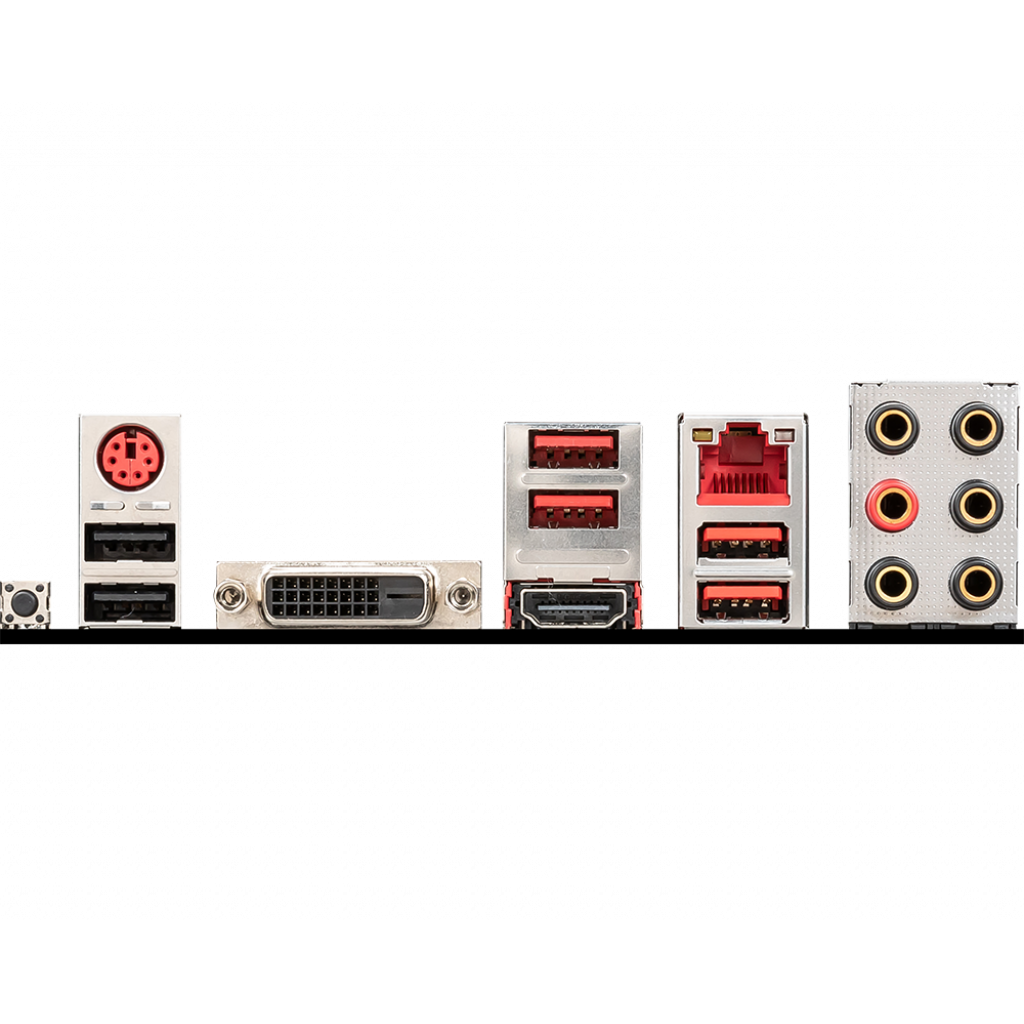

    I/O (Rear) PS/2 Combo Port
    USB 3.2 Gen1
    LAN Port
    HD Audio Connectors
    Flash BIOS Button
    USB 2.0 Ports
    DVI-D Port
    HDMI Port
    USB 3.2 Gen2
    Expansion Slots 1 x PCIe 3.0 x16 slot (PCI_E1)
    1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
    4 x PCIe 2.0 x1 slots
    USB (Front) 2 x (Gen1, Type A)
    4 x (v2.0)
    USB (Rear) 2 x (Gen2, Type A)
    2 x (Gen1, Type A)
    2 x (v2.0)
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
    1 x 4-pin CPU fan connector
    1 x 4-pin water-pump-fan connector
    4 x 4-pin system fan connectors
    1 x TPM module connector
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Serial port connector
    1 x Parallel port connector
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    2 x 5050 RGB LED strip 12V connectors
    Dimensions 12.00" x 9.60"
    Manufacturer Warranty 3 Year
