B450M PRO-VDH MAX
B450M PRO-VDH MAX
B450M PRO-VDH MAX
B450M PRO-VDH MAX
B450M PRO-VDH MAX
B450M PRO-VDH MAX

B450M PRO-VDH MAX

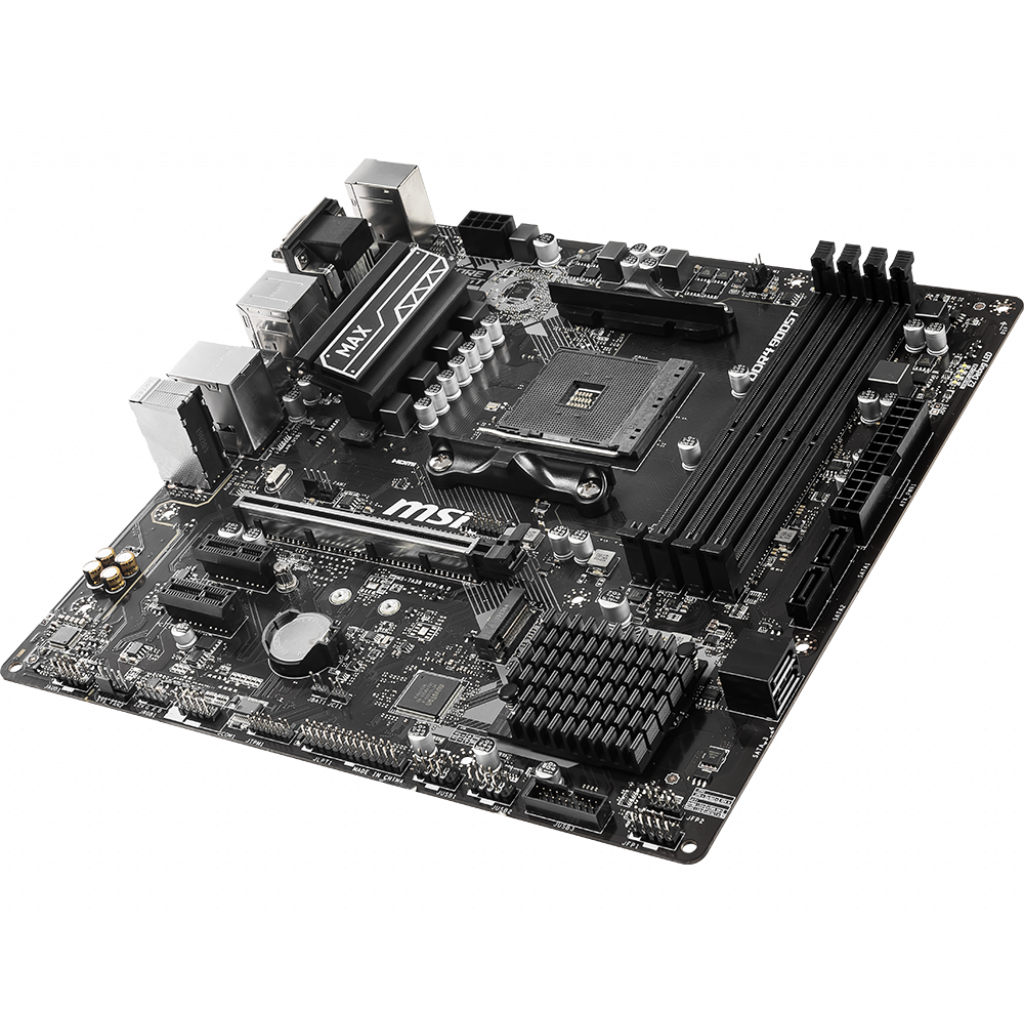

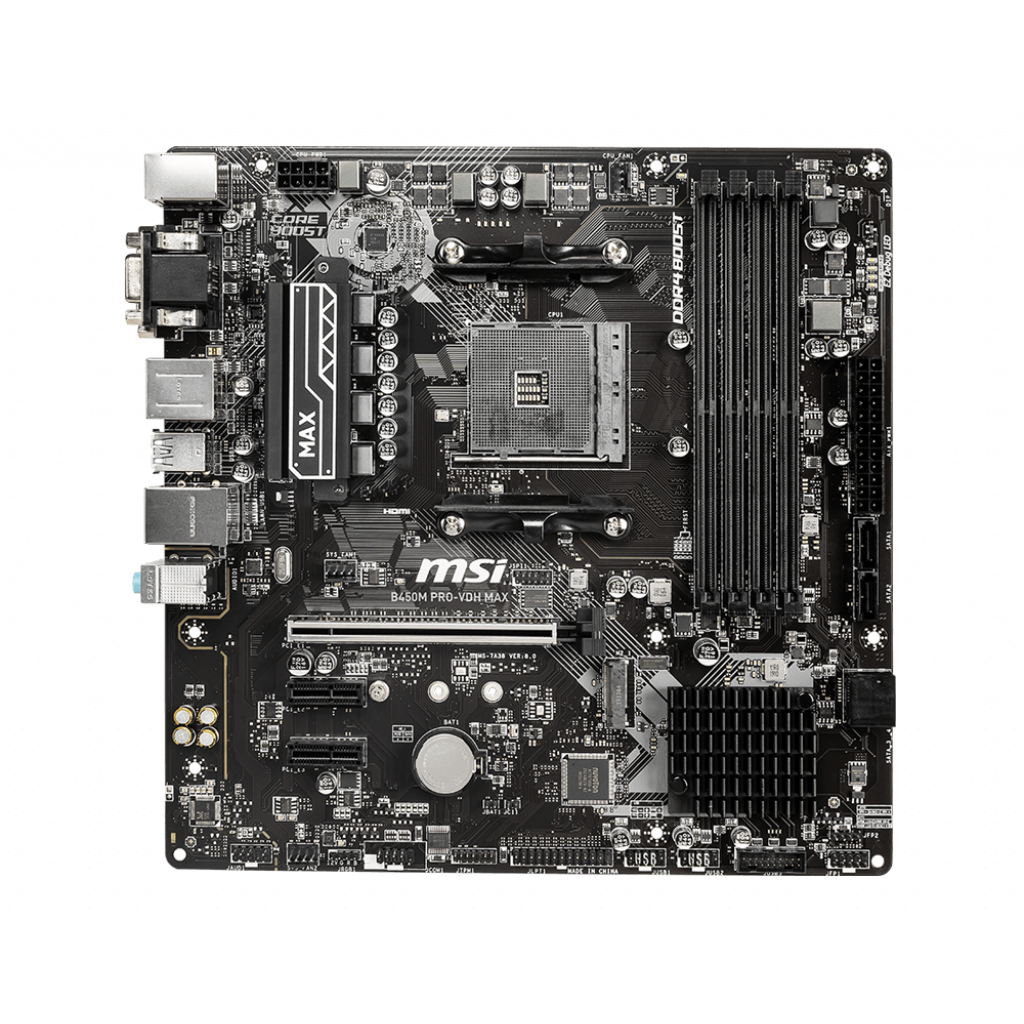

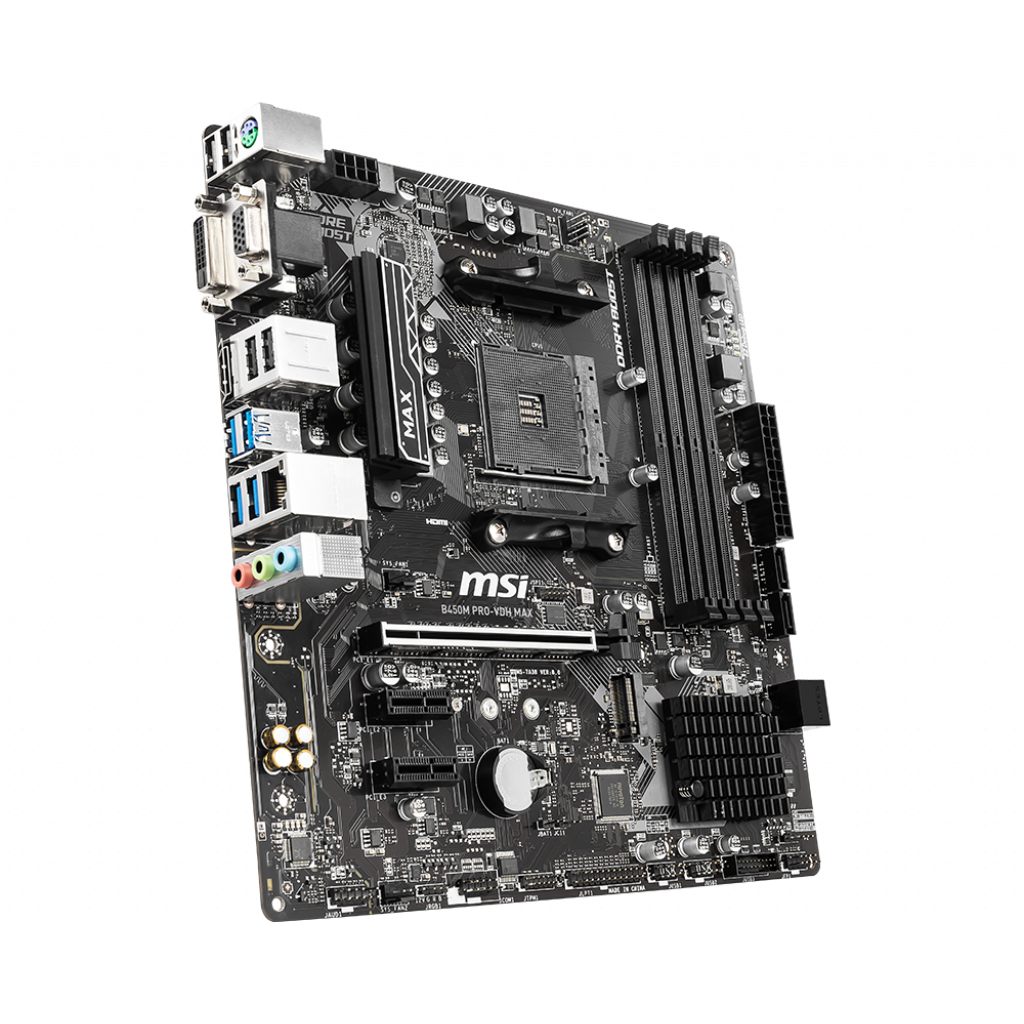

Built on the AMD B450 chipset, the MSI B450M PRO-VDH MAX AM4 Micro-ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are four SATA III ports as well as a Turbo M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D, VGA, and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card.


  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466+(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

Limited Time Offer
$84.99 $69.99
In Stock

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
  • To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU
  • Manufacturer Number B450M PRO-VDH MAX
    Product Condition New
    CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
    Chipset AMD® B450 Chipset
    CPU Socket AM4
    Form Factor m-ATX
    Memory 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • For AMD Ryzen Gen3 (R5/R7/R9)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
  • For AMD Other Processors
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

  • Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    LAN 1 x Realtek® 8111H Gigabit LAN controller
    Wireless LAN N/A
    Bluetooth N/A
    Audio Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
  • MULTI-GPU N/A
    STORAGE 1 x M.2 slots
    4 x SATA 6Gb/s
    Onboard Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
    1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
    1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

  • Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  • Maximum shared memory of 2048 MB
  • RAID Supports RAID 0, RAID 1 and RAID 10

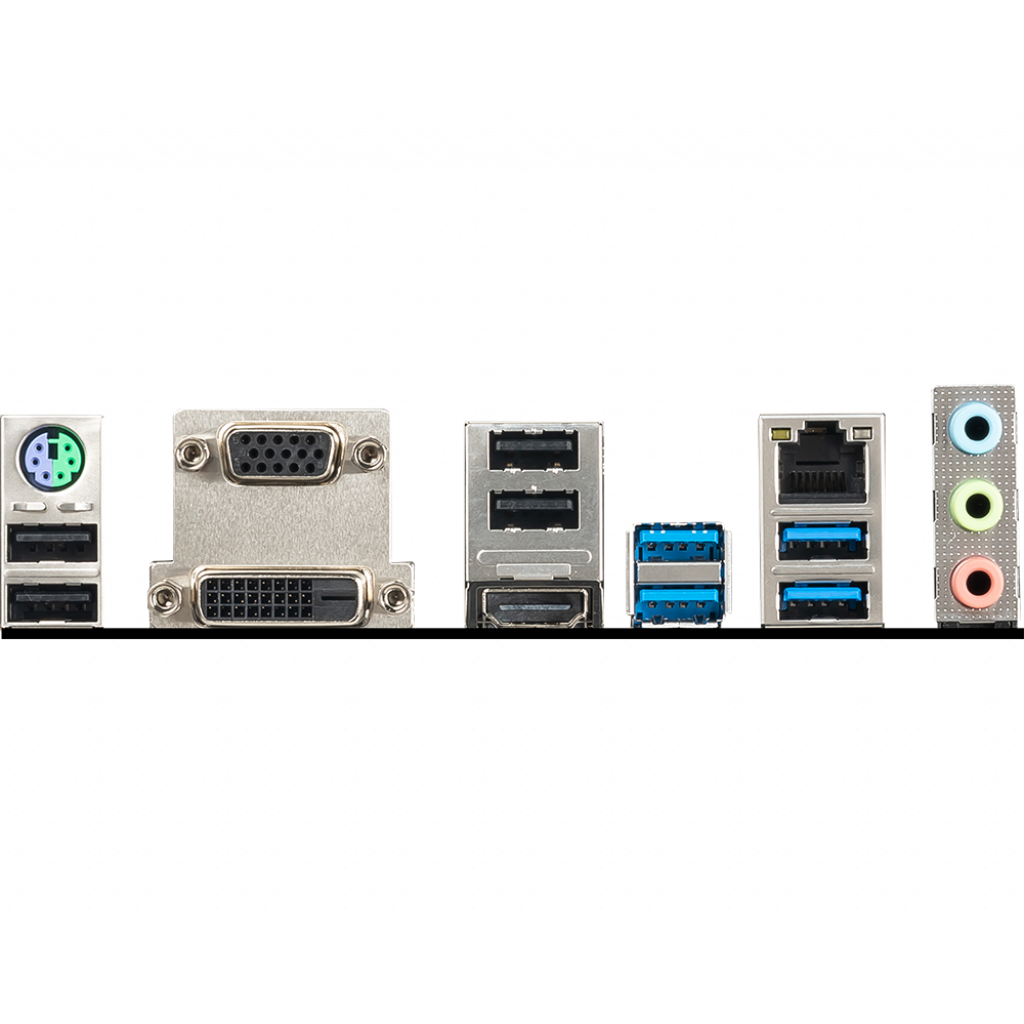

    I/O (Rear) PS/2
    VGA Port
    USB 2.0 Port
    USB 3.2 Gen1
    LAN Port
    HD Audio Connectors
    DVI-D Port
    HDMI Port
    Expansion Slots 1 x PCIe 3.0 x16 slot
    2 x PCIe 2.0 x1 slots
    USB (Front) 2 x (Gen1, Type A)
    4 x (v2.0)
    USB (Rear) 4 x (Gen1, Type A)
    4 x (v2.0)
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    1 x 4-pin CPU fan connector
    2 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x Front panel connectors
    1 x TPM module connector
    1 x Chassis Intrusion connector
    1 x Serial port connector
    1 x Parallel port connector
    1 x RGB LED strip connector
    1 x Clear CMOS jumper
    Dimensions 9.60" x 9.60"
    Manufacturer Warranty 3 Year
