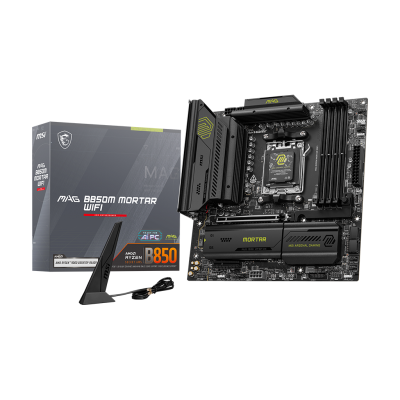

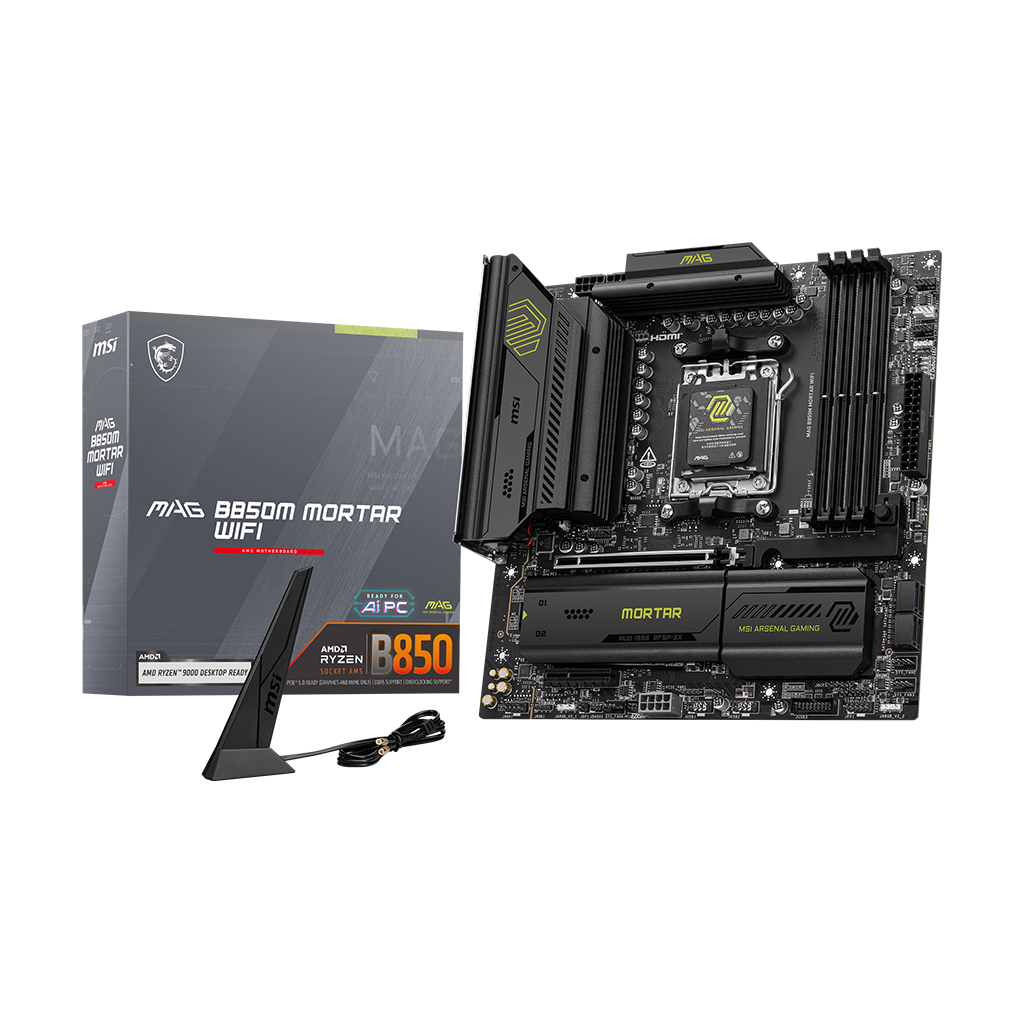

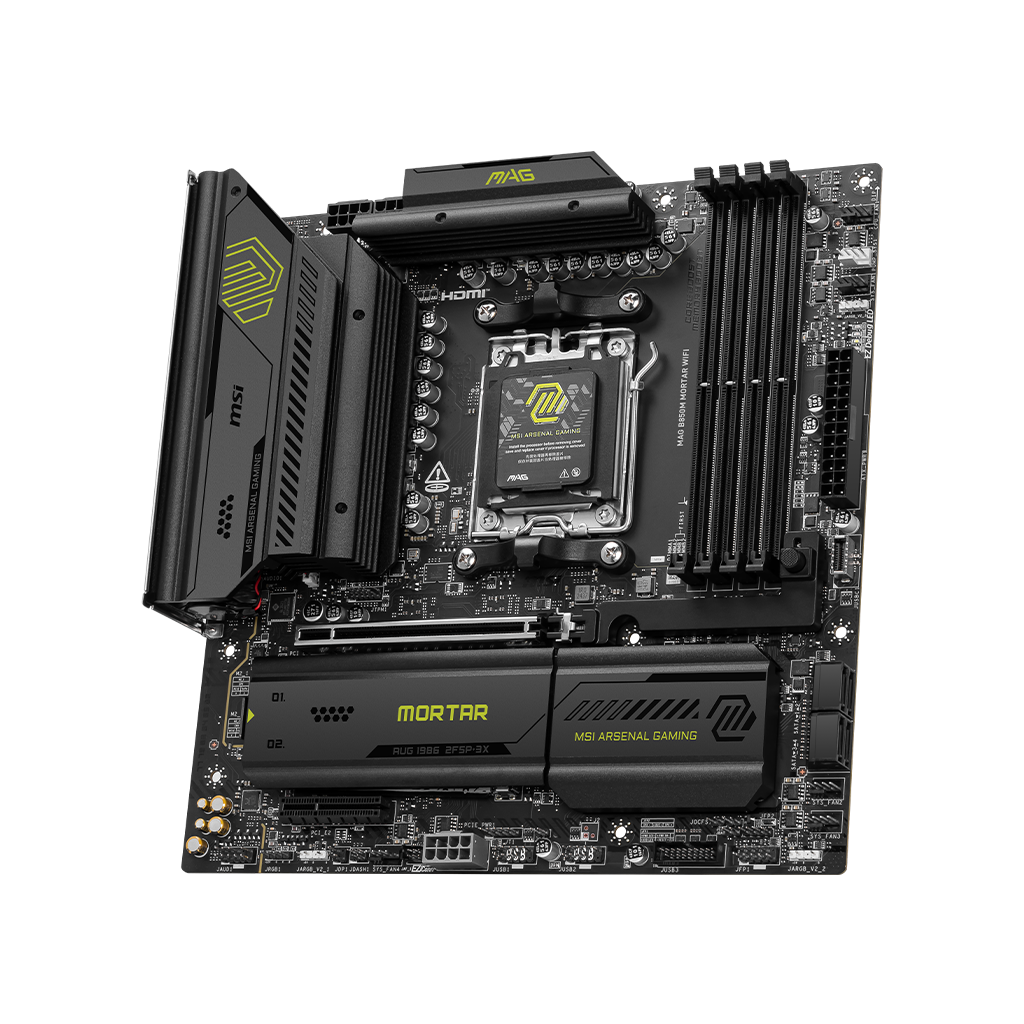

The MAG B850M MORTAR WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: mATX
- Socket Type: AM5
- Chipset: AMD B850
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 11 64-bit |
---|---|
Manufacturer Number | MAG B850M MORTAR WIFI |
Product Condition | New |
CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
Chipset | AMD B850 Chipset |
CPU Socket | Socket AM5 |
Form Factor | mATX Form Factor |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
|
LAN | Realtek® 8126VB 5G LAN |
Wireless LAN | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
Audio | Realtek® ALC4080 Codec
|
MULTI-GPU | - |
---|---|
STORAGE | 2 x M.2 Gen5 x4 128Gbps slots 1 x M.2 Gen4 x2 32Gbps slot 4 x SATA 6Gbps ports |
Onboard Graphics | 1x HDMI™
|
RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
|

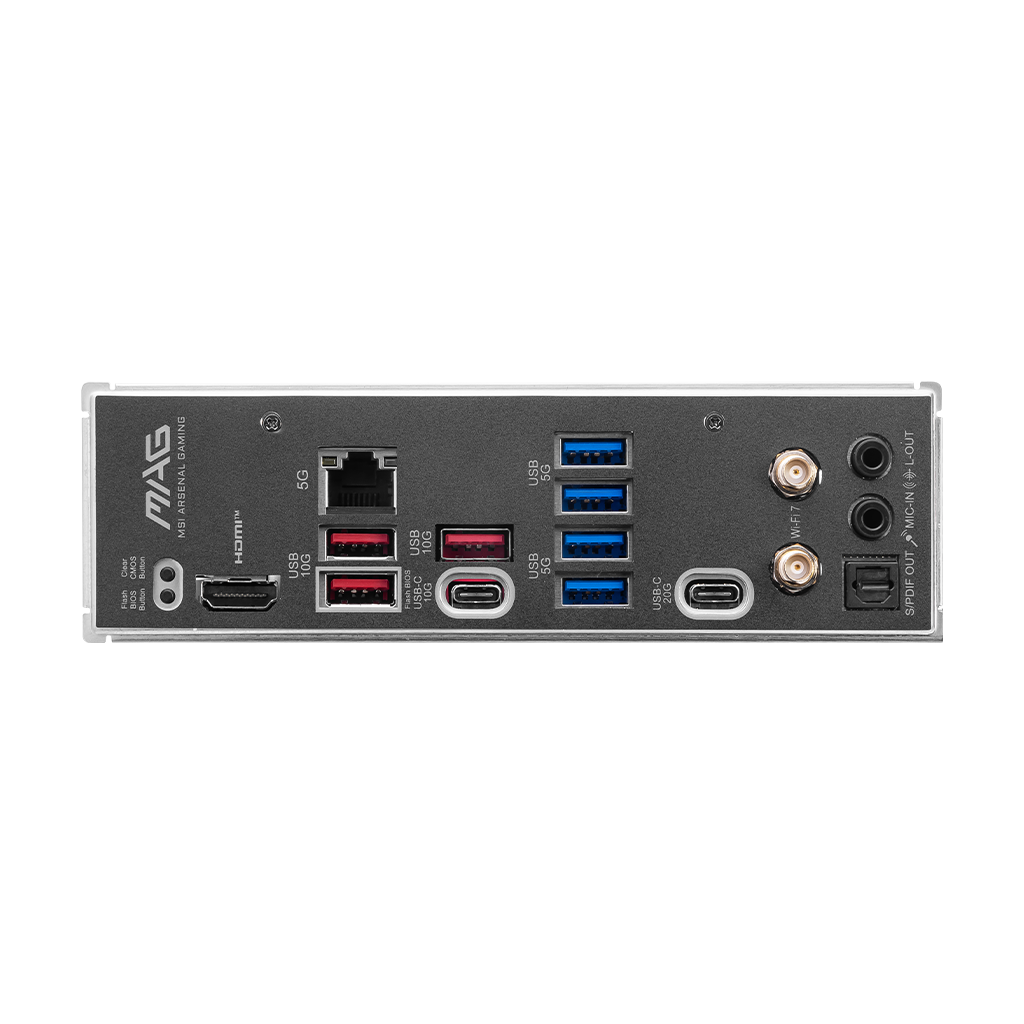

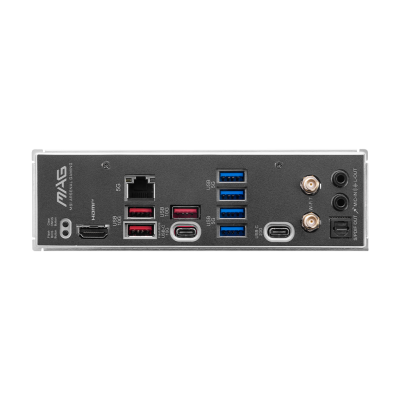

I/O (Rear) | Clear CMOS Button 5G LAN USB 10Gbps Type-A USB 5Gbps Type-A Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-A USB 10Gbps Type-C USB 20Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out |
Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot |
USB (Front) | 4x USB 2.0 2x USB 5Gbps Type A 1x USB 10Gbps Type C |
USB (Rear) | 4x USB 5Gbps Type A 3x USB 10Gbps Type A 1x USB 10Gbps Type C 1x USB 20Gbps Type C |
TYPE-C PORT | 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
Dimensions | 9.60" x 9.60" |
Manufacturer Warranty | 3 Year |

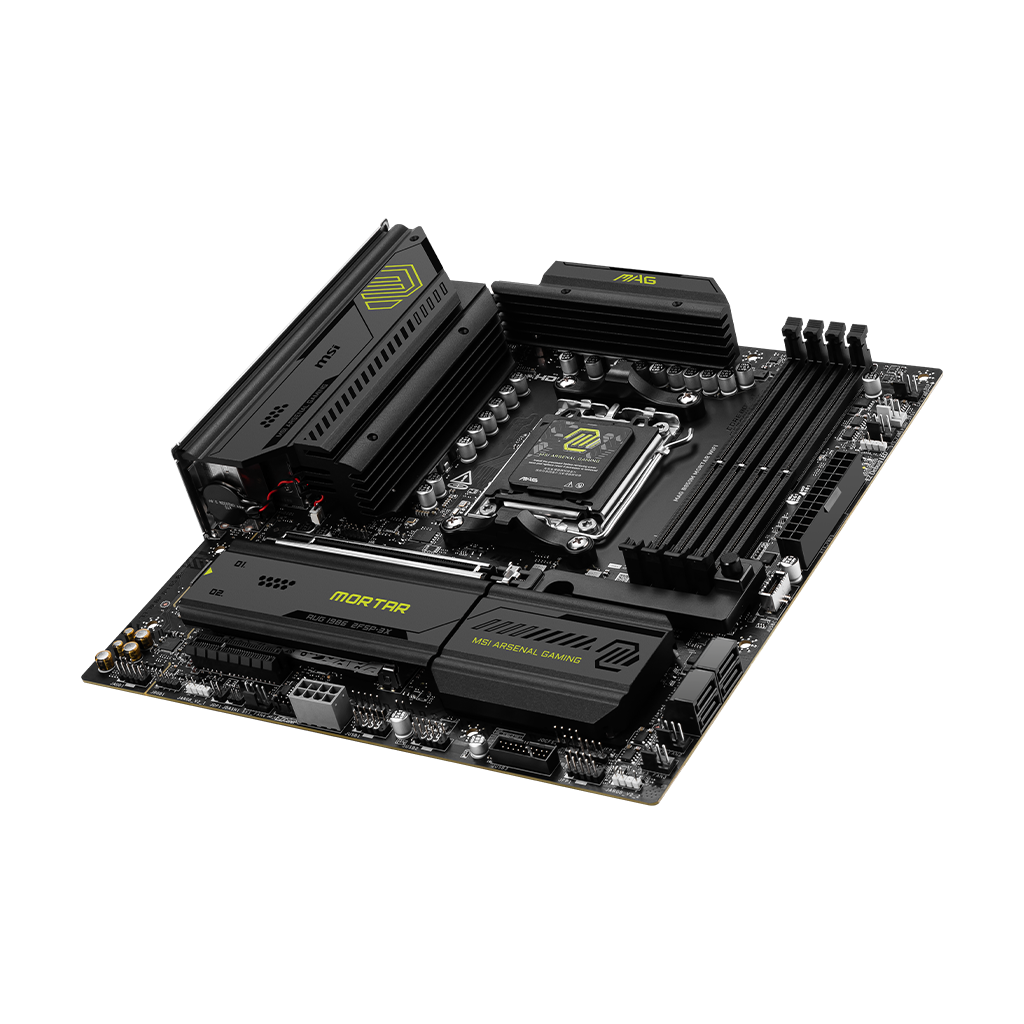

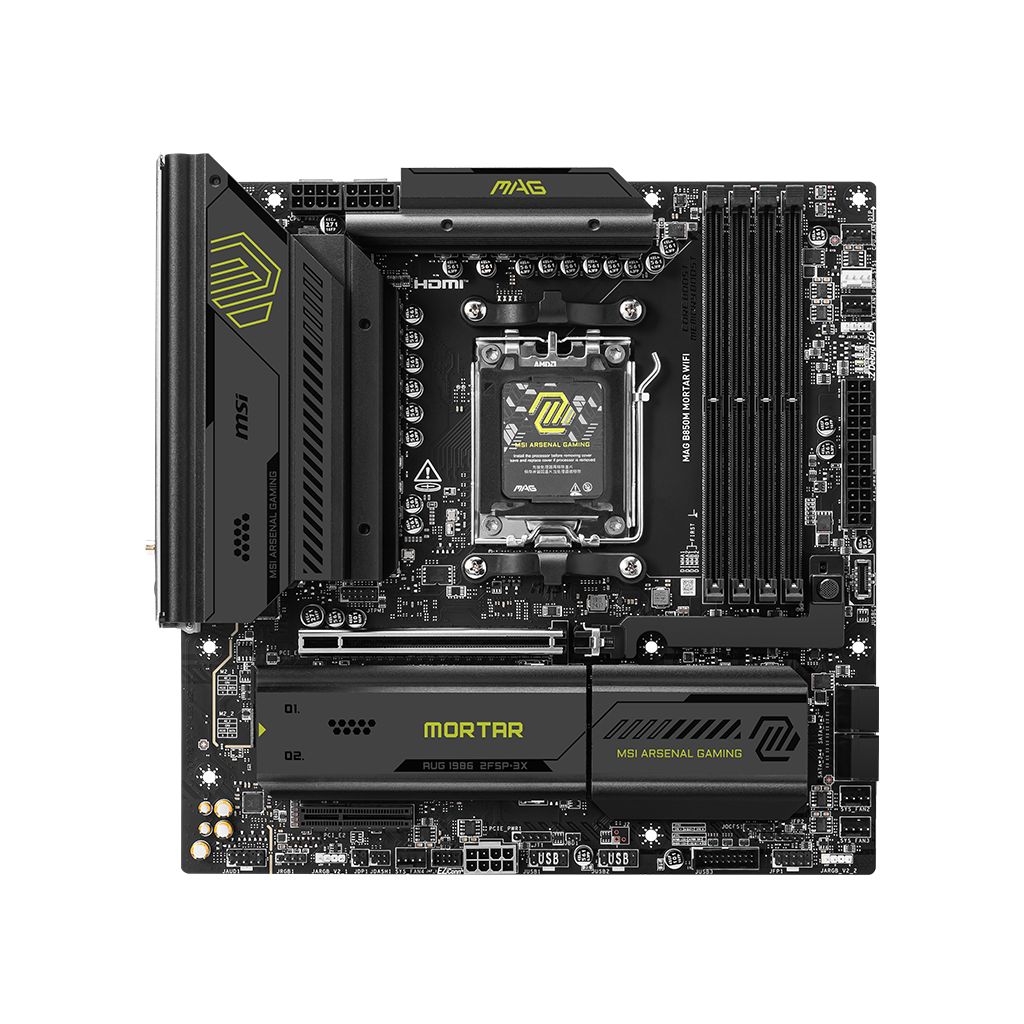

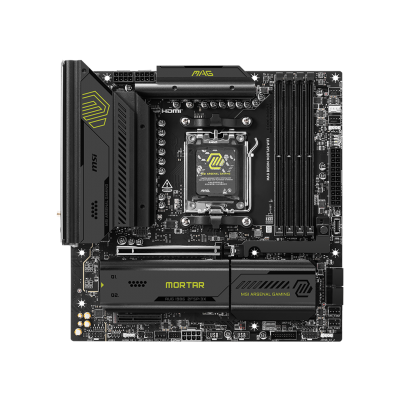

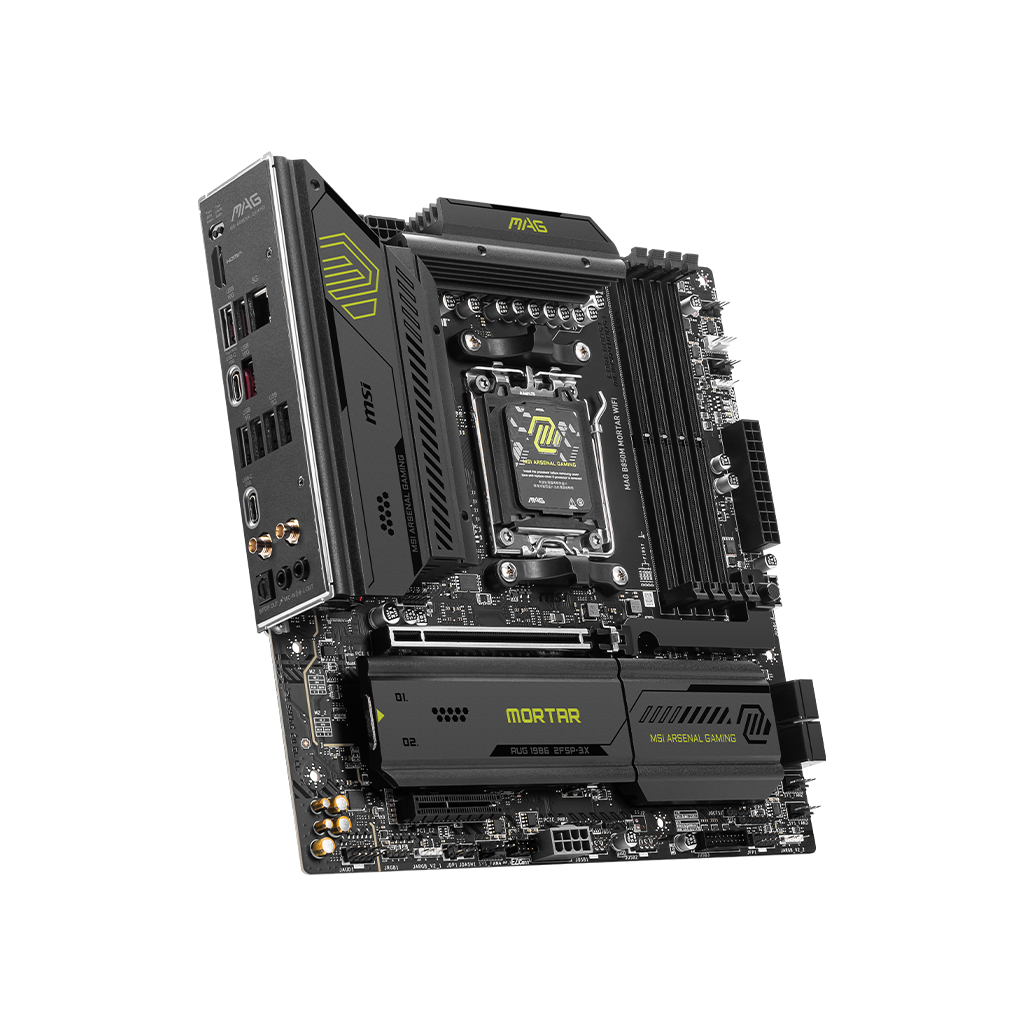

The MAG B850M MORTAR WIFI is a gaming oriented mATX motherboard that is contructued with a 12 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.
The MAG B850M MORTAR WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B850M MORTAR WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO and Intel XMP.
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.
*Supports x16x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The MAG B850M MORTAR WIFI motherboard features MSI's M.2 slots:
*with EZ M.2 Shield Frozr II
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
