Product Condition | New |
---|---|
Manufacturer Part # | MEG X570S ACE MAX |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
Chipset | AMD® X570 Chipset |
CPU Socket | AM4 |
Form Factor | ATX |
Memory | 4 x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Max frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
|
LAN | 1 x Realtek® RTL8125B 2.5 Gbps LAN controller |
Wireless LAN | Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
Bluetooth | Supports Bluetooth® 5.2 FIPS, FISMA |
Audio | Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
|
---|---|
MULTI-GPU | Supports NVIDIA® SLI® Technology Supports AMD CrossFire™ Technology |
STORAGE | 4 x M.2 Gen4 x4 slots 8 x SATA 6Gb/s ports |
RAID | Supports RAID 0, RAID 1 and RAID 10 |

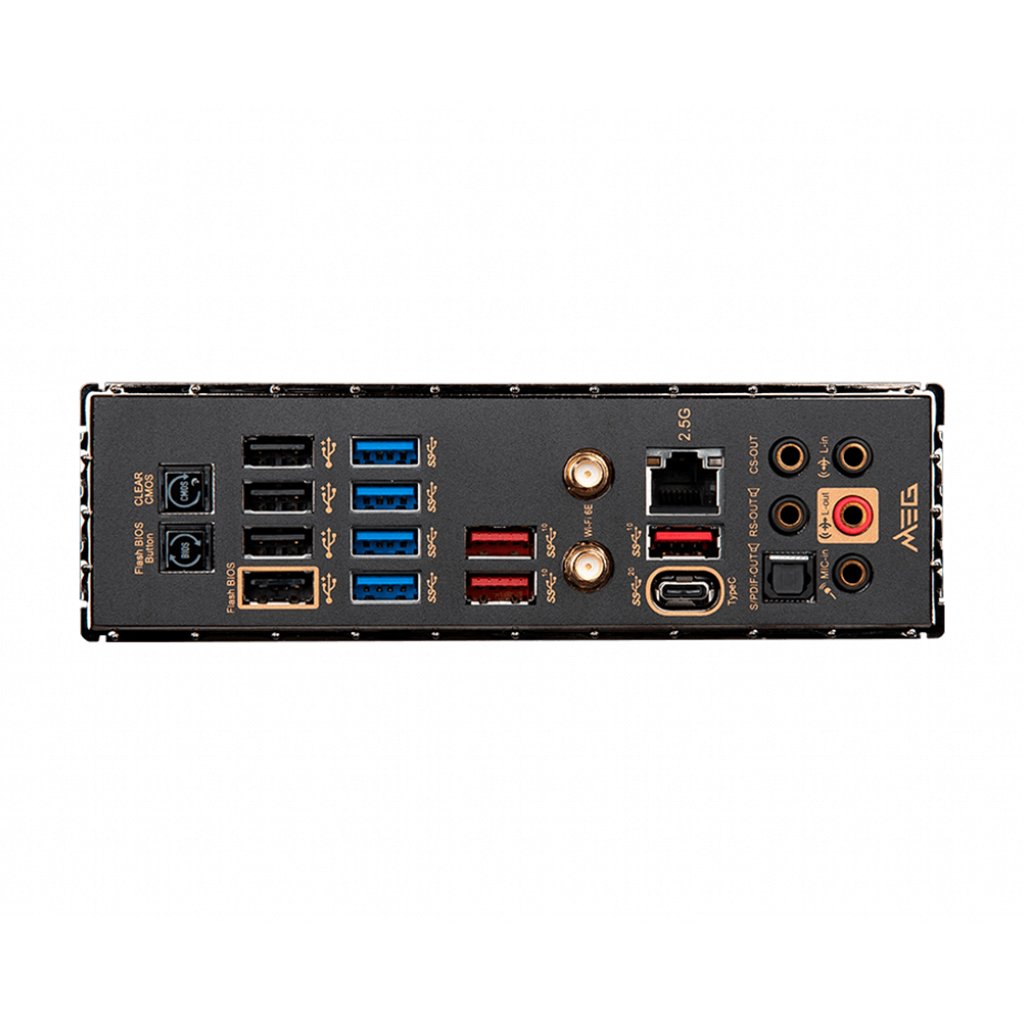

I/O (Rear) | Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth 2.5G LAN HD Audio Connectors Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
Expansion Slots | Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 2x PCIe x16 slots (From processor) PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors 1x PCIe x16 slot (From X570 chipset) PCI_E4 supports x8 1x PCIe x1 slot (From X570 chipset) |
USB (Front) | 1 x (Gen2, Type C) 4 x (Gen1, Type A) 4 x (v2.0) |
USB (Rear) | 1 x (Gen 2x2, Type C) 3 x (Gen 2, Type A) 4 x (Gen 1, Type A) 2 x (v2.0) |
Internal Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 8 x SATA 6Gb/s connectors 4 x M.2 slots (M-Key) 2 x USB 2.0 connectors 2 x USB 3.2 Gen 1 5Gbps connectors 1 x USB 3.2 Gen 2 10Gbps Type-C connector 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 2 x 2-pin Thermal sensors connectors 1 x Water Flow Meter connector 1 x Tuning Controller connector |
Dimensions | 12.0" x 9.60" |
Manufacturer Warranty | 3 Year |
