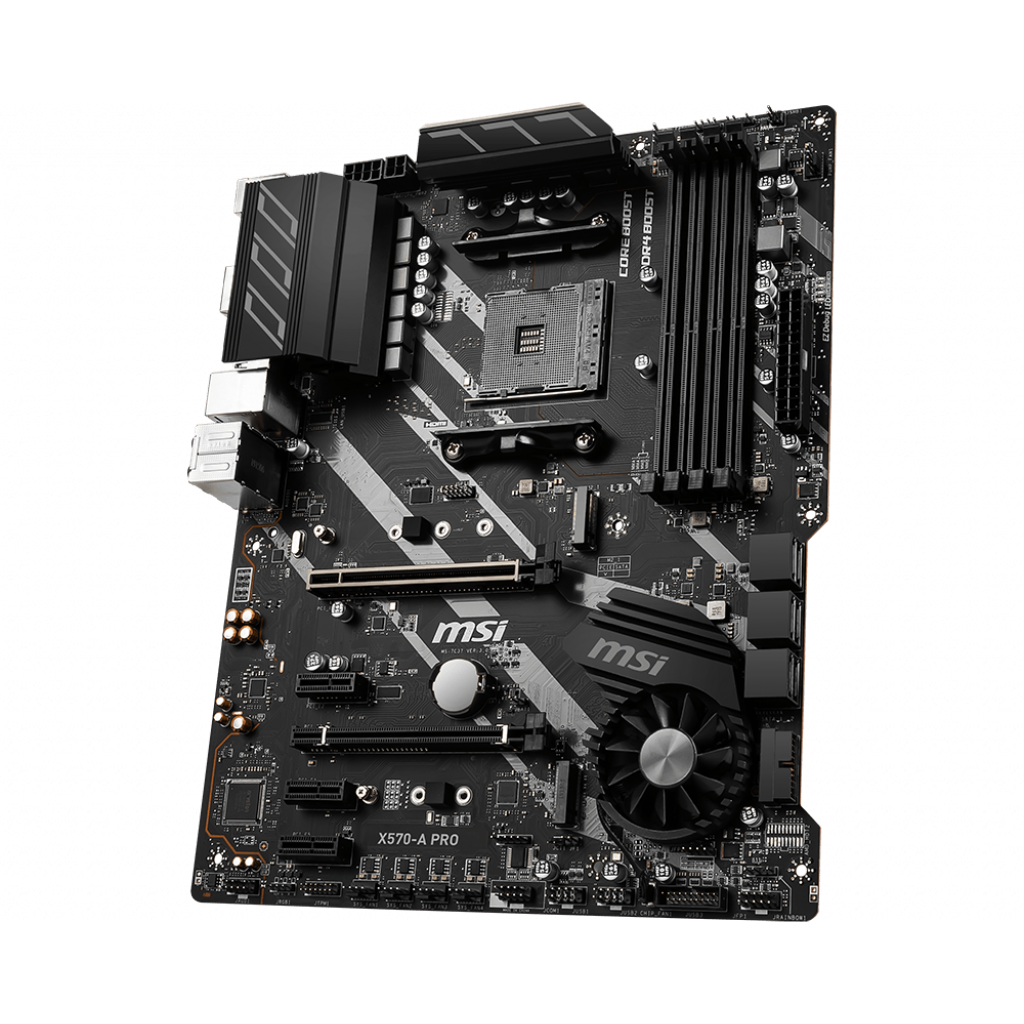

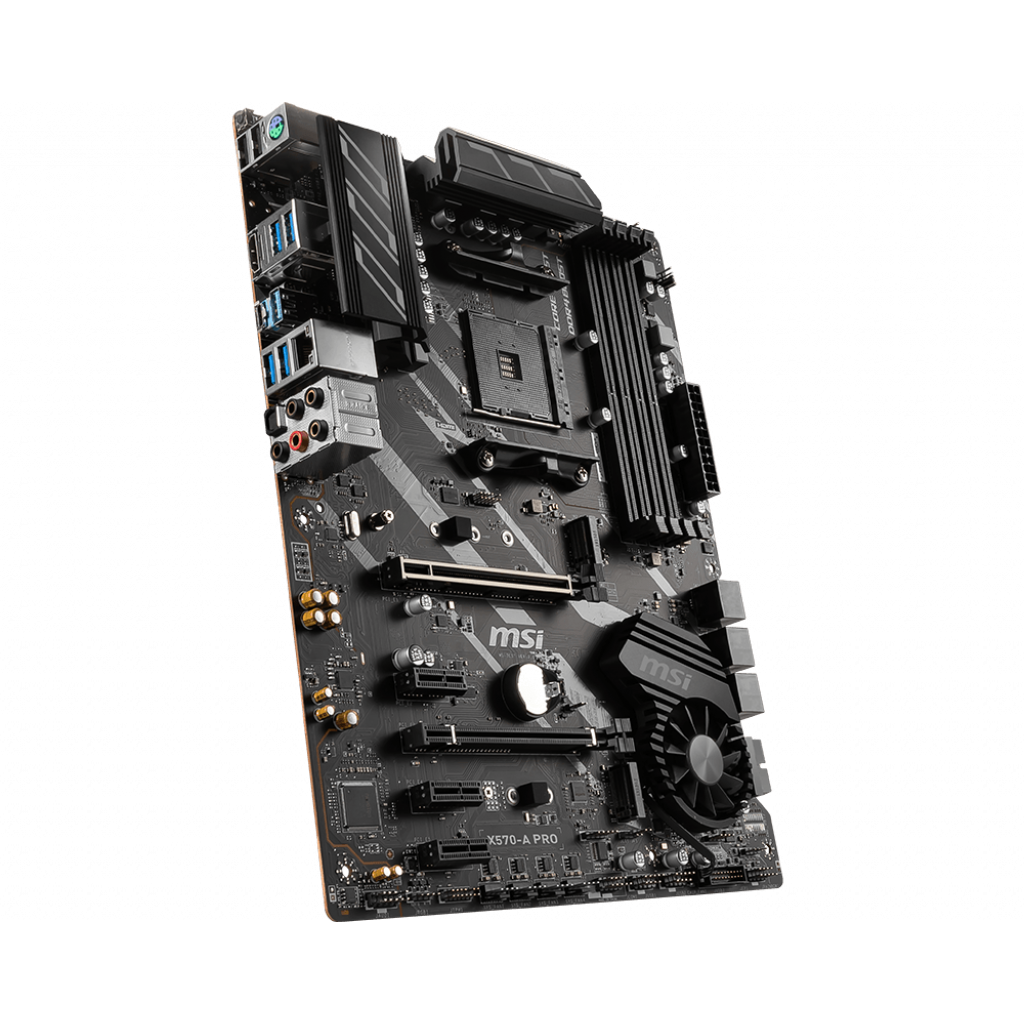

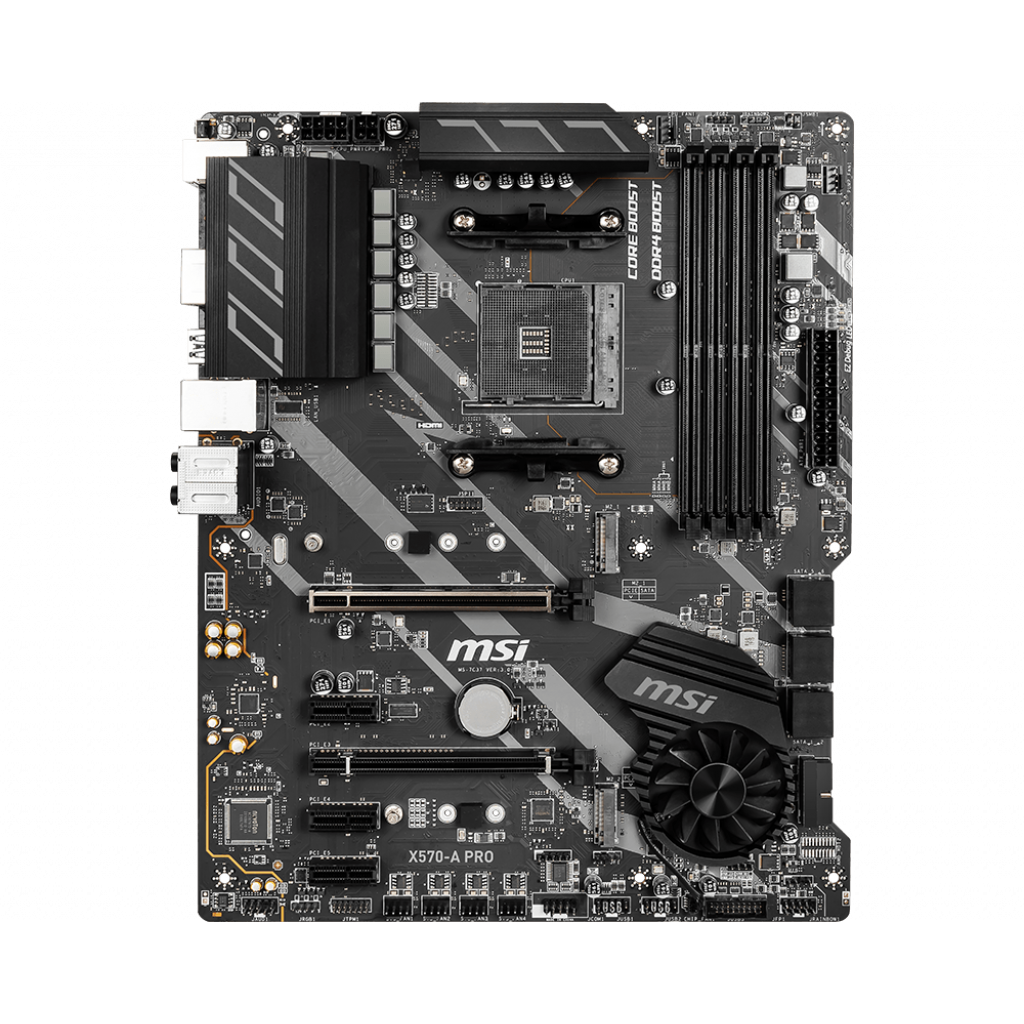

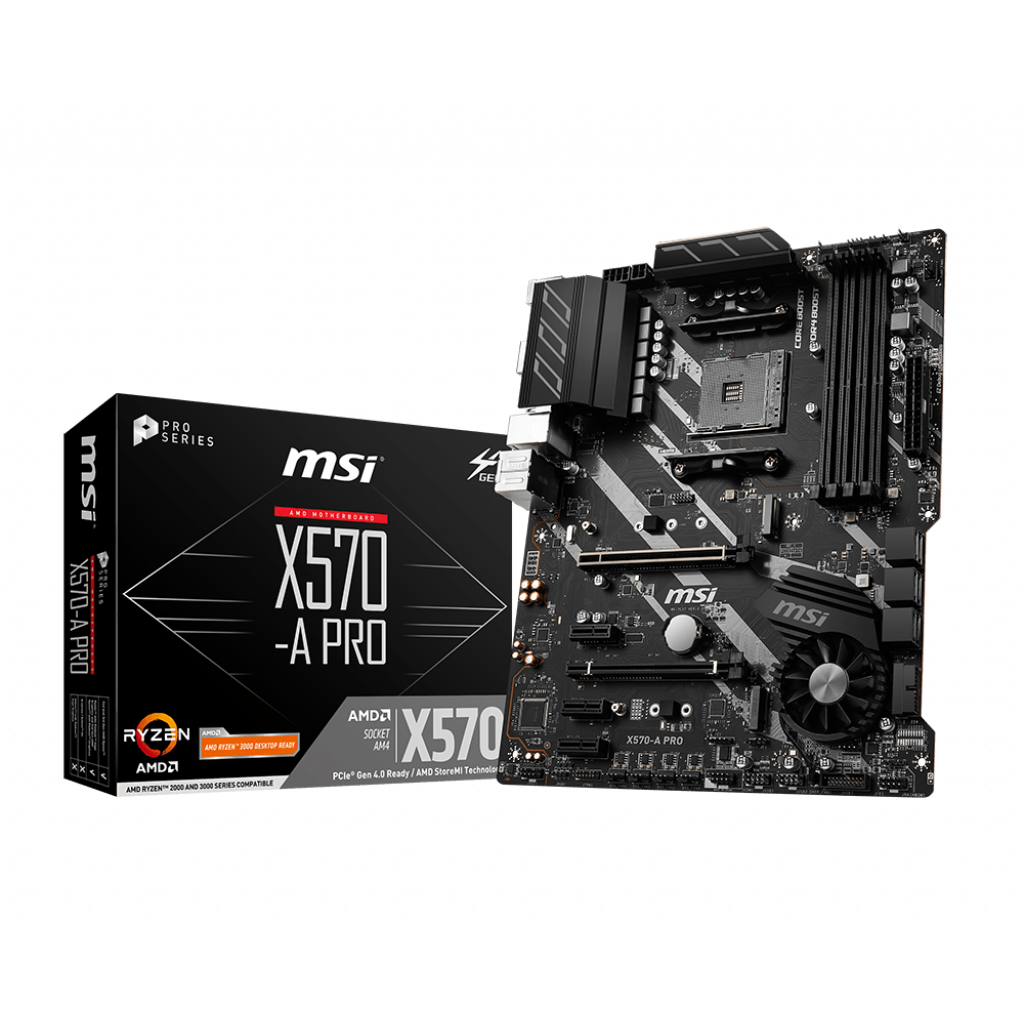

X570-A PRO
X570-A PRO
X570-A PRO
X570-A PRO
X570-A PRO
X570-A PRO

X570-A PRO

Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heatsink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector


  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports 4 DIMMs, Dual Channel Memory DDR4, up to 4400+(OC) MHz
  • Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
  • Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

$149.99
Out of Stock

DETAIL SPECIFICATION

Product Condition New
Manufacturer Part # X570-A PRO
OPERATING SYSTEM Support for Windows® 10 64-bit
CPU Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset AMD® X570 Chipset
CPU Socket AM4
Form Factor ATX
Memory 4 x DDR4 memory slots, support up to 128GB
  • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE

  • Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory
    LAN 1 x Realtek® 8111H Gigabit LAN Controller
    Wireless LAN N/A
    Bluetooth N/A
    Audio Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
  • MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
    STORAGE 1 x Lightning M.2 slot (Gen4 x4)
    1 x Turbo M.2 slot (Gen3 x4)
    6 x SATA 6Gb/s
    Onboard Graphics 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

  • Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • Maximum shared memory of 2048 MB
  • RAID Supports RAID 0, RAID 1 and RAID 10

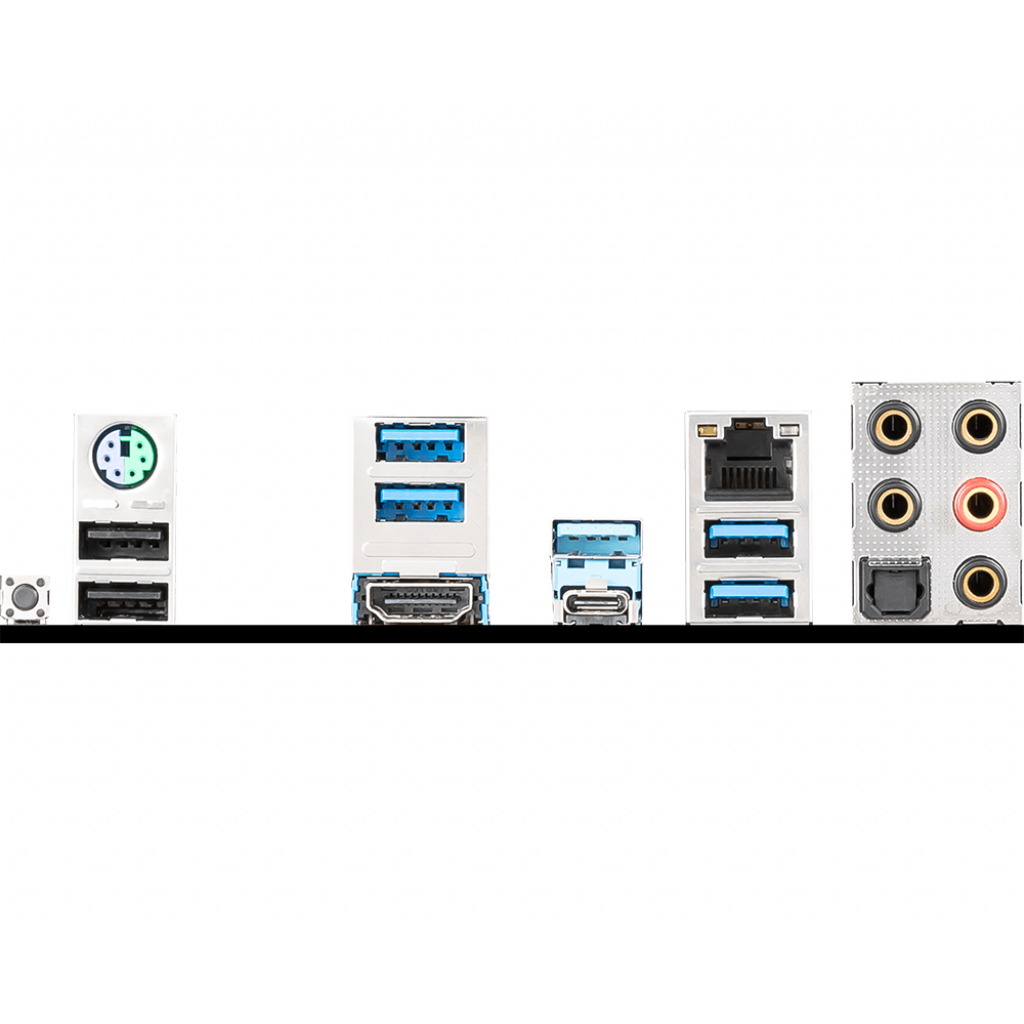

    I/O (Rear) Keyboard / Mouse
    USB 3.2 Gen1 Type-A
    LAN Port
    HD Audio Connectors
    Flash BIOS Button
    USB 2.0 Ports
    HDMI Port
    USB 3.2 Gen2 Ports (Type-A + C)
    USB 3.2 Gen1 Type-A Ports
    Optical S/PDIF out
    Expansion Slots 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
    3 x PCIe 3.0 x1 slots
    USB (Front) 4 x (Gen1, Type A)
    4 x (v2.0)
    USB (Rear) 1 x (Gen2, Type C)
    1 x (Gen2, Type A)
    4 x (Gen1, Type A)
    2 x (v2.0)
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
    1 x 4-pin CPU fan connector
    1 x 4-pin water-pump connector
    4 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x TPM module connector
    1 x Serial port connector
    1 x Clear CMOS jumper
    1 x Chassis Intrusion connector
    2 x 4-pin RGB LED connectors
    2 x 3-pin RAINBOW LED connectors
    4 x EZ Debug LEDs
    Dimensions 12.0" x 9.60"
    Manufacturer Warranty 3 Year
