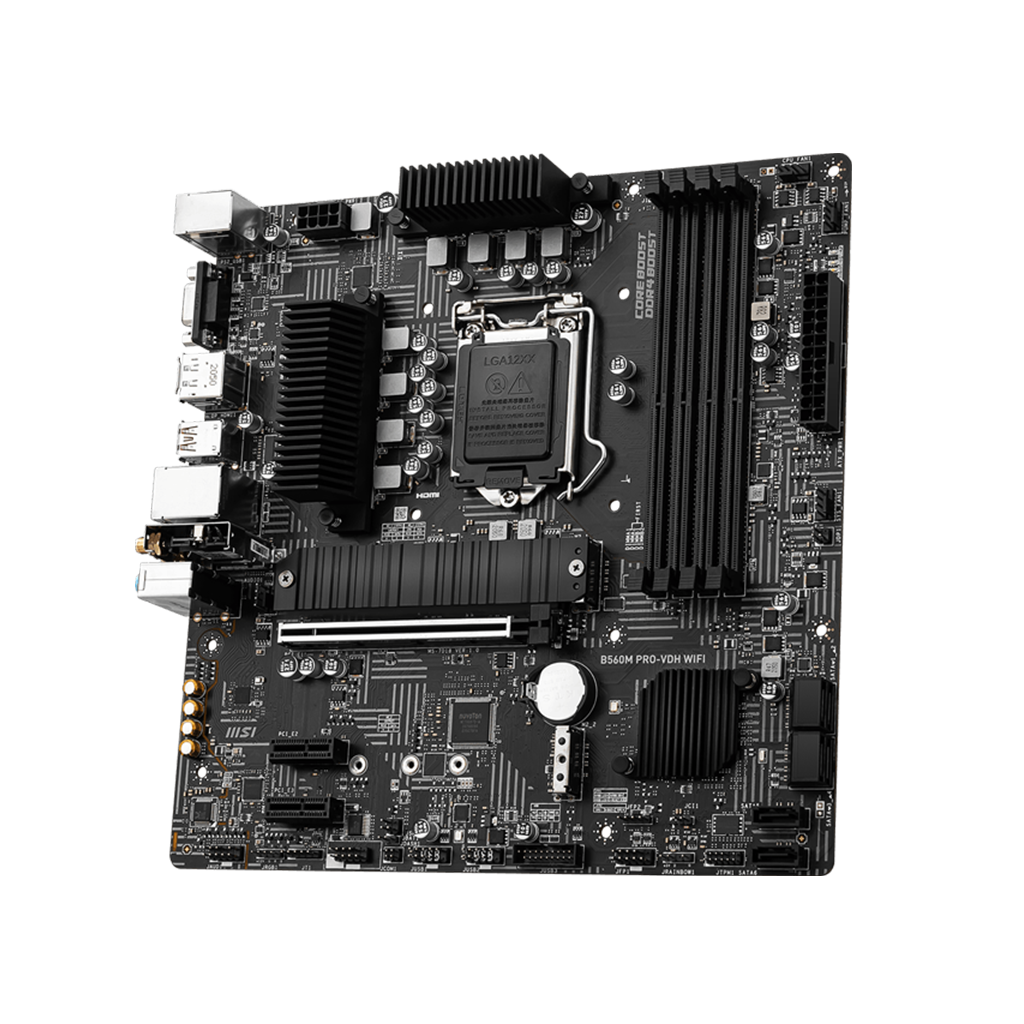

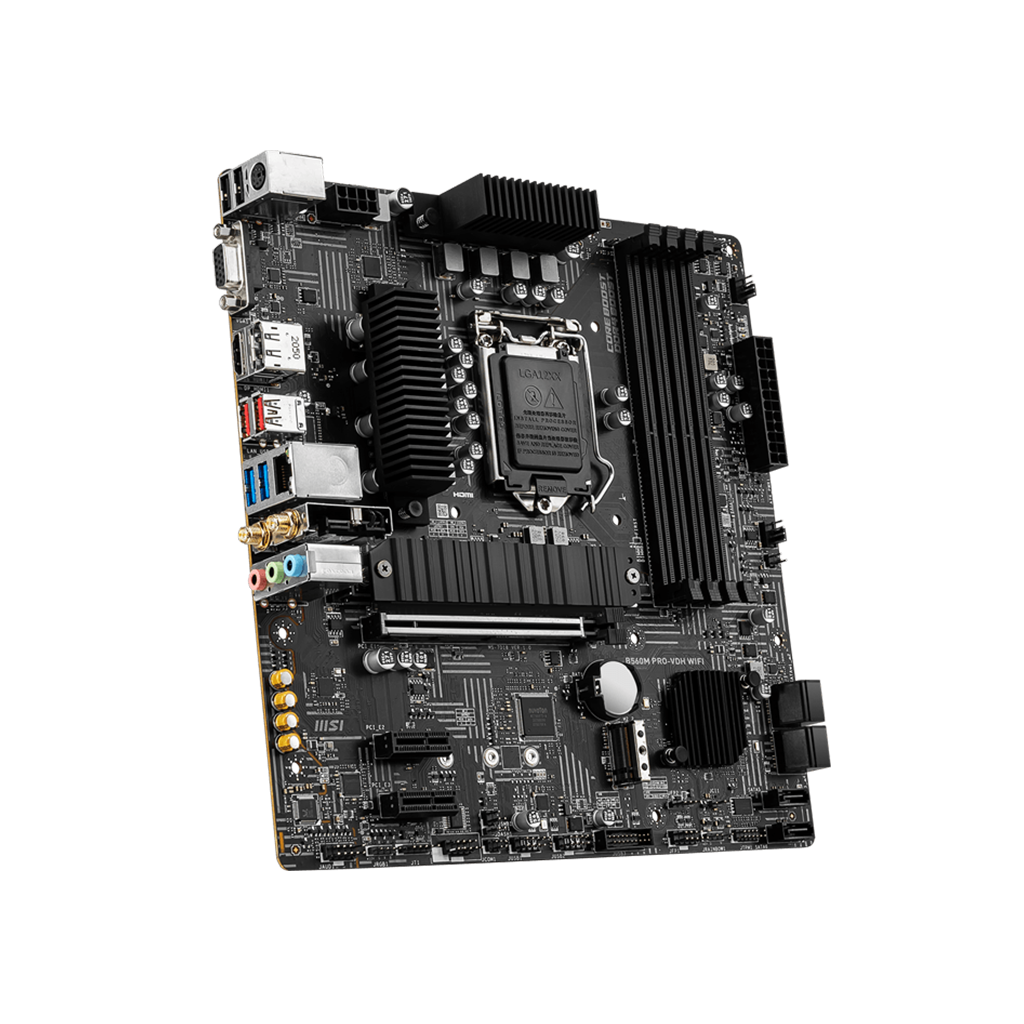

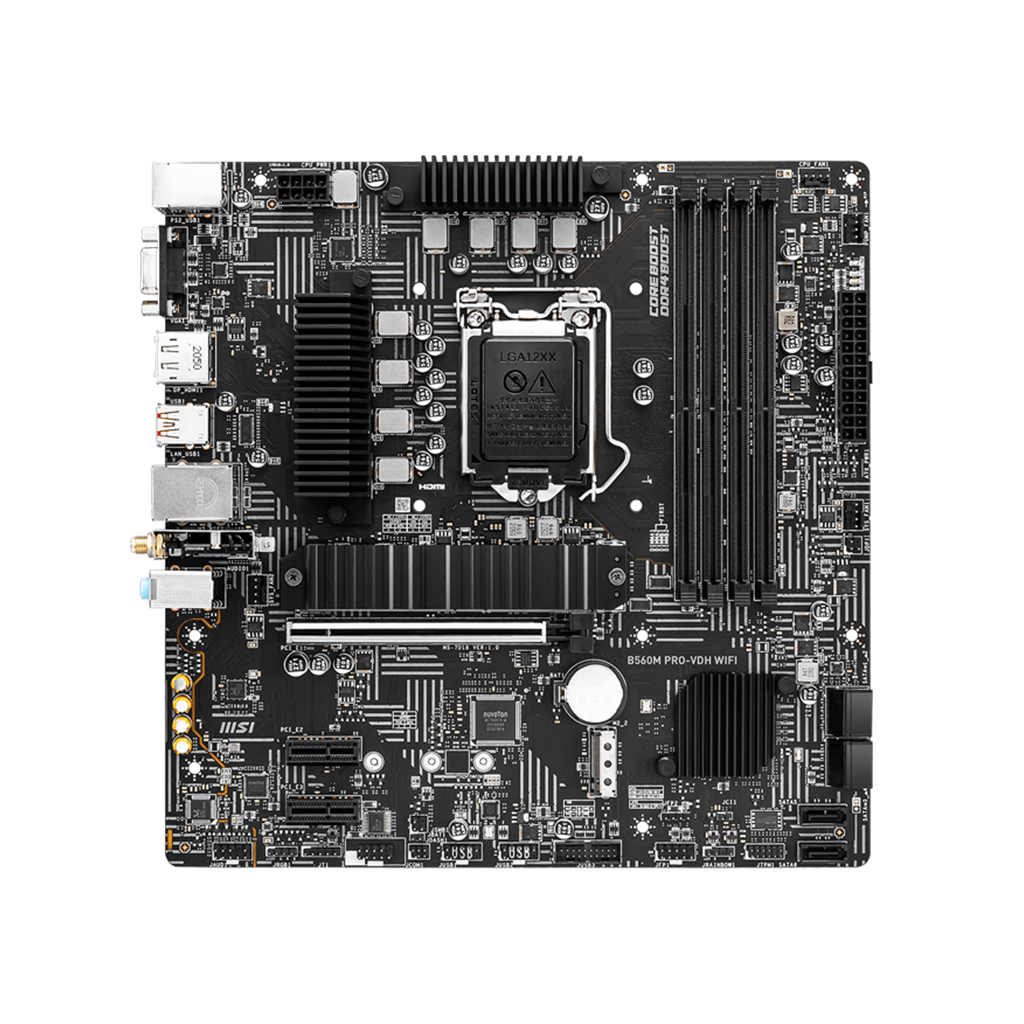

B560M PRO-VDH WIFI
B560M PRO-VDH WIFI
B560M PRO-VDH WIFI
B560M PRO-VDH WIFI
B560M PRO-VDH WIFI
B560M PRO-VDH WIFI

B560M PRO-VDH WIFI

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

$129.99
In Stock

DETAIL SPECIFICATION

Product Condition New
Manufacturer Part # B560M PRO-VDH WIFI
OPERATING SYSTEM Support for Windows® 10 64-bit
CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors
Processor socket LGA1200
Chipset Intel® B560 Chipset
CPU Socket LGA 1200
Form Factor M-ATX
Memory 4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • 1DPC 1R Max speed up to 5066 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
  • 2DPC 1R Max speed up to 4266+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz

  • Supports Dual-Channel mode
    Supports non-ECC mode, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    LAN 1 x Realtek® 8125B 2.5Gbps LAN Controller
    Wireless LAN Intel® WiFi-6 AX201
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • WiFi 6 pre certified
  • Bluetooth Supports Bluetooth® 5.1, FIPS, FISMA
    Audio Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • MULTI-GPU -
    STORAGE 1 x M.2 Gen4 x4 64Gb/s slot
    1 x M.2 Gen3 x4 32Gb/s slot
    6 x SATA 6Gb/s ports
    Onboard Graphics 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
    1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
    1 x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
    RAID -

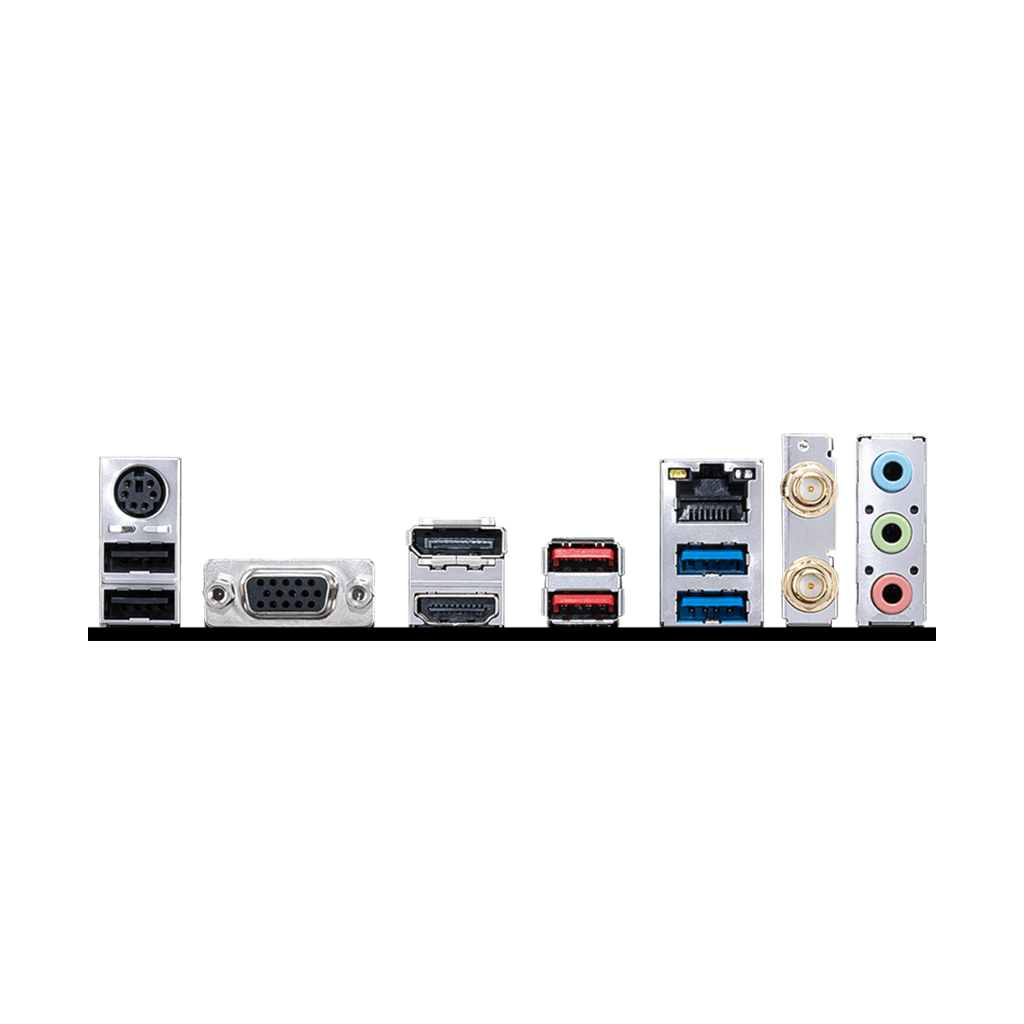

    I/O (Rear) Keyboard / Mouse
    VGA
    DisplayPort
    USB 3.2 Gen 2 10Gbps Type-A
    LAN port
    WiFi / Bluetooth
    Audio connector
    USB 2.0
    HDMI
    USB 3.2 Gen 1 5Gbps Type-A
    Expansion Slots 1 x PCIe x16 slot (From CPU)
    2 x PCIe 3.0 x1 slots (From B560 chpiset)
    USB (Front) 2 x (Gen1, Type A)
    4 x (v2.0)
    USB (Rear) 2 x (Gen2, Type A)
    2 x (Gen1, Type A)
    2 x (v2.0)
    TYPE-C PORT -
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    2 x M.2 slots (M-Key)
    1 x USB 3.2 Gen 1 5Gbps connector
    2 x USB 2.0 connectors
    1 x 4-pin CPU fan connector
    1 x 4-pin water-pump fan connector
    2 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x TPM module connector
    1 x Serial port connector
    1 x Tuning Controller Connector
    Dimensions 9.30" x 8.00"
    Manufacturer Warranty 3 Year
