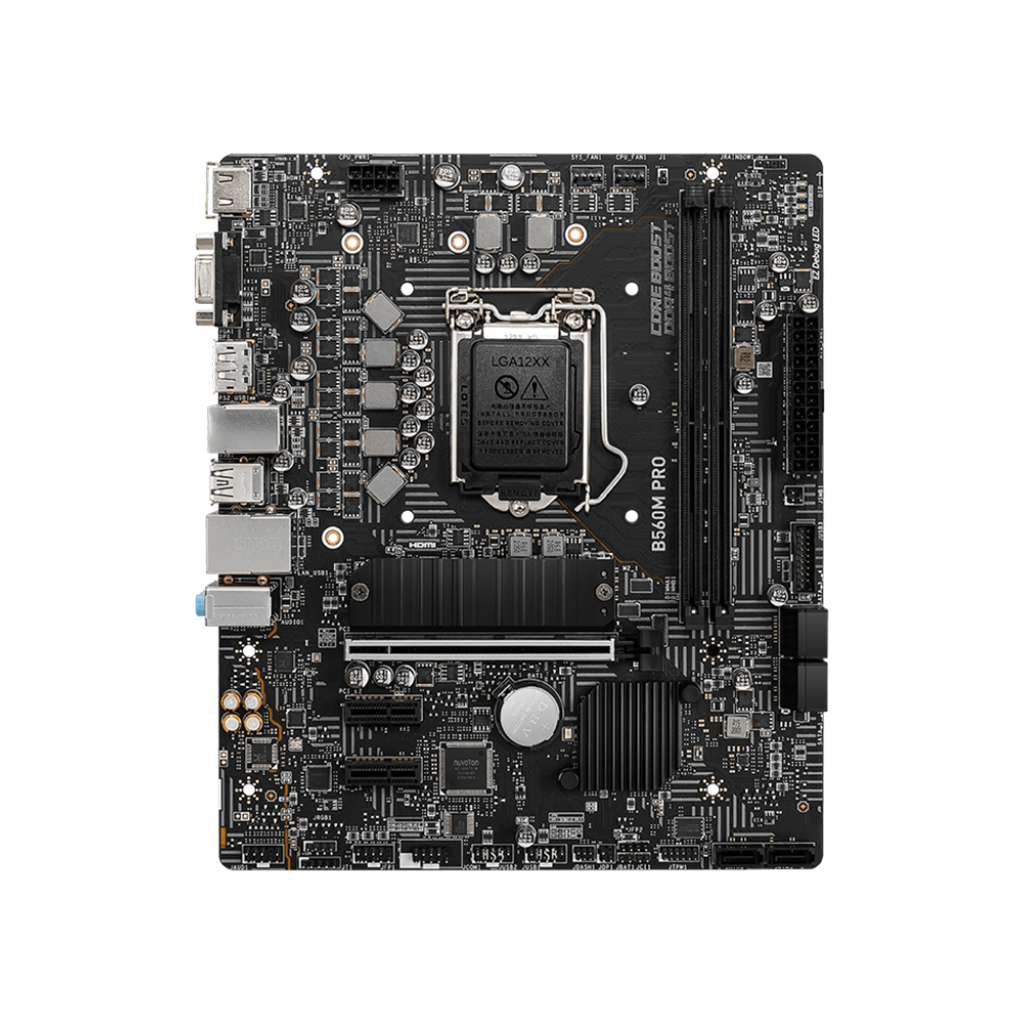

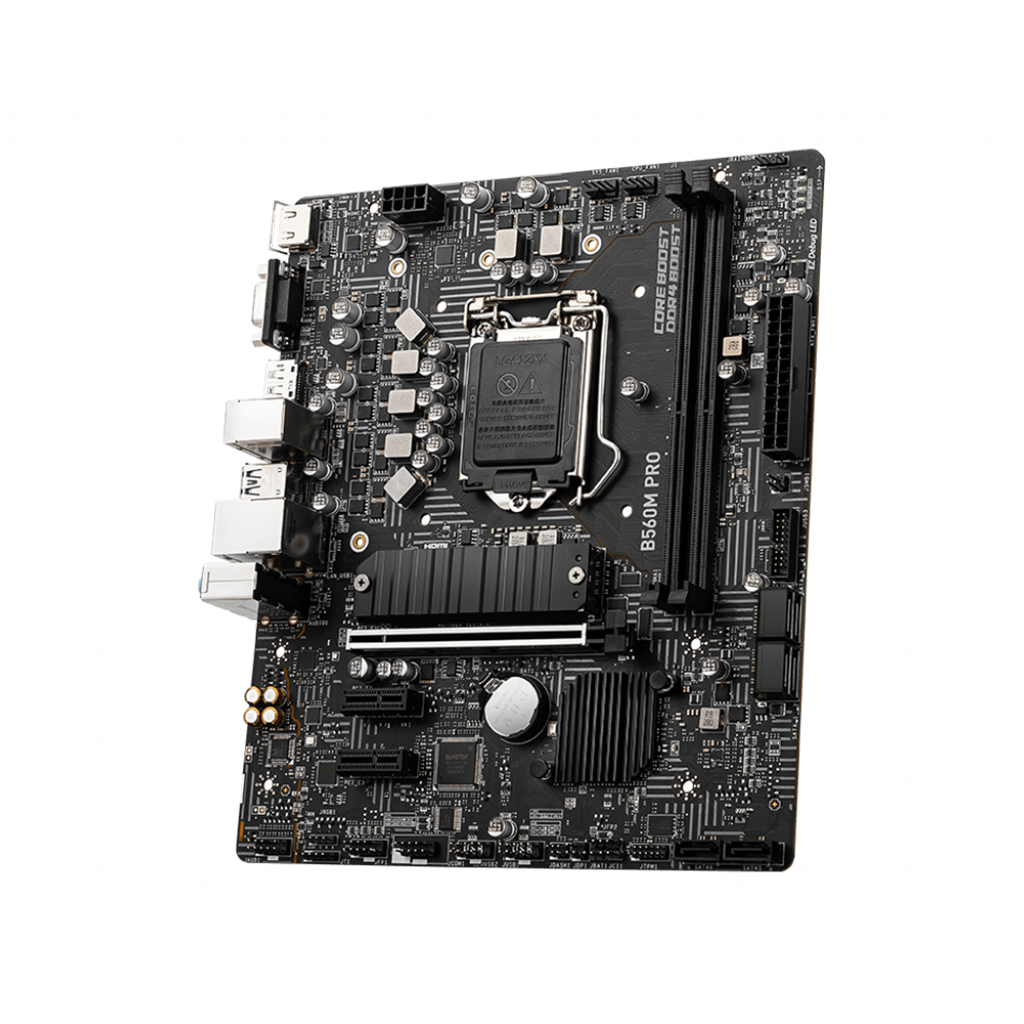

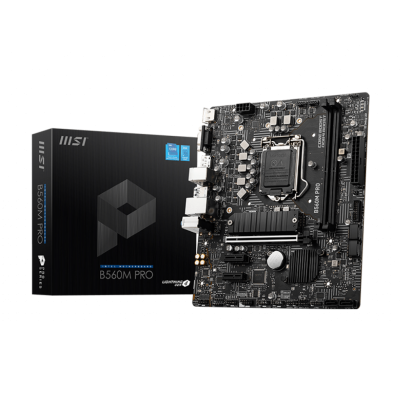

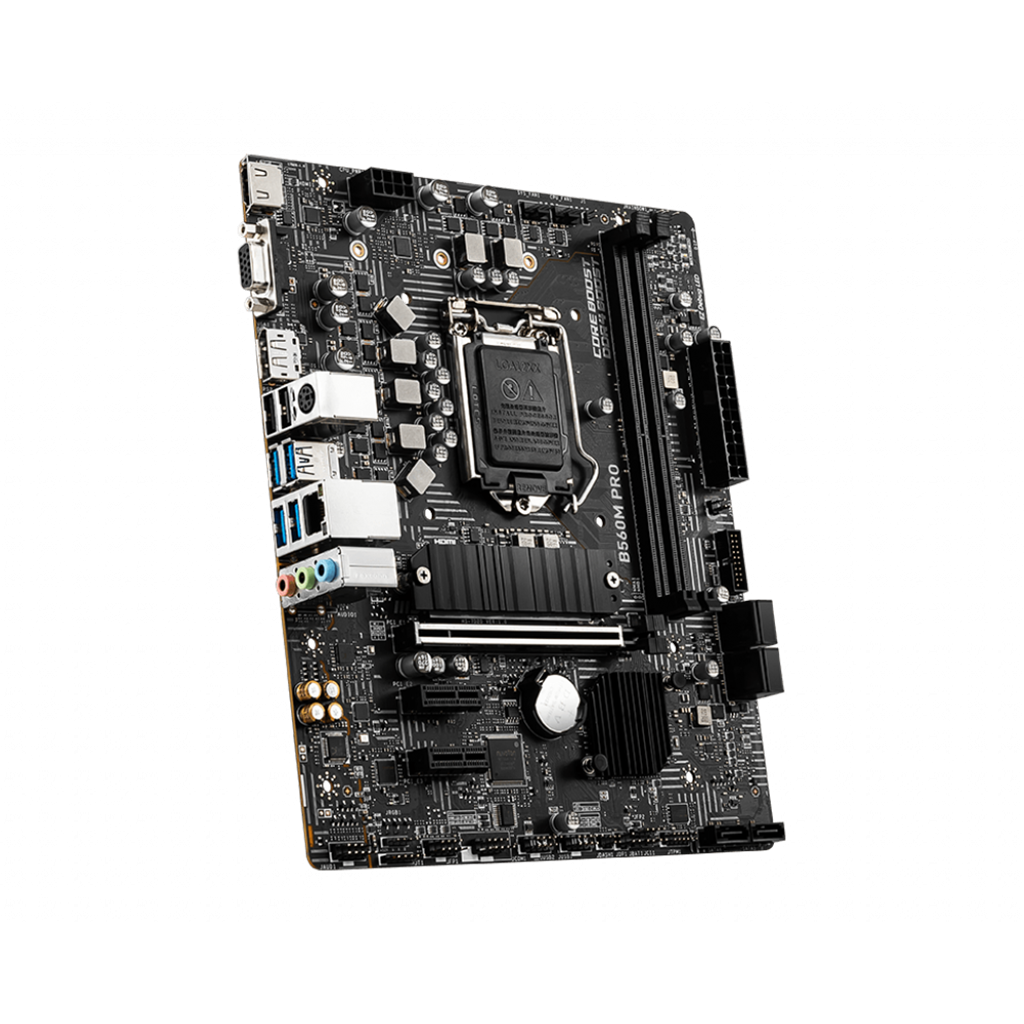

B560M PRO
B560M PRO
B560M PRO
B560M PRO
B560M PRO
B560M PRO

B560M PRO

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience :  PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost :  Reward your ears with studio grade sound quality
  • Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

$104.99
In Stock

DETAIL SPECIFICATION

Product Condition New
Manufacturer Part # B560M PRO
OPERATING SYSTEM Support for Windows® 10 64-bit
CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors
Processor socket LGA1200
Chipset Intel® B560 Chipset
CPU Socket LGA 1200
Form Factor M-ATX
Memory 2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • 1DPC 1R Max speed up to 5200 MHz
  • 1DPC 2R Max speed up to 4700+ MHz

  • Supports Dual-Channel mode
    Supports non-ECC mode, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    LAN 1 x Realtek® 8125B 2.5Gbps LAN controller
    Wireless LAN -
    Bluetooth -
    Audio Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • MULTI-GPU -
    STORAGE 1 x M.2 Gen4 x4 slot
    6 x SATA 6Gb/s ports
    Onboard Graphics 1 x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
    1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
    1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
    RAID -

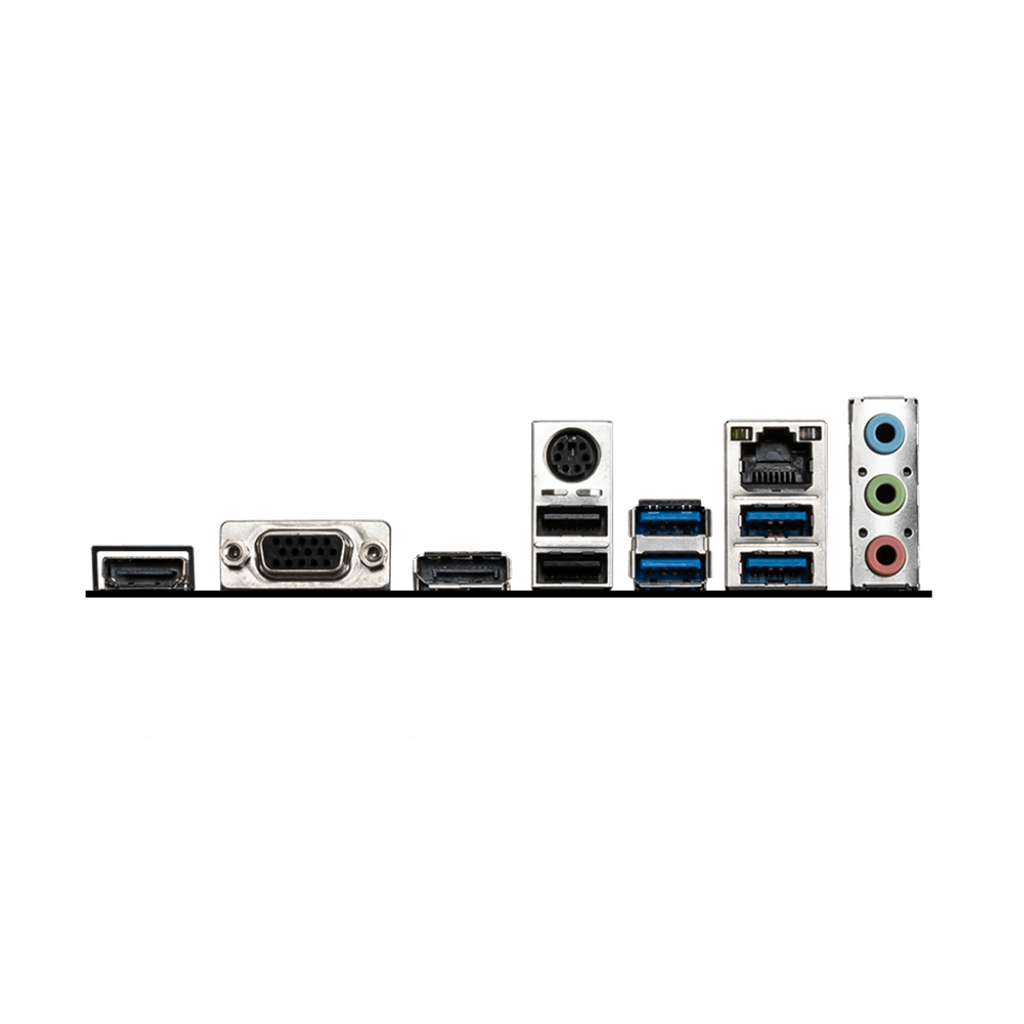

    I/O (Rear) HDMI
    VGA
    DisplayPort
    Keyboard / Mouse
    LAN port
    Audio connector
    USB 2.0
    USB 3.2 Gen 1 5Gbps Type-A
    USB 3.2 Gen 1 5Gbps Type-A
    Expansion Slots 1 x PCIe x16 slot (From CPU)
    2 x PCIe 3.0 x1 slots (From B560 chpiset)
    USB (Front) 4 x (Gen1, Type A)
    4 x (v2.0)
    USB (Rear) 2 x (Gen1, Type A)
    4 x (v2.0)
    TYPE-C PORT -
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    1 x M.2 slot (M-Key)
    1 x USB 3.2 Gen 1 5Gbps connector
    2 x USB 2.0 connectors
    1 x 4-pin CPU fan connector
    1 x 4-pin system fan connector
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x TPM module connector
    1 x Serial port connector
    1 x Tuning Controller Connector
    Dimensions 9.30" x 8.00"
    Manufacturer Warranty 3 Year
