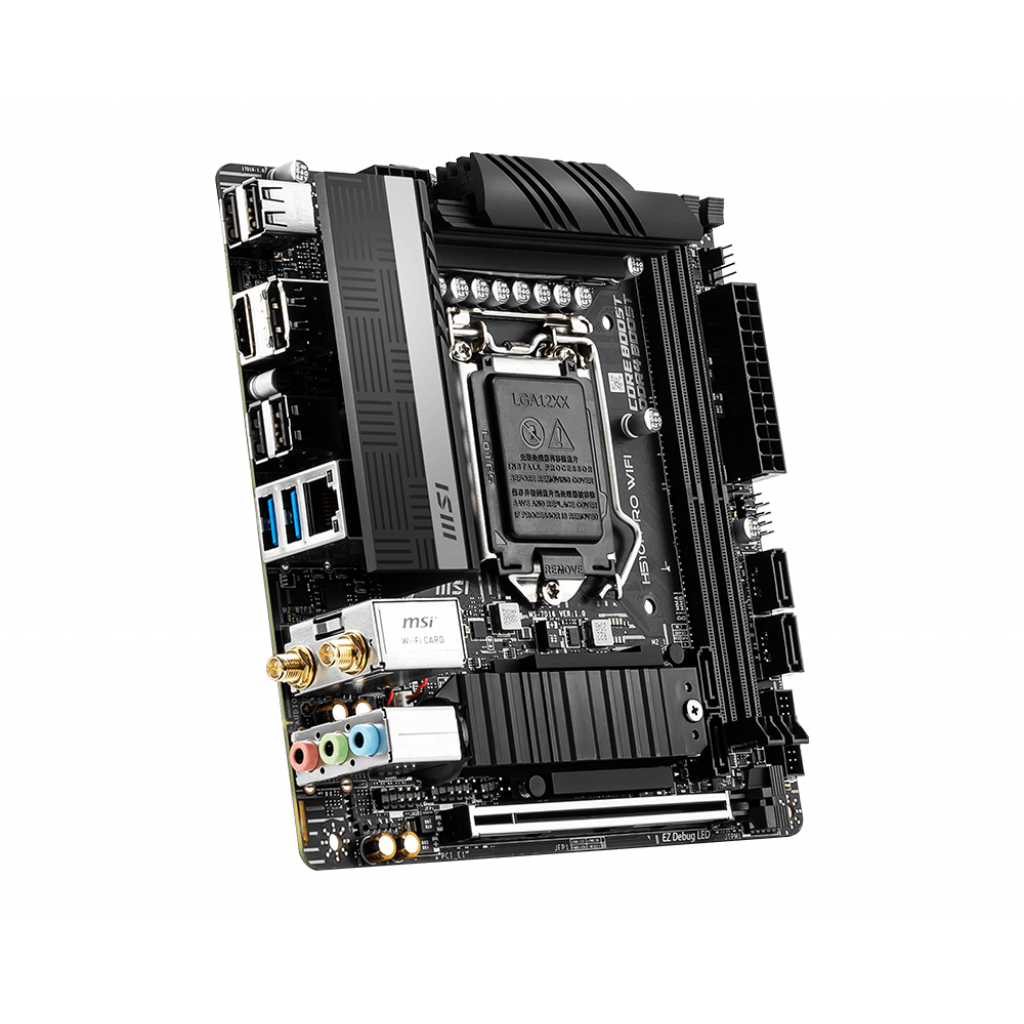

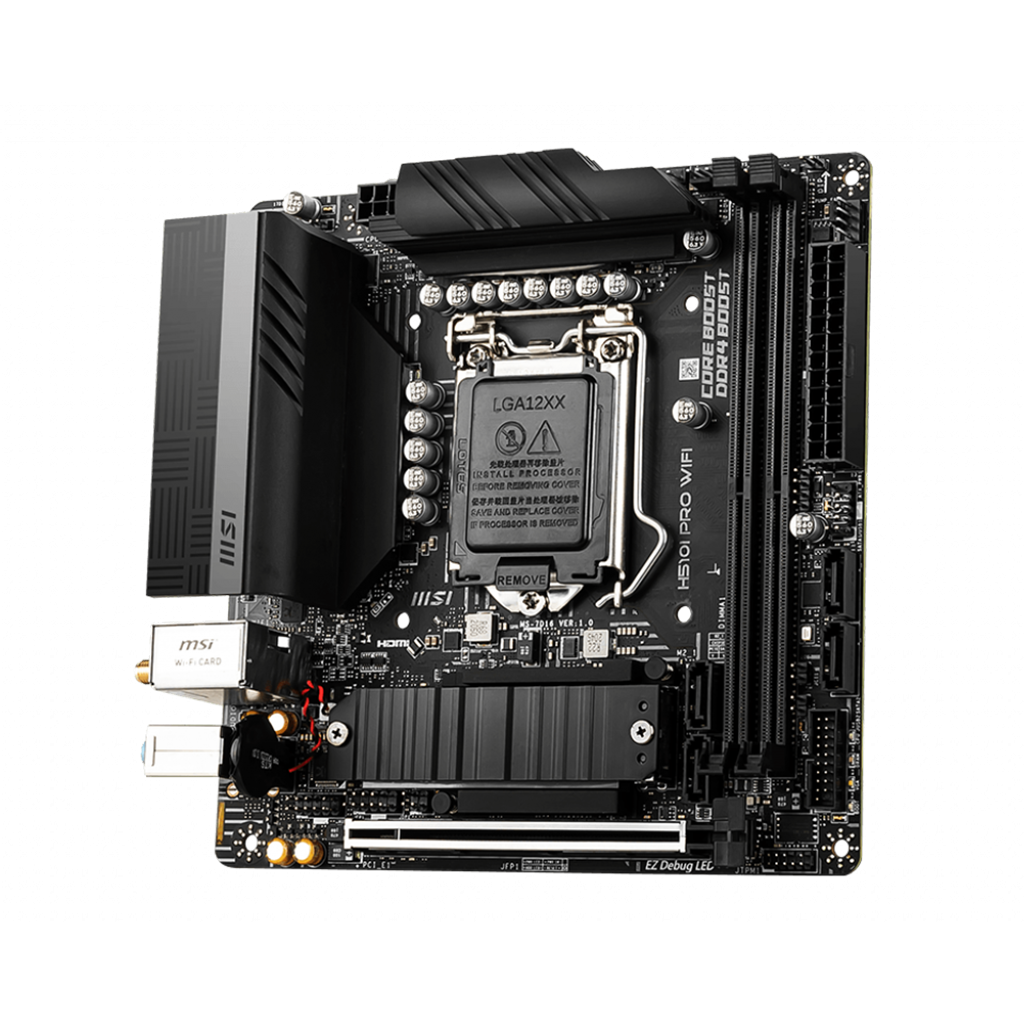

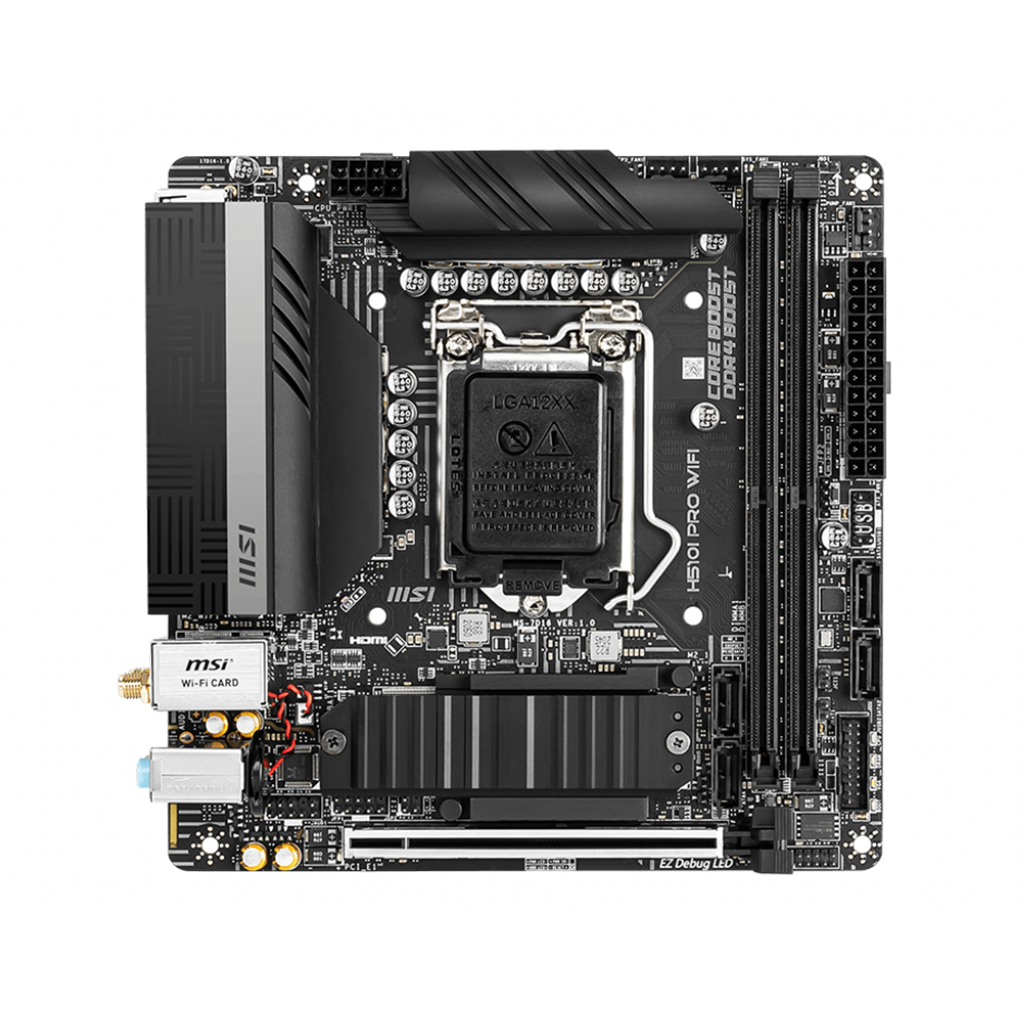

H510I PRO WIFI
H510I PRO WIFI
H510I PRO WIFI
H510I PRO WIFI
H510I PRO WIFI
H510I PRO WIFI

H510I PRO WIFI

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Lightning Fast Experience: PCIe 4.0
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

$129.99
Out of Stock

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 10 64-bit
Manufacturer Number H510I PRO WIFI
Product Condition New
CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Chipset Intel® H510 Chipset
CPU Socket LGA 1200
Form Factor Mini-ITX
Memory 2 x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

  • Max frequency:
    1DPC 1R Max speed up to 3200+ MHz
    1DPC 2R Max speed up to 3200+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    LAN 1 x Realtek® 8125B 2.5Gbps LAN controller
    Wireless LAN Intel® Wi-Fi 6 AX201
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • WiFi 6 pre certified
  • Bluetooth Supports Bluetooth® 5.1, FIPS, FISMA
    Audio Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • MULTI-GPU N/A
    STORAGE 1 x M.2 Gen3 x4 slot
    4 x SATA 6Gb/s ports
    Onboard Graphics 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
    1 x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz
    RAID N/A

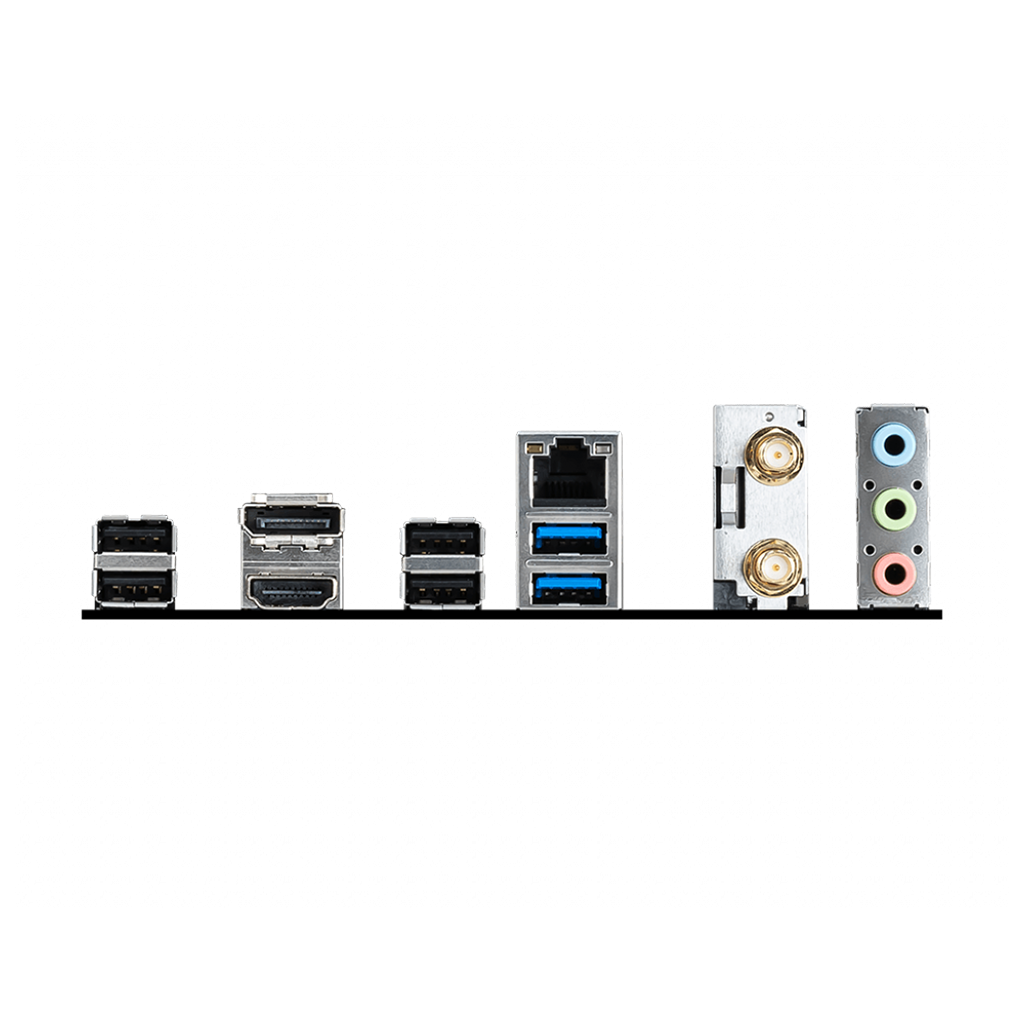

    I/O (Rear) USB 2.0
    DisplayPort
    USB 2.0
    LAN port
    WIFI / Bluetooth
    Audio connector
    HDMI
    USB 3.2 Gen 1 5Gbps Type-A
    Expansion Slots 1 x PCIe x16 slot
  • Support up to PCIe 4.0 for 11th Gen Intel® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • USB (Front) 2 x (Gen1, Type A)
    2 x (v2.0)
    USB (Rear) 2 x (Gen1, Type A)
    4 x (v2.0)
    Internal Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x M.2 slots (M-Key)
    1 x USB 3.2 Gen 1 5Gbps connector
    1 x USB 2.0 connectors
    1 x 4-pin CPU fan connector
    1 x 4-pin water-pump fan connector
    1 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x TPM module connector
    Dimensions 6.70" x 6.70"
    Manufacturer Warranty 3 Year
