PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
---|---|
Manufacturer Number | PRO Z690-A WIFI |
Product Condition | New |
CPU | Supports Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) Processor socket LGA1700 |
Chipset | Intel® Z690 Chipset |
CPU Socket | LGA1700 |
Form Factor | ATX Form Factor |
Memory | 4 x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
|
LAN | 1 x Intel® I225-V 2.5Gbps LAN controller |
Wireless LAN | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
Bluetooth | Supports Bluetooth® 5.2 2, FIPS, FISMA |
Audio | Realtek®ALC897 Codec
|
MULTI-GPU | Supports AMD® CrossFire™ Technology |
---|---|
STORAGE | 3 x M.2 Gen4 x4 64Gbps slotsr 1 x M.2 Gen3 x4 32Gbps slotr 6 x SATA 6Gbps ports |
Onboard Graphics | 1 x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |

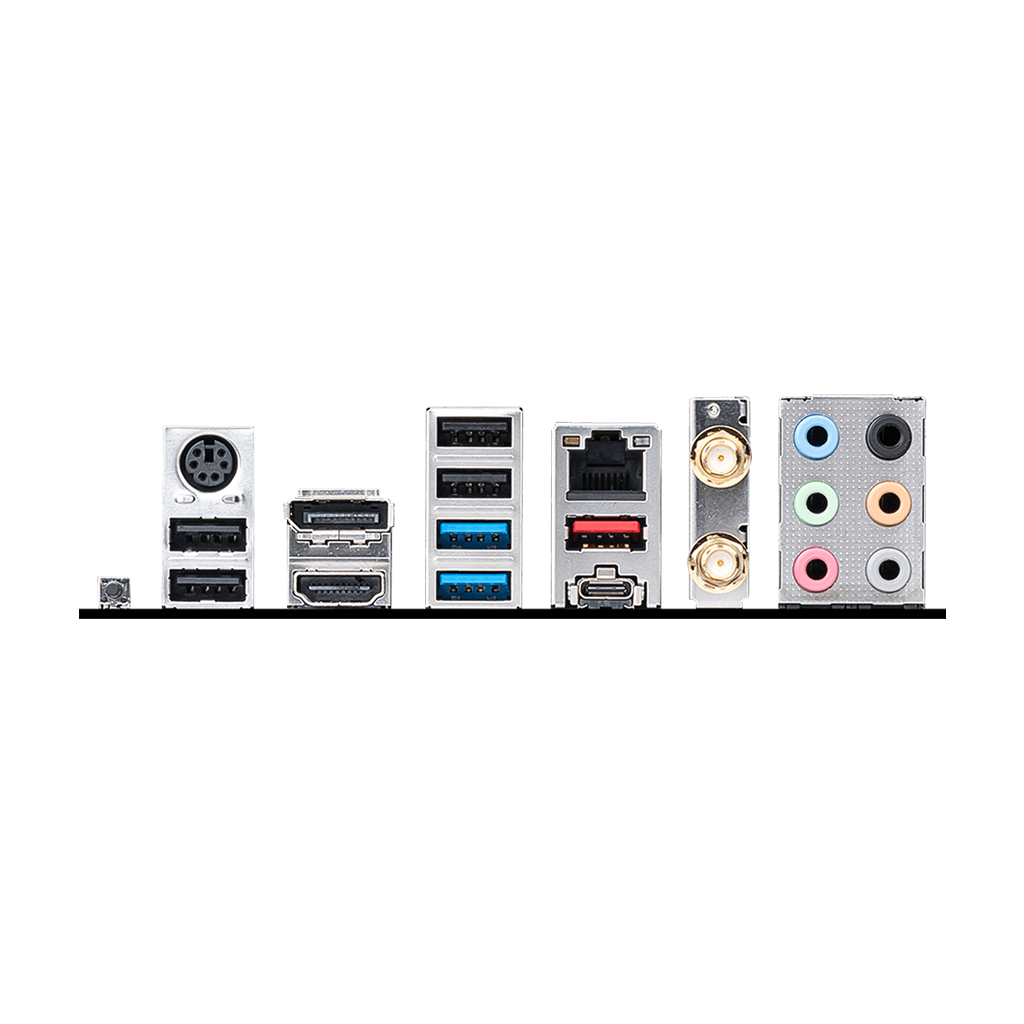

I/O (Rear) | Keyboard / Mouse DisplayPort USB 2.0 LAN port WIFI / Bluetooth Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
Expansion Slots | 3x PCIe x16 slots |
USB (Front) | 1 x Gen 2, Type C 4 x Gen 1, Type A 4 x USB 2.0 PORTS |
USB (Rear) | 1 x Gen 2x2, Type C 1 x Gen 2, Type A 2 x Gen 1, Type A 4 x USB 2.0 PORTS |
TYPE-C PORT | 1 x USB3.2 Gen2x2 20Gbps Type-C port on the back panel |
Internal Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 4 x M.2 slots (M-Key) 1 x USB 3.2 Gen 2 10Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connectors 2 x USB 2.0 connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Tuning controller connector 1 x TBT connector (Supports RTD3) |
Dimensions | 12.00" x 9.60" |
Manufacturer Warranty | 3 Year |
