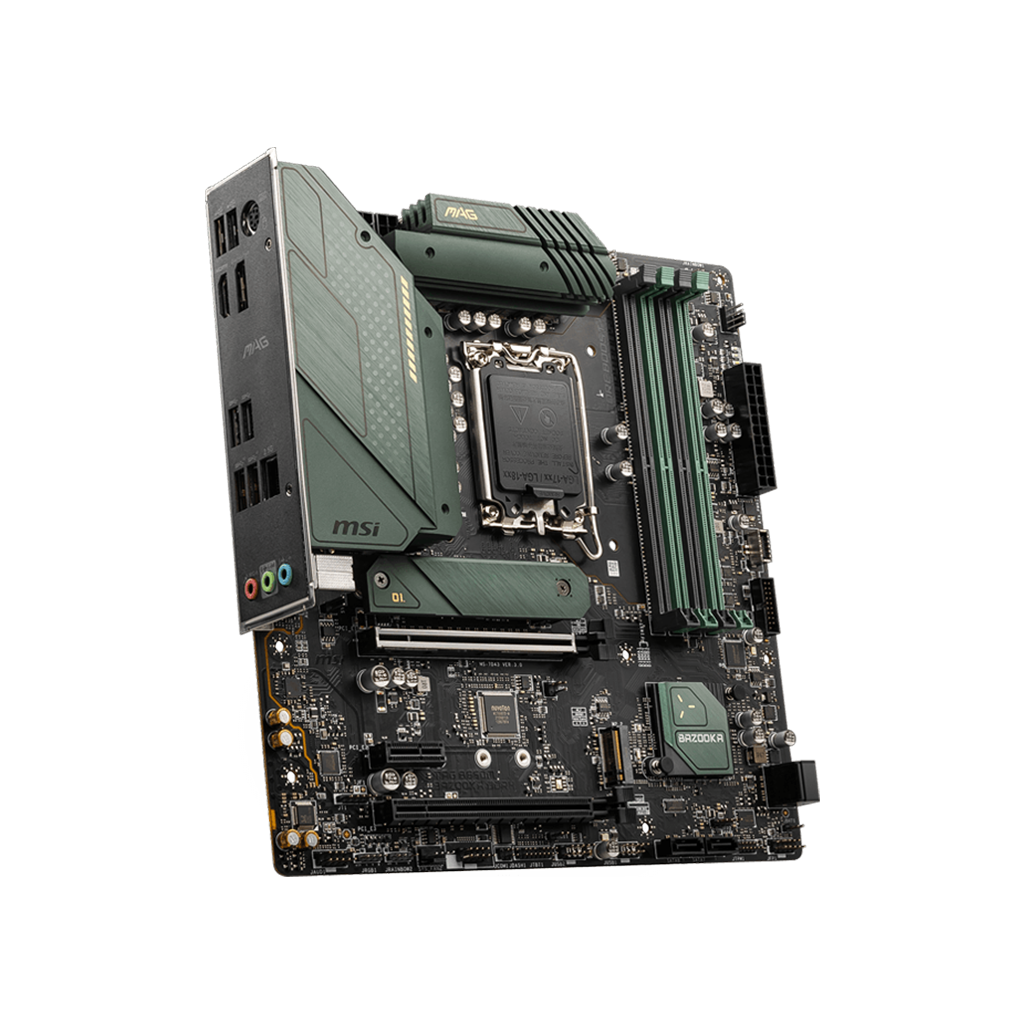

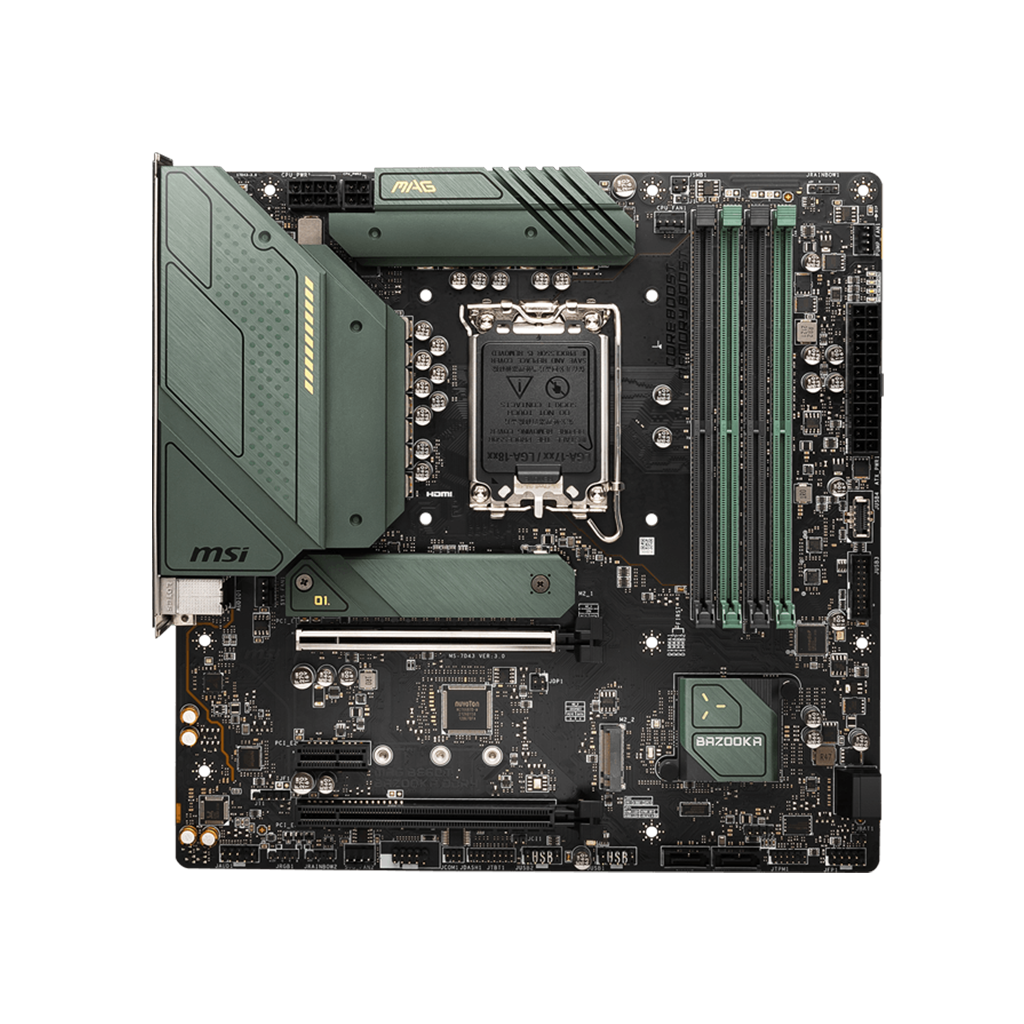

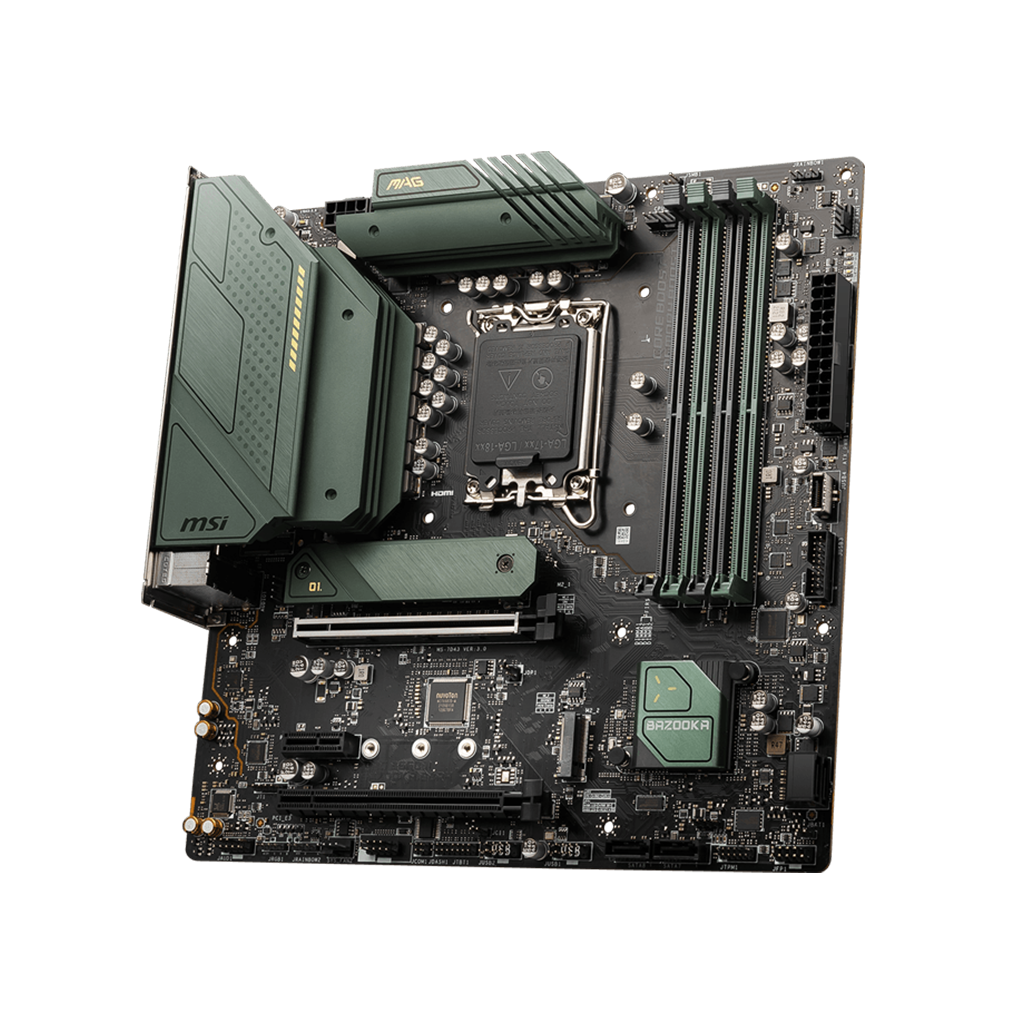

The MAG B660M provides you with connectivity options suitable for high-end gaming components in a compact size, ideal for gamers looking to build a smaller system to save space. Based around the Intel B660 chipset, users have access to an LGA 1700 socket for 12th and 11th Gen Intel Core processors. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
Product Condition | New |
---|---|
Manufacturer Part # | MAG B660M BAZOOKA DDR4 |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
CPU | Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 |
Chipset | Intel® B660 Chipset |
CPU Socket | LGA1700 |
Form Factor | Micro-ATX Form Factor |
Memory | 4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
|
LAN | 1x Realtek® 8125BG 2.5Gbps LAN controller |
Wireless LAN | - |
Bluetooth | - |
Audio | Realtek® ALC897 Codec
|
MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
---|---|
STORAGE | 2 x M.2 Gen4 x4 64Gbps slots supports Intel® Optane™ Technology 4 x SATA 6Gb/s |
Onboard Graphics | 1 x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

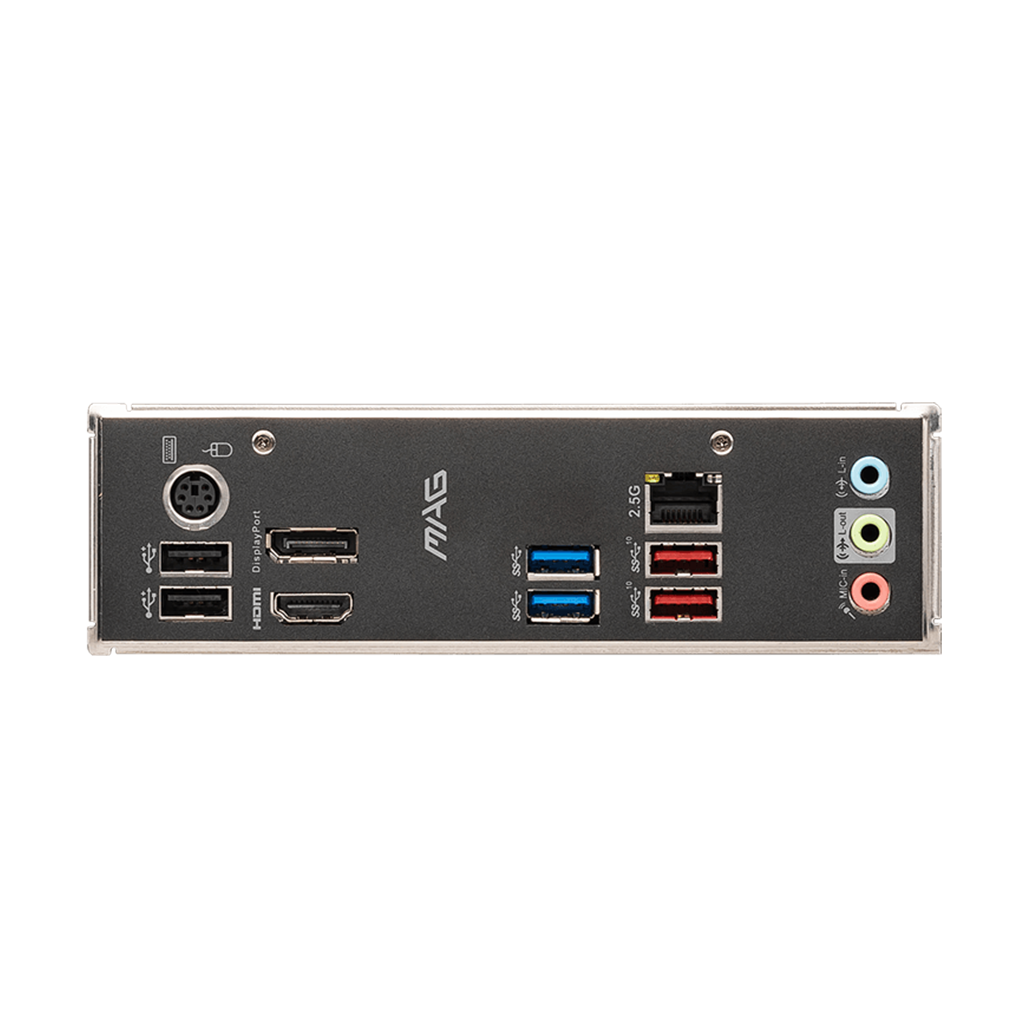

I/O (Rear) | Keyboard / Mouse DisplayPort 2.5G LAN Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A |
Expansion Slots | 2 x PCIe x16 slots |
USB (Front) | 1 x (Gen 1, Type C) 2 x (Gen 1, Type A) 4 x (v2.0) |
USB (Rear) | 2 x (Gen 2, Type A) 2 x (Gen 1, Type A) 2 x (v2.0) |
TYPE-C PORT | 1 x Type-C available through the internal connector |
Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x M.2 slots (M-Key) 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps Type-A connector 2 x USB 2.0 connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x TBT connector (supports RTD3) 1 x Serial port 1 x Tuning Controller connector |
Dimensions | 9.60" x 9.60" |
Manufacturer Warranty | 3 Year |
