The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 10 64-bit |
---|---|
Manufacturer Number | MPG B560I GAMING EDGE WIFI |
Product Condition | New |
CPU | Supports Intel® 10th Gen processors for LGA 1200 socket |
Chipset | Intel® B560 Chipset |
CPU Socket | LGA 1200 |
Form Factor | Mini-ITX Form Factor |
Memory | 2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
|
LAN | 1 x Realtek® RTL8125B 2.5Gbps LAN controller |
Wireless LAN | Intel® Wi-Fi 6E AX210
|
Bluetooth | Supports Bluetooth® 5.2, FIPS, FISMA |
Audio | Realtek® ALC897 Codec
|
MULTI-GPU | N/A |
---|---|
STORAGE | 1 x M.2 Gen4 x4 64Gb/s slot 1 x M.2 Gen3 x4 32Gb/s slot, supports Intel® OptaneTM Technology 4 x SATA 6Gb/s |
Onboard Graphics | 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
RAID | - |

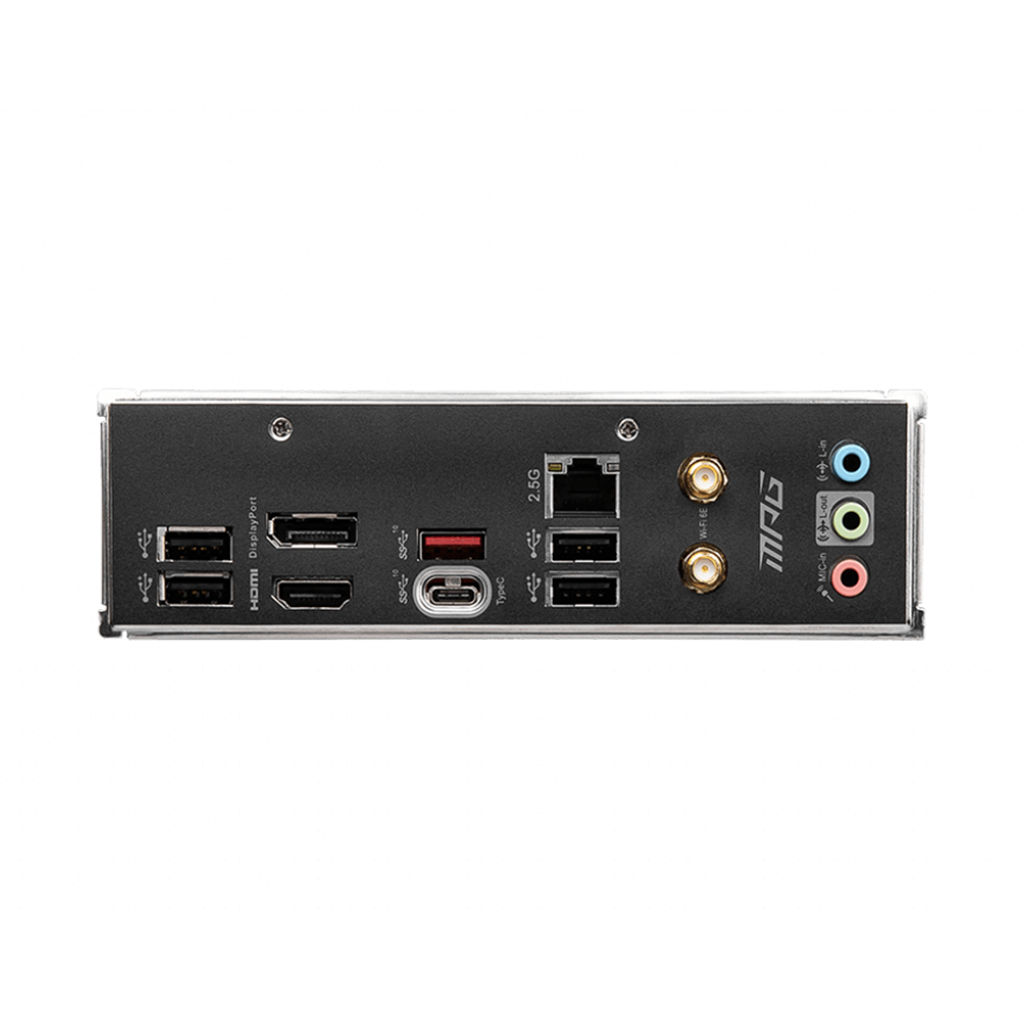

I/O (Rear) | DisplayPort USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Wi-Fi/Bluetooth USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-C USB 2.0 Audio Connectors |
Expansion Slots | 1 x PCIe x16 slot |
USB (Front) | 1 x (Gen1, Type C) 2 x (Gen1, Type A) 2 x (v2.0) |
USB (Rear) | 1 x (Gen2, Type C) 1 x (Gen2, Type A) 4 x (v2.0) |
Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x M.2 slots [M-Key] 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector 1 x USB 2.0 connector 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper |
Dimensions | 6.70" x 6.70" |
Manufacturer Warranty | 3 Year |
