OPERATING SYSTEM | Support for Windows® 10 64-bit |
---|---|
Manufacturer Number | MPG X570S CARBON MAX WIFI |
Product Condition | New |
CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
Chipset | AMD® X570 Chipset |
CPU Socket | AM4 |
Form Factor | ATX |
Memory | 4 x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Max frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
|
LAN | 1 x Realtek® RTL8125B 2.5 Gbps LAN controller |
Wireless LAN | Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
Bluetooth | Supports Bluetooth® 5.2, FIPS, FISMA |
Audio | Realtek® ALC4080 Codec
|
---|---|
MULTI-GPU | Supports AMD CrossFire™ Technology |
STORAGE | 4 x M.2 Gen4 x4 64Gb/s slots 8 x SATA 6Gb/s |
RAID | Supports RAID 0, RAID 1 and RAID 10 |

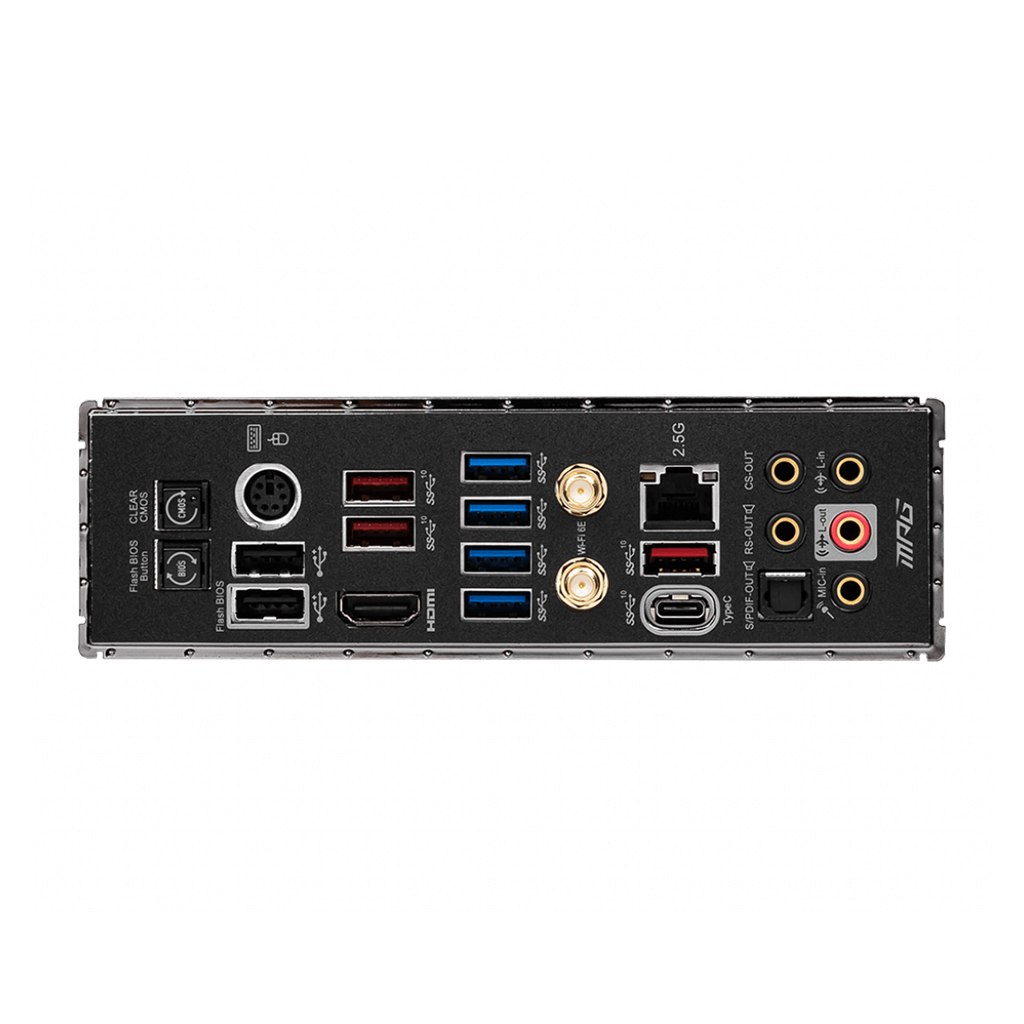

I/O (Rear) | Clear CMOS Button Keyboard / Mouse USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth USB 3.2 Gen 2 10Gbps Type-A/C Optical S/PDIF Out |
Expansion Slots | Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1 x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen™ 3000 G-and 2000 G- series desktop processors 1 x PCIe x16 slot (From X570 chipset) PCI_E41 supports PCIe 4.0/ 3.0 x4 2 x PCIe 3.0 x1 slots (From X570 chipset) |
USB (Front) | 1 x (Gen2, Type C) 4 x (Gen1, Type A) 4 x (v2.0) |
USB (Rear) | 1 x (Gen2, Type C) 3 x (Gen2, Type A) 4 x (Gen1, Type A) 2 x (v2.0) |
Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 2 x USB 2.0 connectors 2 x USB 3.2 Gen 1 5Gbps connectors 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 2-pin Thermal sensor connector 1 x TPM module connector 1 x Clear CMOS jumper |
Dimensions | 12.0" x 9.60" |
Manufacturer Warranty | 3 Year |
