PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
Product Condition | New |
---|---|
Manufacturer Part # | PRO B660-A DDR4 |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
CPU | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
Chipset | Intel® B660 Chipset |
CPU Socket | LGA1700 |
Form Factor | ATX Form Factor |
Memory | 4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
|
LAN | 1 x Realtek® 8125BG 2.5SGbps LAN controller |
Wireless LAN | - |
Bluetooth | - |
Audio | Realtek® ALC897 Codec
|
MULTI-GPU | Supports AMD® CrossFire™ Technology |
---|---|
STORAGE | 2 x M.2 Gen4 x4 64Gbps slots supports Intel® Optane™ Technology 4 x SATA 6Gb/s |
Onboard Graphics | 1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1 x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

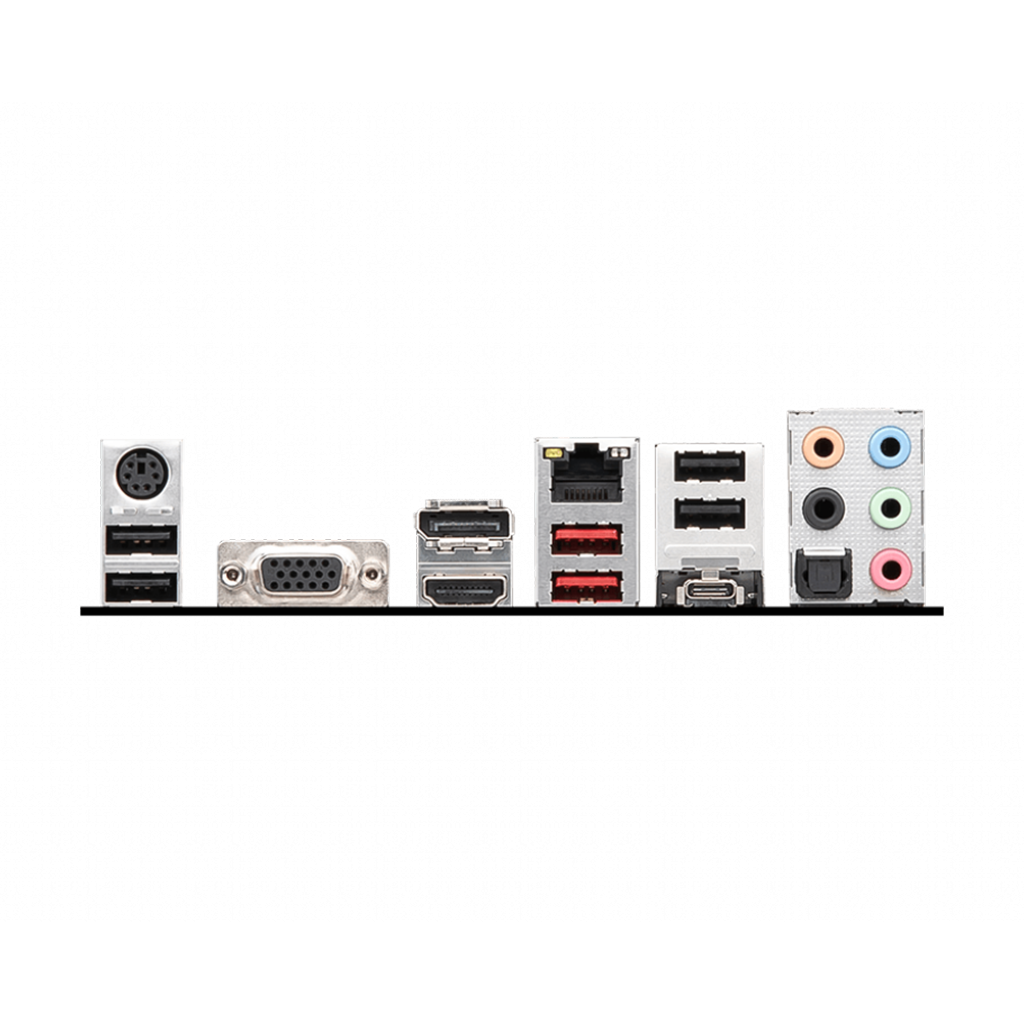

I/O (Rear) | Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Audio Connectors USB 2.0 VGA HDMI USB 3.2 Gen2 10Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-C) Optical S/PDIF Out |
Expansion Slots | 2 x PCIe x16 slots 3 x PCIe x1 slots (From B660 chipset) 1 x M.2 slot with E-key for PCIe WiFi module only (M2_3) |
USB (Front) | 1 x (Gen 1, Type C) 2 x (Gen 1, Type A) 2 x (v2.0) |
USB (Rear) | 1 x (Gen 1, Type C) 2 x (Gen 1, Type A) 4 x (v2.0) |
TYPE-C PORT | 1 x USB 3.2 Gen 1 5Gbps Type-C port (From B660 chipset) |
Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8+1x 4-pin ATX 12V power connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Tuning controller connector 1 x TBT connector (Supports RTD3) 1 x USB 3.2 Gen 1 5Gbps Type-C port (From B660 chipset) 1 x USB 3.2 Gen 1 5Gbps connector (From B660 chipset) 1 x USB 2.0 connector (From USB Hub GL850G) 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LED |
Dimensions | 12.00" x 9.60" |
Manufacturer Warranty | 3 Year |
