The B850 GAMING PLUS WIFI PZ is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | B850 GAMING PLUS WIFI PZ |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B850 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | ATX Form Factor |
| Memory | 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC) |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth | Wi-Fi 7 module, Bluetooth 5.4 |
| Audio | Realtek® ALC897
|
| MULTI-GPU | - |
|---|---|
| STORAGE | 1 x M.2 Gen5 x4 128Gbps slot 1 x M.2 Gen4 x4 64Gbps slot 1 x M.2 Gen4 x2 32Gbps slot 4 x SATA 6Gbps ports |
| Onboard Graphics | 1x DisplayPort
|
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

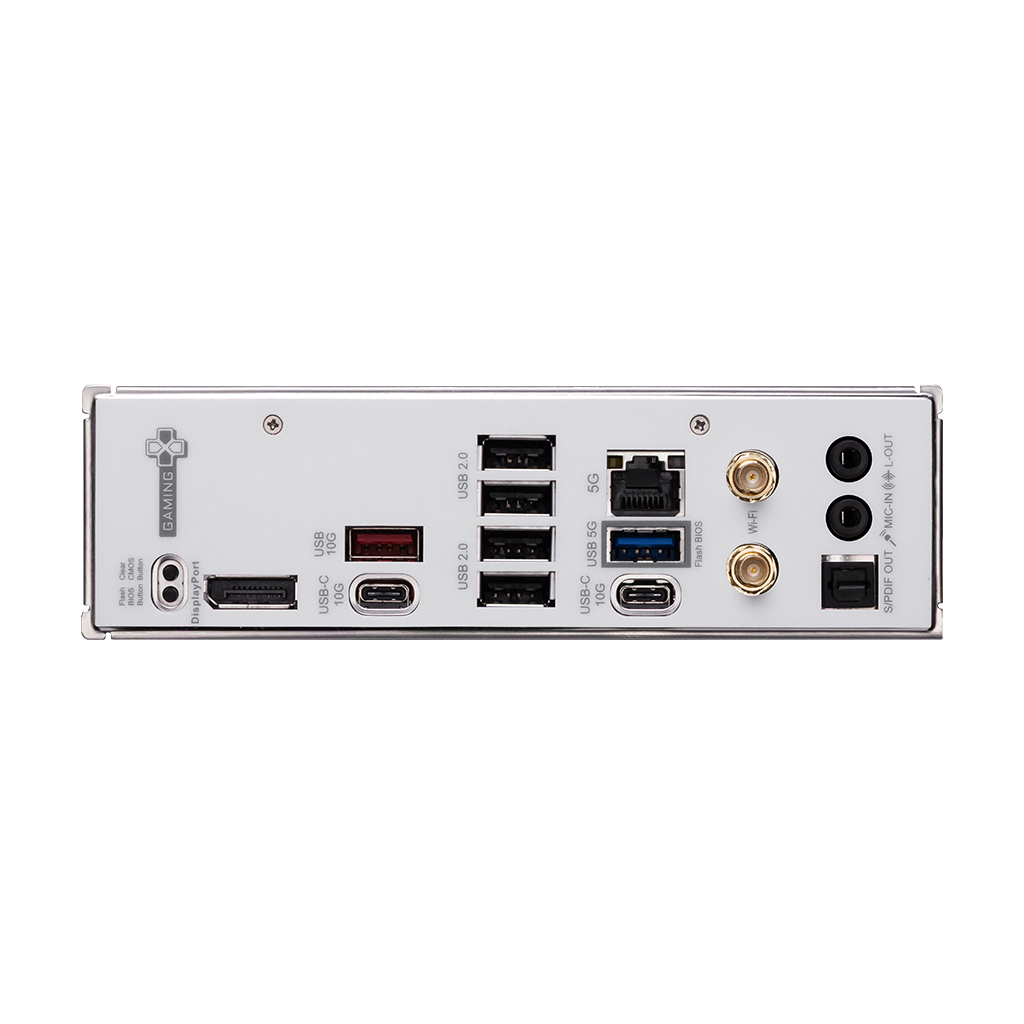

| I/O (Rear) | Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots |
| USB (Front) | 4 x USB 5Gbps Type A 1 x USB 5Gbps Type C 4 x USB 2.0 |
| USB (Rear) | 1 x USB 5Gbps Type A 1 x USB 10Gbps Type A 2 x USB 10Gbps Type C 4 x USB 2.0 |
| TYPE-C PORT | 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type C (Rear) |
| Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Dimensions | 9.60" x 12.00" |
| Manufacturer Warranty | 3 Year |

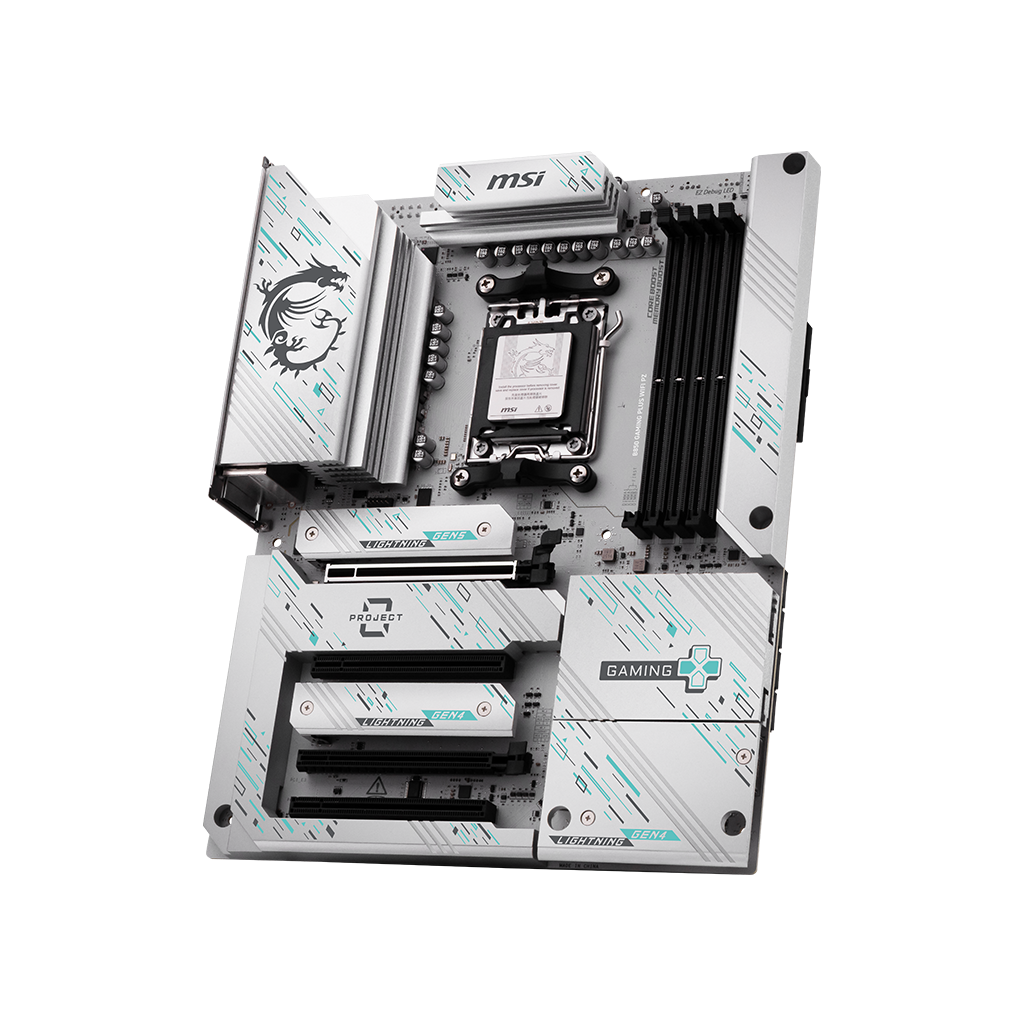

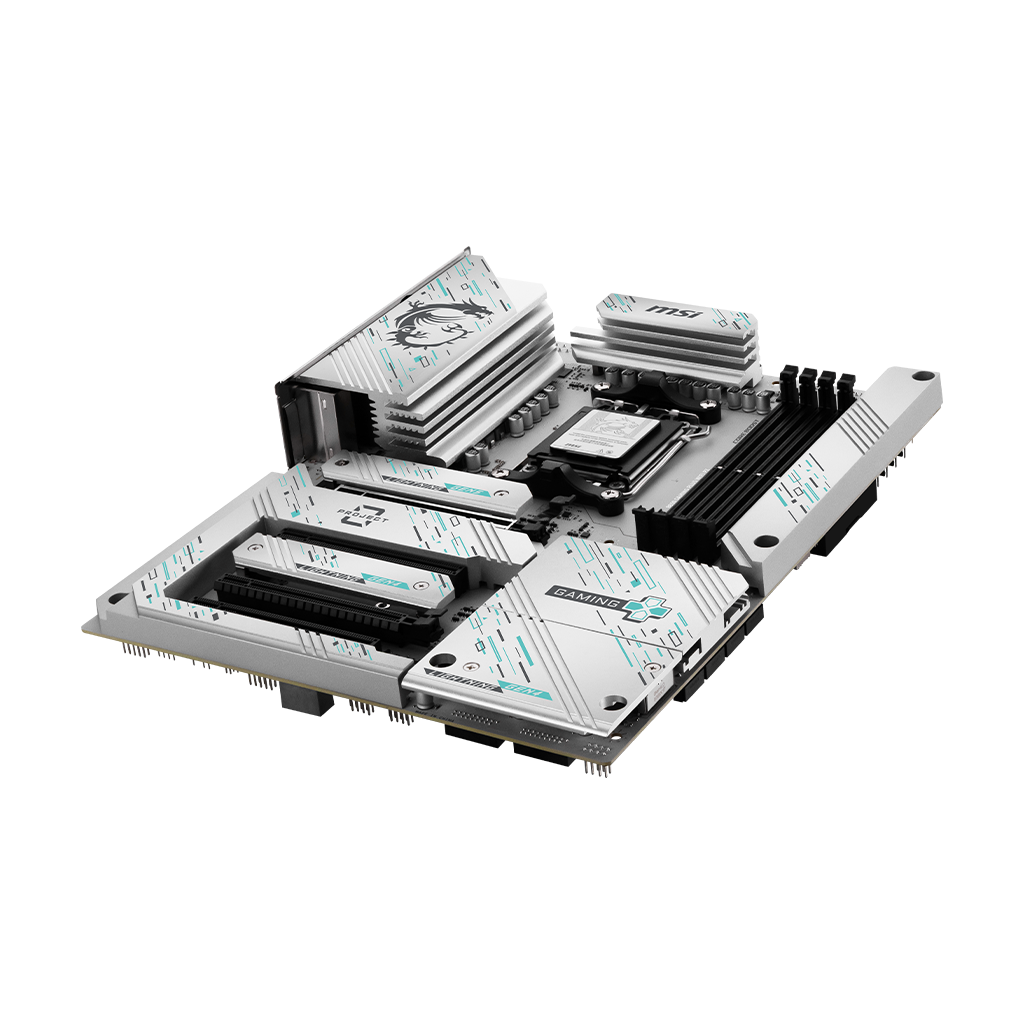

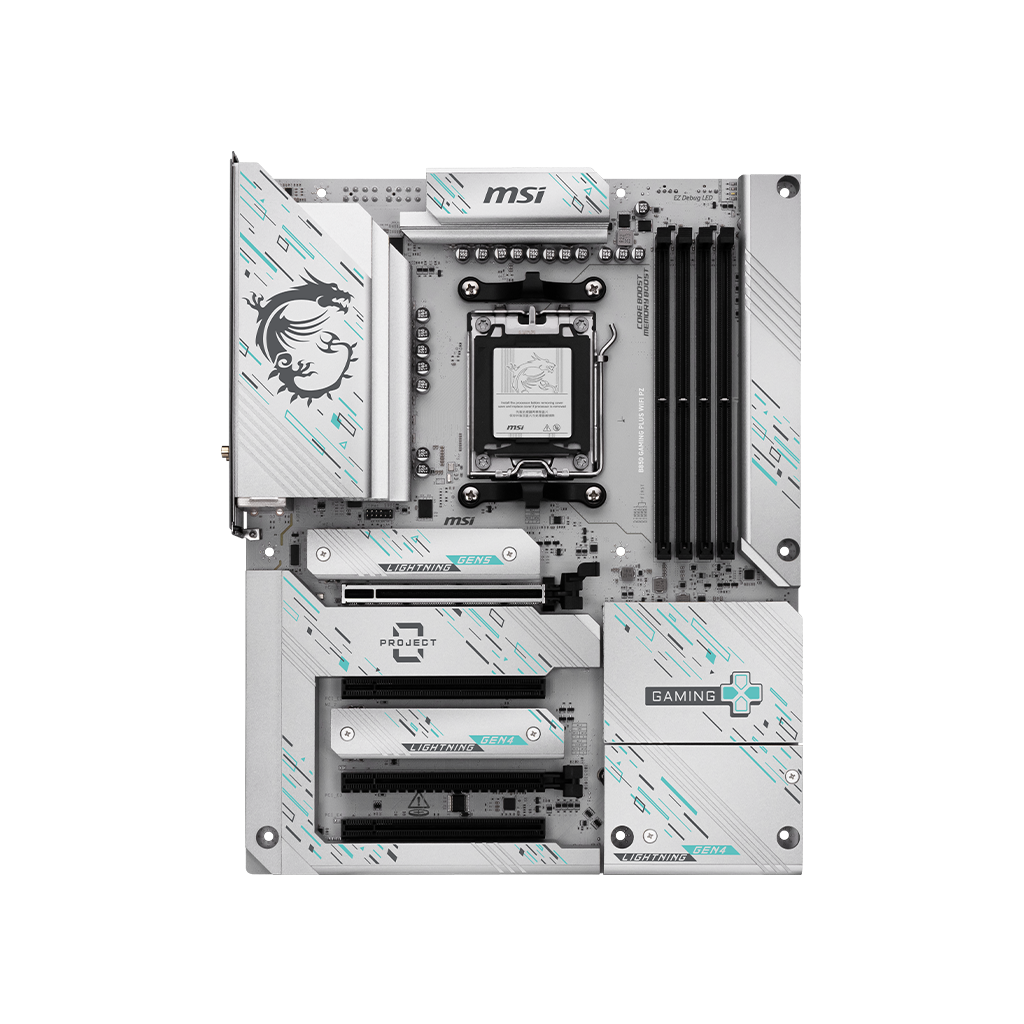

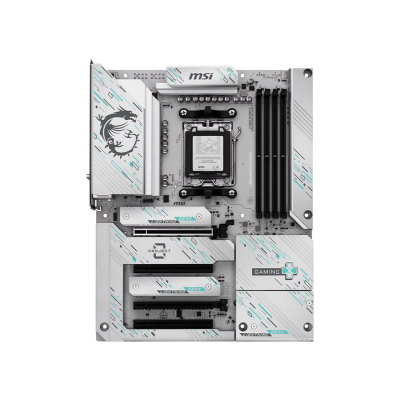

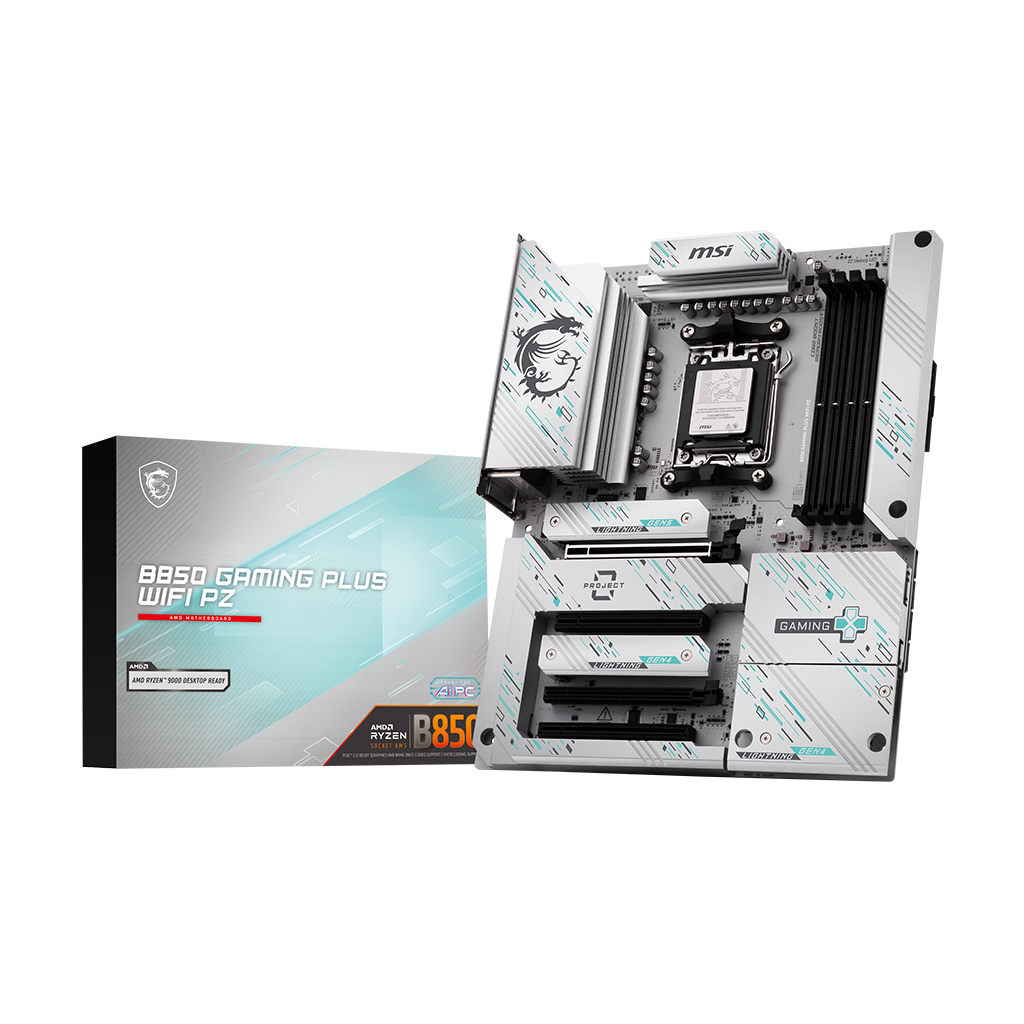

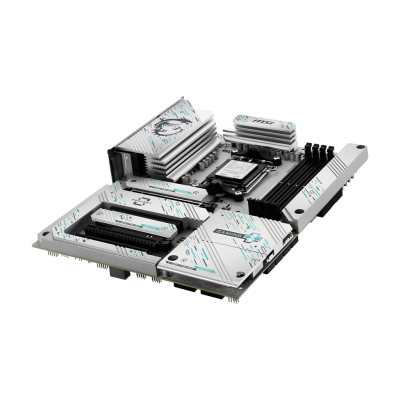

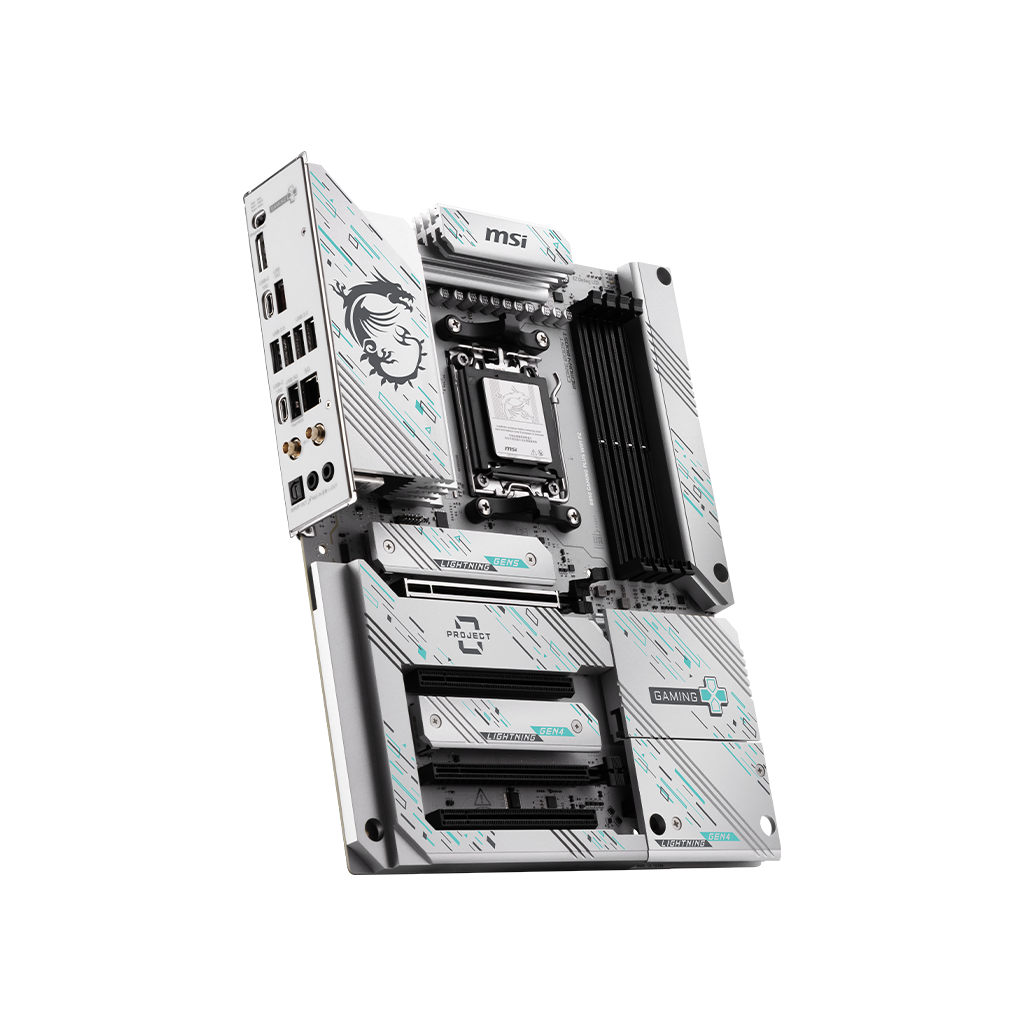

The B850 GAMING PLUS WIFI PZ is a gaming oriented ATX motherboard that is constructed with the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring Wi-Fi 7, 5G LAN, PCIe 5.0 and DDR5 memory that balances both value and hardware.

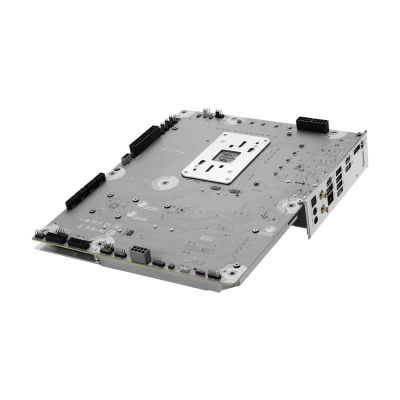

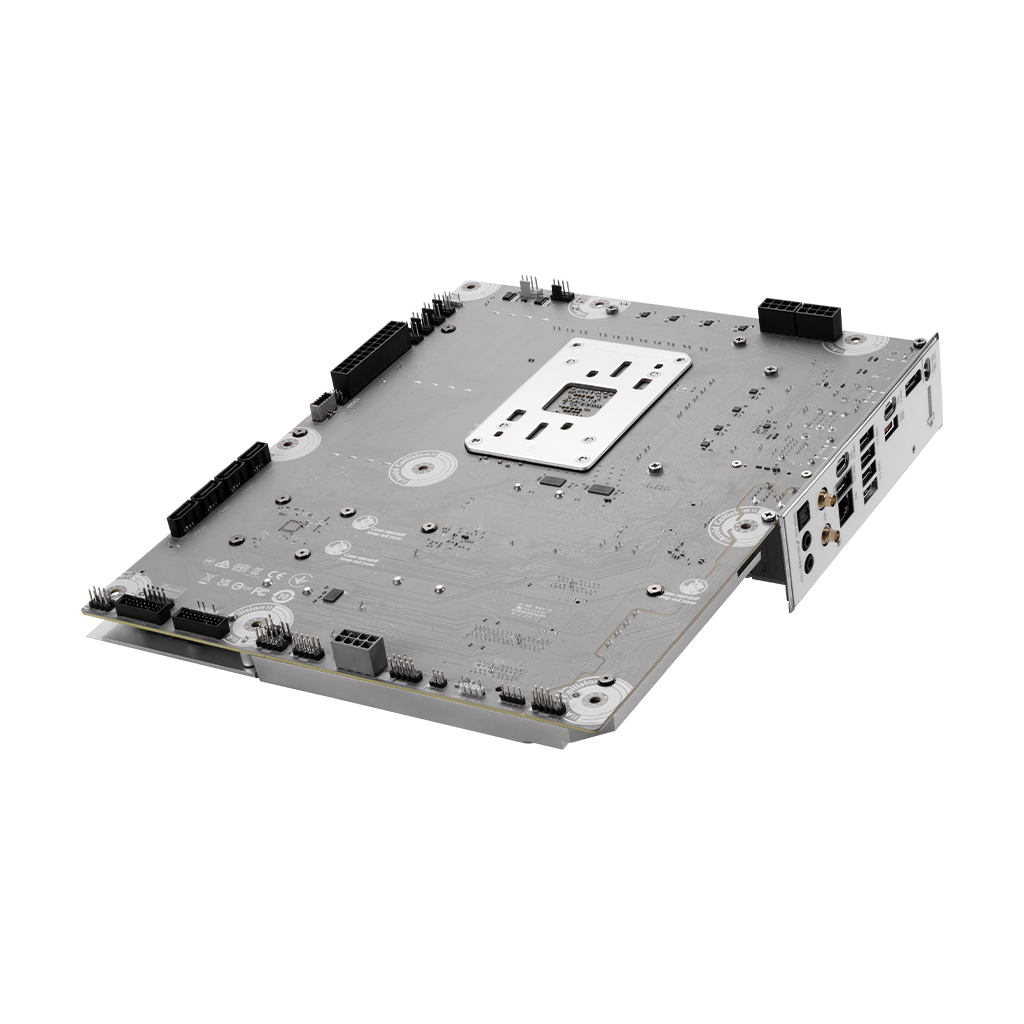

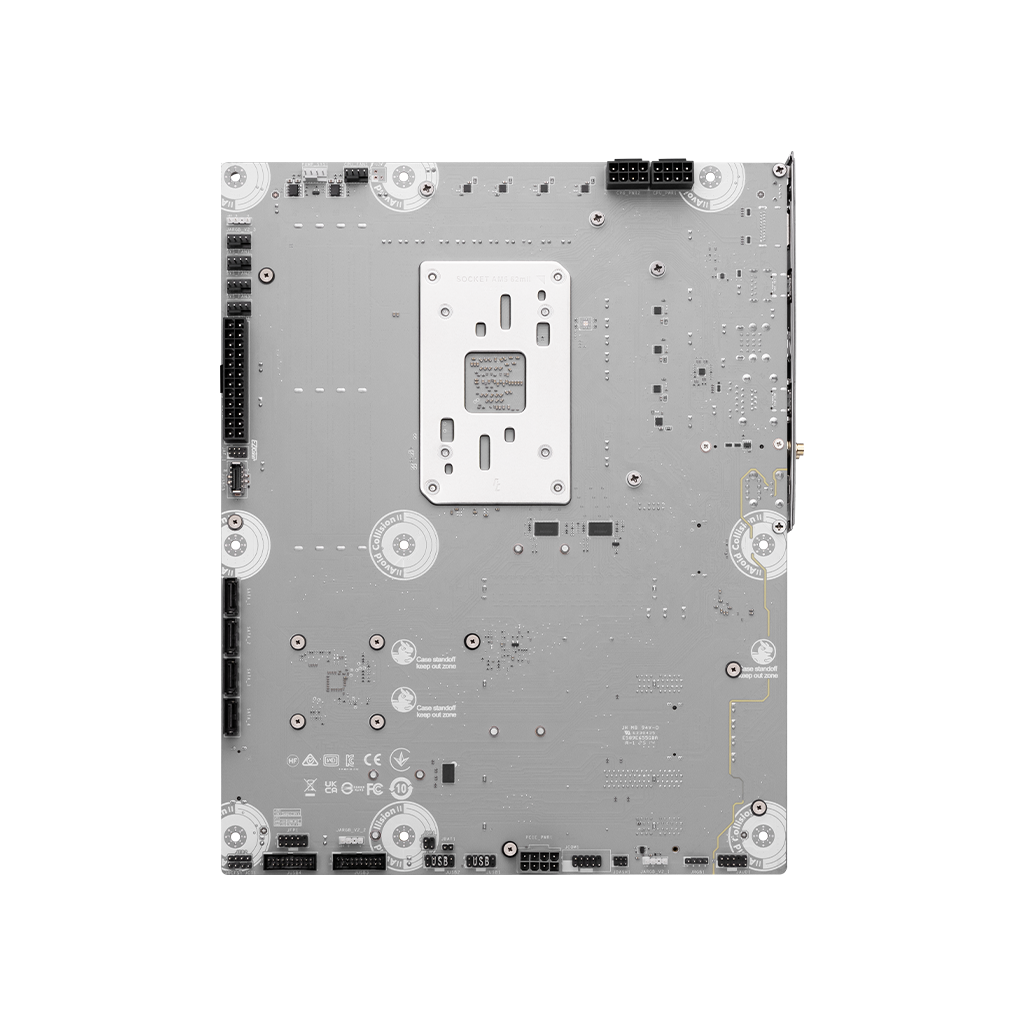

The B850 GAMING PLUS WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.
Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.
The B850 GAMING PLUS WIFI PZ motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850
With exclusive Core Boost technology and EZ OC Tuning functions, the B850 GAMING PLUS WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor and EZ PCIe Clip II)
1 x PCIe 4.0 x4 slot*
2 x PCIe 3.0 x1 slot
*Supports x16/x4
The B850 GAMING PLUS WIFI PZ motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot
1 x Gen4 x4 64Gbps slot
1 x Gen4 x2 32Gbps slot

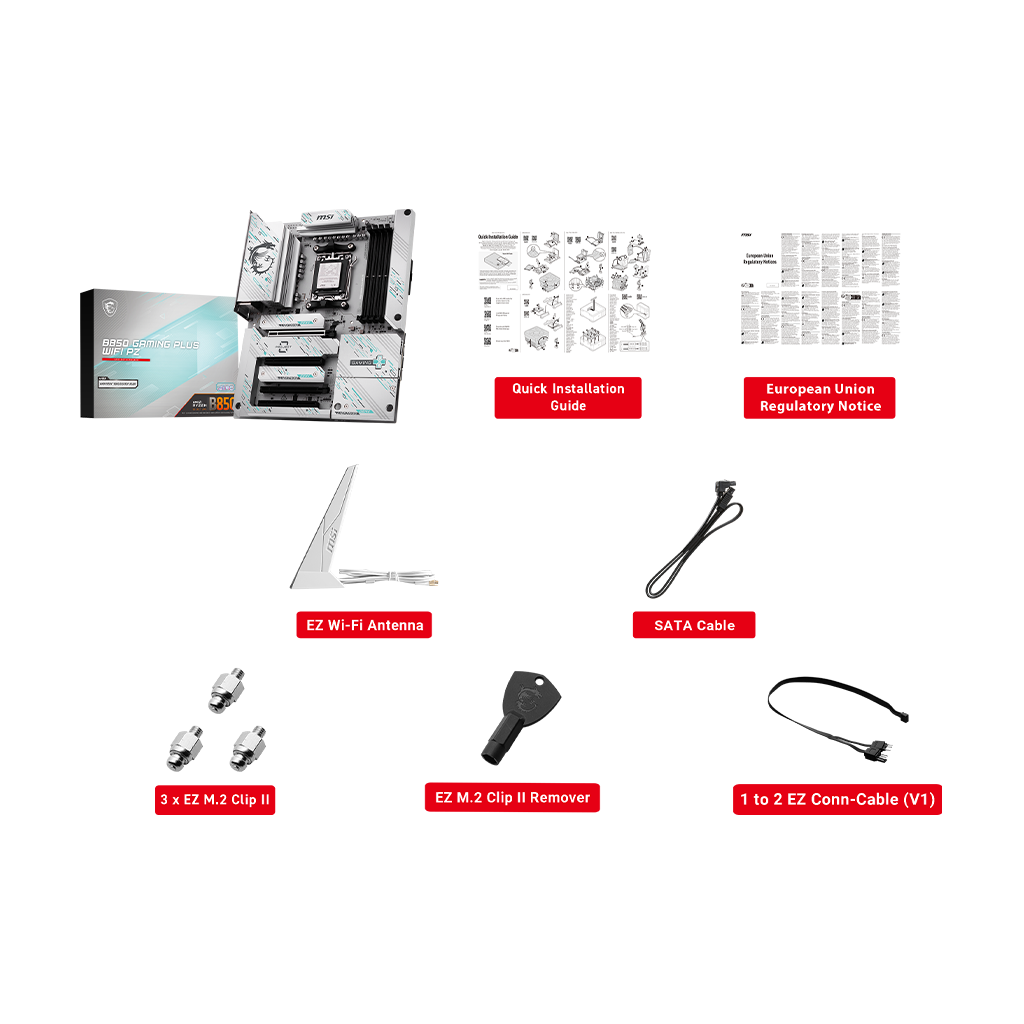

The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
