B550 GAMING WIFI6E
B550 GAMING WIFI6E
B550 GAMING WIFI6E
B550 GAMING WIFI6E
B550 GAMING WIFI6E
B550 GAMING WIFI6E
B550 GAMING WIFI6E

B550 GAMING WIFI6E

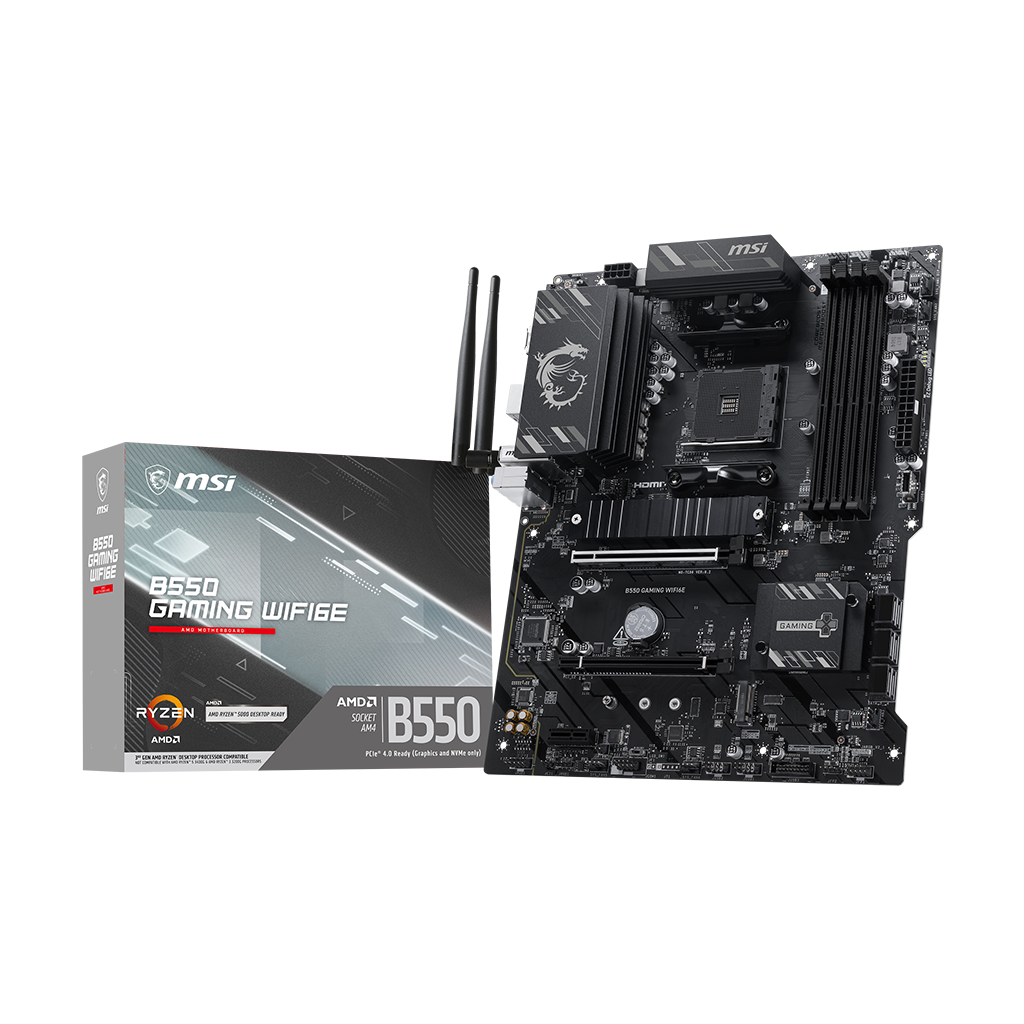

The B550 GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.


  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 4800+MHz (OC)
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • EZ DIY: EZ Debug LED and EZ Mounting
  • Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
  • MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Based on purchase date

$119.99
Out of stock

RECOMMENDED FOR YOU

B550M PRO-VDH WIFI
B550M PRO-VDH WIFI
  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • Lightning Gen4 solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI
  • Mystic Light Extension: Control additional RGB or Rainbow strip added to your system with Dragon Center.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
WAS  $109.99  $99.99
A520M-A PRO
A520M-A PRO
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
WAS  $69.99  $64.99
MAG B550 TOMAHAWK MAX WIFI
MAG B550 TOMAHAWK MAX WIFI
  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
$159.99
B550M PRO-VDH
B550M PRO-VDH
  • Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
$89.99
PRO B650M-A WIFI
PRO B650M-A WIFI
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
$159.99
PRO B650M-P
PRO B650M-P
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
WAS  $149.99  $99.99
B550-A PRO V1
B550-A PRO V1
  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports dual channel DDR4 memory up to 128GB total (4400+MHz)
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Lightning Gen4 solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • EZ Debug LED: Easiest way to troubleshoot.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
$119.99
PRO B650M-A WIFI V1
PRO B650M-A WIFI V1
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
$159.99
PRO B650M-P V1
PRO B650M-P V1
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
WAS  $149.99  $99.99
PRO B650-S WIFI V1
PRO B650-S WIFI V1
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
$159.99
A520M-A PRO V1
A520M-A PRO V1
  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
$69.99

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 10 64-bit
Manufacturer Number B550 GAMING WIFI6E
Product Condition New
CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G Series, and 3000 Series Processors
Chipset AMD® B550 Chipset
CPU Socket AM4
Form Factor ATX
Memory 4 DIMMs, Dual Channel DDR4-4800+ MHz (OC)
LAN Realtek® RTL8111H Gigabit LAN
Wireless LAN Wi-Fi 6E Solution
Bluetooth Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
STORAGE 1 x M.2 Gen4 x4 64Gbps slot
1 x M.2 Gen3 x4 32Gbps slot
6 x SATA 6Gbps ports
Onboard Graphics 1 x HDMI port, Support HDMI™ 1.4, maximum resolution of 4K 30Hz
1 x DisplayPort, Support DisplayPort 1.2, maximum resolution of 4K 60Hz

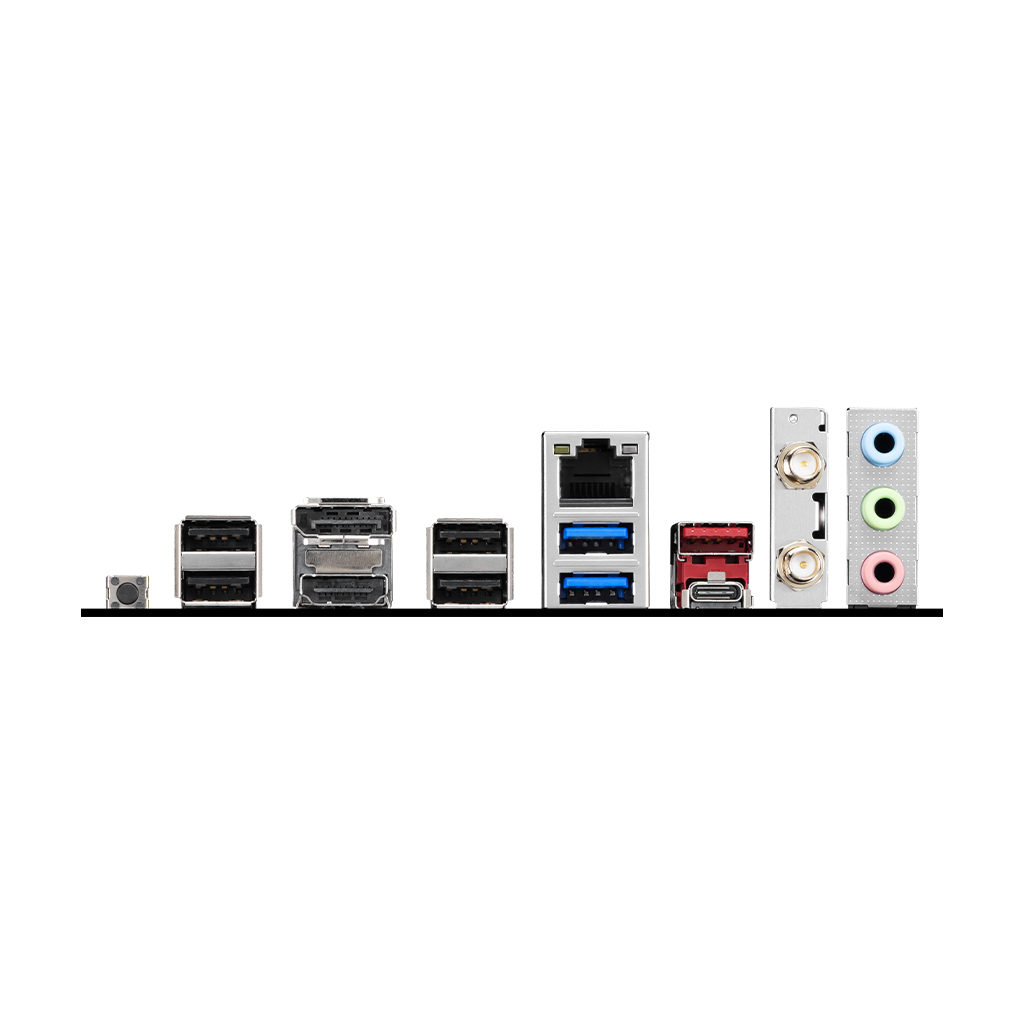

I/O (Rear) USB 2.0
DisplayPort 1.2
1G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
Expansion Slots 1x PCIe 4.0 x16 slot
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot
USB (Front) 4x USB 2.0
2x USB 5Gbps Type A
1x USB 5Gbps Type C
USB (Rear) 4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type A
1x USB 10Gbps Type C
Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Dimensions 12.00" x 9.60"
Manufacturer Warranty 3 Year

TECHNICAL FEATURES

Document

Win the Competition

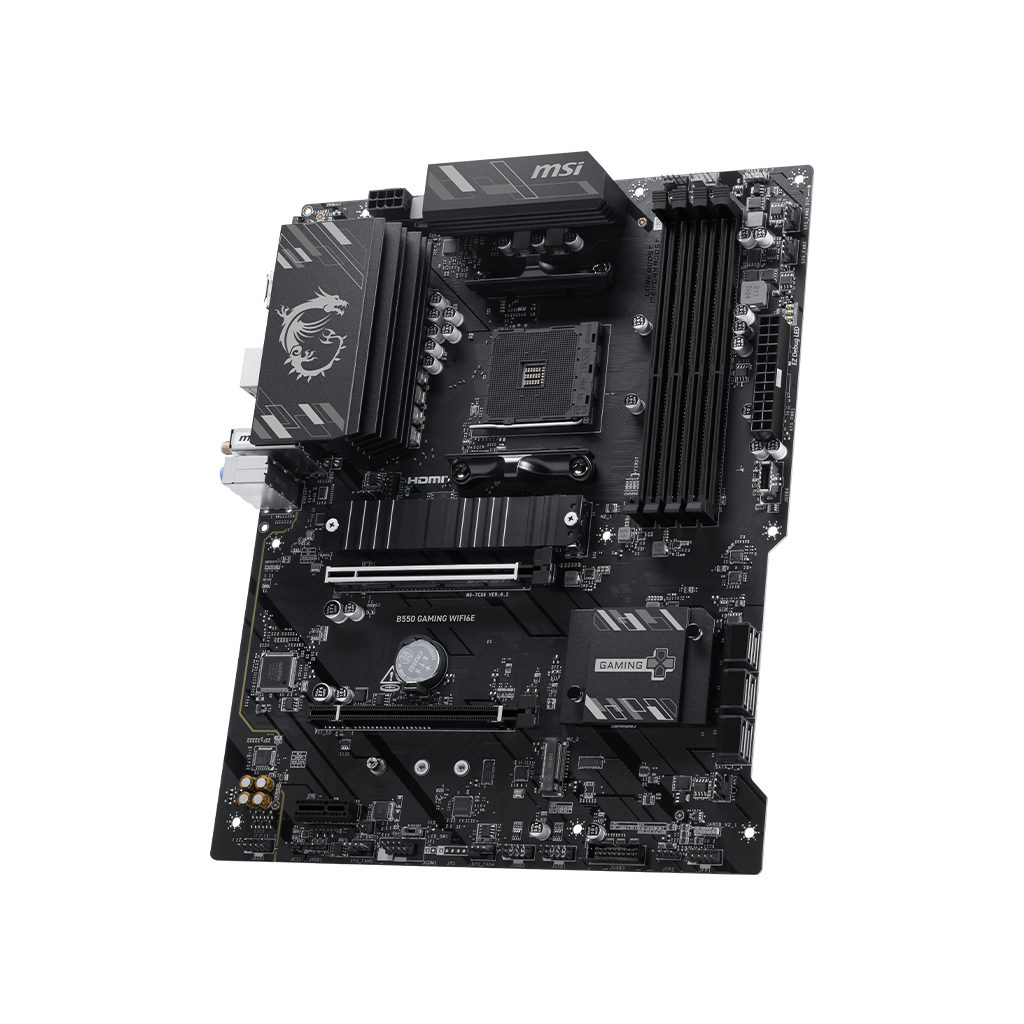

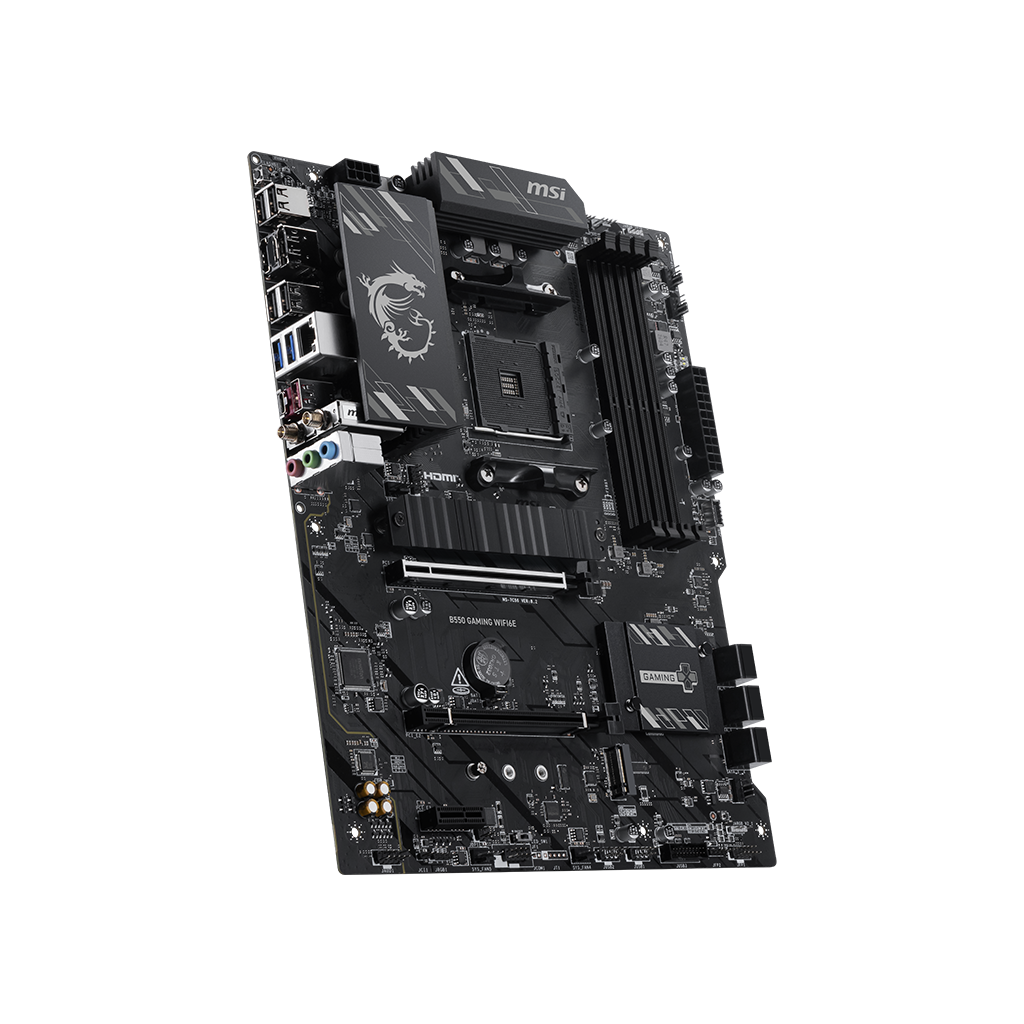

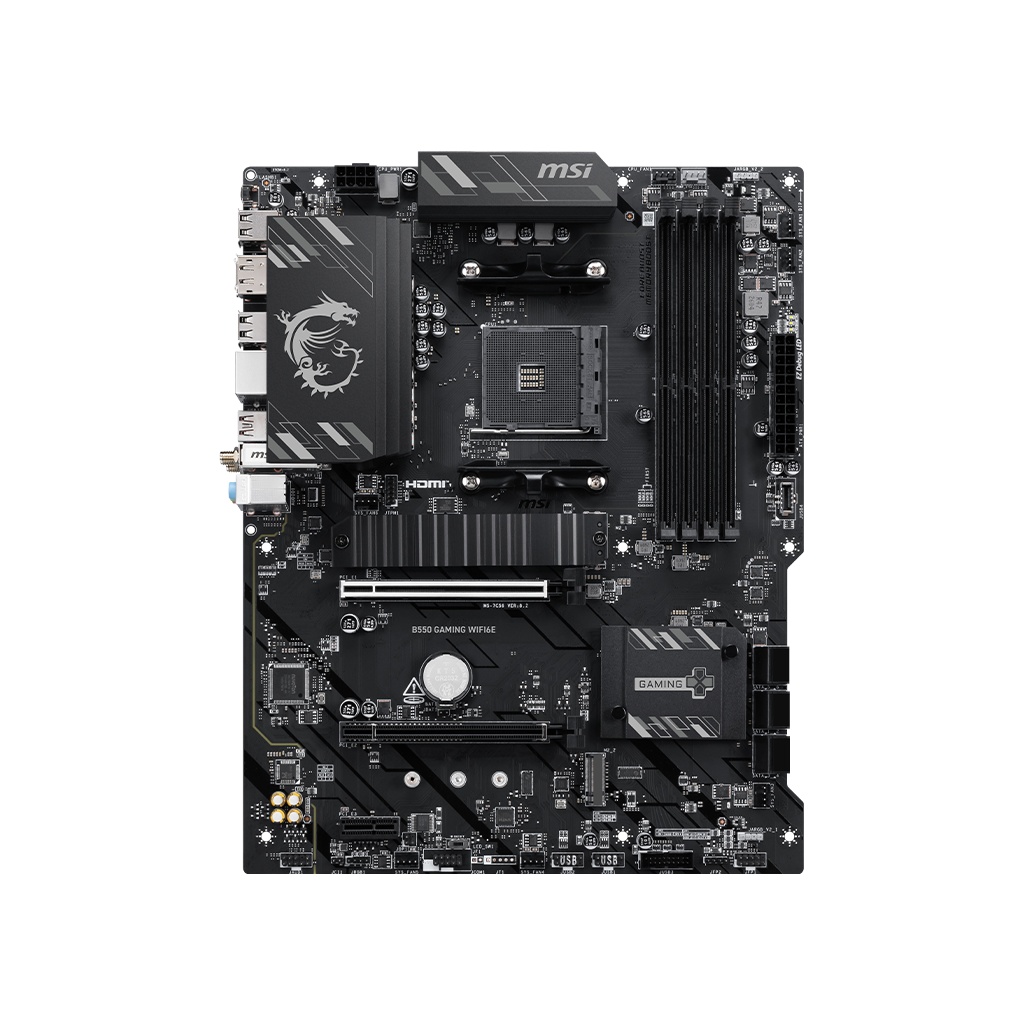

The B550 GAMING WIFI6E is a gaming oriented ATX motherboard that is constructed with a 8 Duet Rail Power System (DrMOS 50A) and AMD B550 chipset which supports AMD Ryzen 5000 series desktop processors, featuring PCIe 4.0, 1G LAN, Wi-Fi 6E and DDR4 that balances both value and premium hardware.

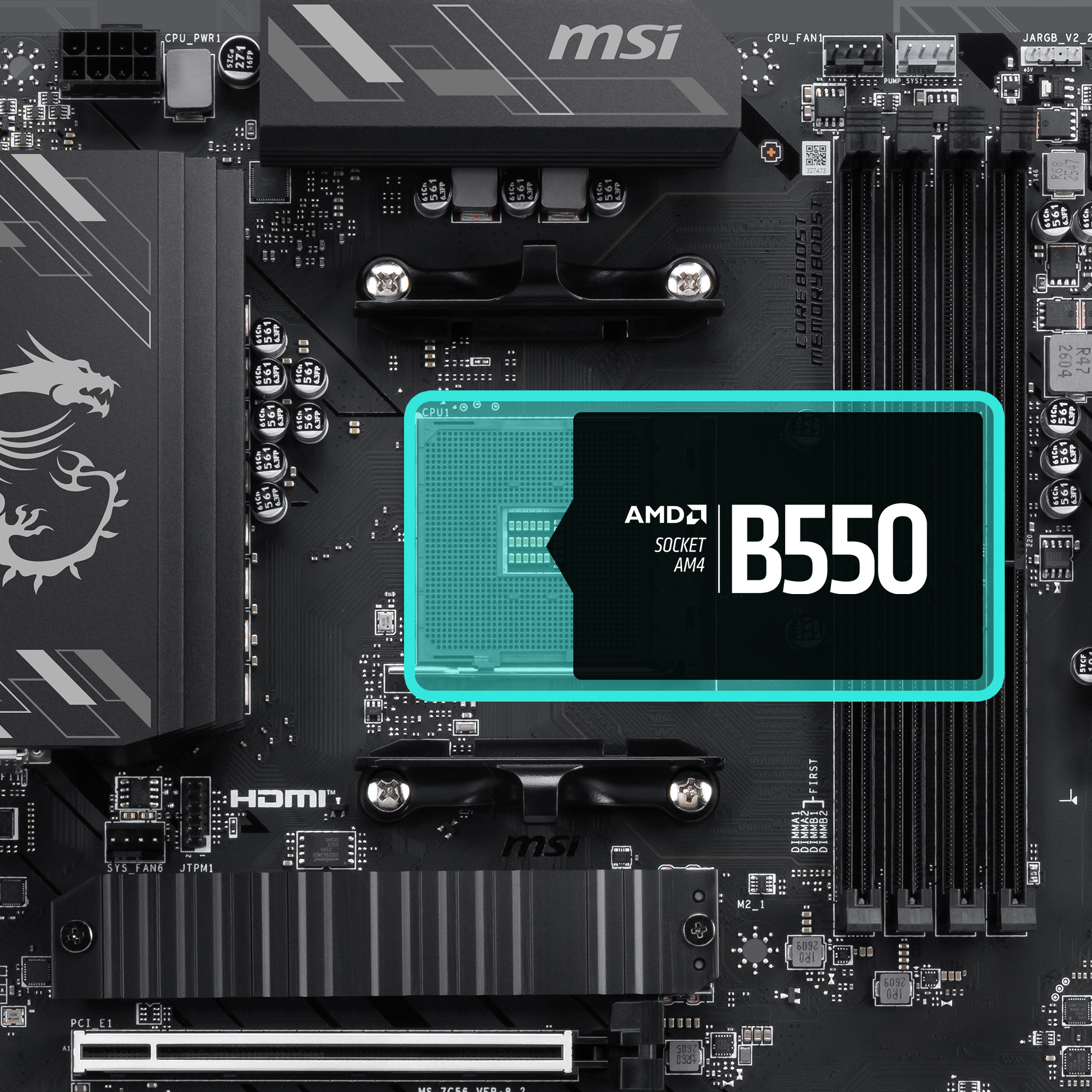

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series and 3000 Series Processors

The B550 GAMING WIFI6E motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series and 3000 Series Processors.

  • Form Factor: ATX
  • Socket Type: AM4
  • Chipset: AMD B550

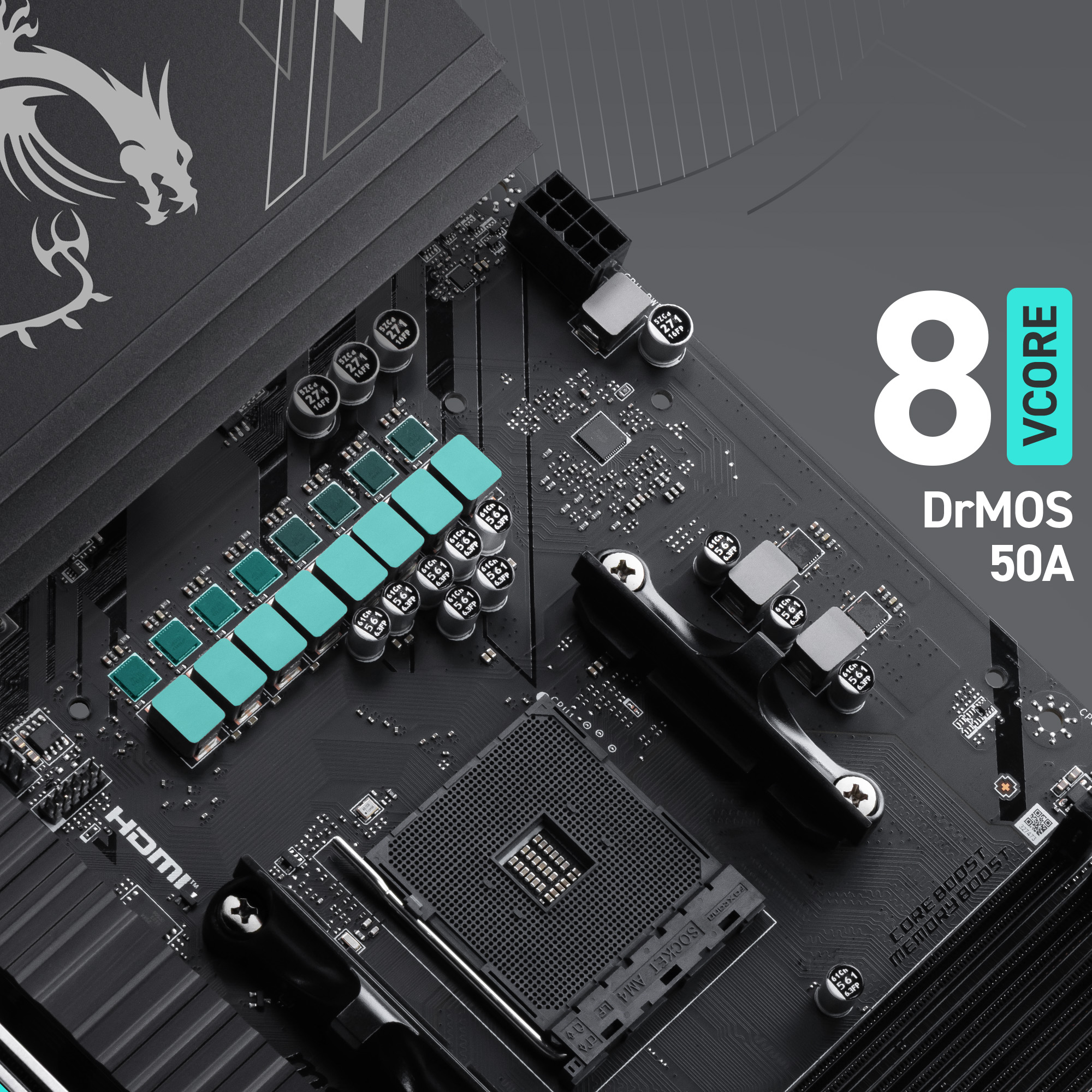

Ultra Power - 8 Duet Rail Power System with DrMOS 50A

With exclusive Core Boost technology, a 8 pin power connectors and EZ OC Tuning functions, the B550 GAMING WIFI6E is able to sustain heavy CPU power loads to support system-demanding game settings:

  • Digital PWM IC
  • 8 Duet Rail Power System (DrMOS 50A)
  • 2 Phase SOC Power
  • 1 Phase APU Power

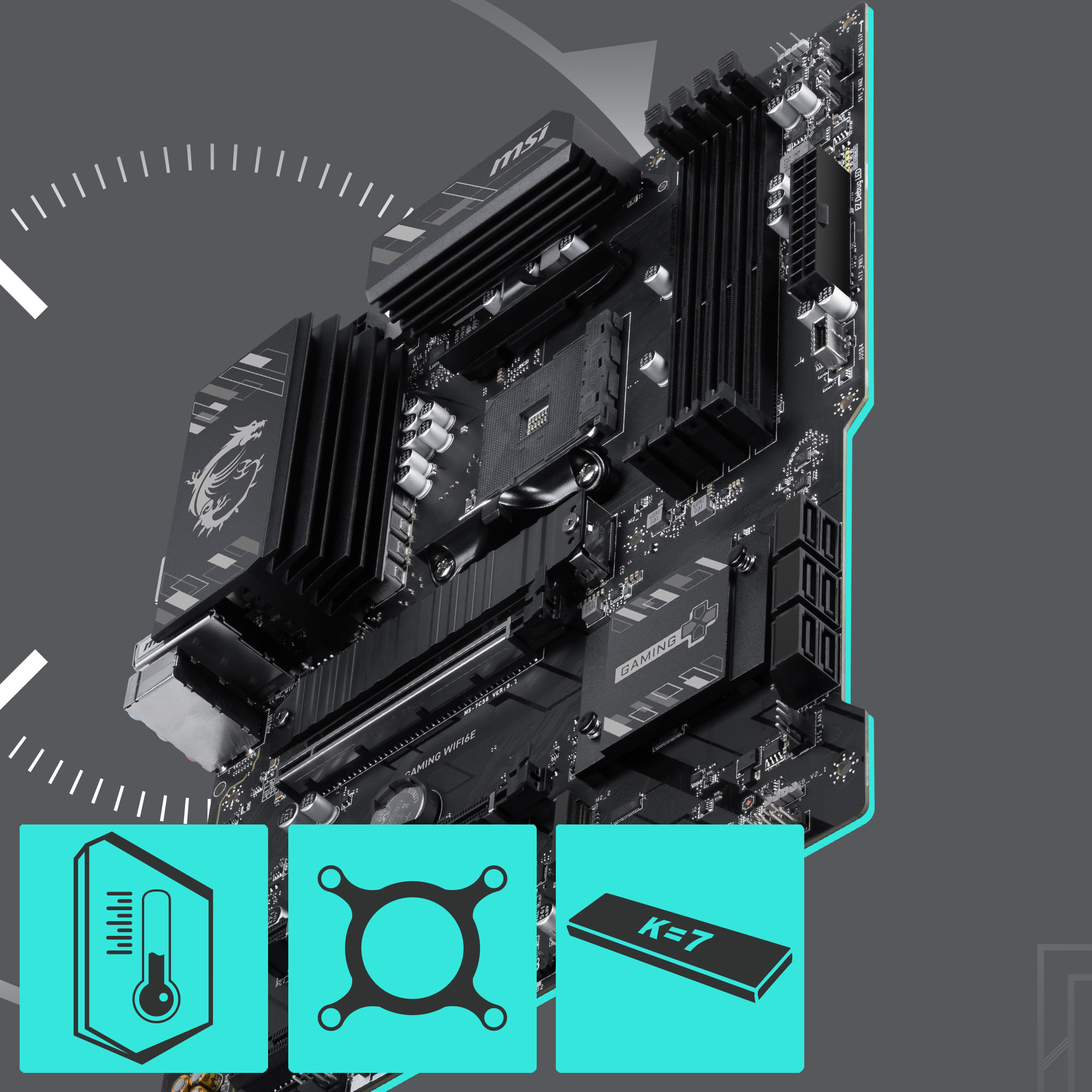

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

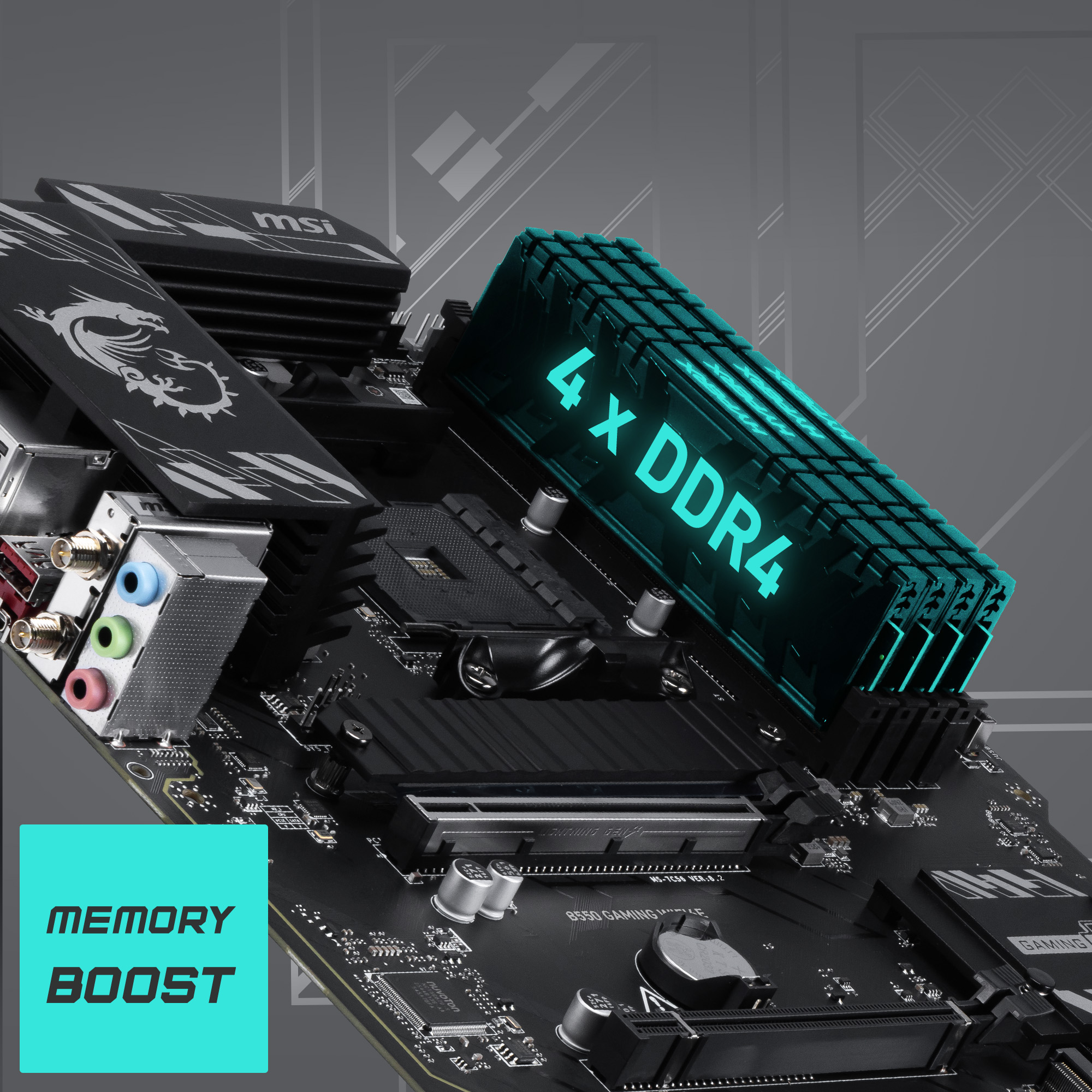

4 x DDR4 Dual Channel (4800+ MHz/OC)*

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

A-XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 4800+ MHz/OC, supports AMD A-XMP.

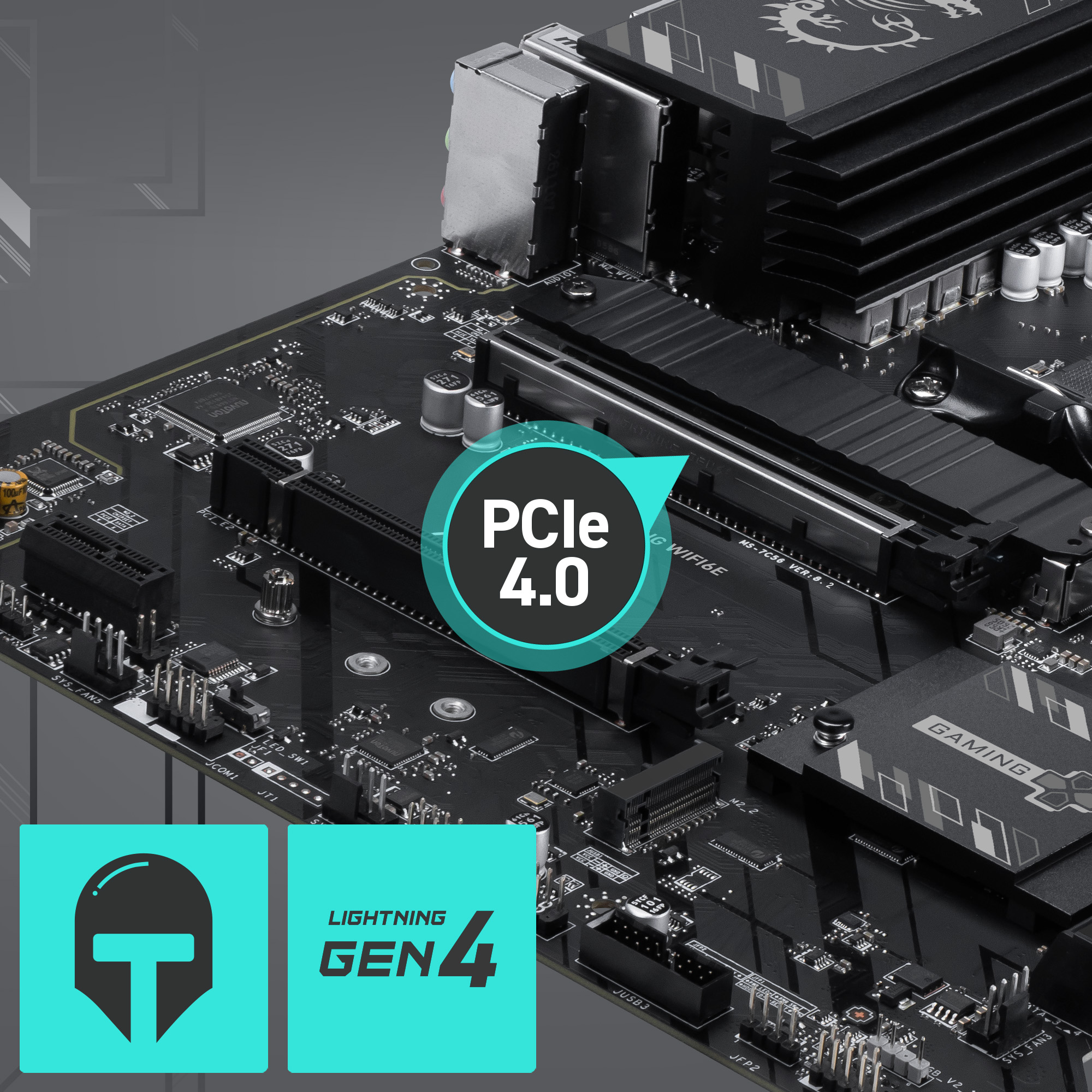

Fortified PCIe 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

  • 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor*)
  • 1 x PCIe 3.0 x4 slot
  • 1 x PCIe 3.0 x1 slot

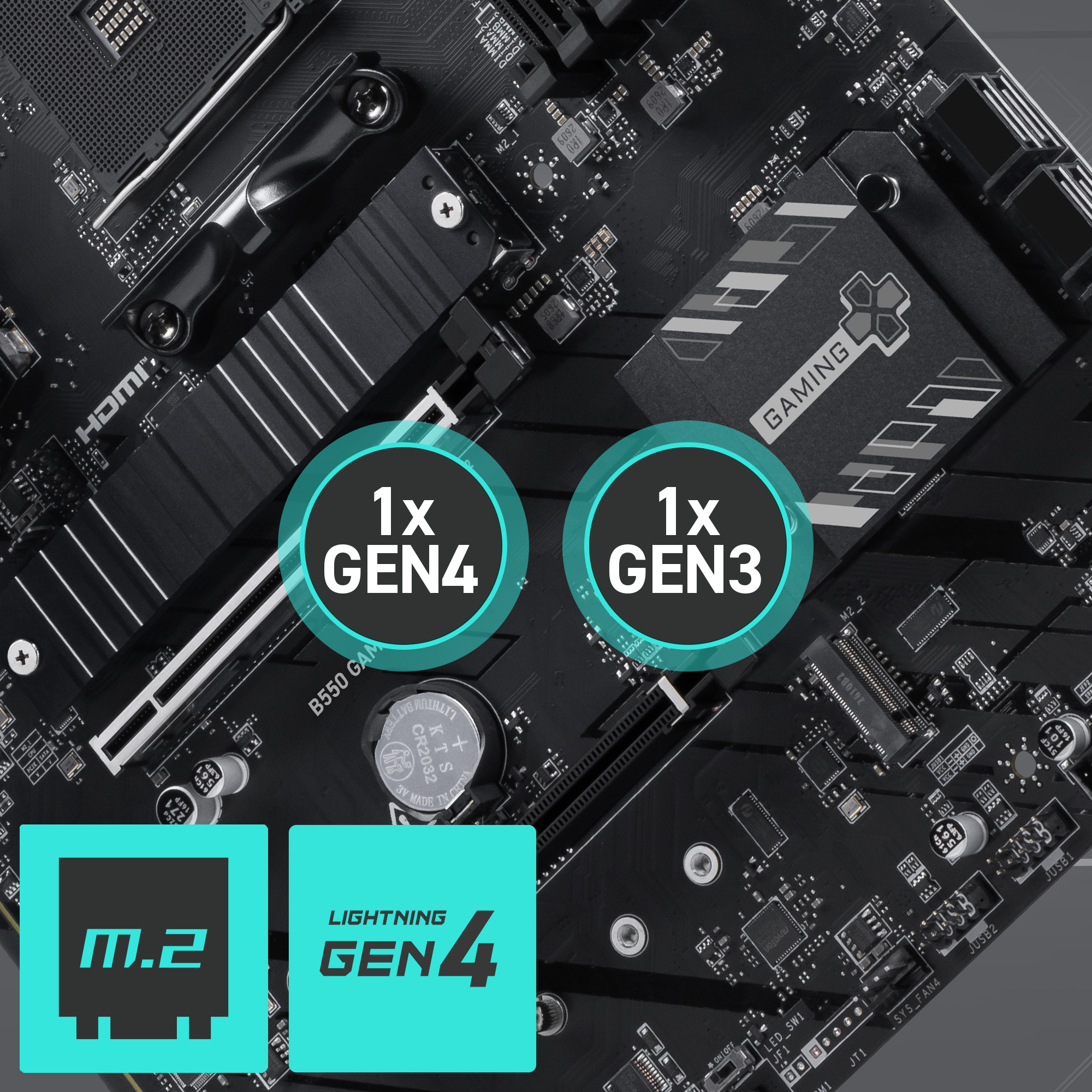

Gen4 M.2 Connector

The B550 GAMING WIFI6E motherboard features MSI's M.2 slots:

  • 1 x Gen4 x4 64Gbps slot (with M.2 Shield Frozr)
  • 1 x Gen3 x4 32Gbps slot

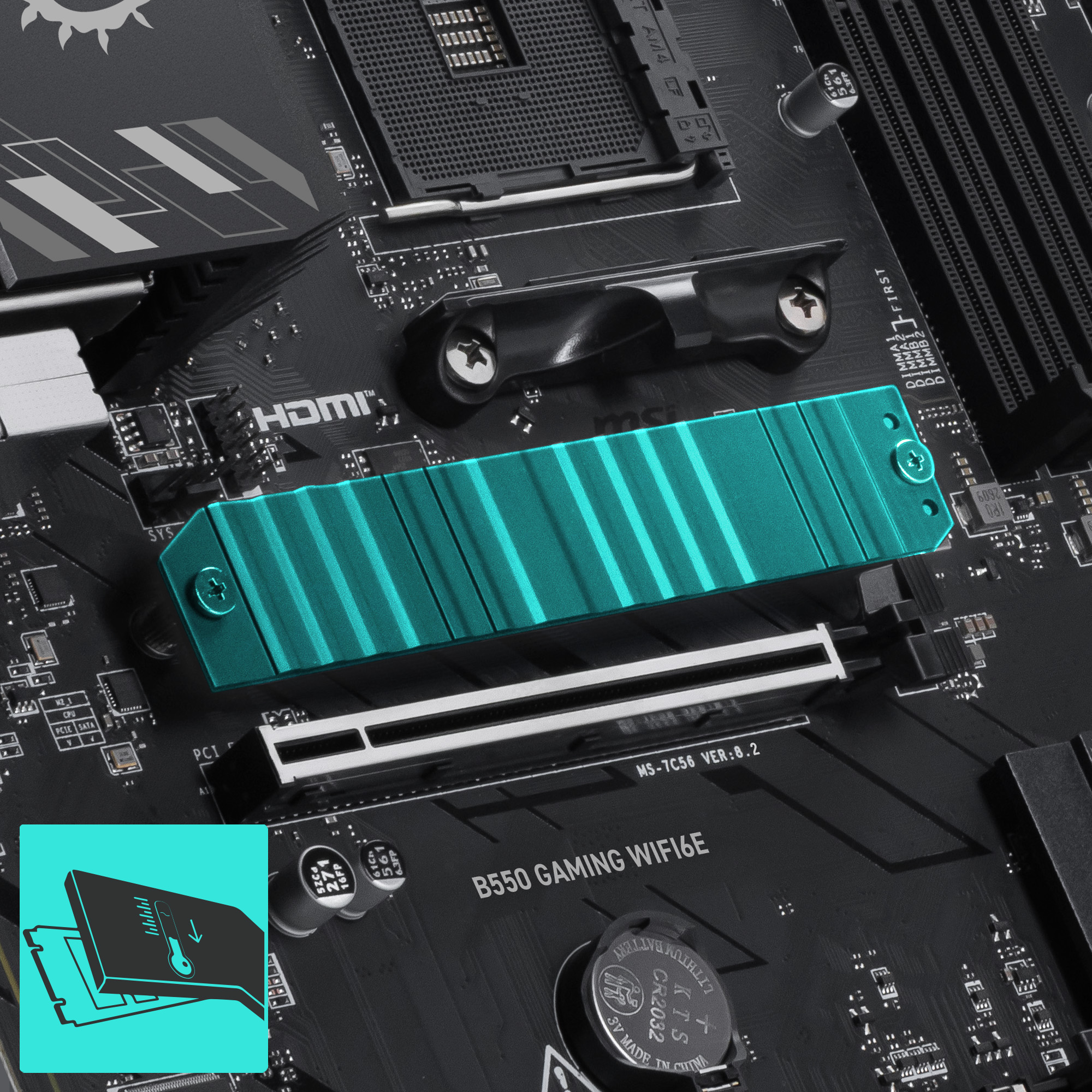

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

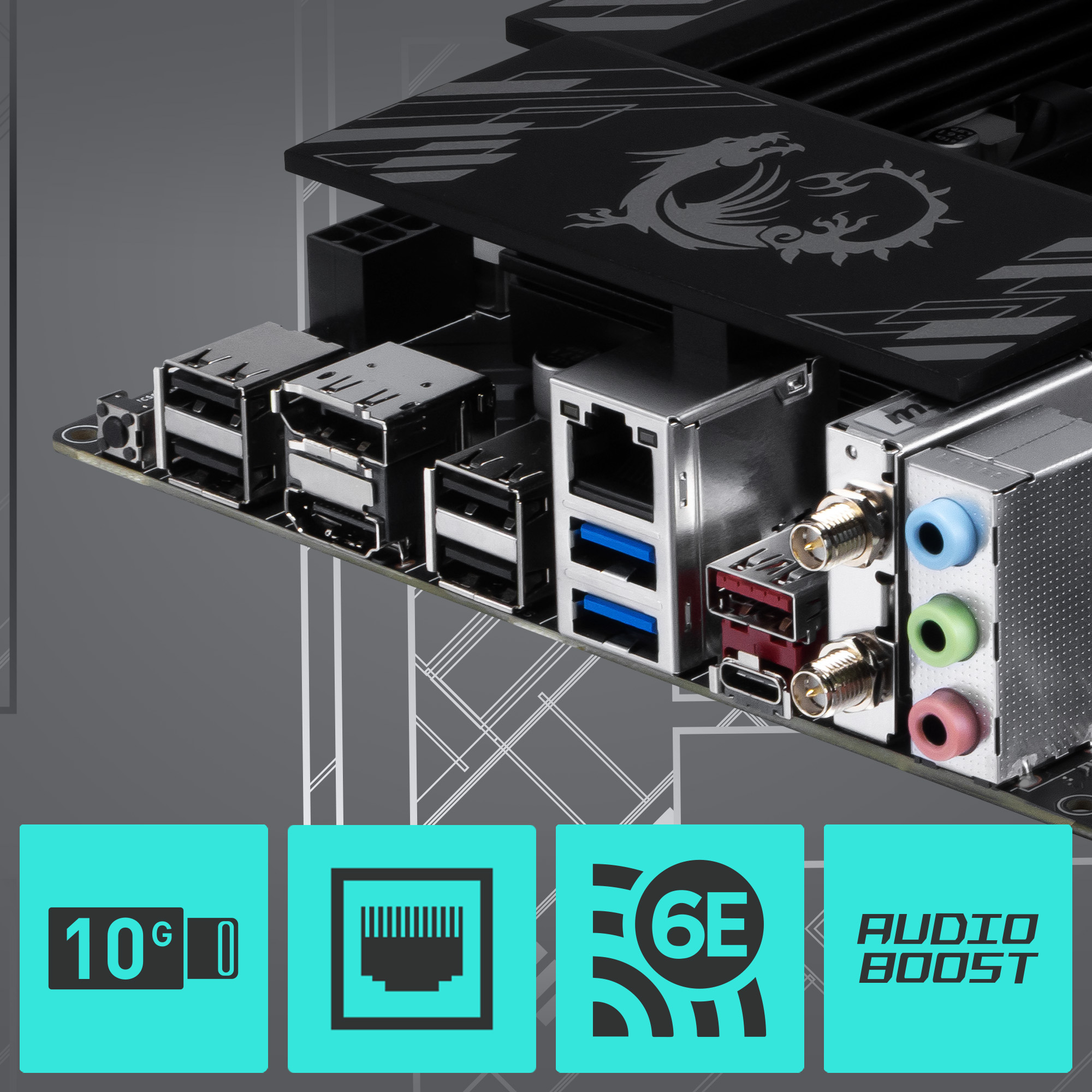

High-speed Connectivity

LAN: A Realtek 1Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi: Features the Wi-Fi 6E solution & Bluetooth 5.3 technology.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.


RATINGS & REVIEWS


SERVICE & SUPPORT

0 COMPARE

Product Compare

Add up to 4 products to the comparison and proceed to review their specifications in a single overview.
