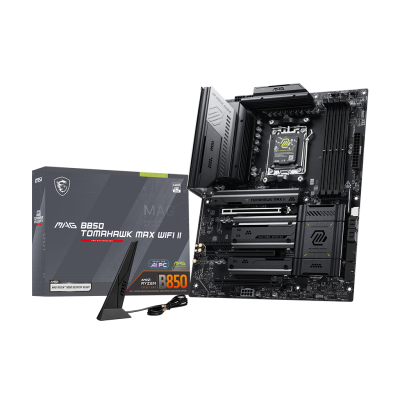

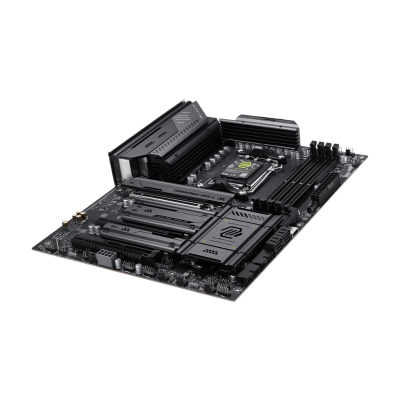

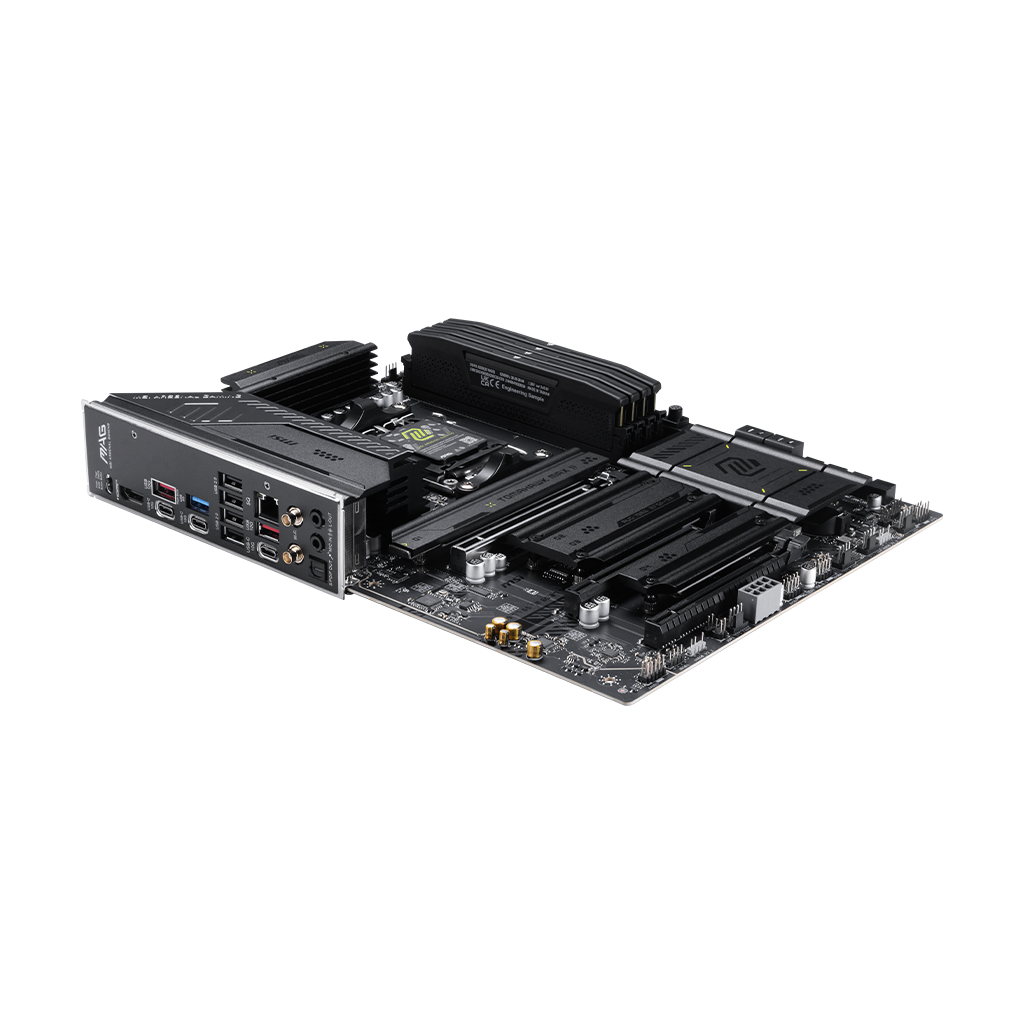

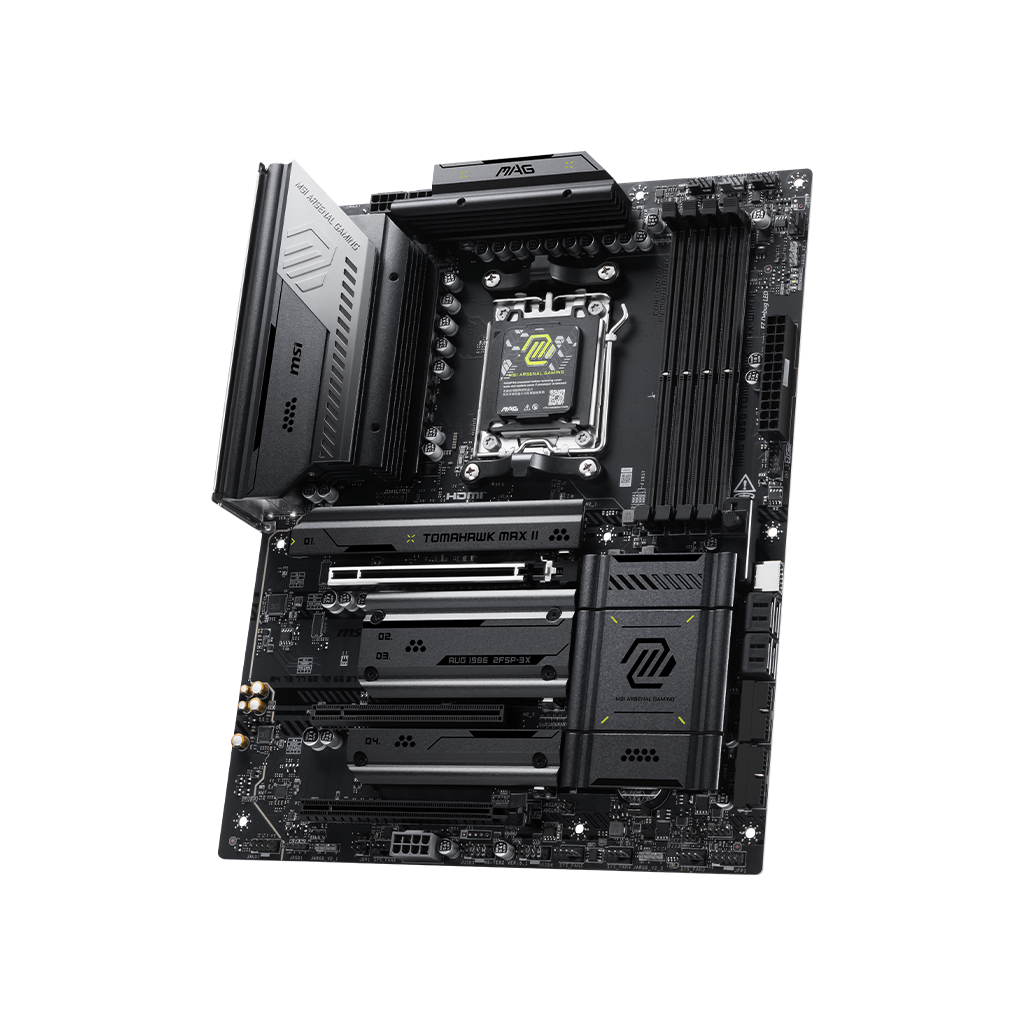

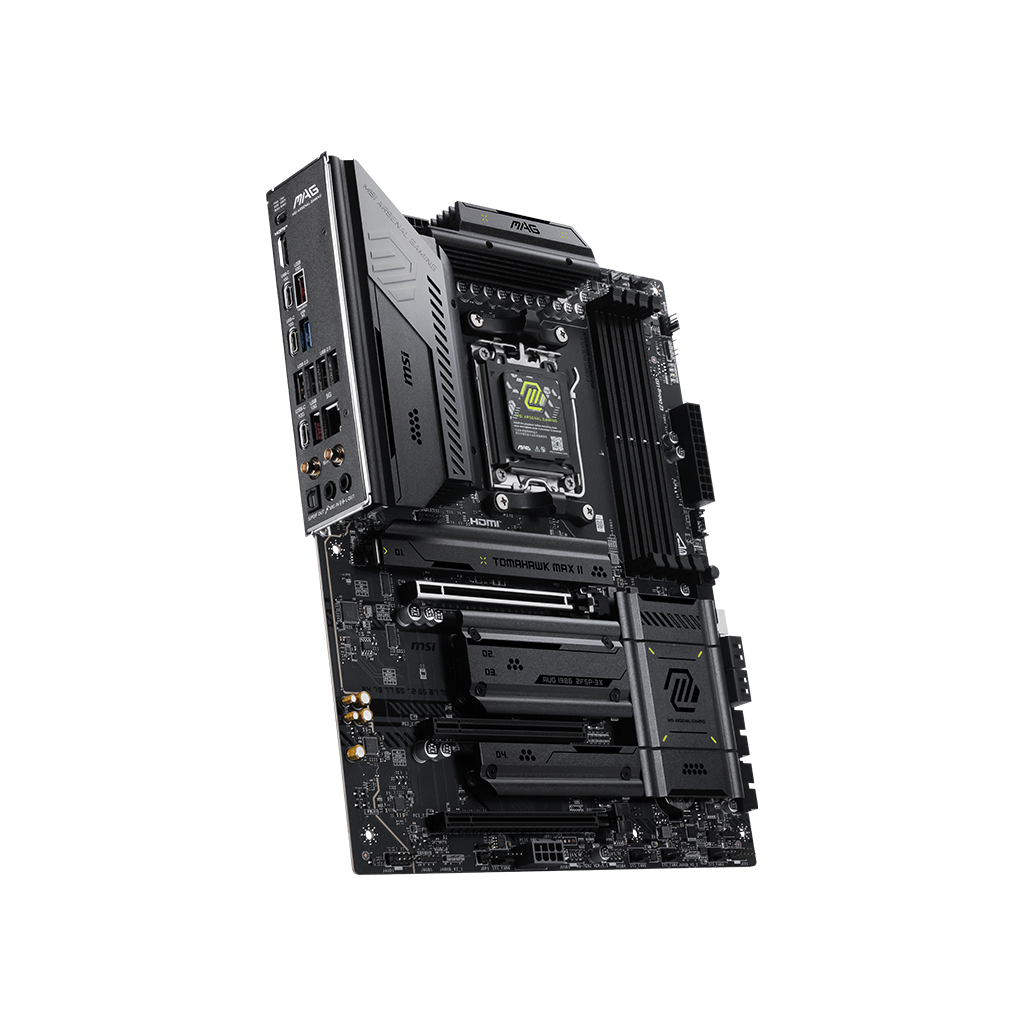

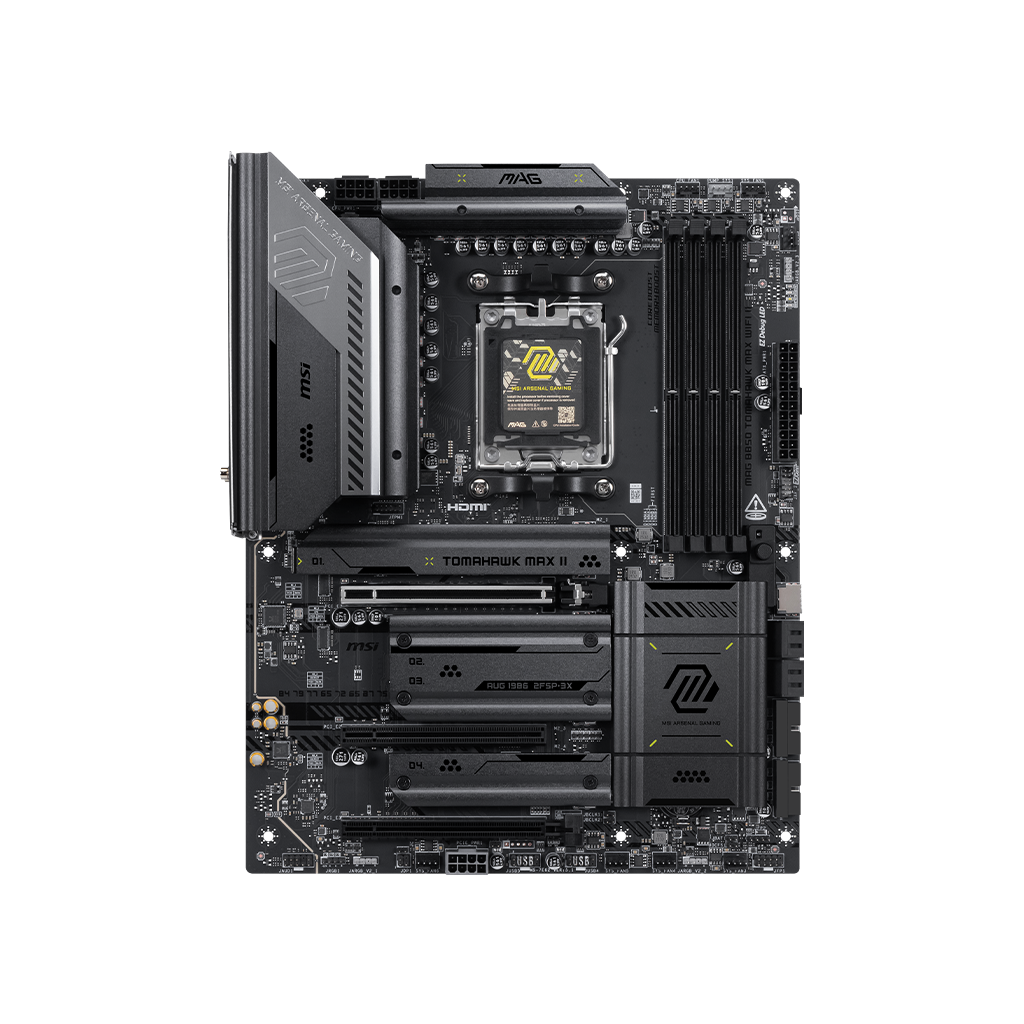

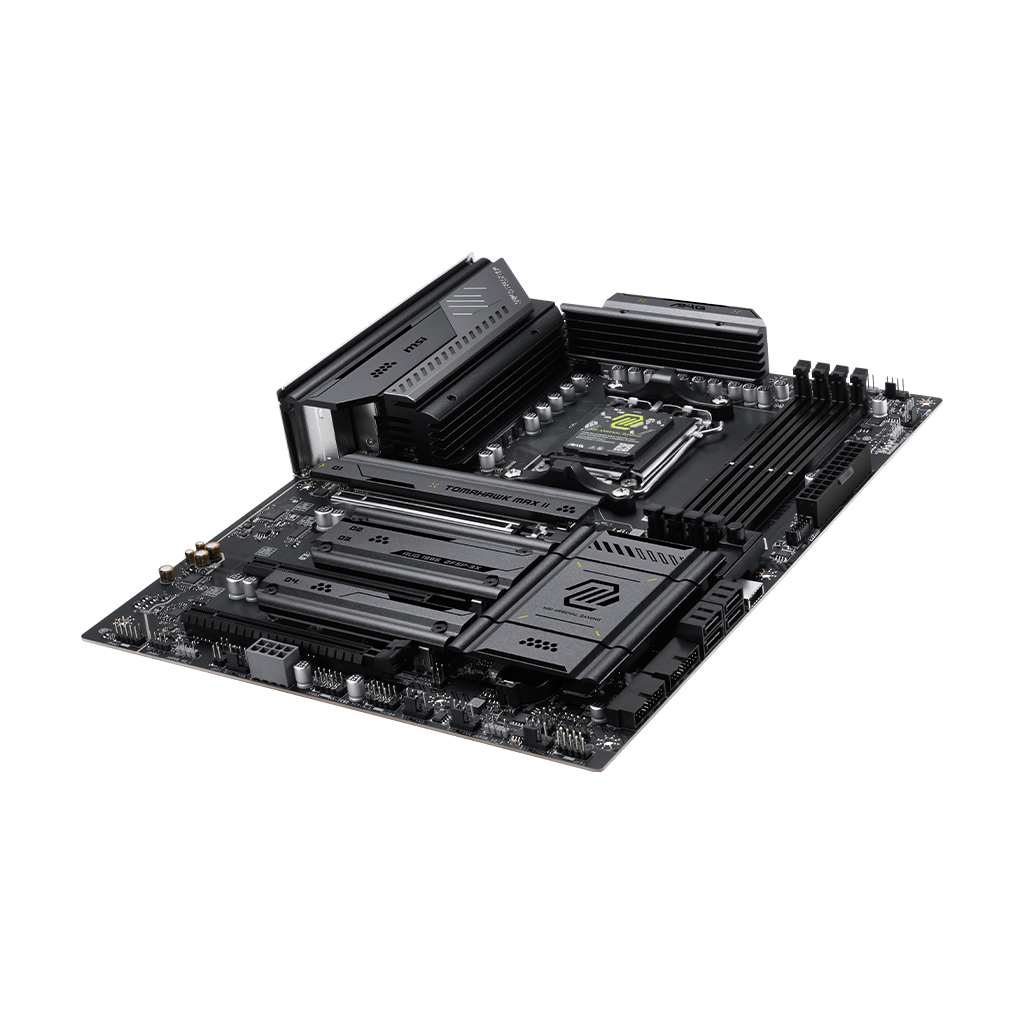

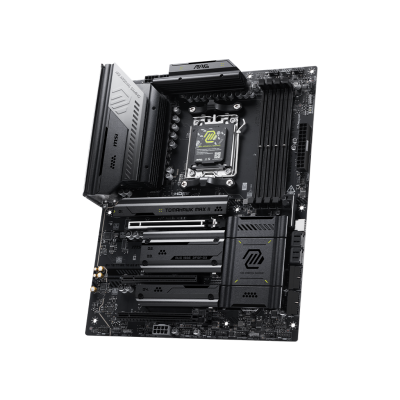

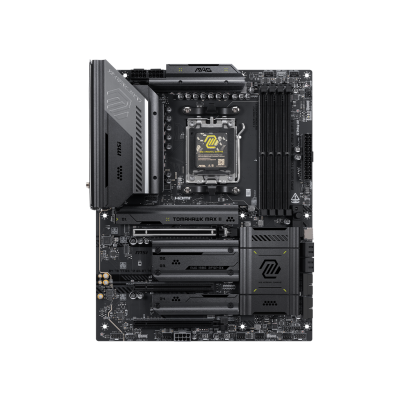

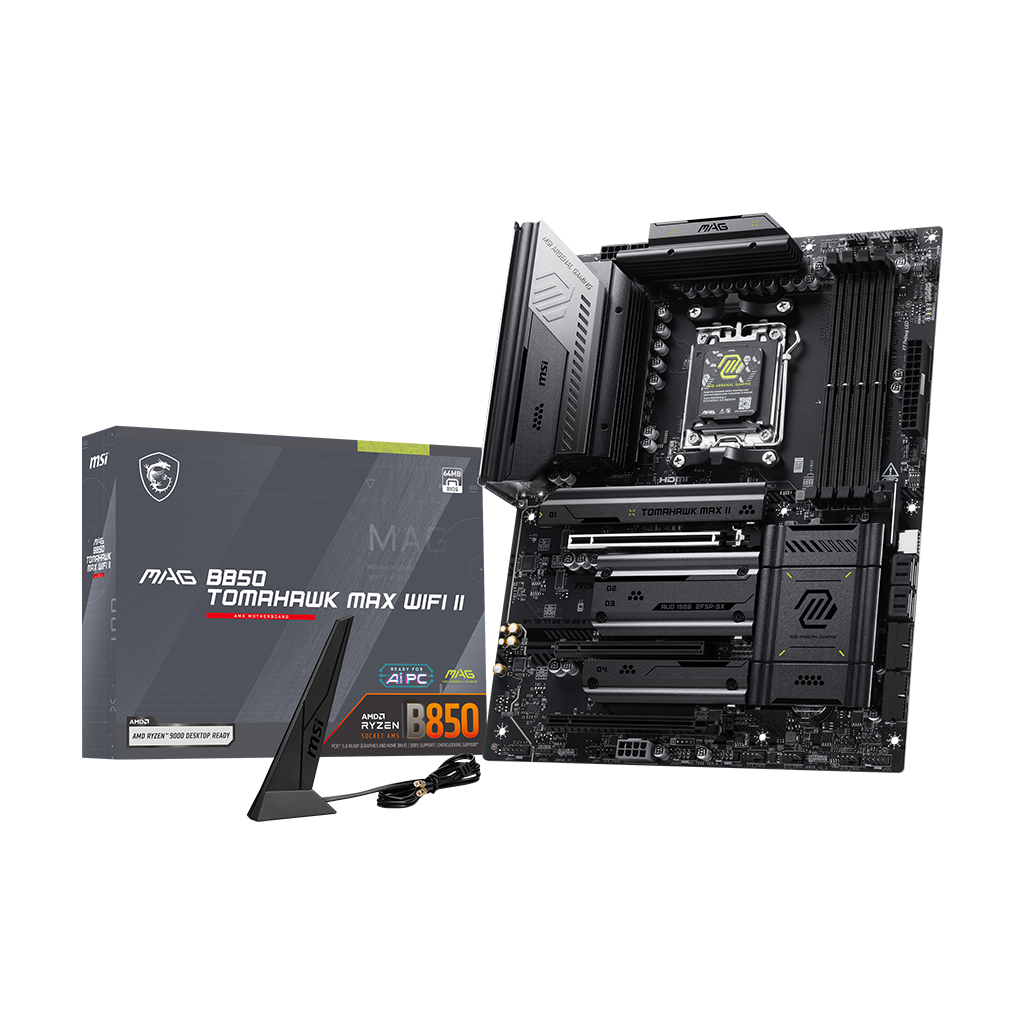

The MAG B850 TOMAHAWK MAX WIFI II motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850
The MAG B850 TOMAHAWK MAX WIFI II is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, full speed Wi-Fi 7 and DDR5 support that balances both value and premium hardware.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Based on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | MAG B850 TOMAHAWK MAX WIFI II |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |

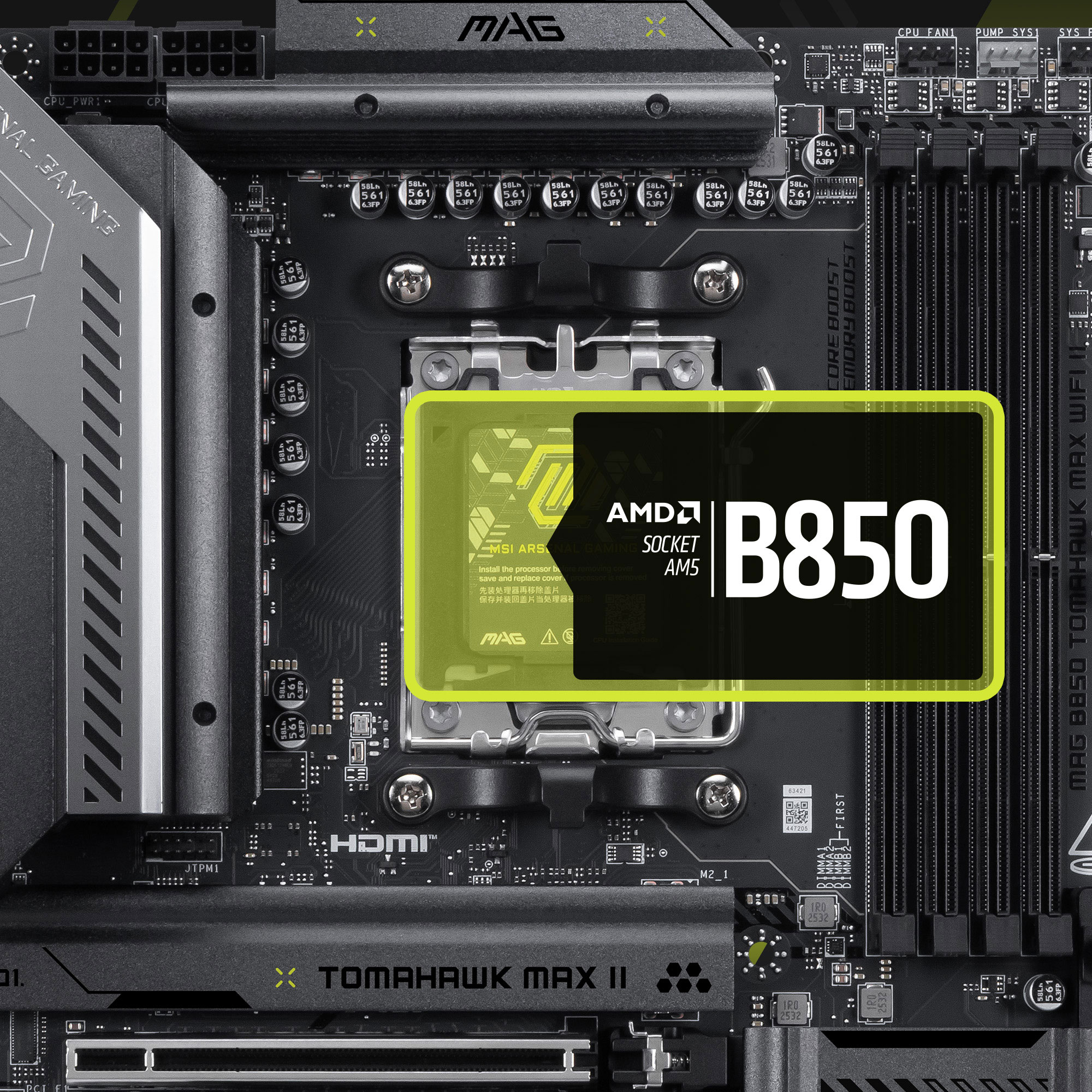

| Chipset | AMD B850 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | ATX Form Factor |
| Memory | 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC) |
| LAN | Realtek® 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
| MULTI-GPU | - |
|---|---|
| STORAGE | 2x M.2 Gen5 x4 128Gbps slots 1x M.2 Gen4 x4 64Gbps slot 1x M.2 Gen4 x2 32Gbps slot 4x SATA 6Gbps ports |
| Onboard Graphics | 1x HDMI™
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |

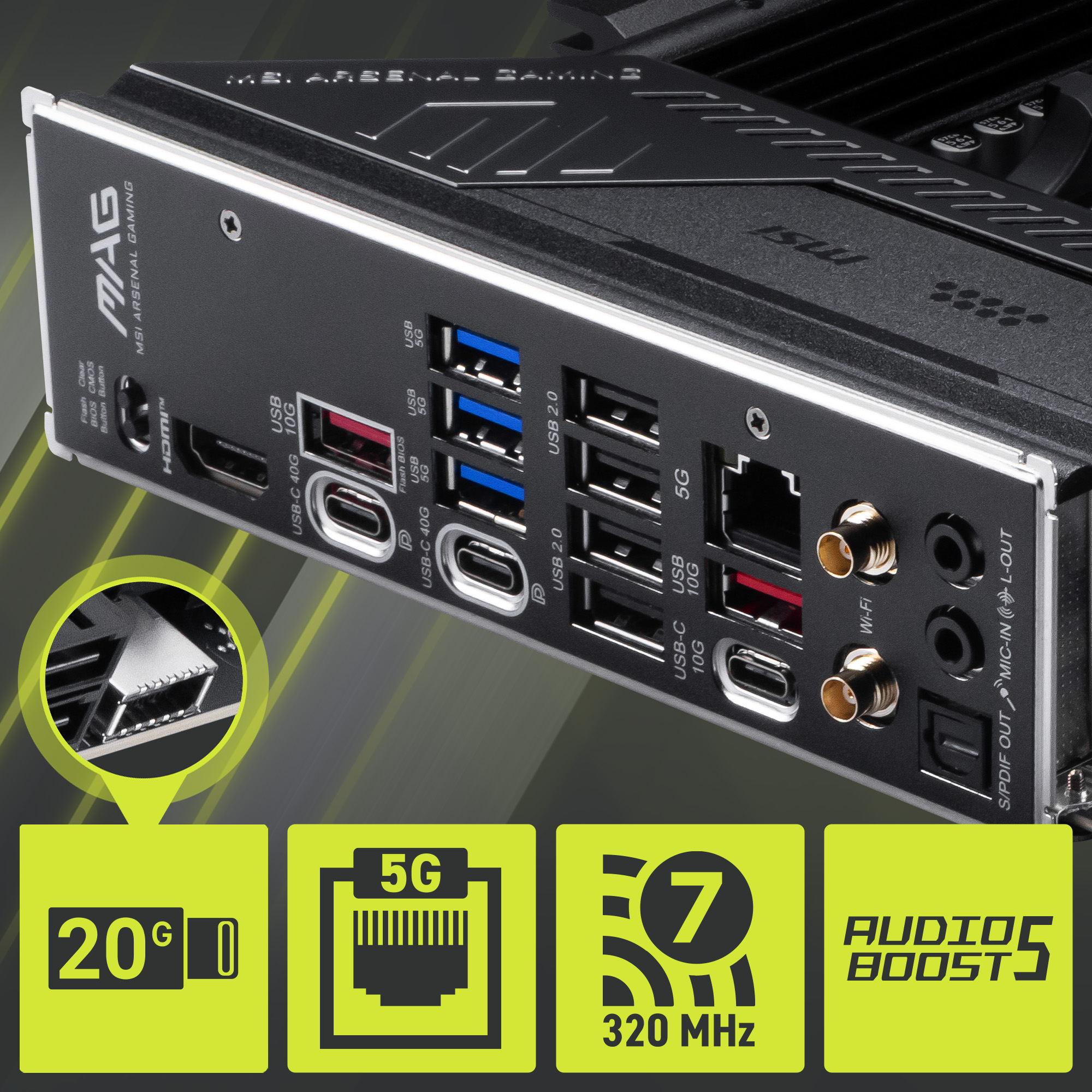

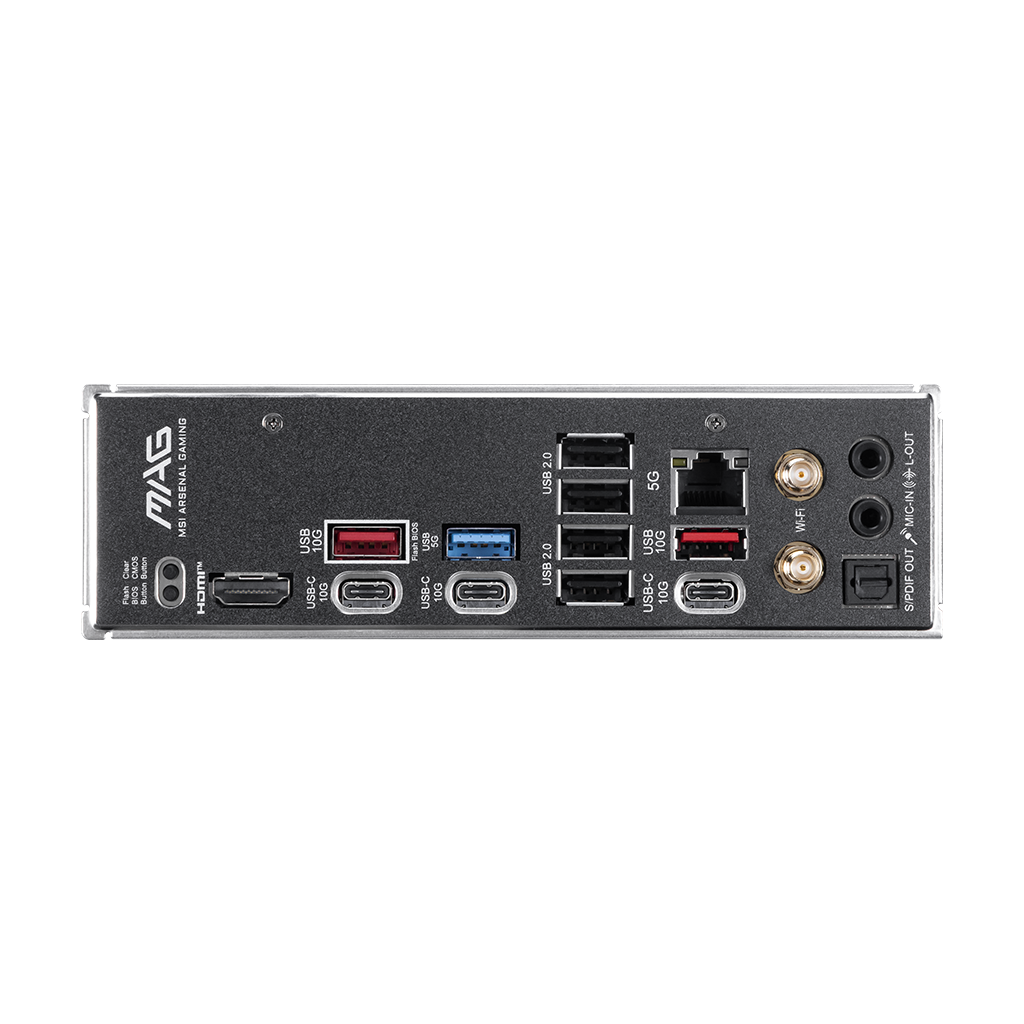

| I/O (Rear) | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF-OUT |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot |
| USB (Front) | 4x USB 2.0 4x USB 5Gbps Type A 1x USB 20Gbps Type C |
| USB (Rear) | 4x USB 2.0 1x USB 5Gbps Type A 2x USB 10Gbps Type A 3x USB 10Gbps Type C |
| TYPE-C PORT | 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Dimensions | 12.00" x 9.60" |
| Manufacturer Warranty | 3 Year |
The MAG B850 TOMAHAWK MAX WIFI II is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, full speed Wi-Fi 7 and DDR5 support that balances both value and premium hardware.
The MAG B850 TOMAHAWK MAX WIFI II motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850

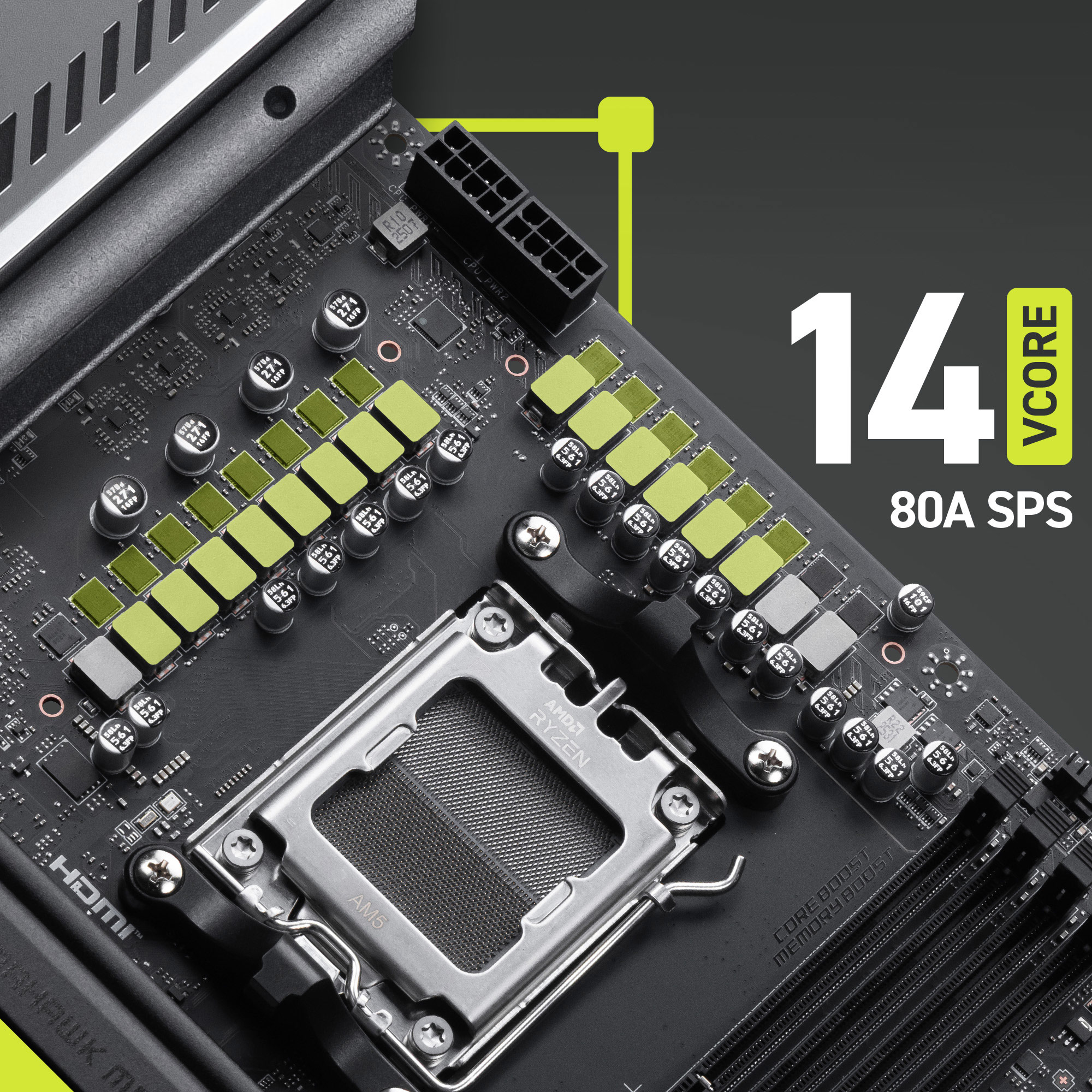

With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B850 TOMAHAWK MAX WIFI II is able to sustain heavy CPU power loads to support system-demanding game settings:

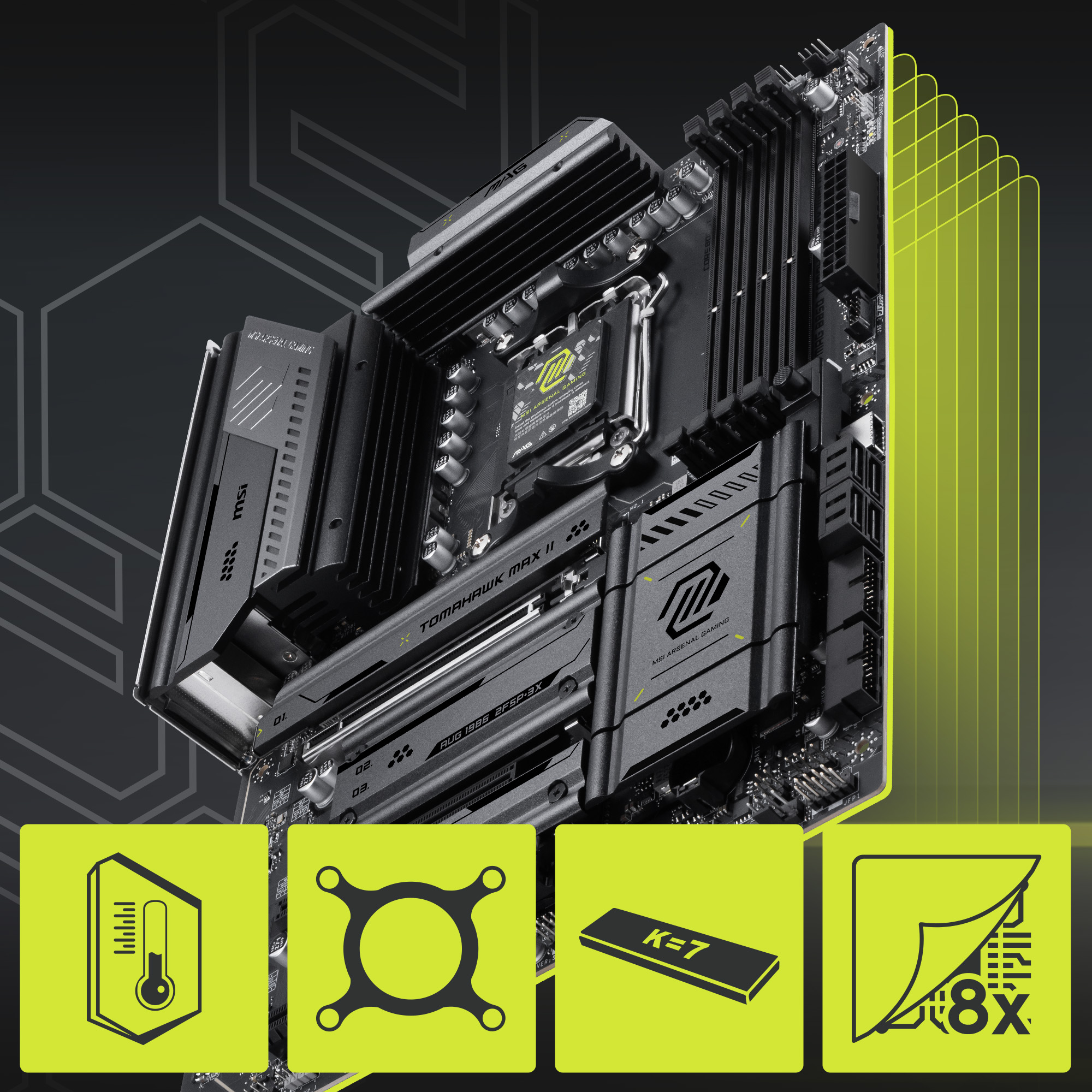

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.

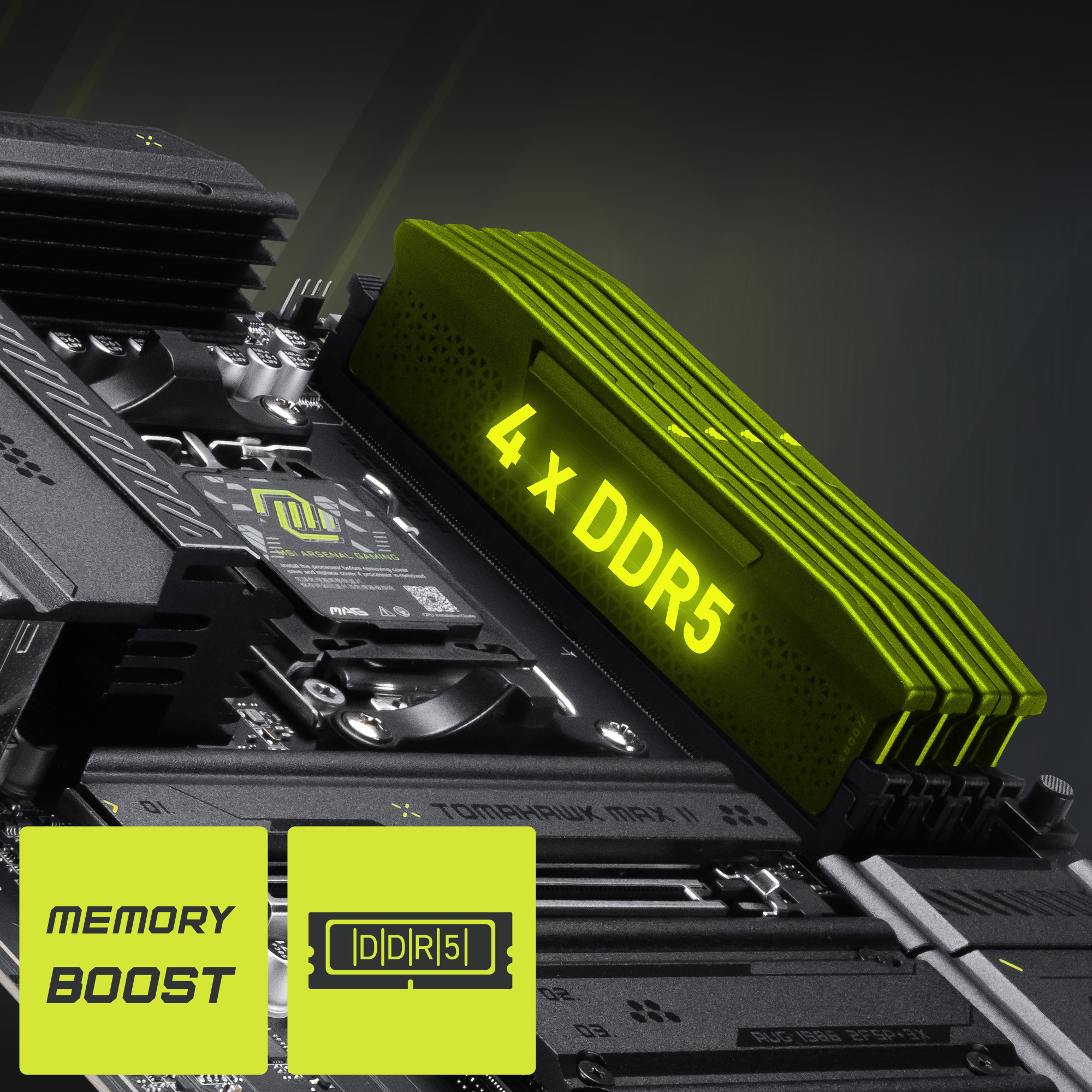

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: In the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency up to 8400+ MT/s, supports AMD EXPO.
**Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

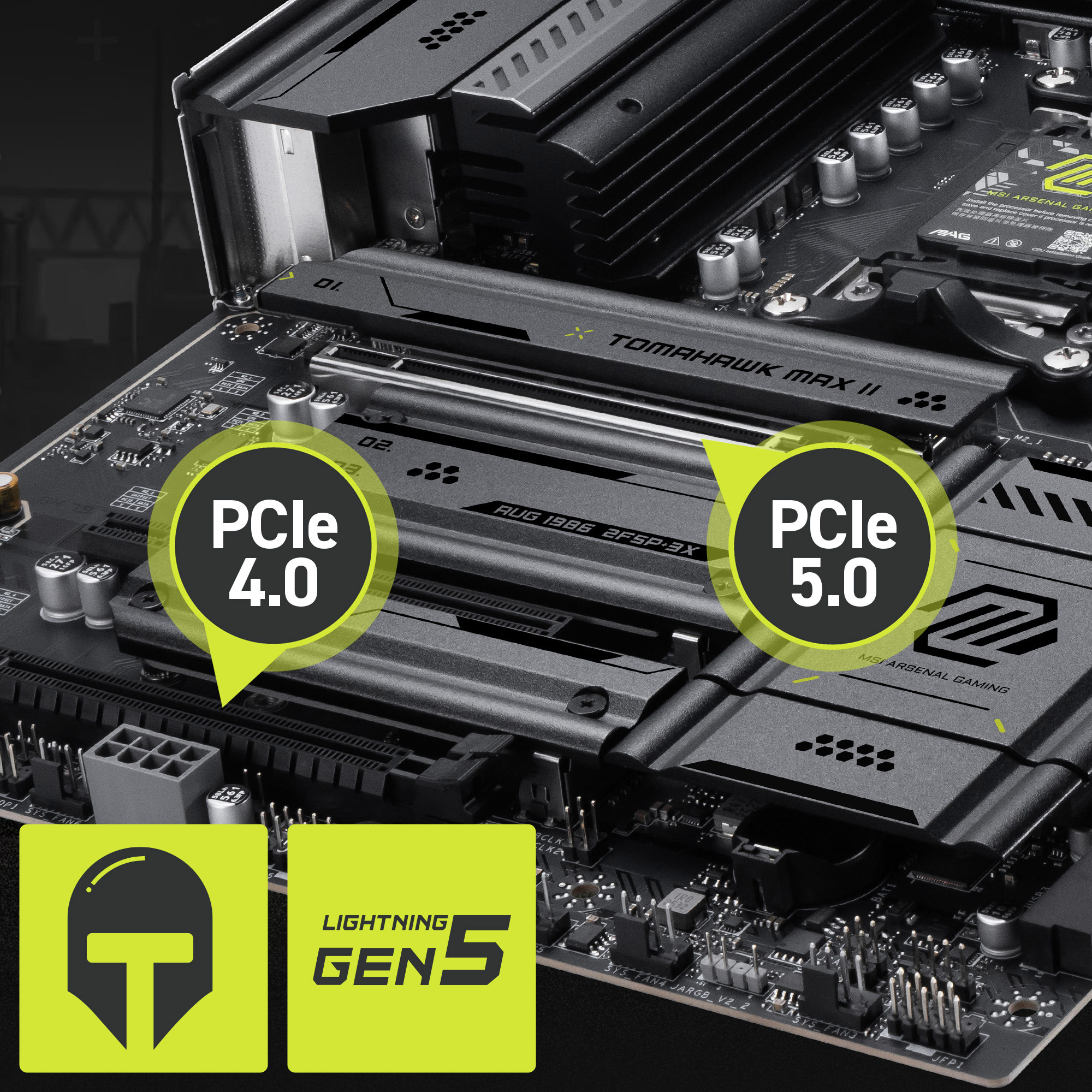

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.
1 x PCIe 5.0/4.0/3.0 x16 slot (one with Steel Armor II* and EZ PCIe Release)
1 x PCIe 4.0/3.0 x4 slot
1 x PCIe 3.0 x1 slot
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

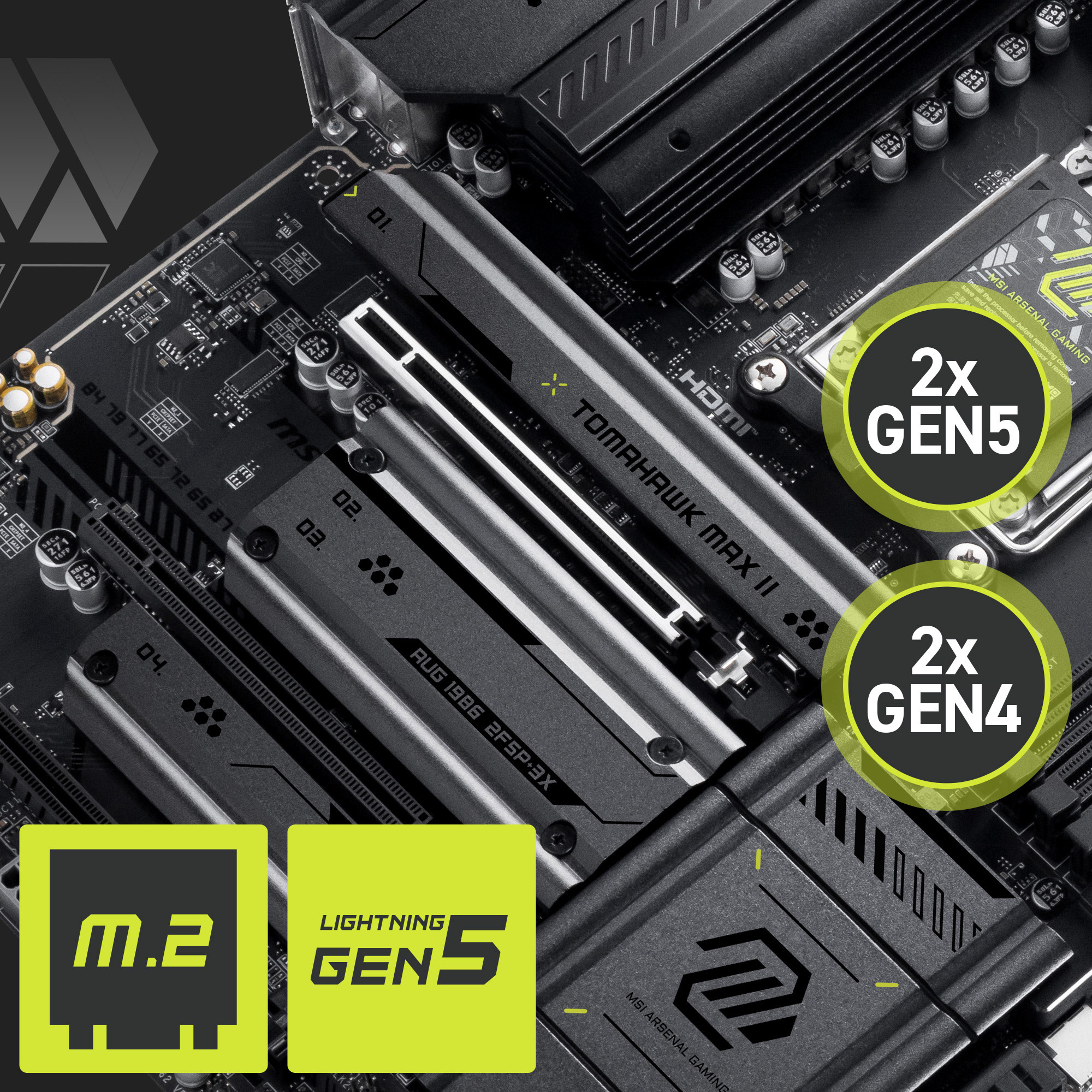

The MAG B850 TOMAHAWK MAX WIFI II motherboard features MSI's M.2 slots:
*First slot is with EZ M.2 Shield Frozr II
**With M.2 Shield Frozr

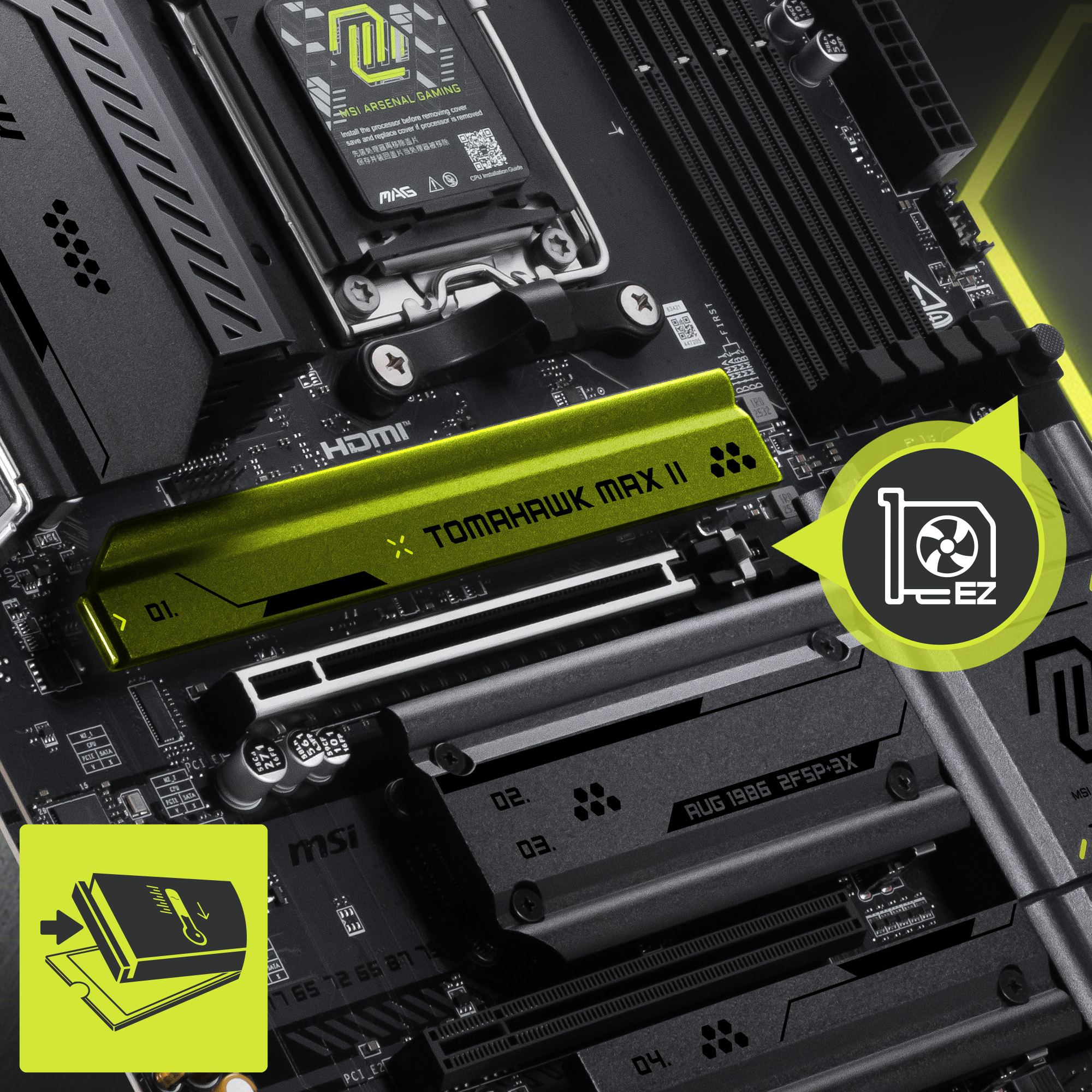

The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
