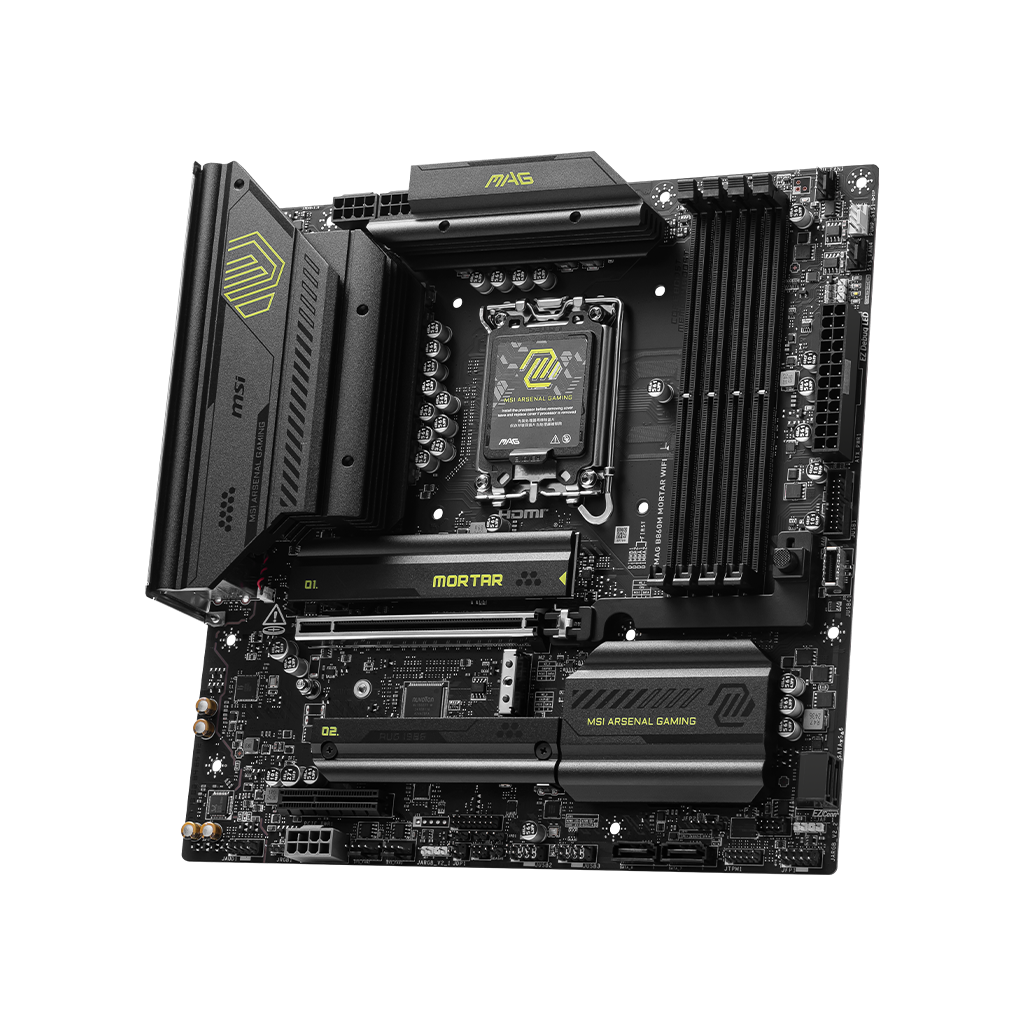

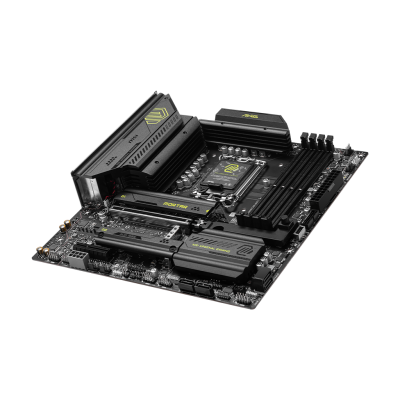

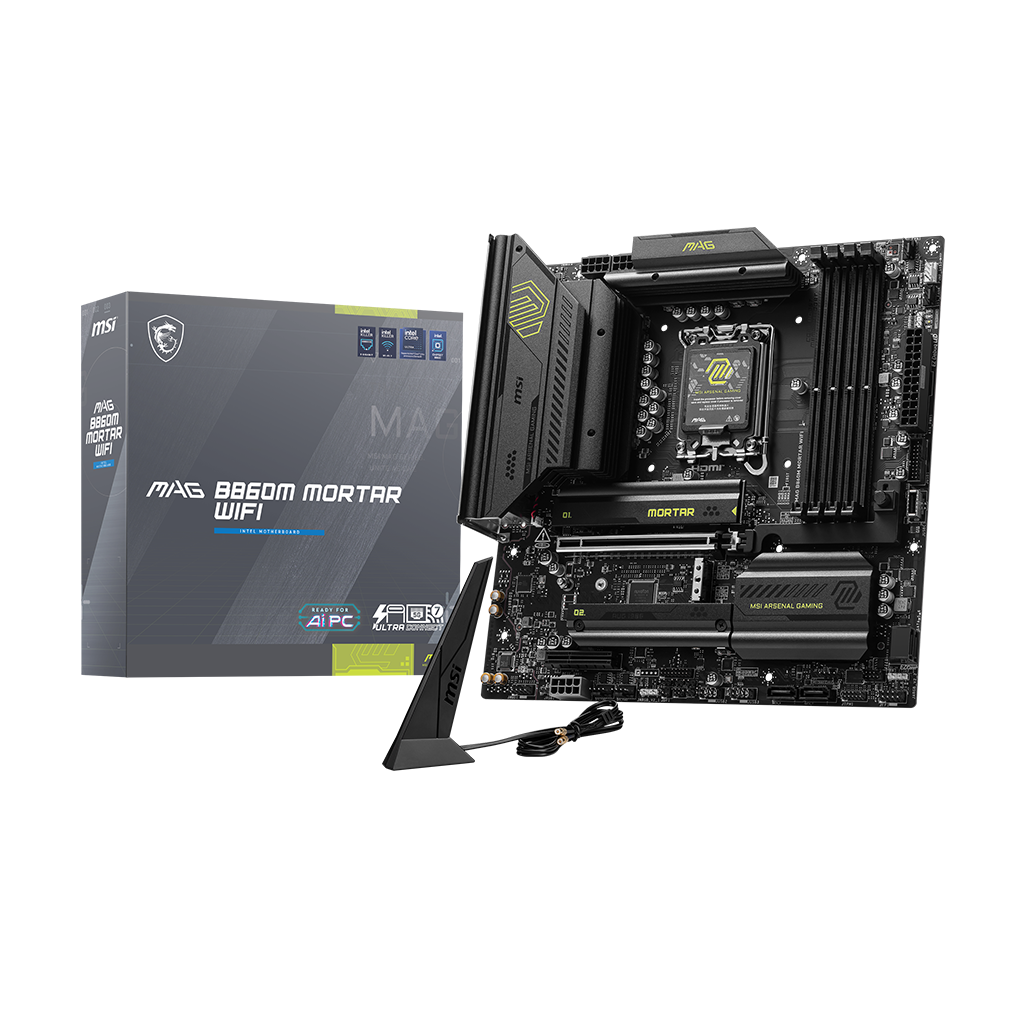

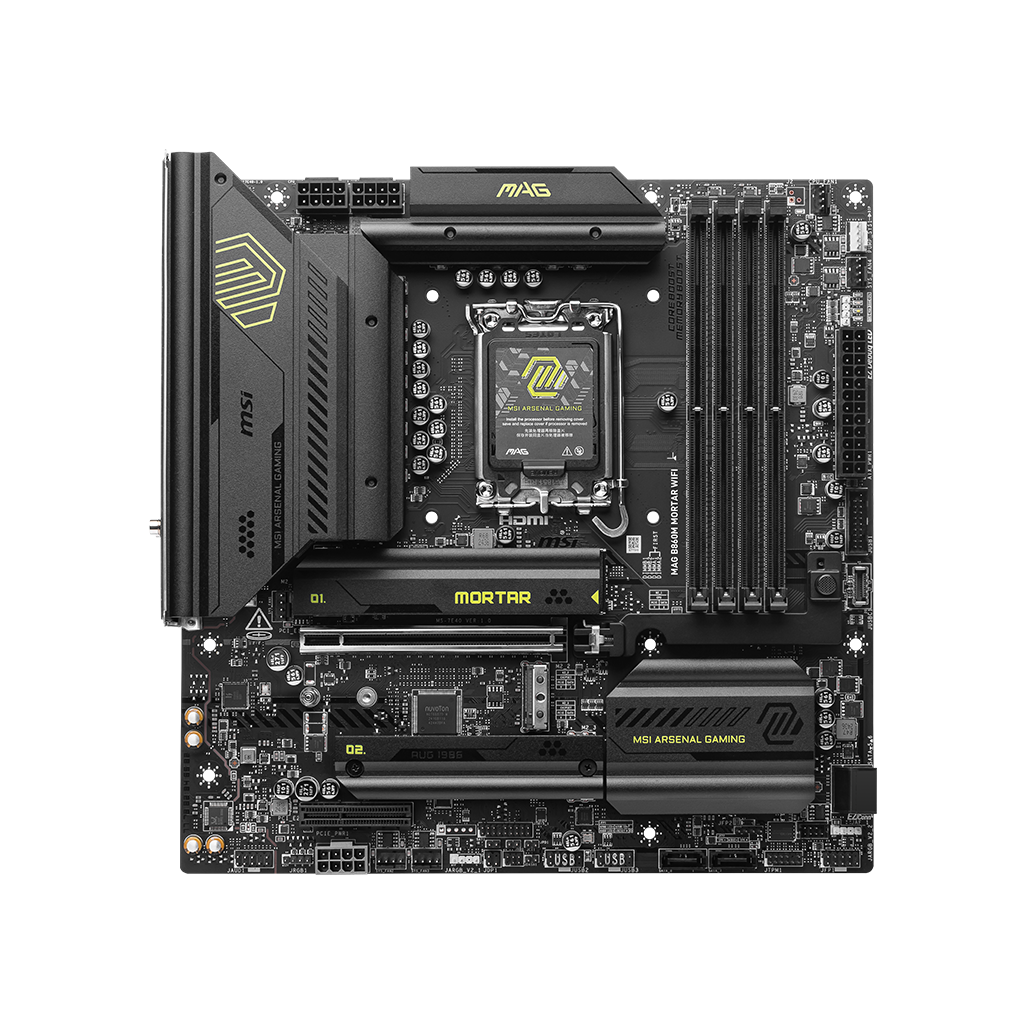

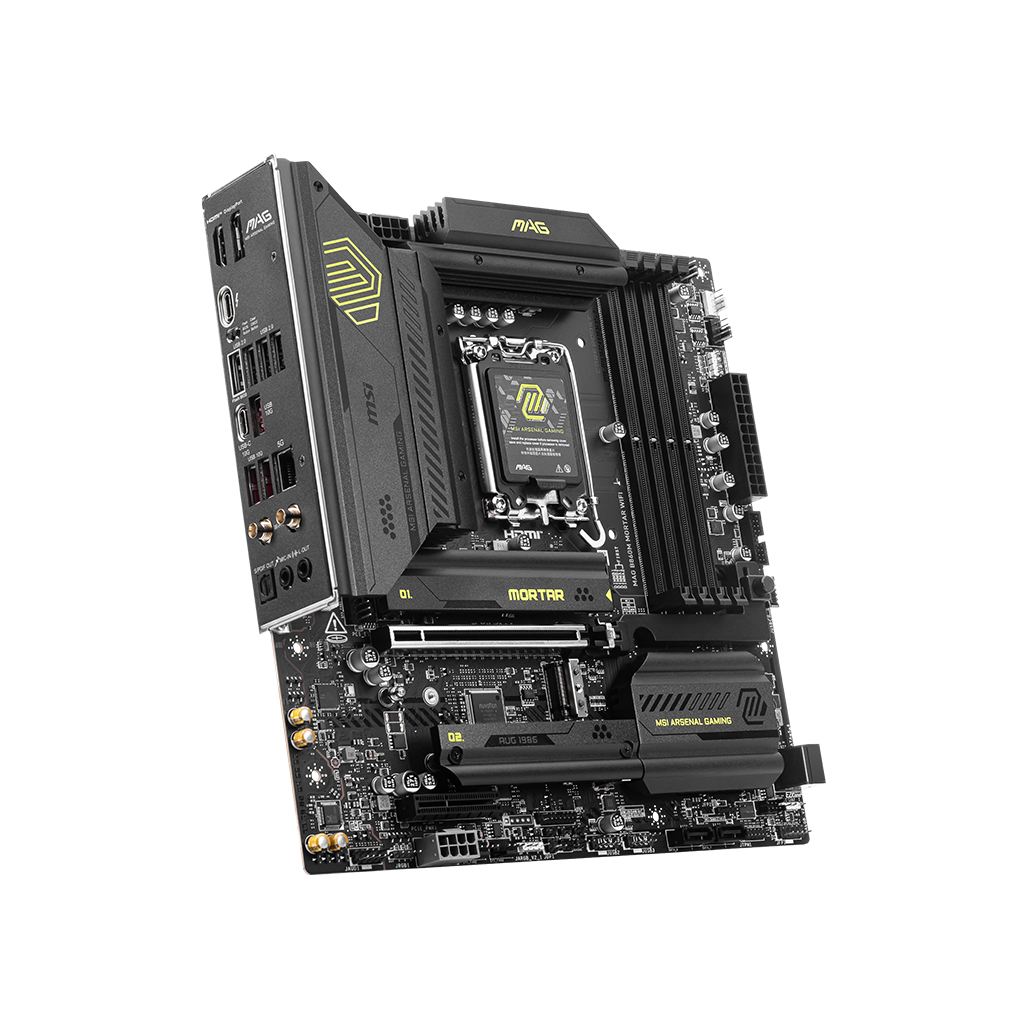

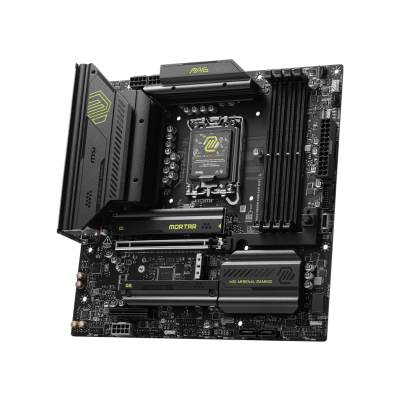

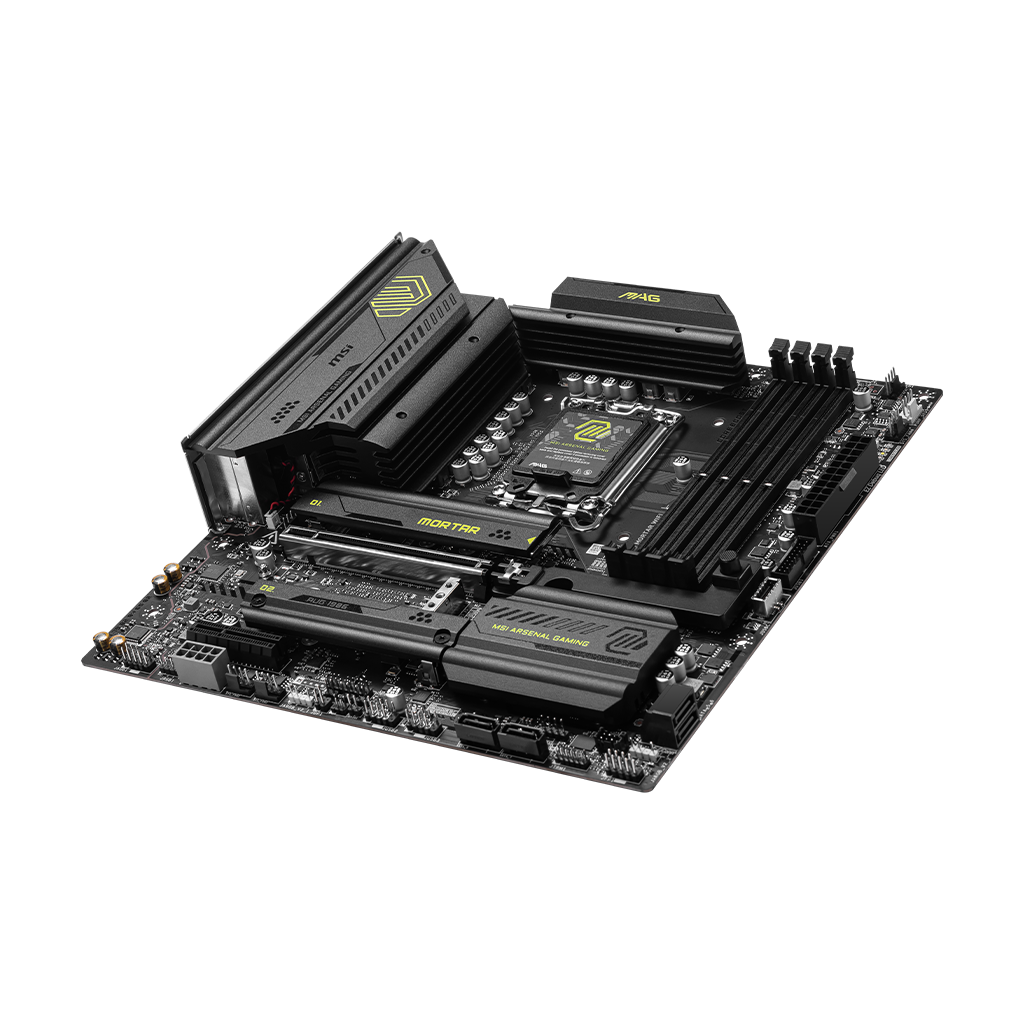

The MAG B860M MORTAR WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: mATX
- Socket Type: LGA 1851
- Chipset: Intel B860
MAG B860M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
OPERATING SYSTEM | Support for Windows® 11 64-bit |
---|---|
Manufacturer Number | MAG B860M MORTAR WIFI |
Product Condition | New |
CPU | Supports Intel® Core™ Ultra Processors (Series 2) Socket LGA 1851 |
Chipset | Intel B860 Chipset |
CPU Socket | Socket LGA 1851 |
Form Factor | mATX Form Factor |
Memory | 4 x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
|
LAN | Intel® Killer™ E5000 5Gbps LAN |
Wireless LAN | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
Audio | Realtek® ALC897
|
MULTI-GPU | - |
---|---|
STORAGE | 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) |
Onboard Graphics | 1x HDMI™
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

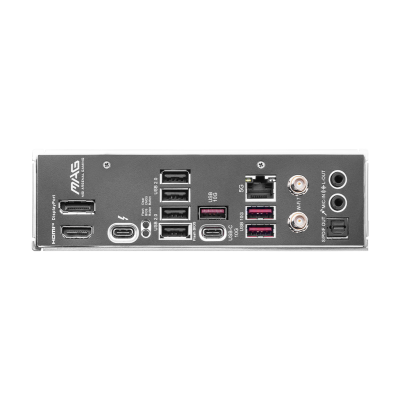

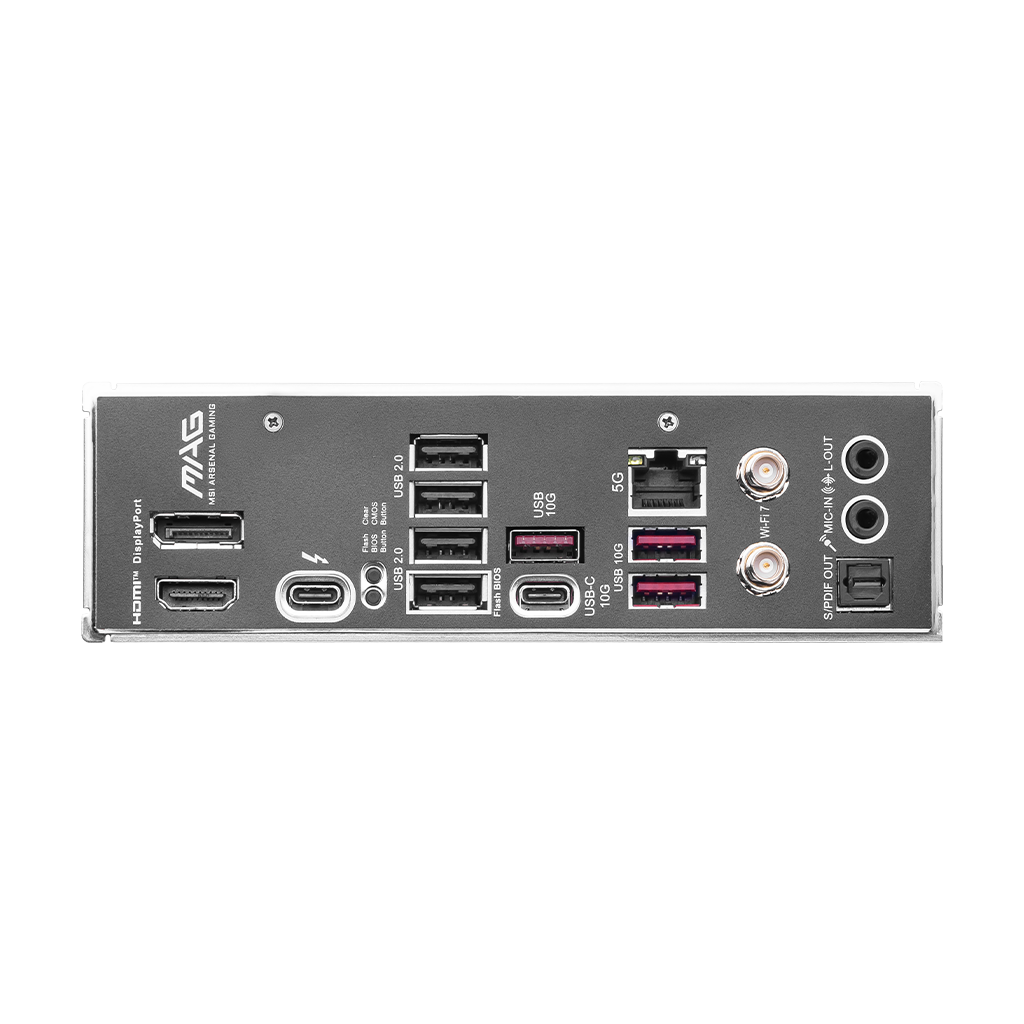

I/O (Rear) | DisplayPort USB 2.0 USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) Flash BIOS Button Clear CMOS Button USB 10Gbps Type-C USB 10Gbps Type-A S/PDIF-OUT |
Expansion Slots | 1x PCI-E x16 slot (Qty) 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
USB (Front) | 4x USB 2.0 2x USB 5Gbps Type A 1x USB 10Gbps Type C |
USB (Rear) | 4x USB 2.0 3x USB 10Gbps Type A 1x USB 10Gbps Type C |
TYPE-C PORT | 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
Internal Connectors | Thunderbolt Resource CPU 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
Dimensions | 9.60" x 9.60" |
Manufacturer Warranty | 3 Year |
MAG B860 MORTAR WIFIはIntel LGA 1851対応ゲーミングマザーボードで、Wi-Fi 7、5G LAN、Thunderbolt 4、PCIe 5.0、M.2 Gen5といった最先端のコネクティビティを備えます。AI-PCやEZ DIYマザーボードとして設計され、Intel Core Ultraプロセッサー(シリーズ2)に対応するB860 microATXマザーボードです。
The MAG B860M MORTAR WIFI motherboard supports Intel Core Ultra Processors (Series 2).
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B860M MORTAR WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 9200+ MT/s, supports Intel XMP.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor II also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II and EZ PCIe Release)
1 x PCIe 4.0/3.0 x4 slot*
*Support x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The MAG B860M MORTAR WIFI motherboard features the latest M.2 slots:
1 x Gen5 x4 128Gbps slot*
2 x Gen4 x4 64Gbps slots* (One with M.2 Shield Frozr)
*with M.2 Shield Frozr

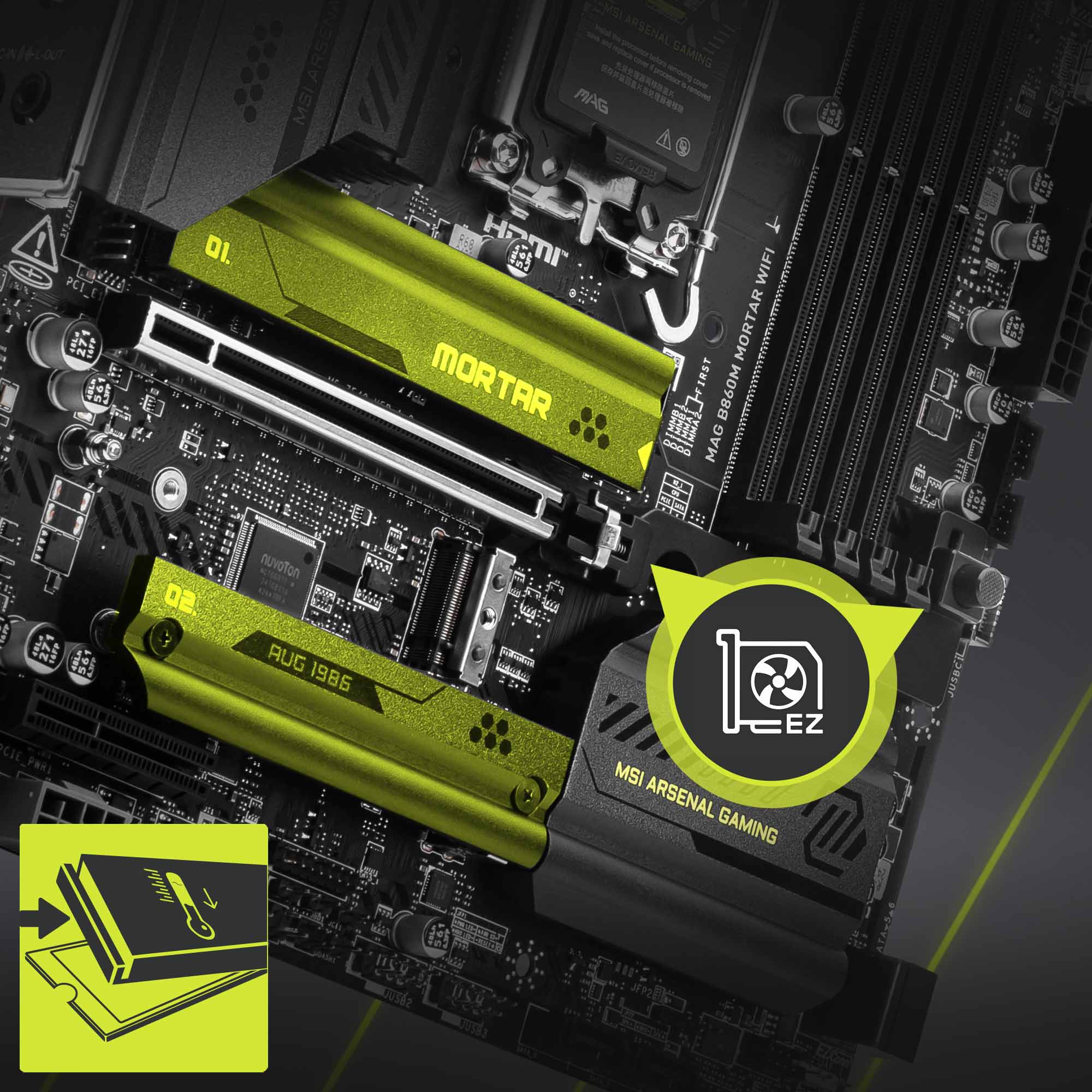

The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
5G LAN: A Intel Killer 5G LAN controller delivers a premium network gaming experience.
Thunderbolt 4 Type-C: Connect to devices for Daisy Chain and transfer files at high bandwidth rates: 40Gbps, with 8K/60Hz display support*.
Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
HD Audio: 7.1-Channel USB HD Audio with Audio Boost & S/PDIF output.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
