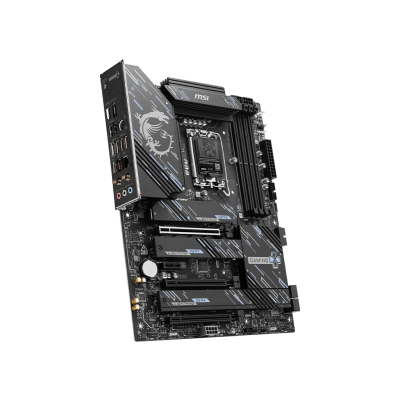

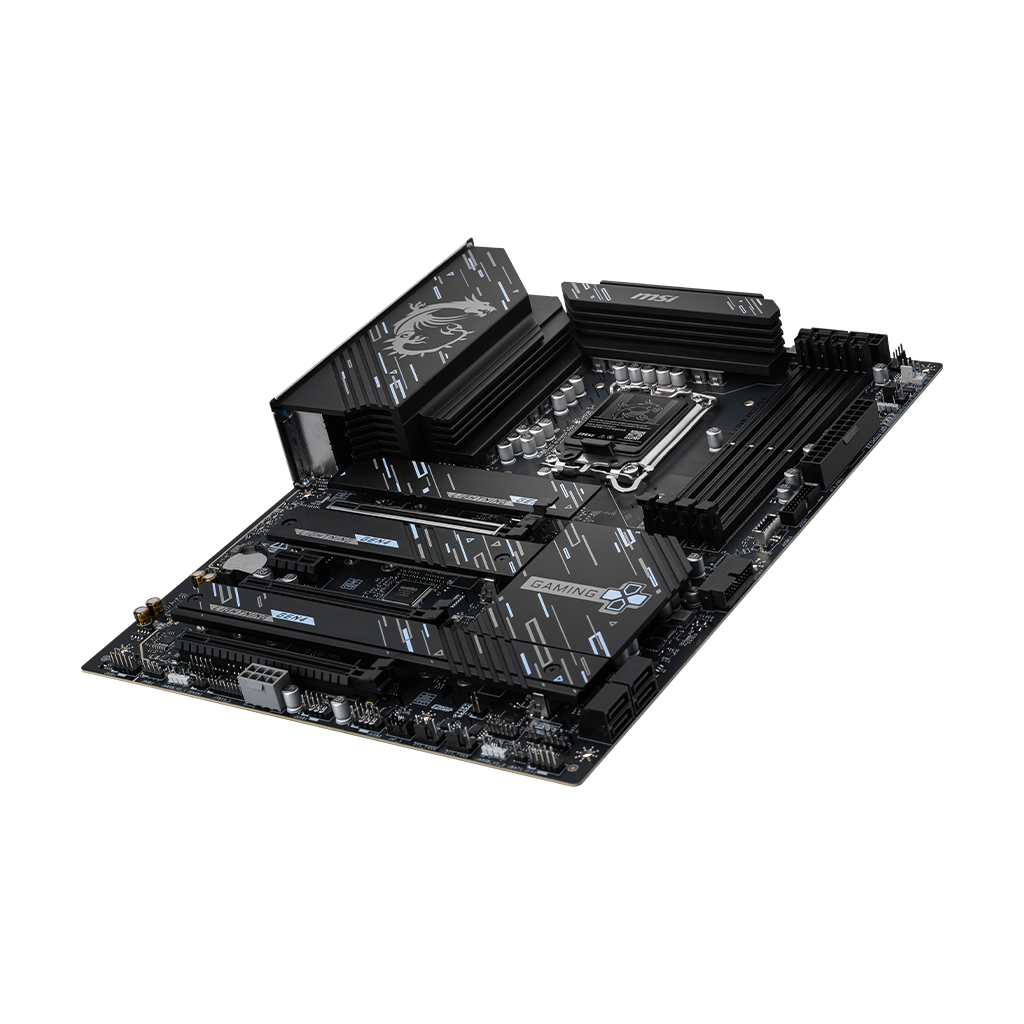

Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E
Z890 GAMING PLUS WIFI6E

Z890 GAMING PLUS WIFI6E

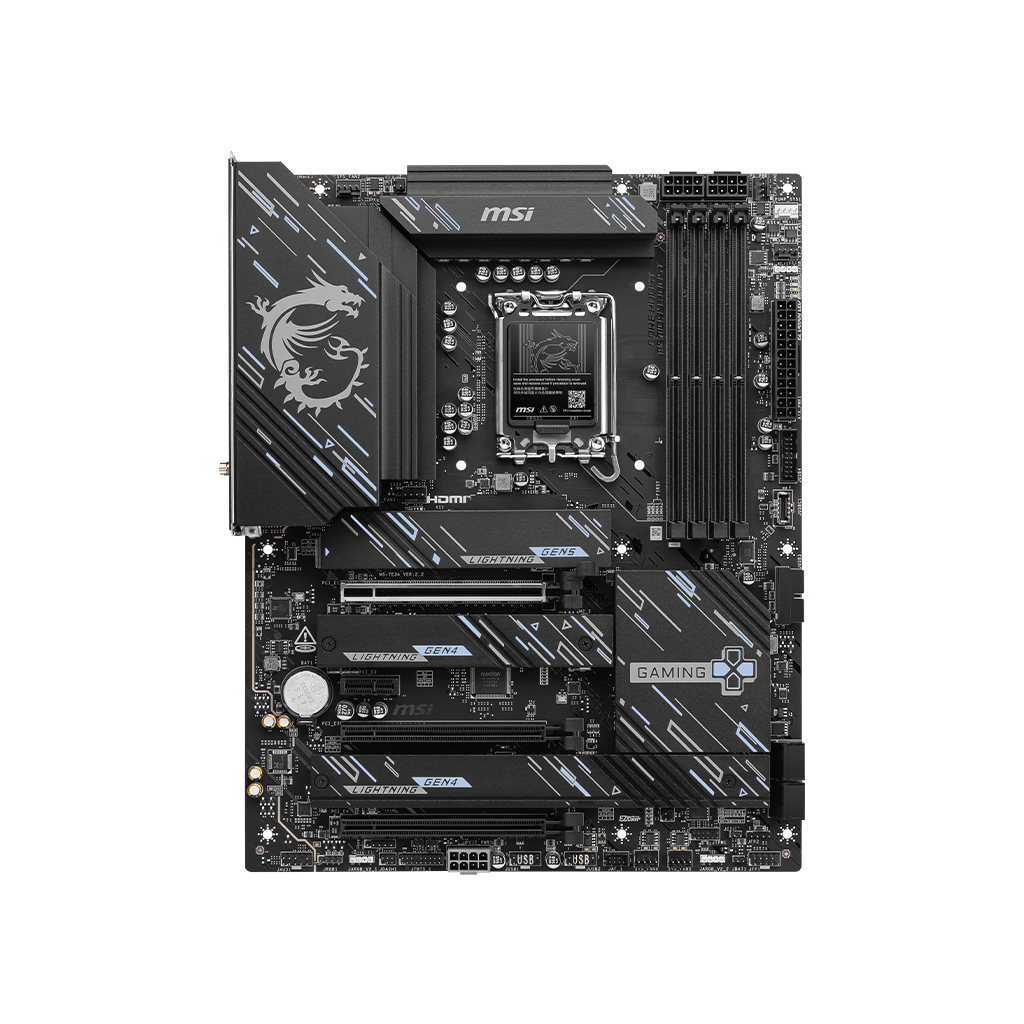

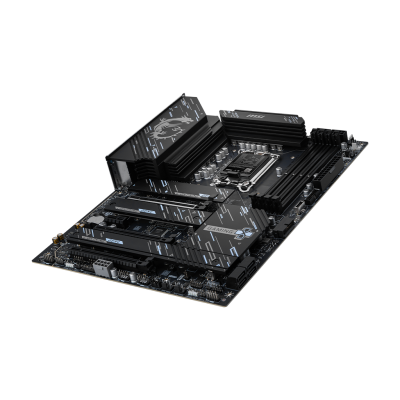

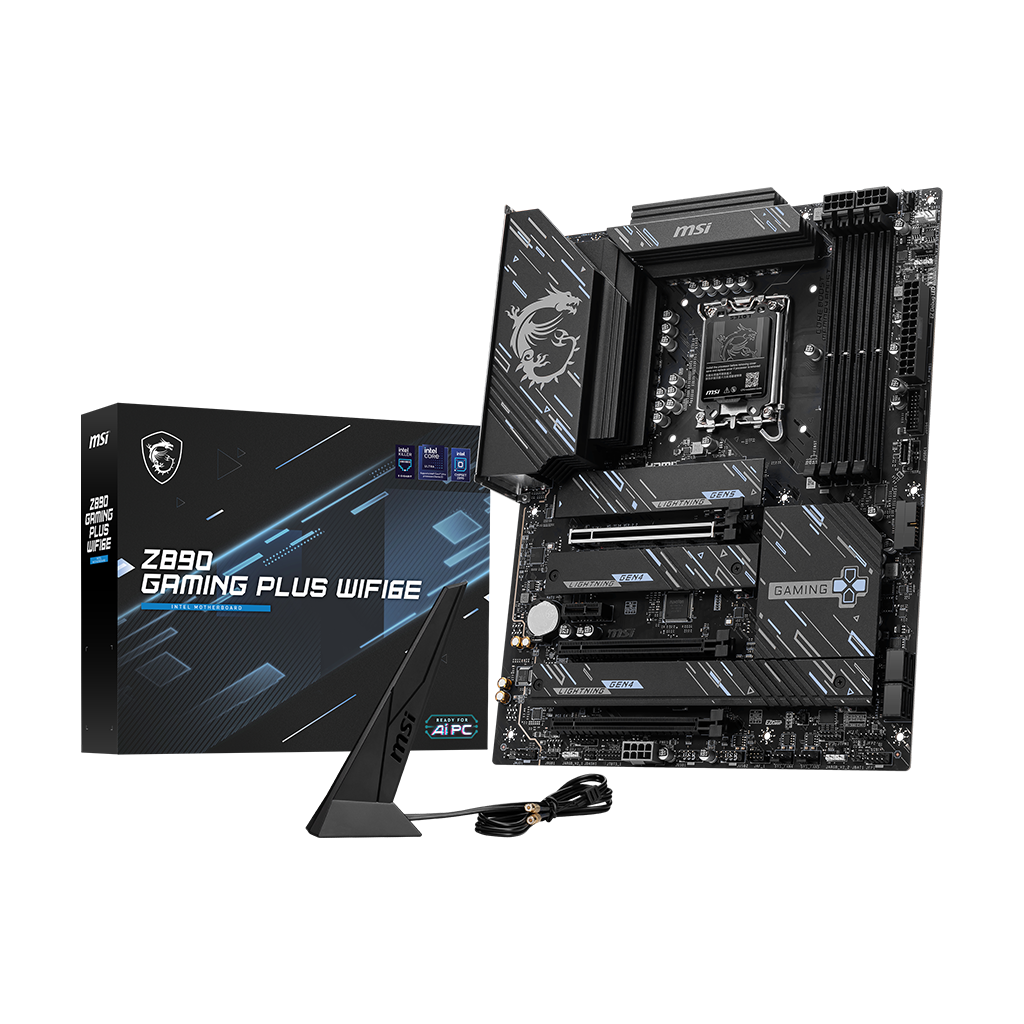

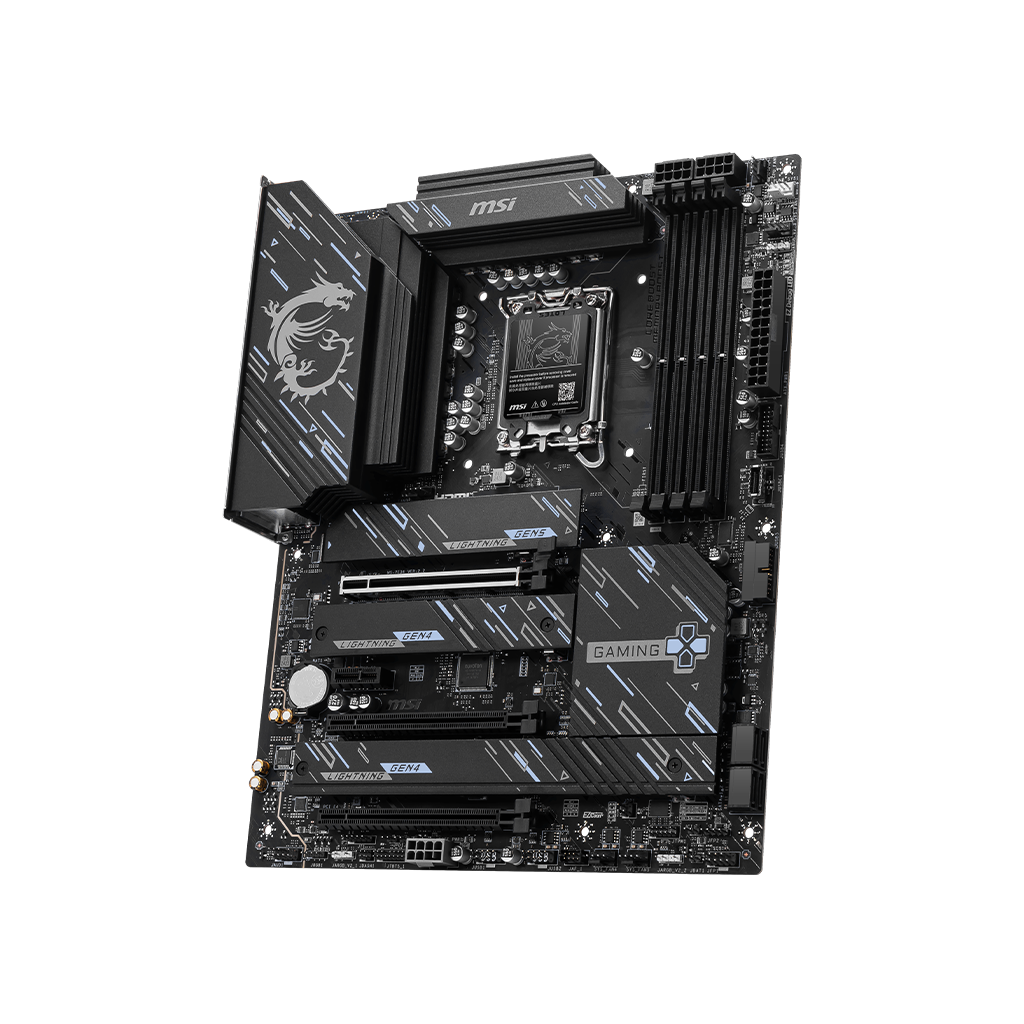

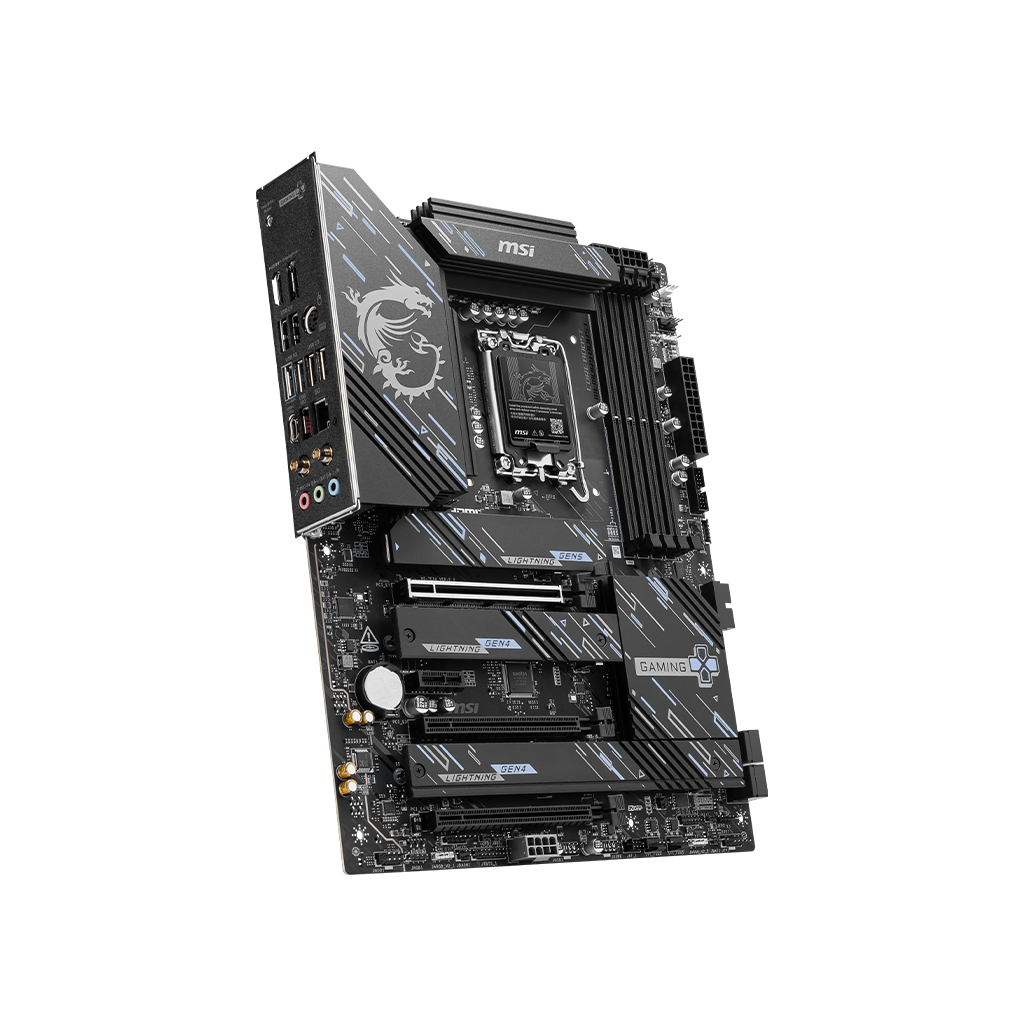

The Z890 GAMING PLUS WIFI6E Intel LGA 1851 gaming motherboard delivers the latest connectivity, including Wi-Fi 6E, 5G LAN, USB 20Gbps, PCIe 5.0, and M.2 Gen5. Designed for AI-PCs and EZ DIY, it’s an ideal Z890 ATX motherboard for Intel Core Ultra CPU.


  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • High-Speed Connectivity: Intel® Killer™ 5G LAN, Wi-Fi 6E Solution & USB 10Gbps Type-C port - a solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Based on purchase date

$199.99
In Stock

RECOMMENDED FOR YOU

PRO Z790-P WIFI
PRO Z790-P WIFI
  • Supports Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T)
  • Supports DDR5 Memory, up to 7000+(OC) MHz
  • Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
WAS  $199.99  $179.99
PRO Z890-P WIFI
PRO Z890-P WIFI
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
$239.99
PRO Z890-S WIFI
PRO Z890-S WIFI
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
  • 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
$199.99
PRO Z890-S WIFI WHITE
PRO Z890-S WIFI WHITE
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
  • 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
$199.99
PRO Z890-S WIFI PZ
PRO Z890-S WIFI PZ
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
  • 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
WAS  $249.99  $224.99
PRO Z790-A WIFI II
PRO Z790-A WIFI II
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
WAS  $219.99  $189.99

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 11 64-bit
Manufacturer Number Z890 GAMING PLUS WIFI6E
Product Condition New
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Chipset INTEL Z890 Chipset
CPU Socket LGA 1851
Form Factor ATX Form Factor
Memory 4 DIMMs, Dual Channel DDR5-9200+ MT/s (OC)
LAN Intel® Killer™ E5000B 5G LAN
Wireless LAN Wi-Fi 6E Solution
Bluetooth Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
MULTI-GPU -
STORAGE 1x M.2 Gen5 x4 128Gbps slot
3x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
Onboard Graphics 1x HDMI™
1x DisplayPort
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

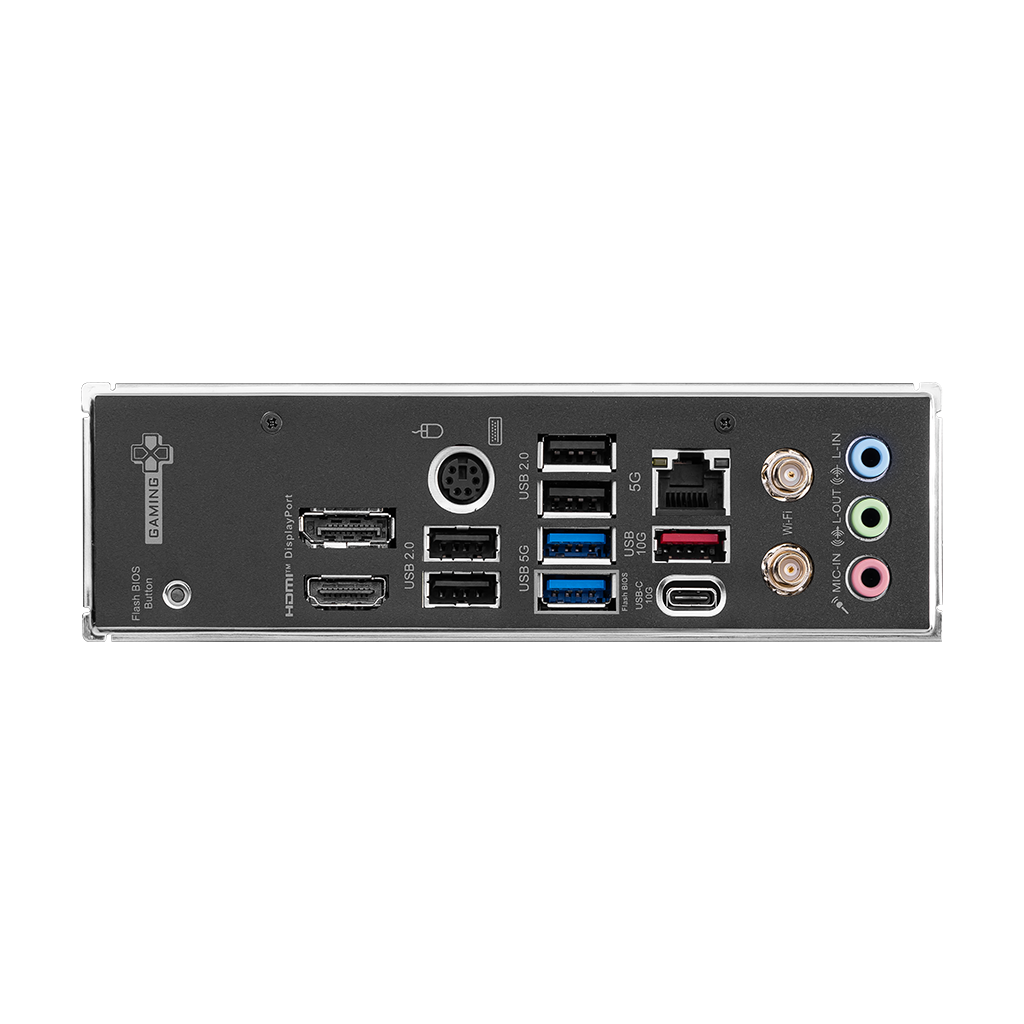

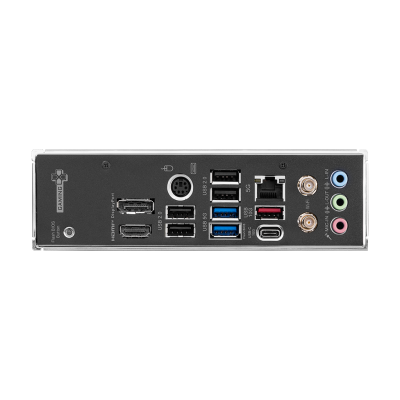

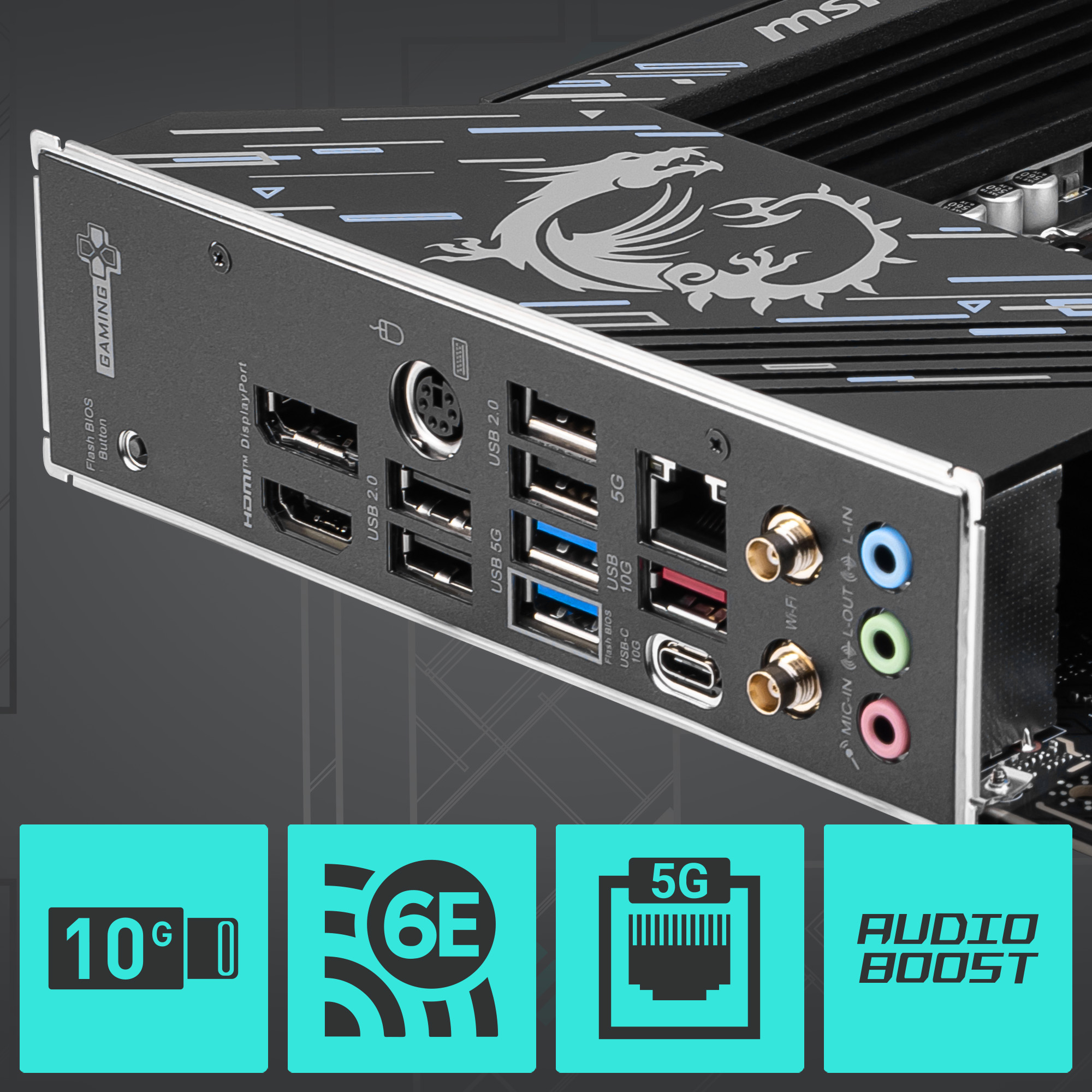

I/O (Rear) DisplayPort
Keyboard / Mouse
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps Type A ports
USB 10 Gbps Type C ports
USB 10 Gbps Type A ports
Audio Connectors
Expansion Slots 1x PCIe 5.0 x16 slot
2x PCIe 4.0 x4 slots
1x PCIe 3.0 x1 slot
USB (Front) 4x USB 2.0
4x USB 5Gbps Type A
1x USB 20Gbps Type C
USB (Rear) 4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type A
1x USB 10Gbps Type C
TYPE-C PORT 1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
Internal Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Dimensions 12.00" x 9.60"
Manufacturer Warranty 3 Year

TECHNICAL FEATURES

Document

Win the Competition

The Z890 GAMING PLUS WIFI6E Intel LGA 1851 gaming motherboard delivers the latest connectivity, including Wi-Fi 6E, 5G LAN, USB 20Gbps, PCIe 5.0, and M.2 Gen5. Designed for AI-PCs and EZ DIY, it’s an ideal Z890 ATX motherboard for Intel Core Ultra CPU.

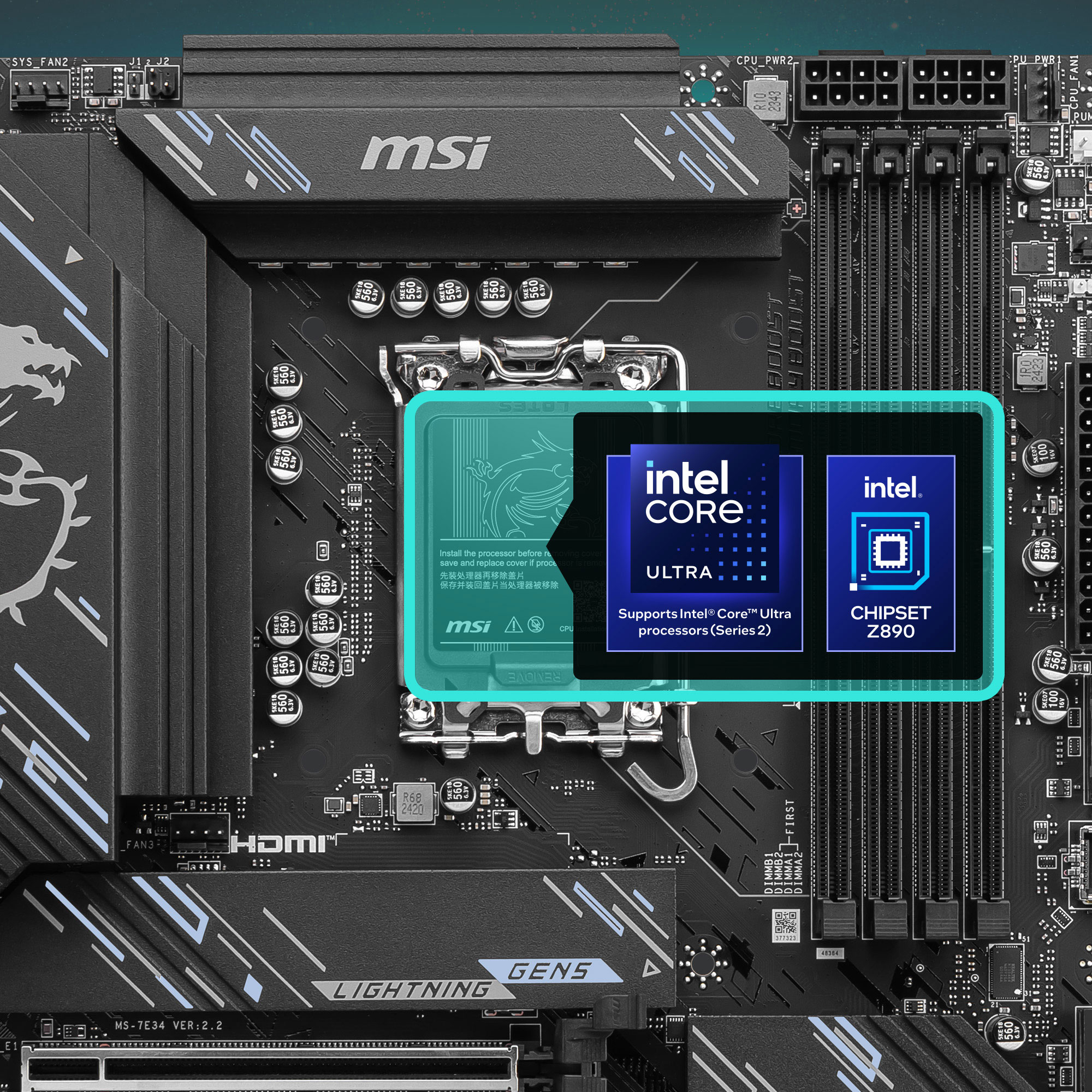

Supports Intel Core Ultra Processors (Series 2)

The Z890 GAMING PLUS WIFI6E motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: ATX

Socket Type: LGA 1851

Chipset: Intel Z890

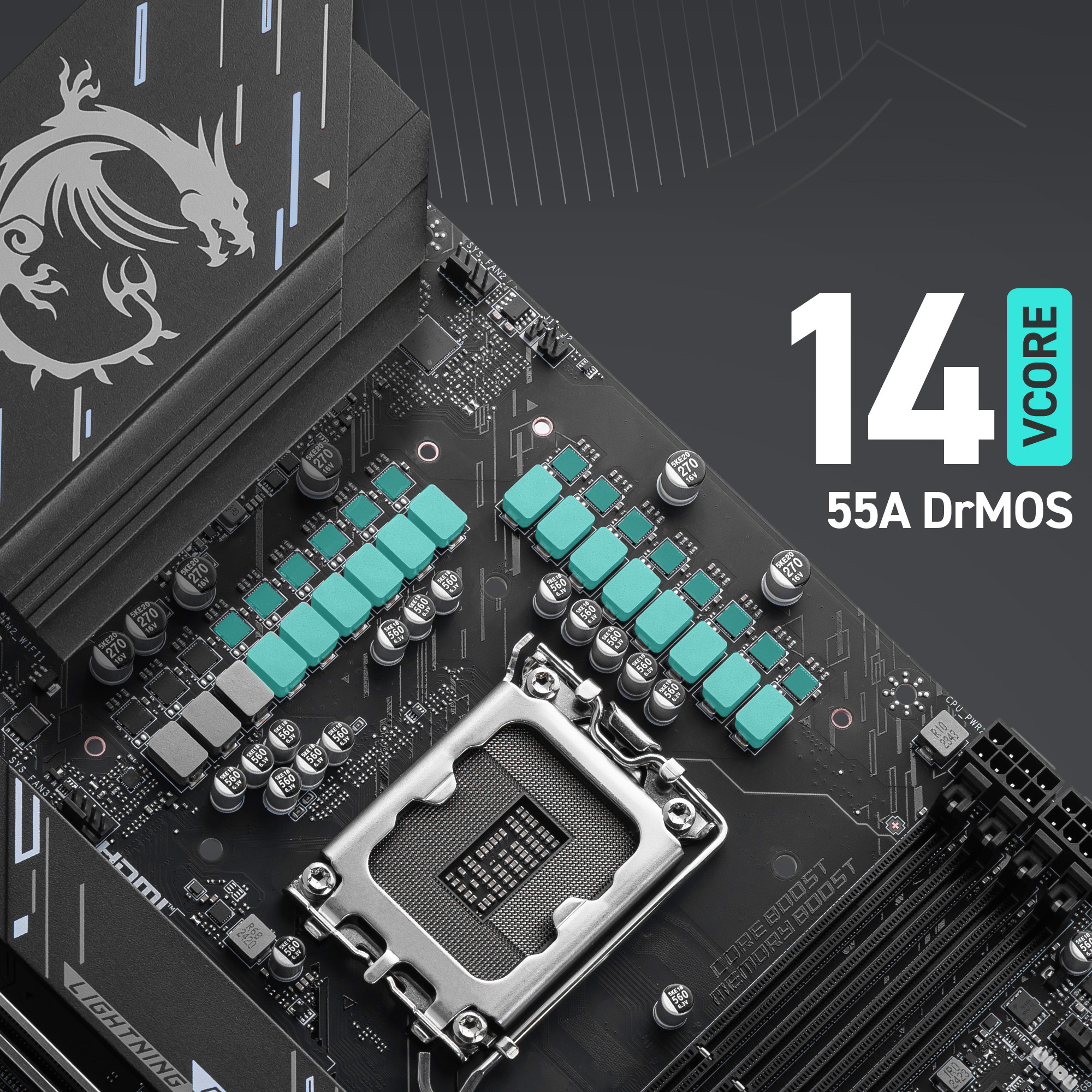

Ultra Power - 14 Duet Rail Power System with 55A DrMOS

With exclusive Core Boost technology and dual 8 pin power connectors, the Z890 GAMING PLUS WIFI6E is able to sustain heavy CPU power loads to support system-demanding game settings:

  • Digital PWM IC
  • 14 Duet Rail Power System with 55A DrMOS
  • 1-Phase SA Power
  • 1-Phase GT Power
  • 1-Phase VNNAON Power

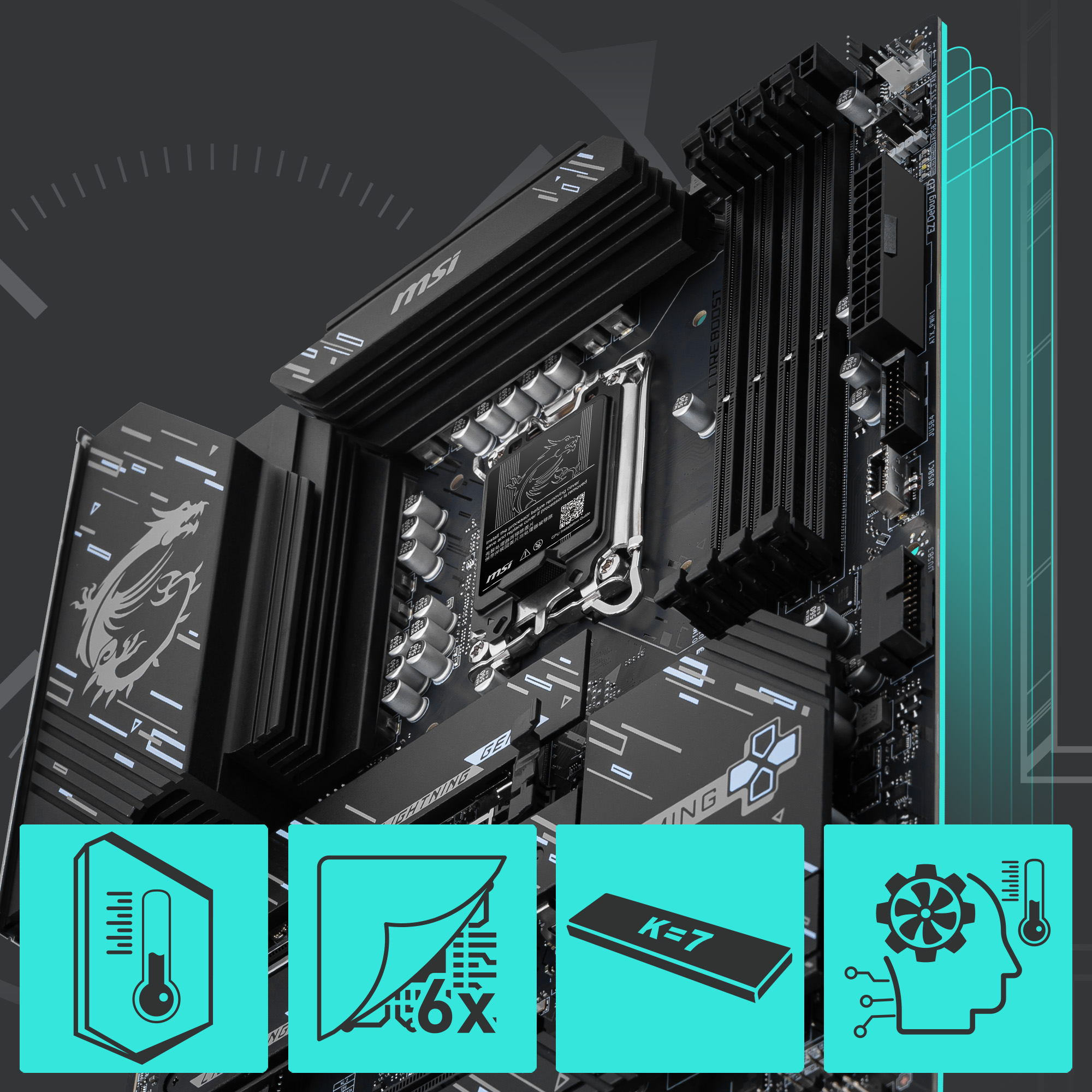

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

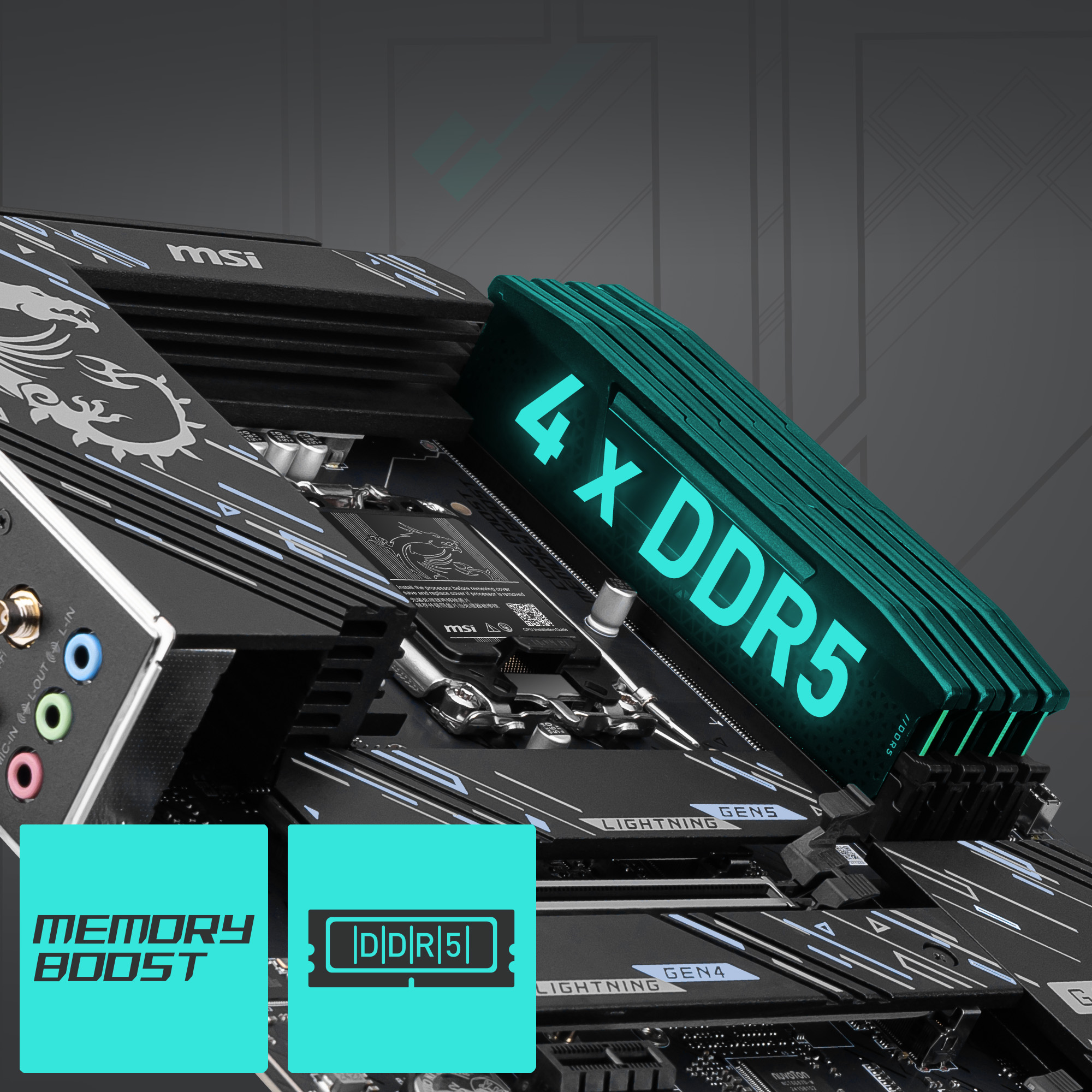

4 x DDR5 Dual Channel (9200+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP Profiles: in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 9200+ MT/s OC, supports Intel XMP.

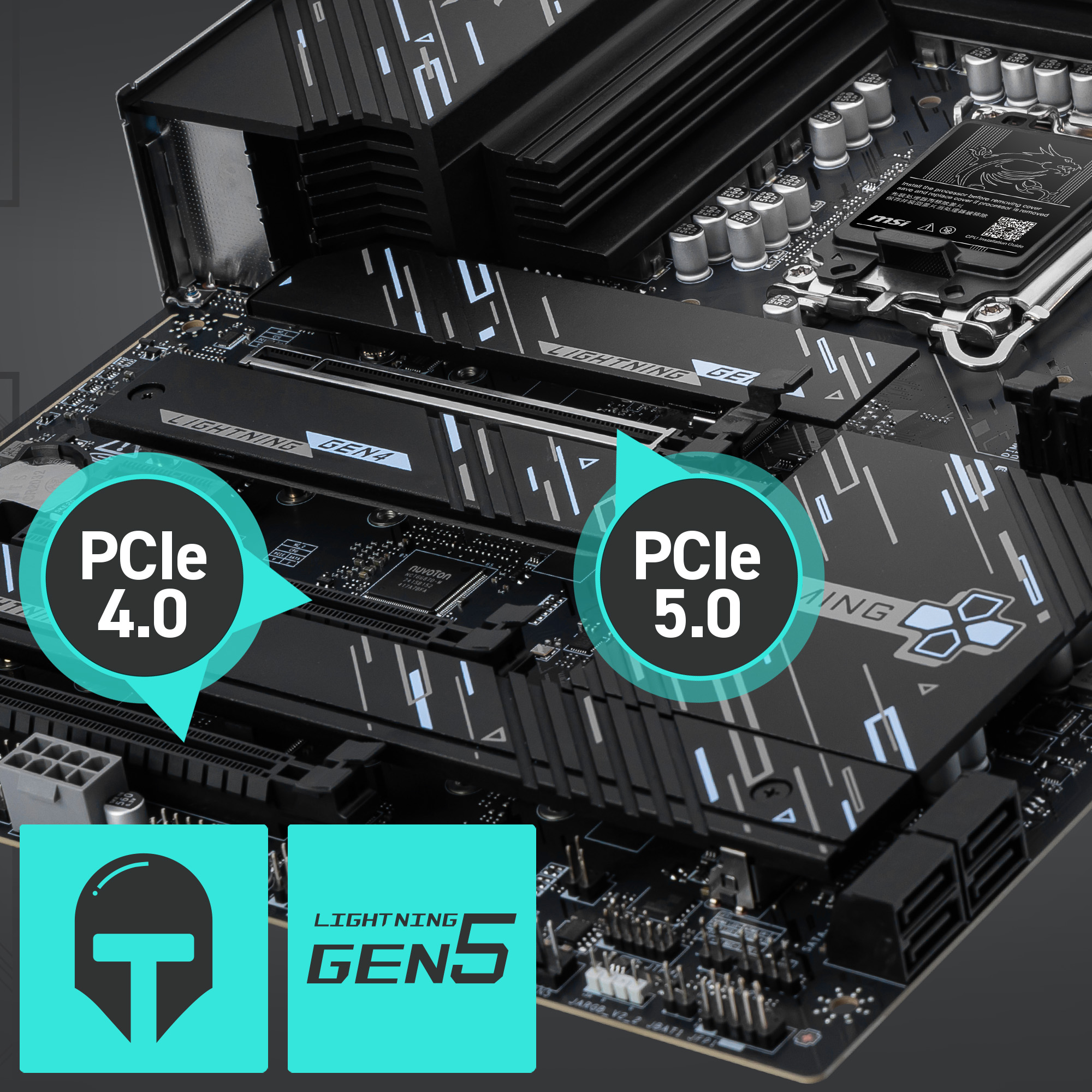

1 x Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor II also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor and EZ PCIe Clip II)

2 x PCIe 4.0/3.0 x4 slots

1 x PCIe 4.0/3.0 x1 slot

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

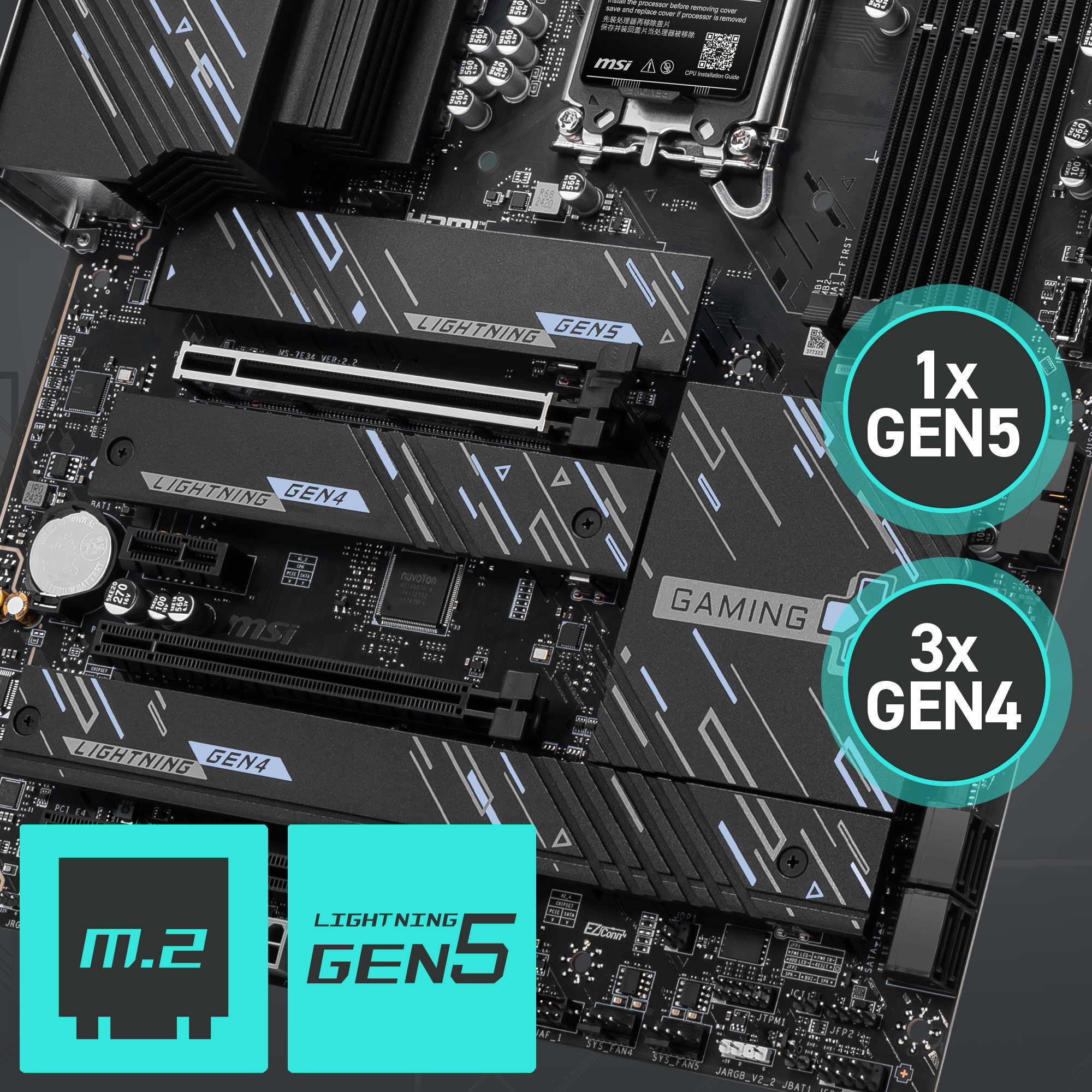

Gen5 M.2 Connectors

The Z890 GAMING PLUS WIFI6E motherboard features the latest M.2 slots:

  • 1 x Gen5 x4 128Gbps slot*
  • 3 x Gen4 x4 64Gbps slots**

*with EZ M.2 Shield Frozr II

**with M.2 Shield Frozr

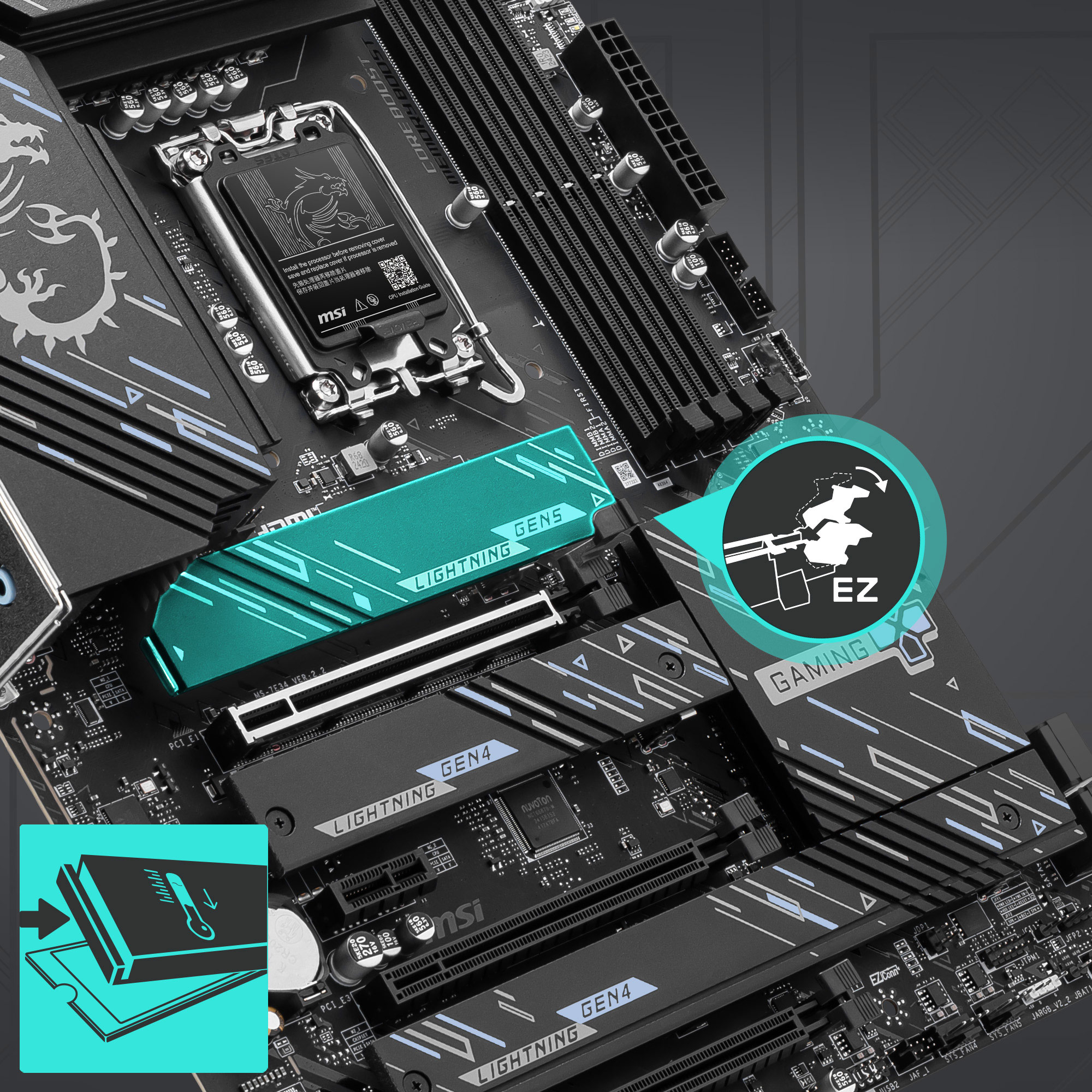

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

High-Speed Connectivity

5G LAN: A Intel Killer 5G LAN controller delivers a premium network gaming experience.

USB 10G Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps

Wi-Fi 6E: Features Wi-Fi 6E solution (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

HD Audio: 7.1-Channel HD Audio with Audio Boost.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
