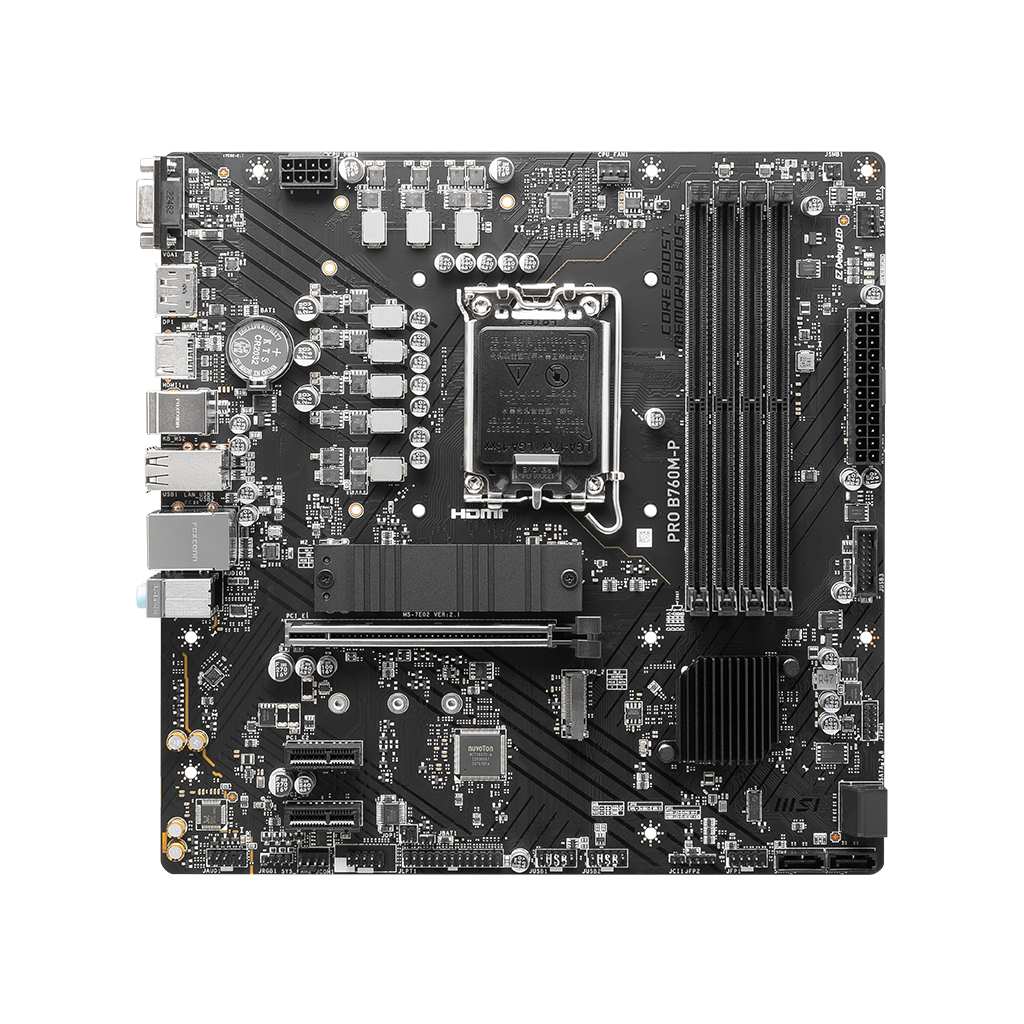

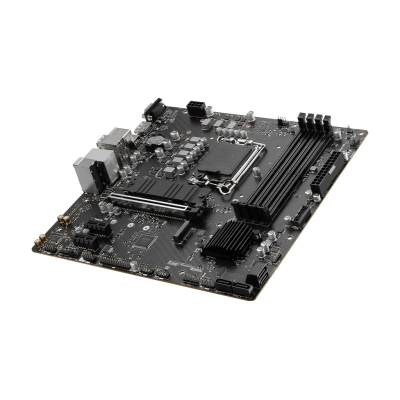

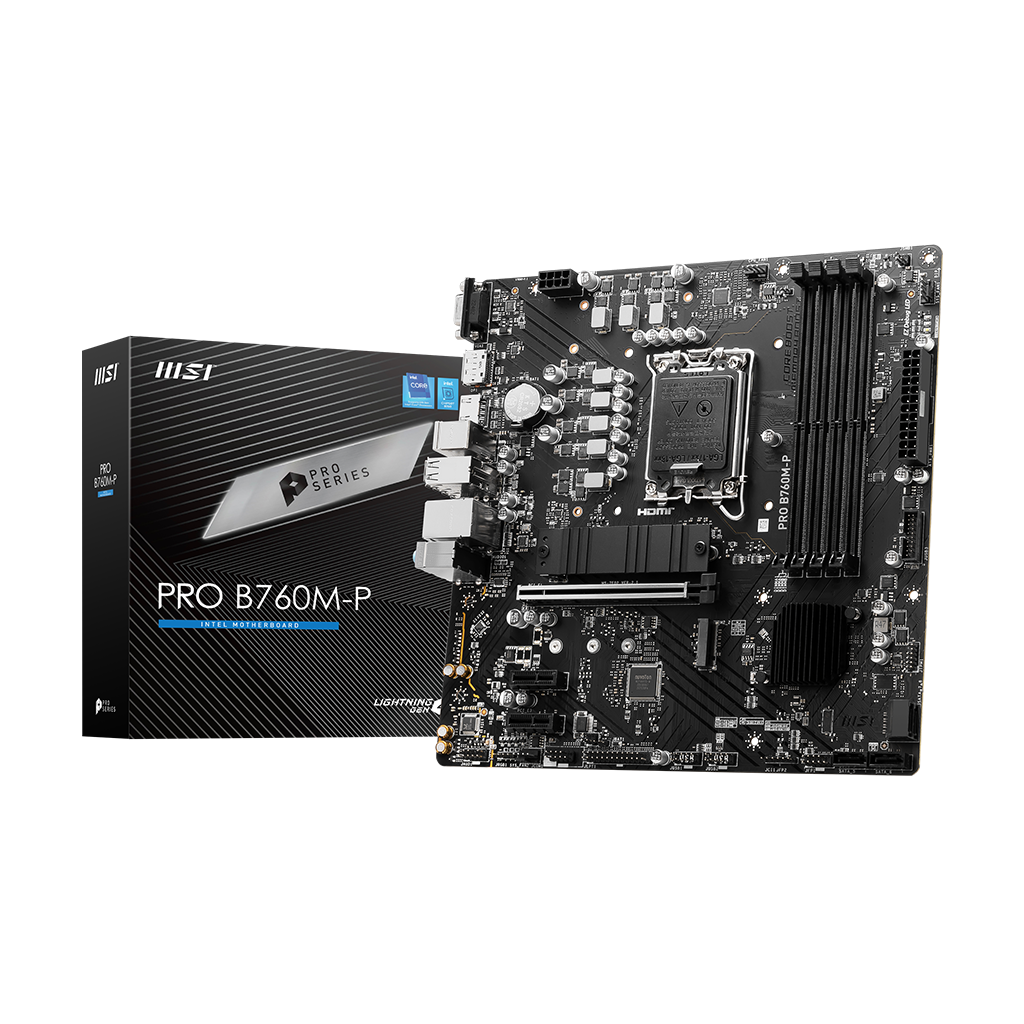

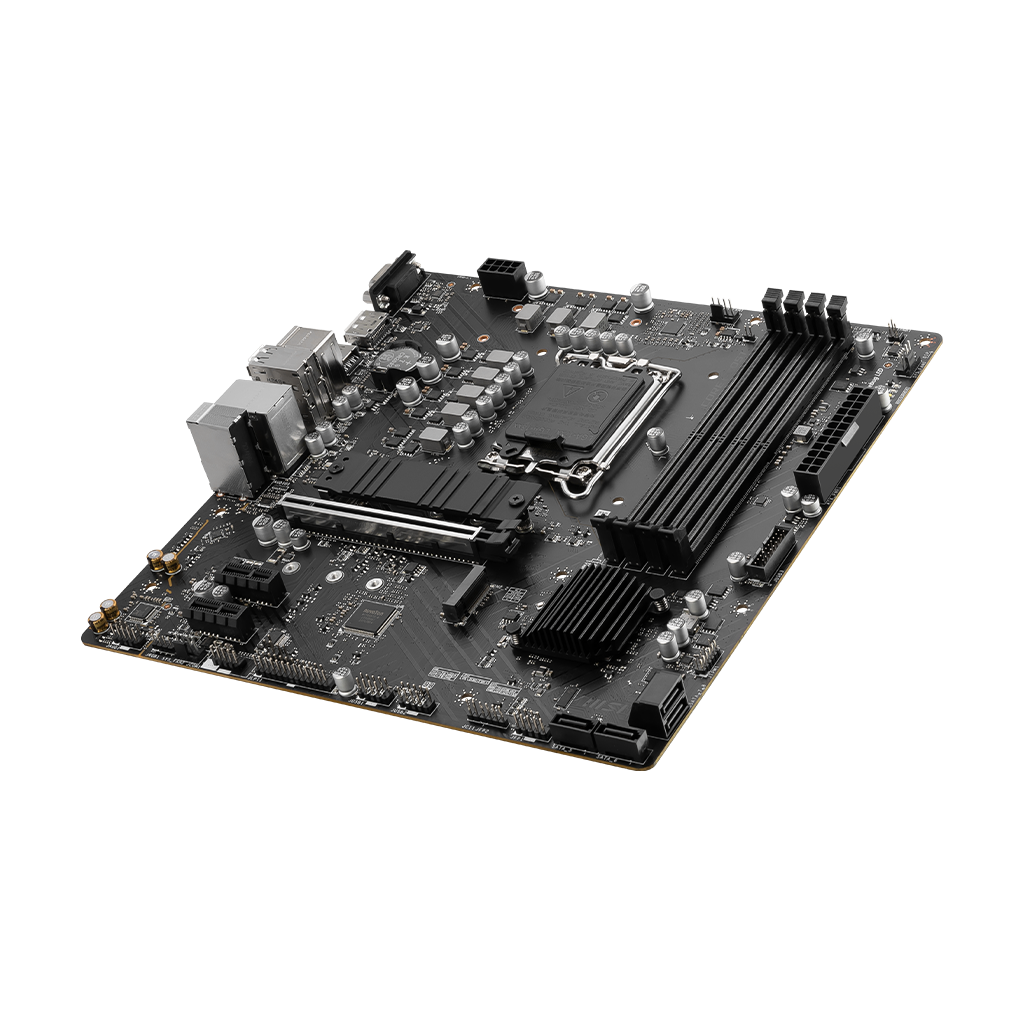

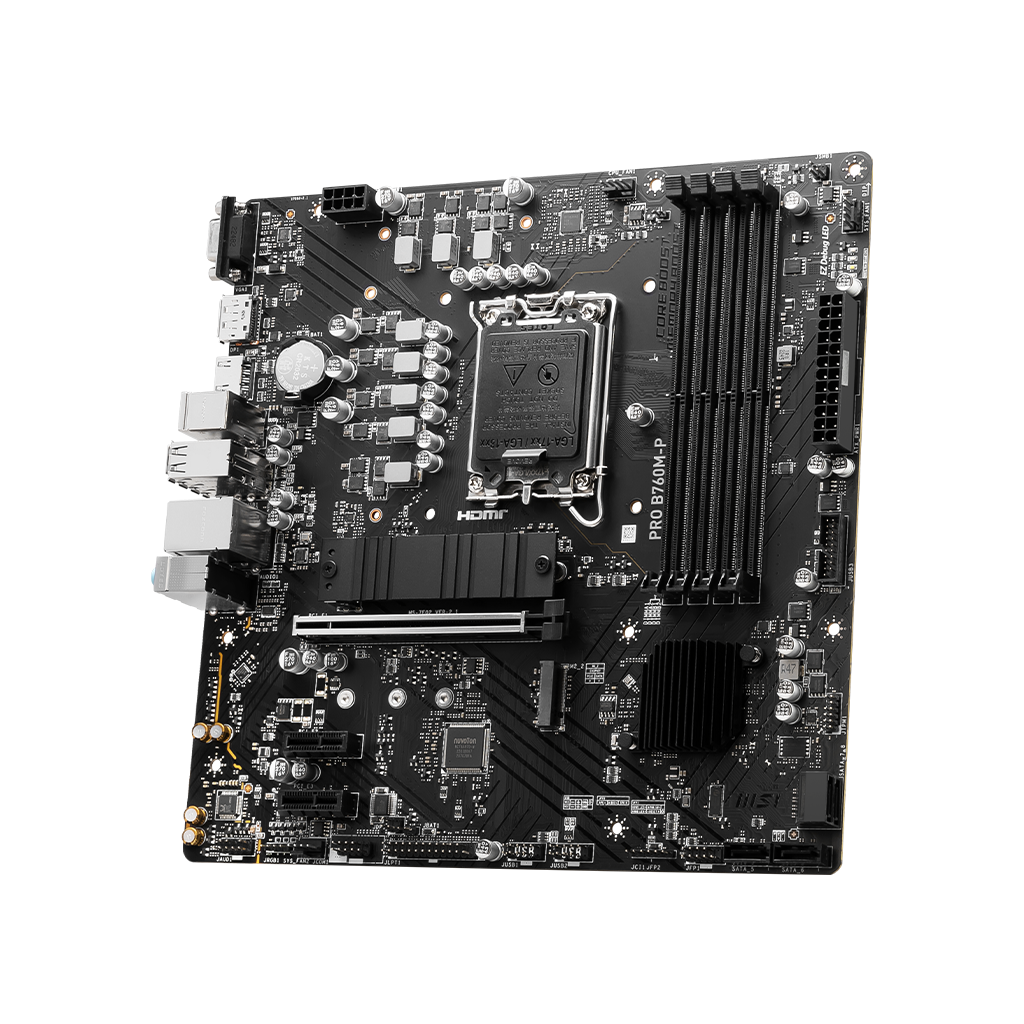

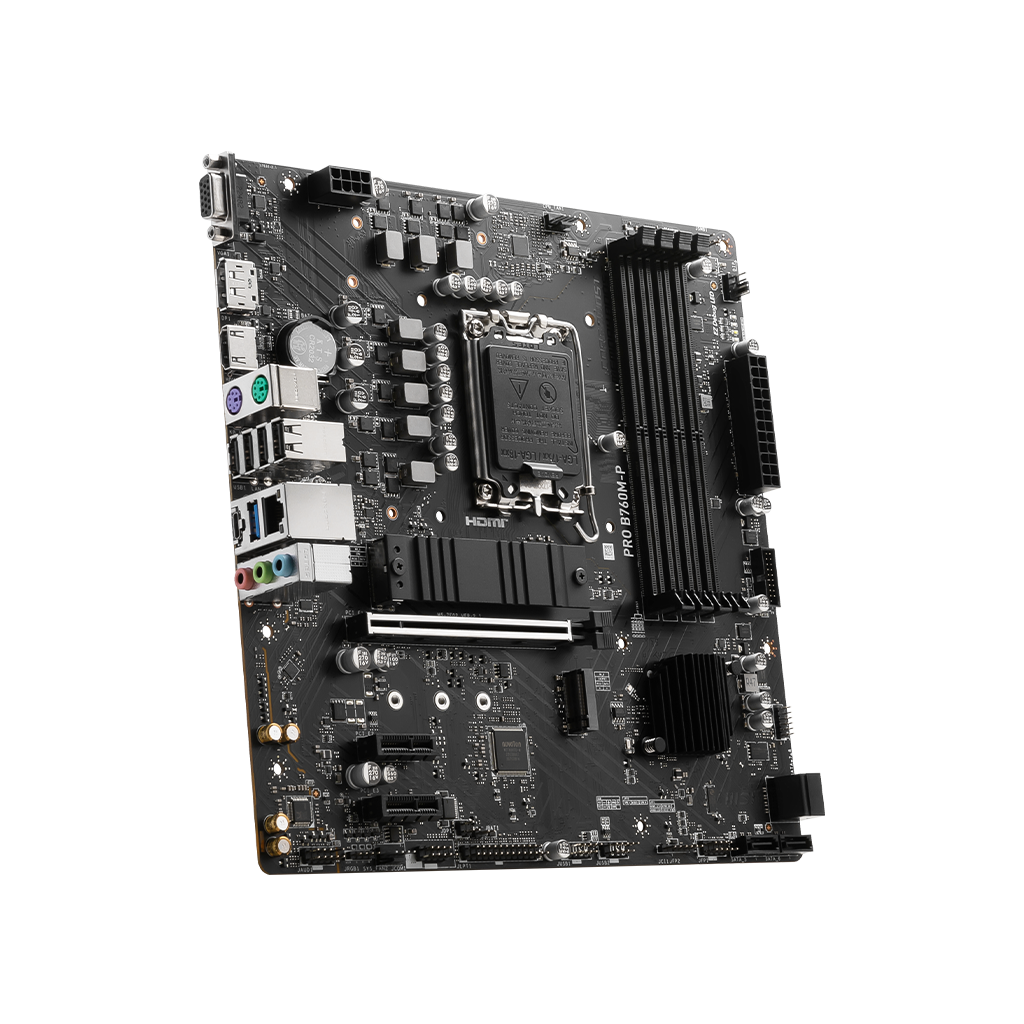

The PRO B760M-P motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.
- Form Factor: Micro-ATX
- Socket Type: LGA 1700
- Chipset: Intel B760
The PRO B760M-P is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|---|
| Manufacturer Number | PRO B760M-P |
| Product Condition | New |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
| Chipset | INTEL B760 Chipset |
| CPU Socket | LGA1700 |
| Form Factor | M-ATX Form Factor |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max overclocking frequency:
|
| LAN | Realtek® RTL8111H Gigabit LAN |
| Wireless LAN | - |
| Bluetooth | - |
| Audio | Realtek® ALC897 Codec
|
| MULTI-GPU | - |
|---|---|
| STORAGE | 2 x M.2 Gen4 x4 64Gbps slot 4 x SATA 6Gbps ports |
| Onboard Graphics | 1x HDMI™
|
| RAID | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |

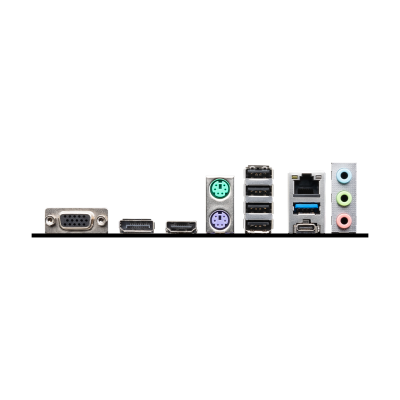

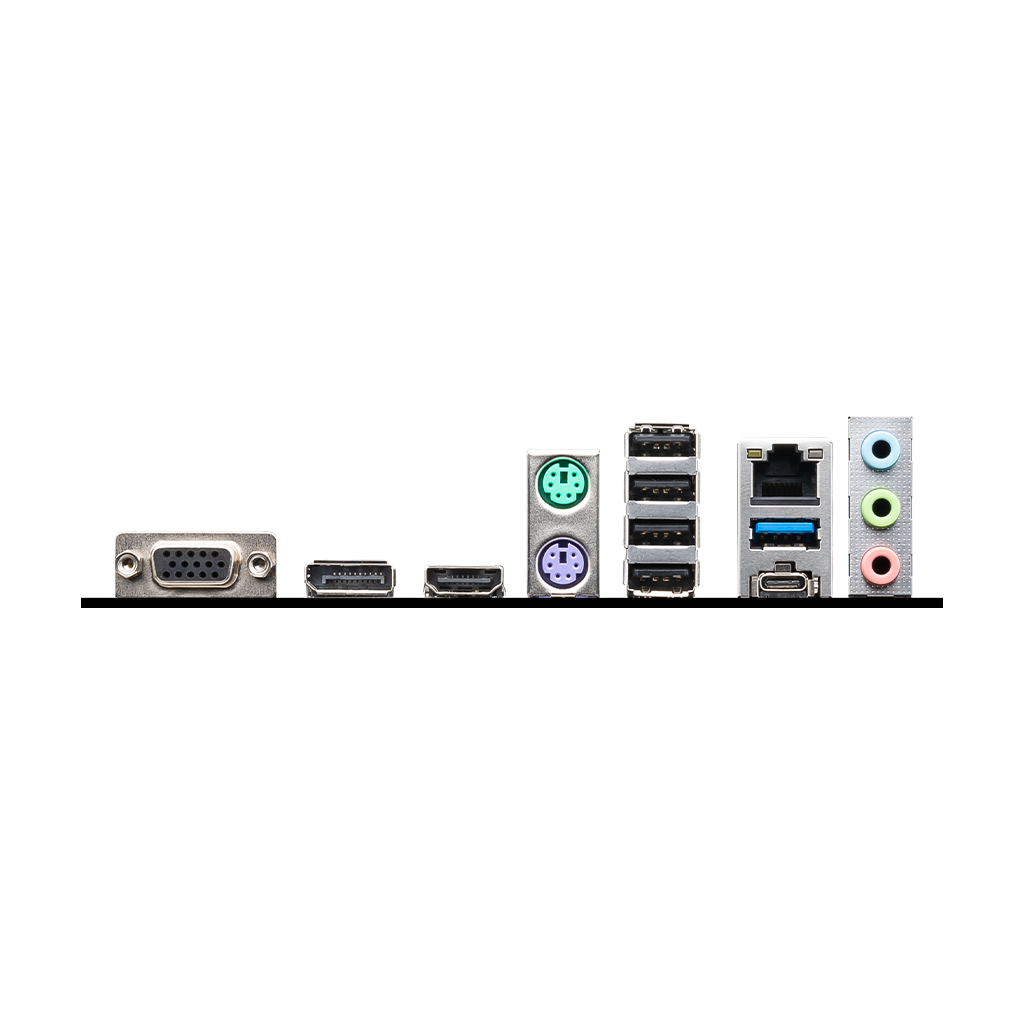

| I/O (Rear) | VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| USB (Front) | 4x USB 2.0 2x USB 5Gbps Type A |
| USB (Rear) | 4x USB 2.0 1x USB 5Gbps Type A 1x USB 10Gbps Type C |
| TYPE-C PORT | 1x USB 10Gbps Type C |
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| Dimensions | 9.60" x 9.60" |
| Manufacturer Warranty | 3 Year |
The PRO B760M-P is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.
The PRO B760M-P motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Chipset Heatsink: Provides passive cooling.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
2 x PCIe 4.0/3.0 x1 slots
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
The PRO B760M-P motherboard features MSI's Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots*
*1 with M.2 Shield Frozr
1G LAN: A 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA.
