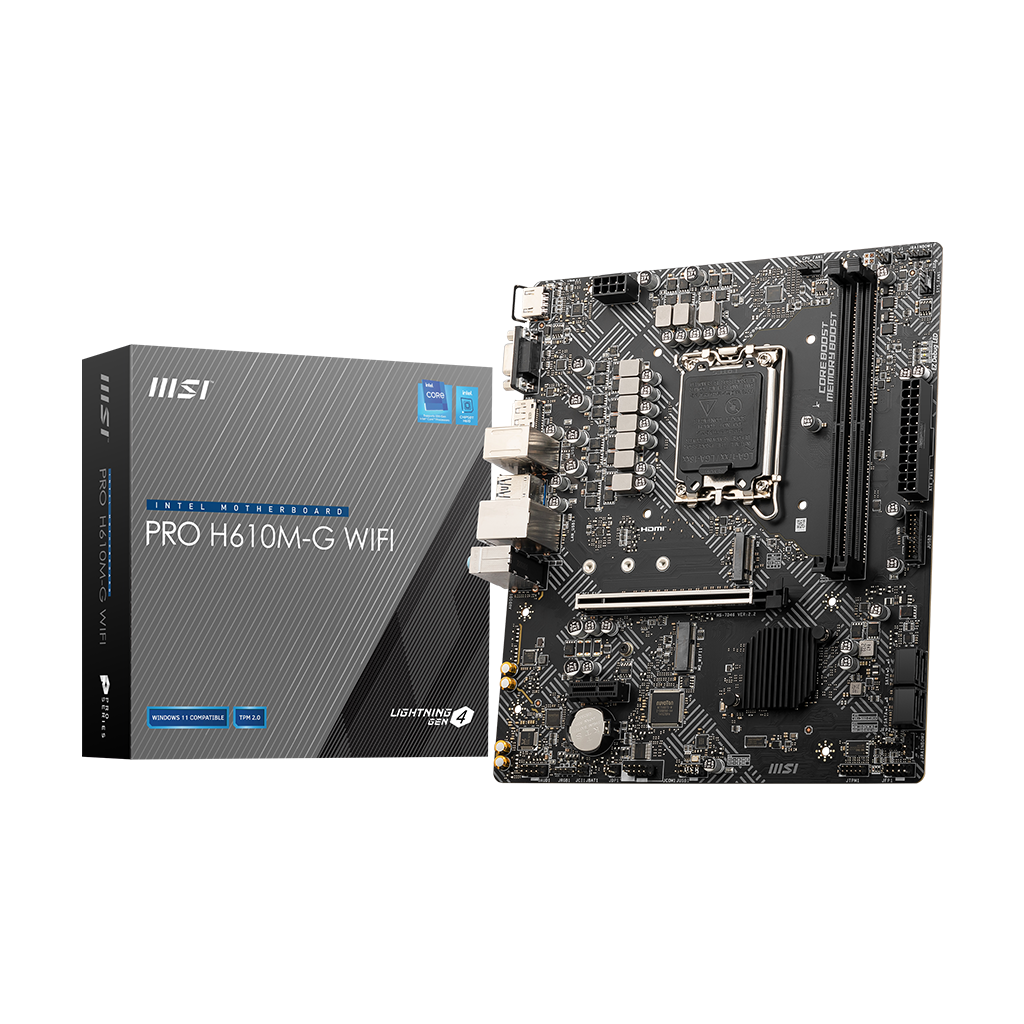

PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI
PRO H610M-G WIFI

PRO H610M-G WIFI

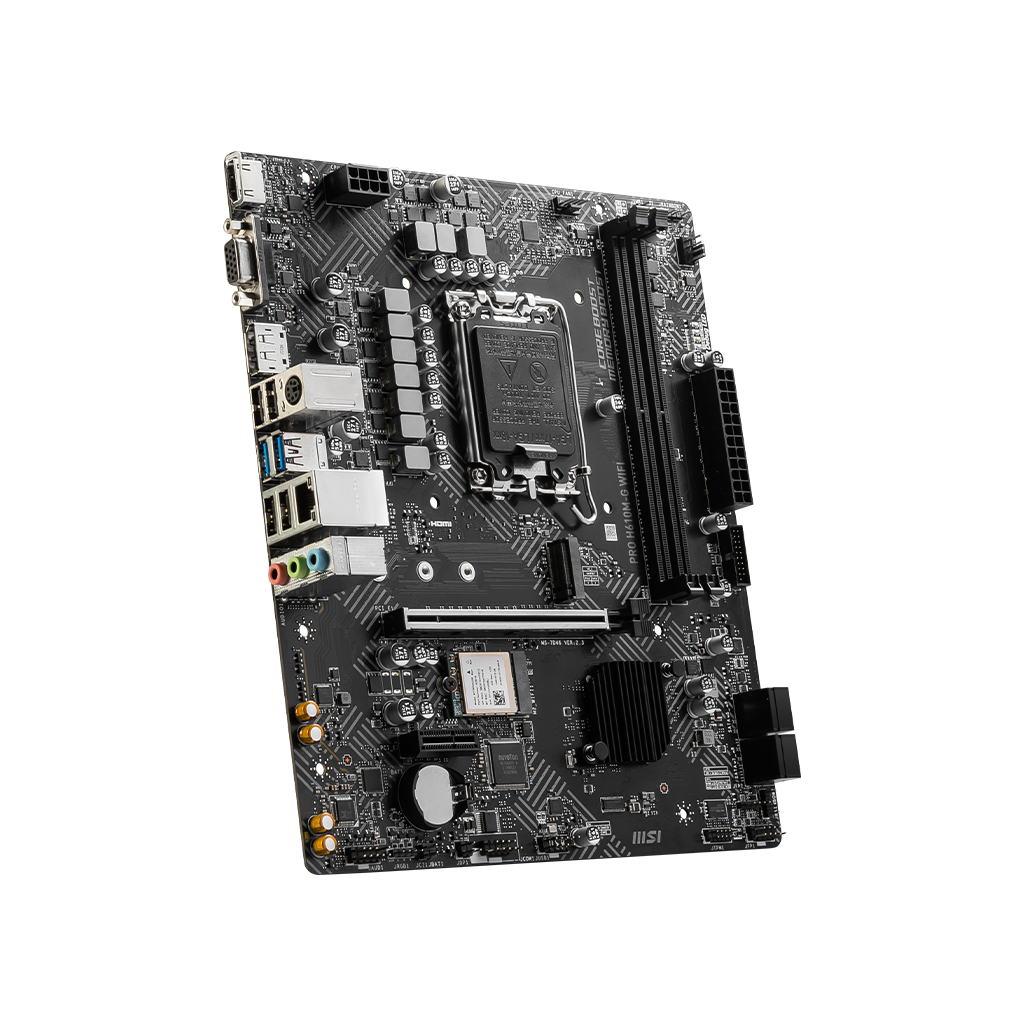

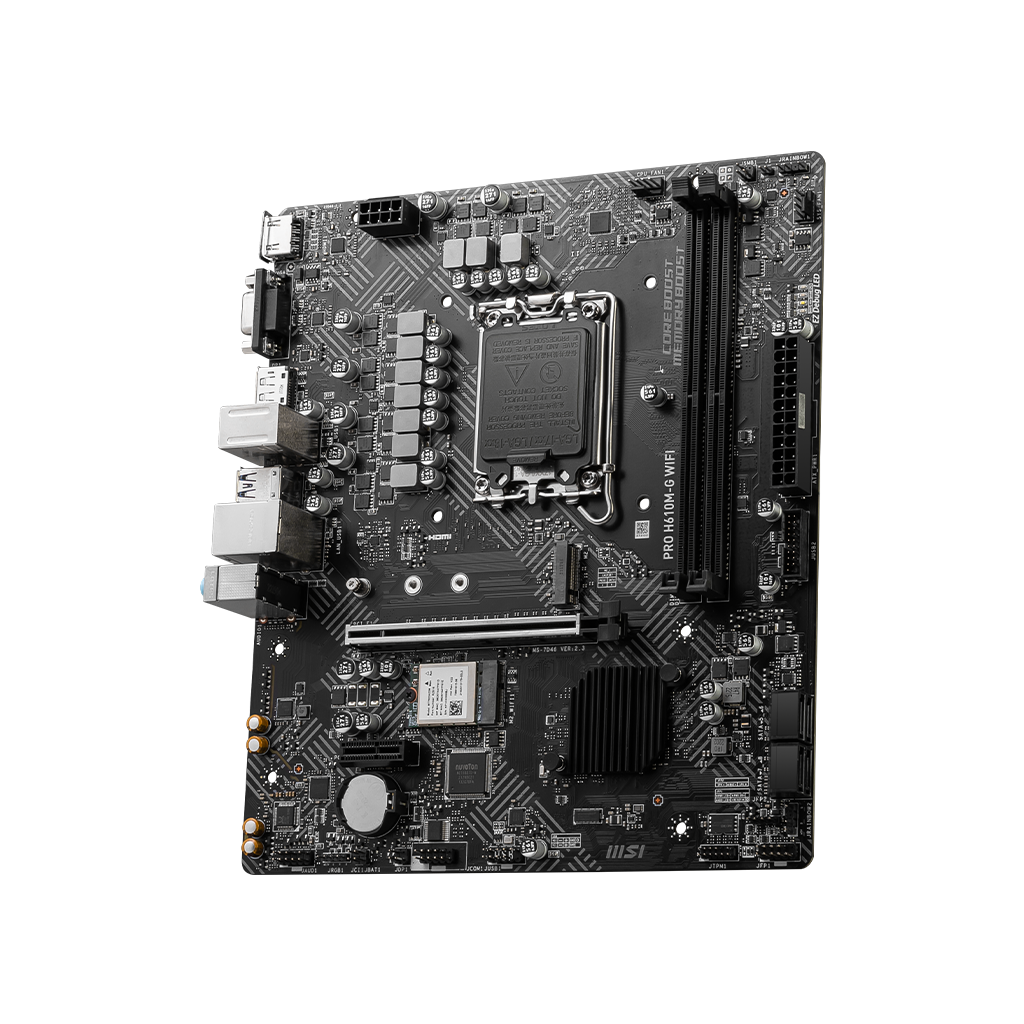

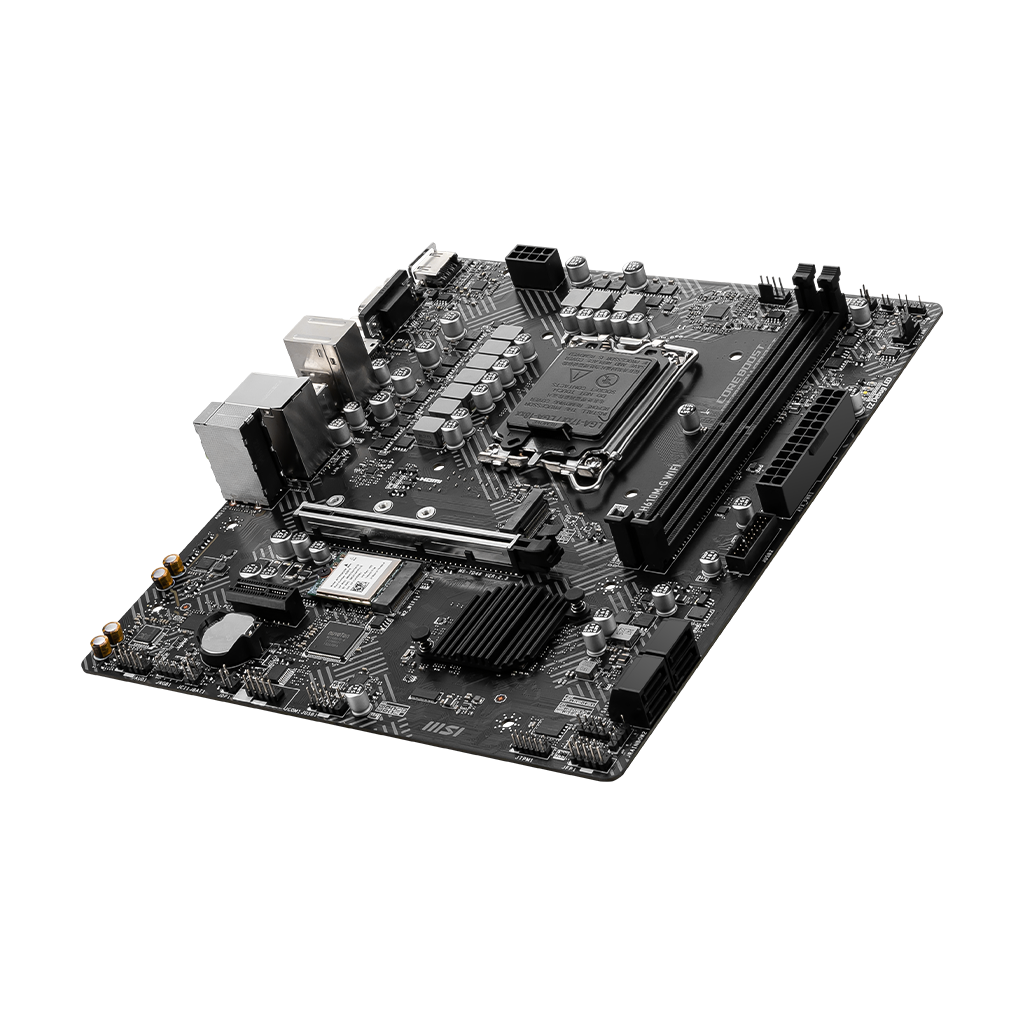

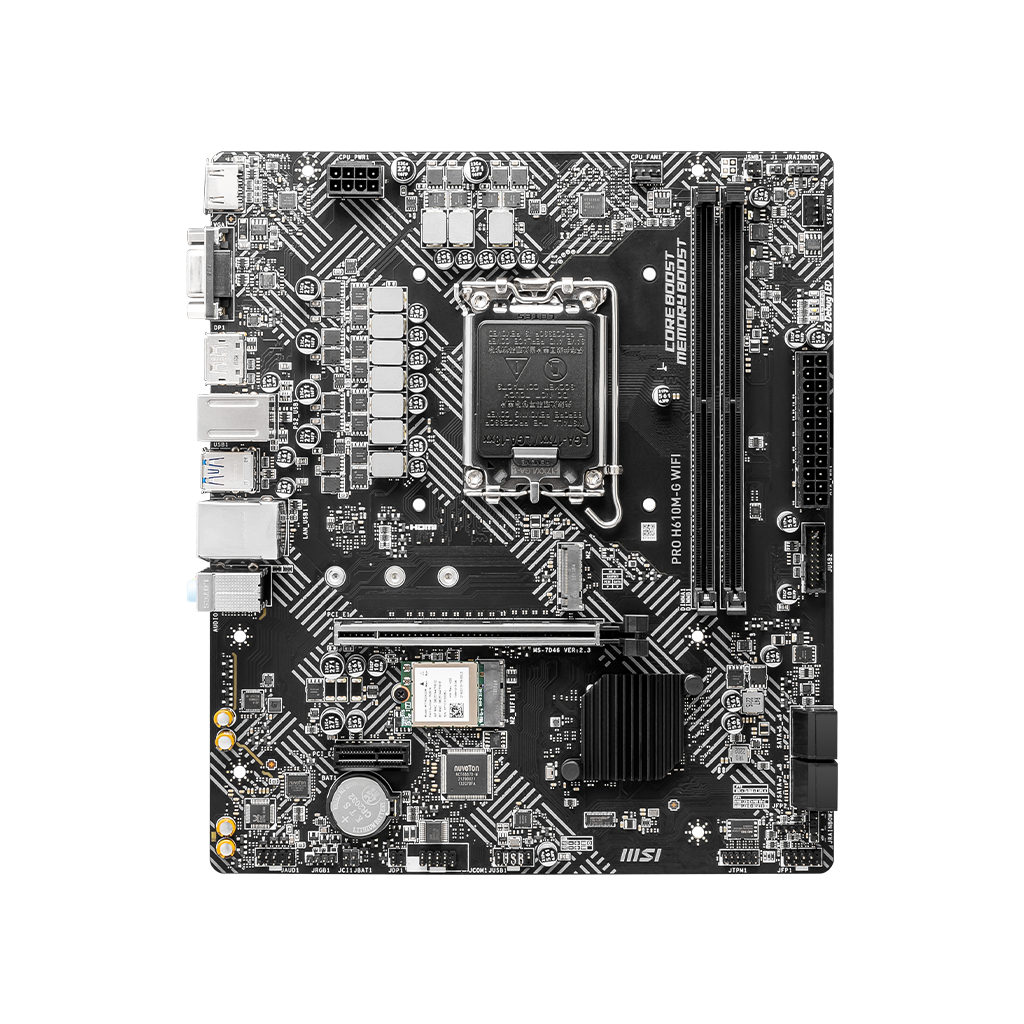

PRO H610M-G WIFI, PRO series motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 5600(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Based on purchase date

$119.99
In Stock

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
Manufacturer Number PRO H610M-G WIFI
Product Condition New
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium® Gold and Celeron® Processors
Chipset Intel® H610 Chipset
CPU Socket LGA1700
Form Factor M-ATX Form Factor
Memory 2 DIMMs, Dual Channel DDR5-5600MHz (MAX)
LAN 1 x Intel® I219-V 1G LAN
Wireless LAN Wi-Fi 6E
Bluetooth Supports Bluetooth 5.3
Audio 8-Channel(7.1) HD Audio with Audio Boost
MULTI-GPU N/A
STORAGE 1x M.2 Gen3 x4 32Gbps slot
4x SATA 6Gb/s ports
Onboard Graphics 1 x HDMI™
1 x DisplayPort
1 x D-Sub
RAID N/A

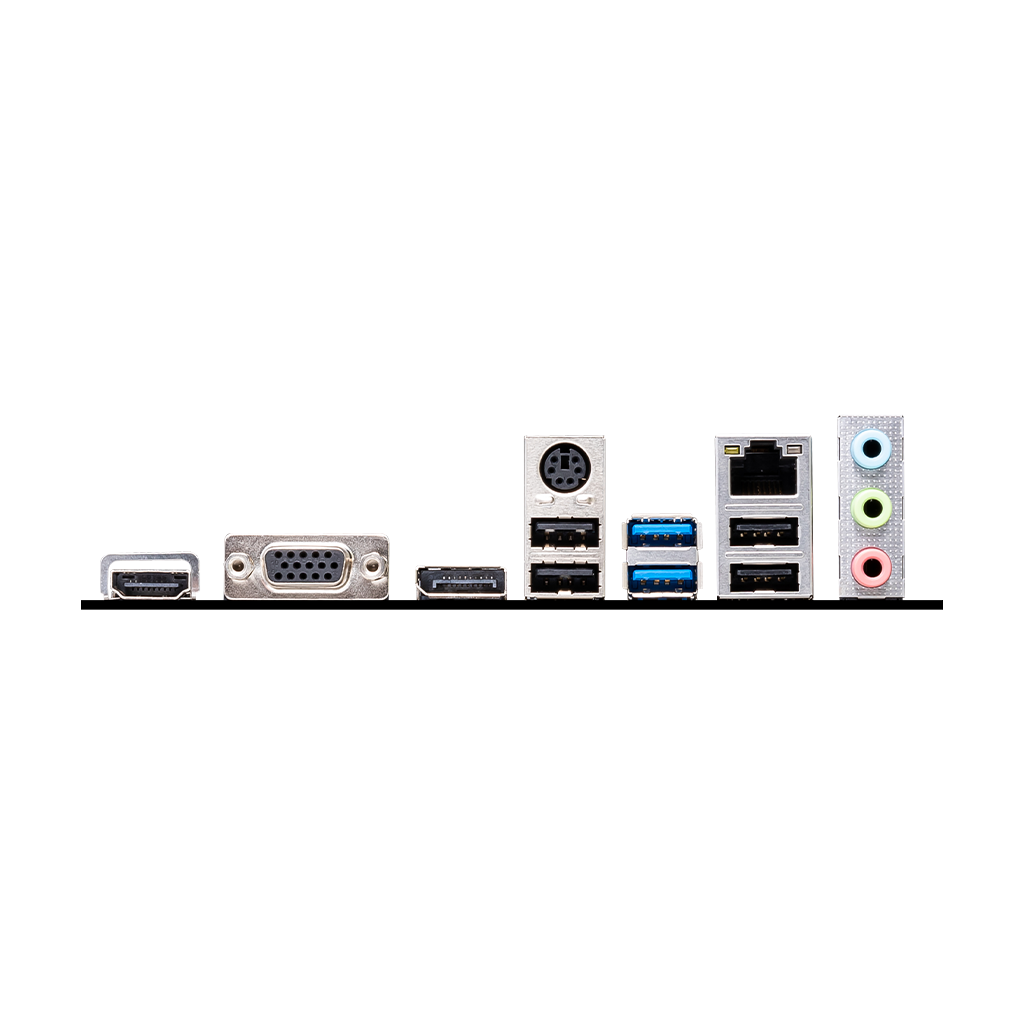

I/O (Rear) HDMI™
VGA
DisplayPort
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
USB (Front) 2x USB 2.0
2x USB 5Gbps Type A
USB (Rear) 4x USB 2.0
2x USB 5Gbps Type A
Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
Dimensions 9.60" x 8.31"
Manufacturer Warranty 3 Year

TECHNICAL FEATURES

Document

Business Elegance

The PRO H610M-G WIFI is a business-oriented Micro-ATX motherboard featuring the Intel H610 chipset that fulfills business needs.

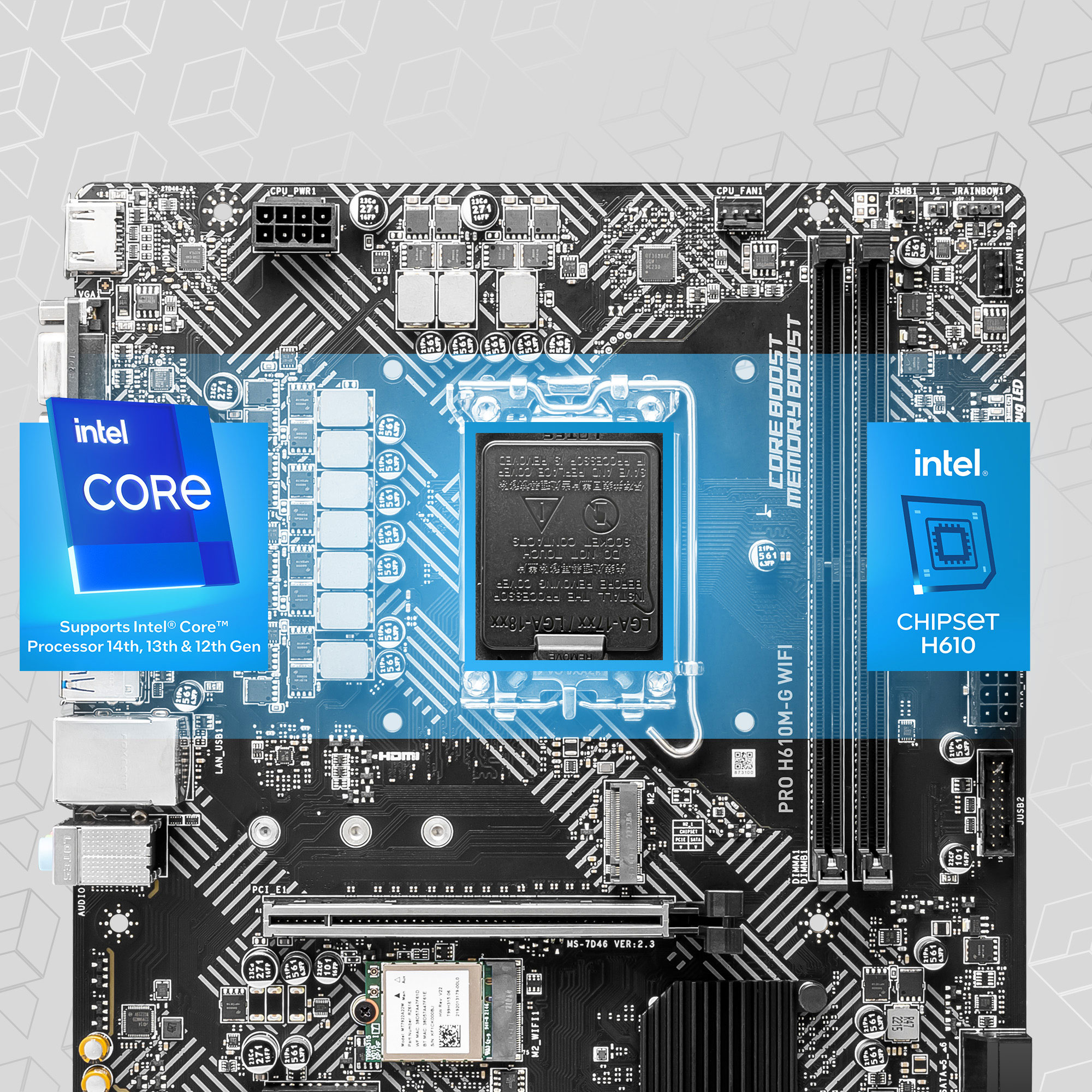

Supports Intel Core 14th, 13th & 12th Gen Processors

The PRO H610M-G WIFI motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel H610

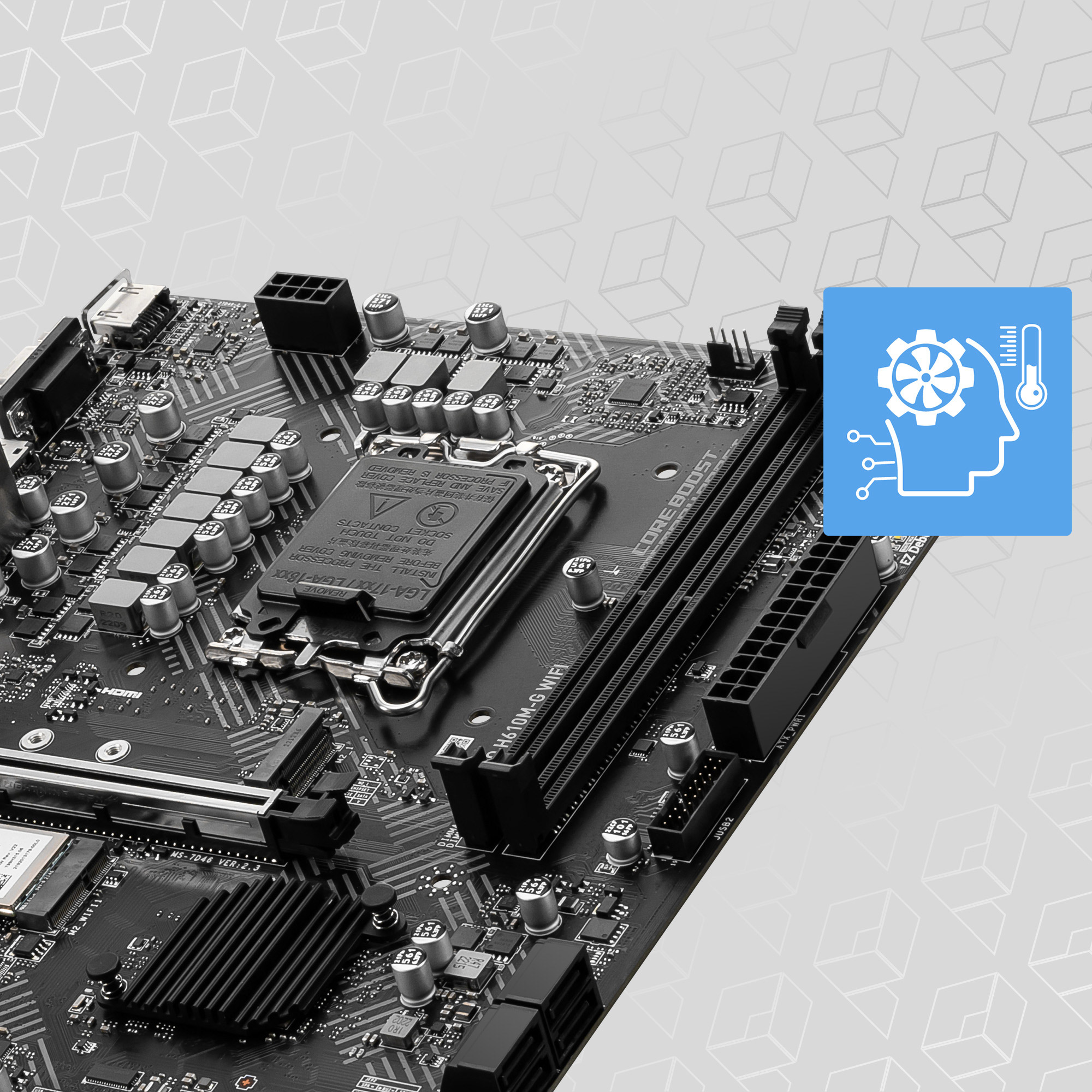

Integrated Cooling Features

Chipset Heatsink: Provides passive cooling

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures

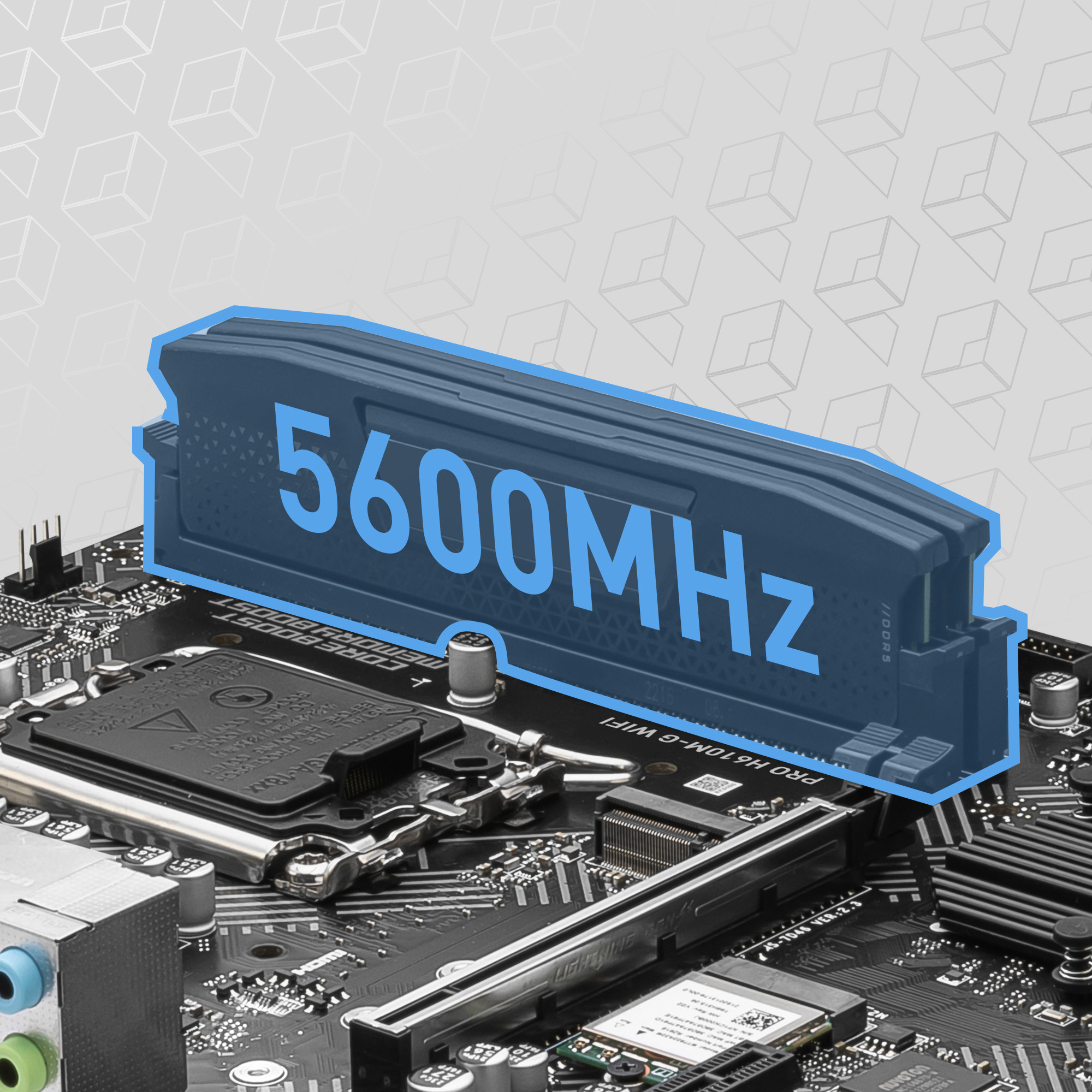

2 x DDR5 Dual Channel (5600 MHz)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

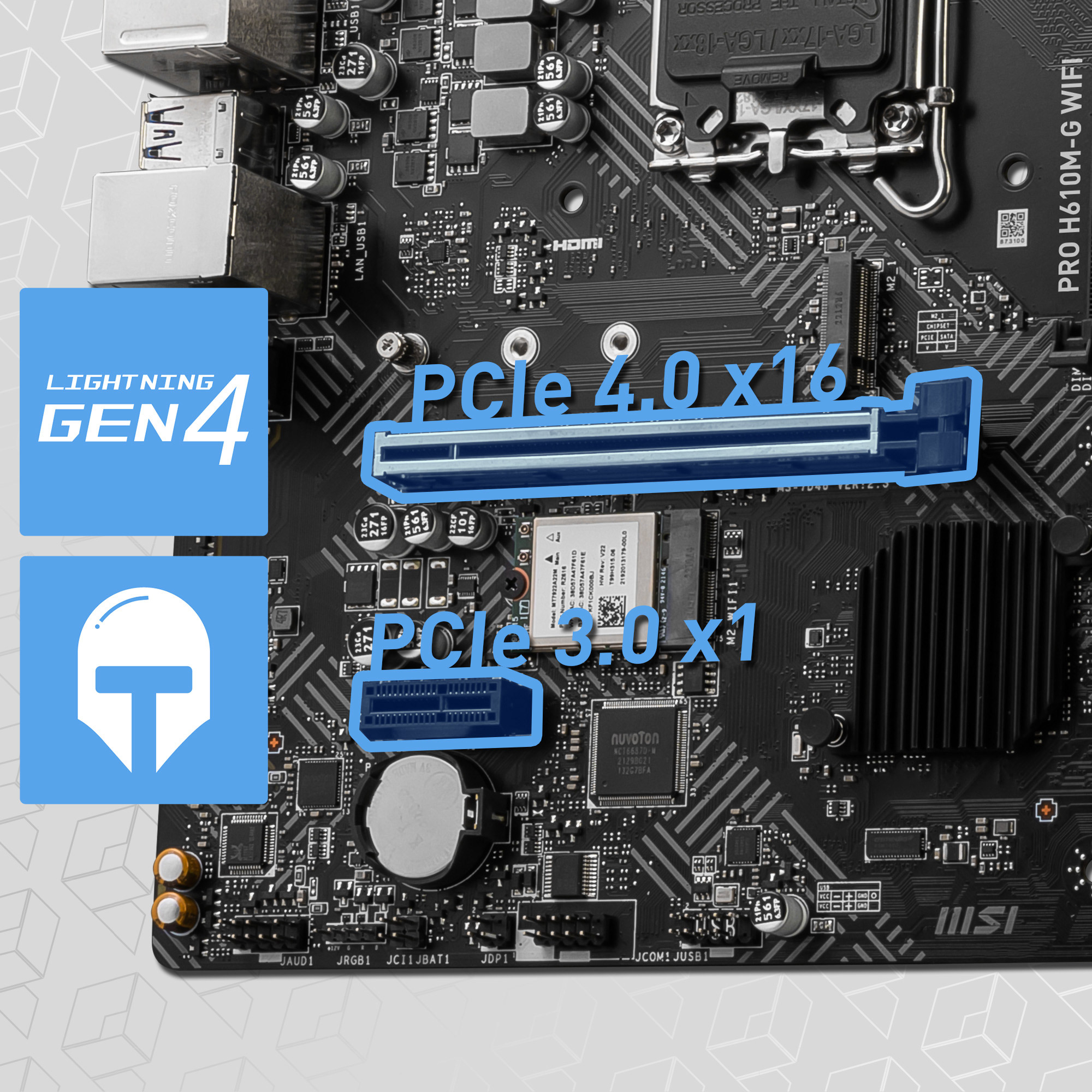

Fortified PCIe 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)

1 x PCIe 3.0 x1 slot

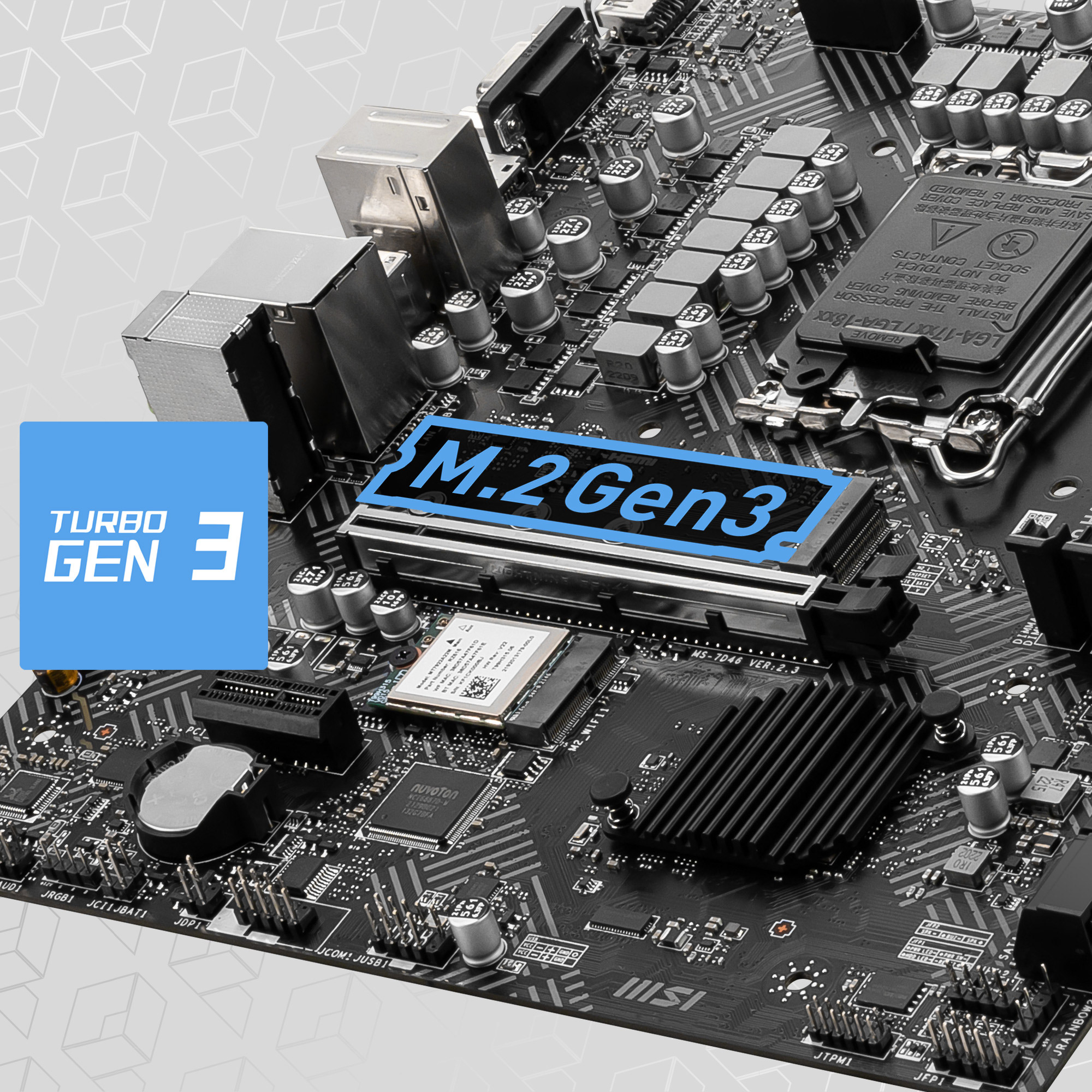

Gen3 M.2 Connector

The PRO H610M-G WIFI motherboard features MSI's Gen3 M.2 slot:

1 x Gen3 x4 32Gbps slot

Connectivity

1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.

Wi-Fi: Features a Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

USB 5Gbps Type-A: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost

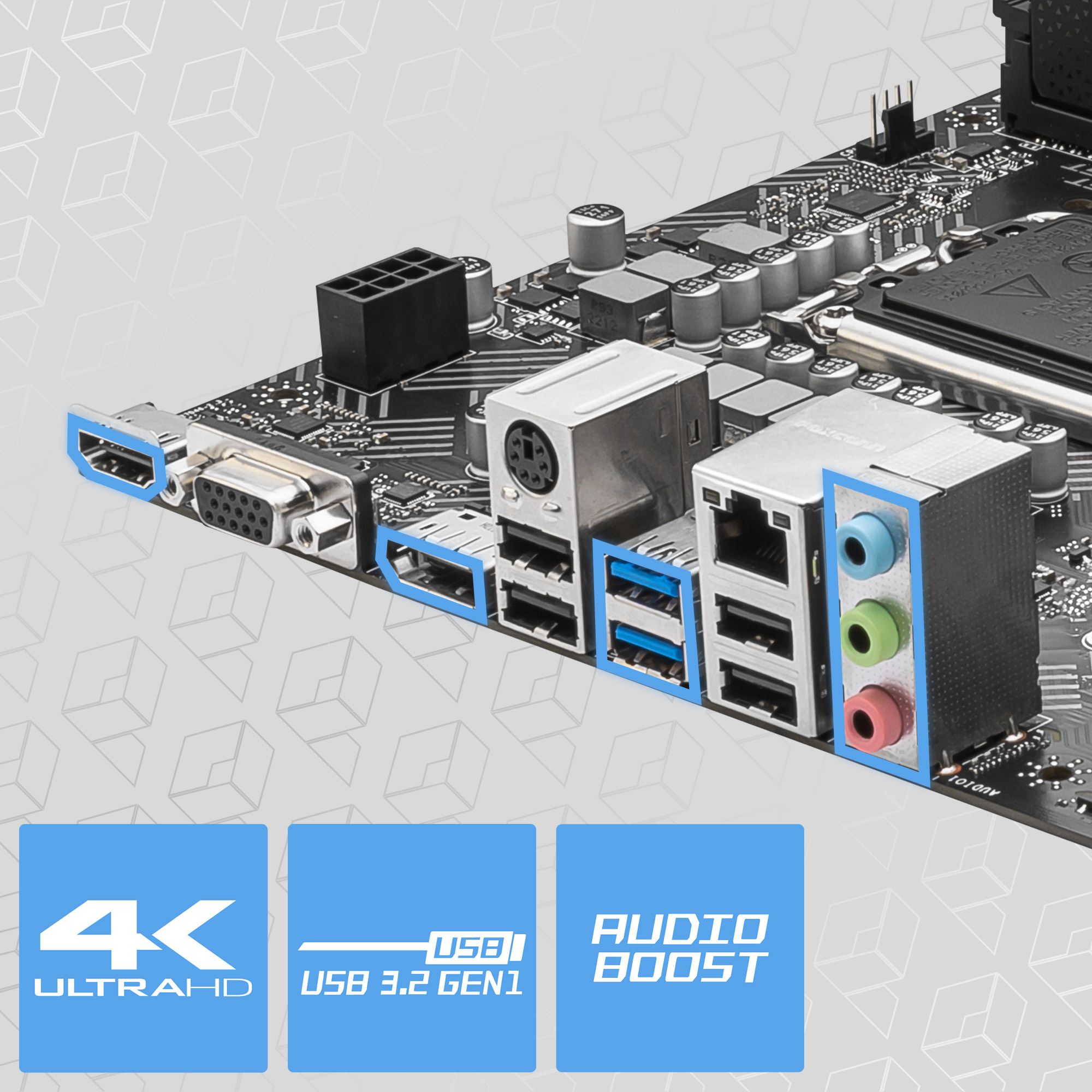

Display Outputs: Include HDMI 2.1 (4K/60Hz), DisplayPort 1.4 and legacy VGA
