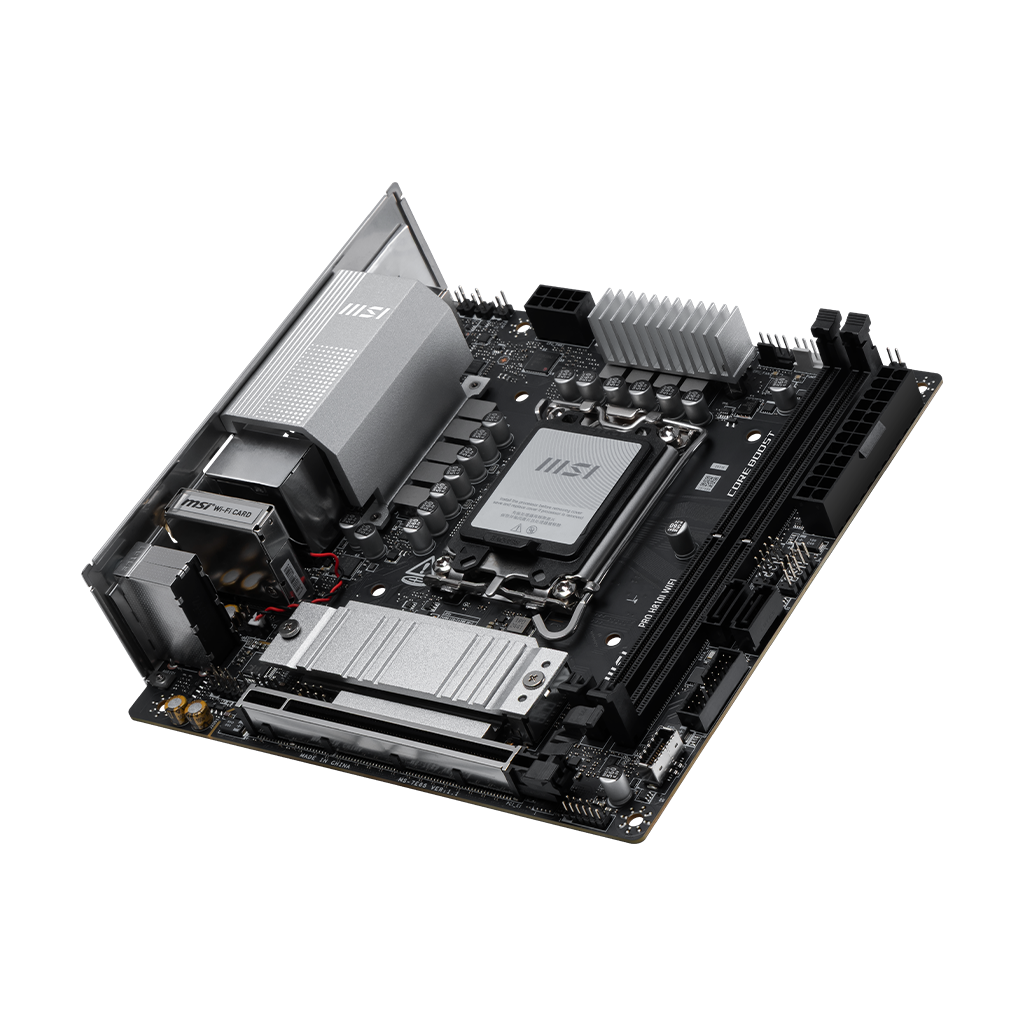

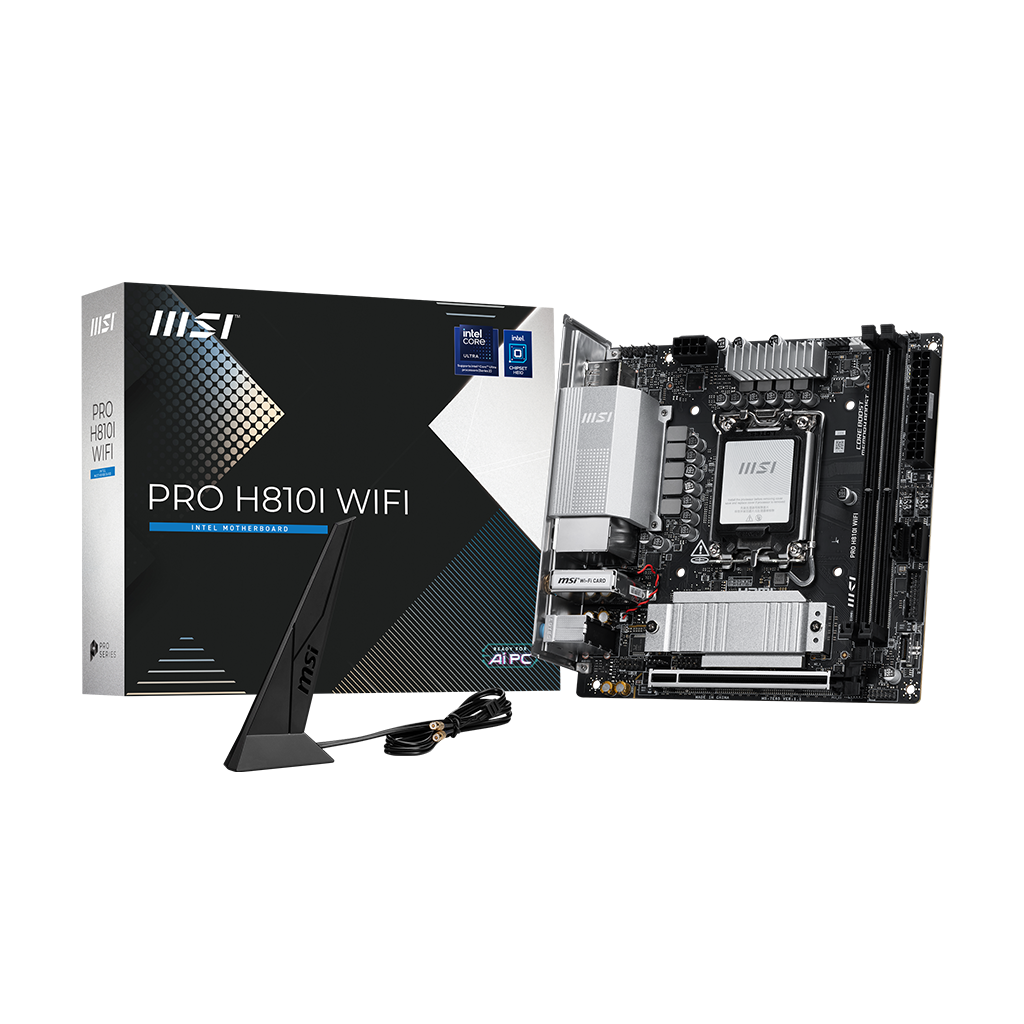

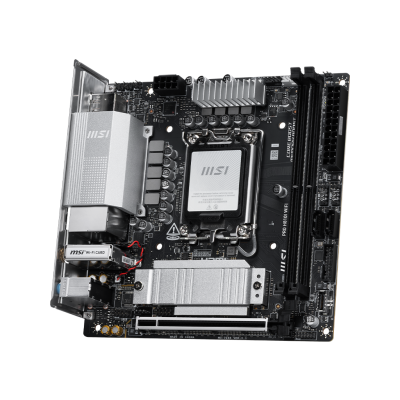

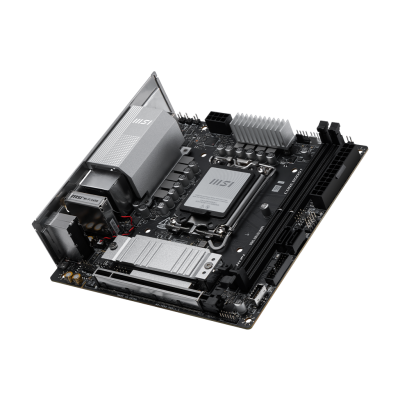

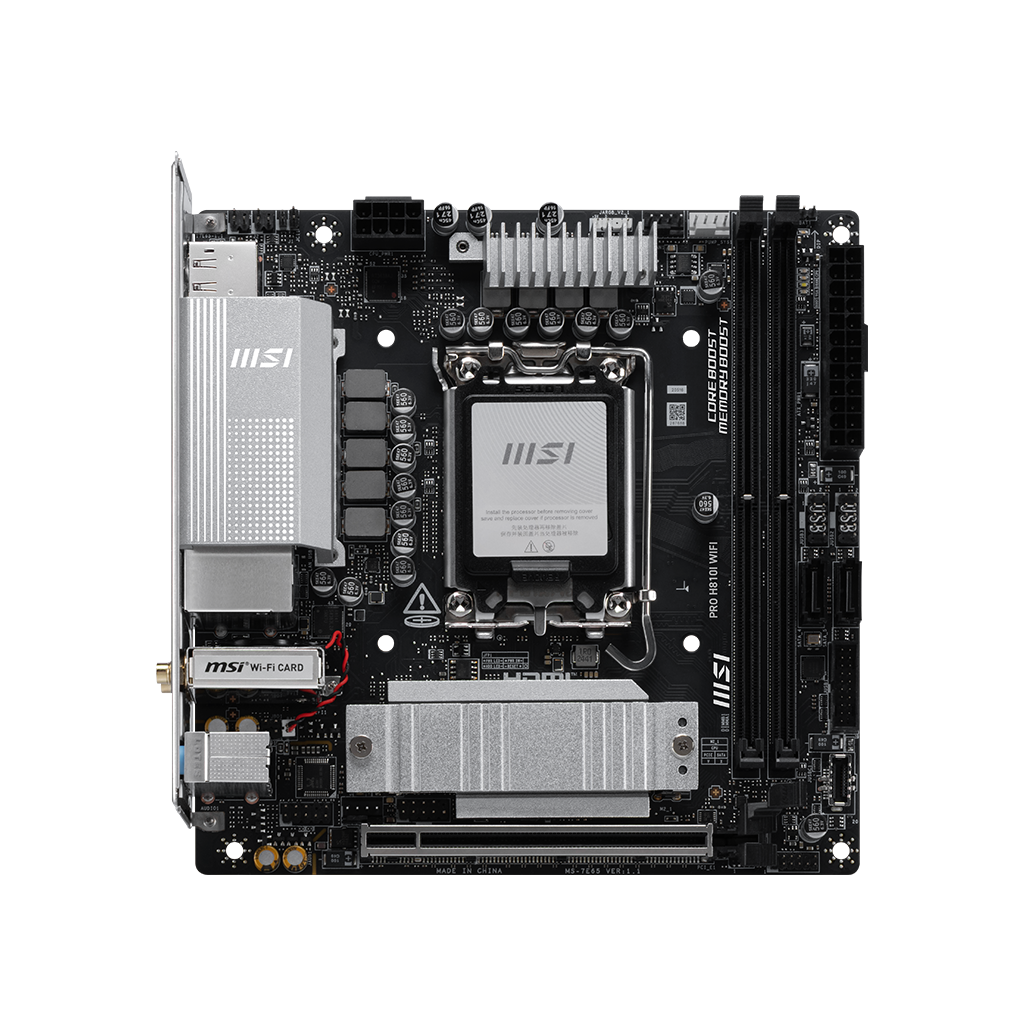

PRO H810I WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 2.5G LAN, PCIe 5.0, and USB 20Gbps Type-C, ready for the Intel® Core™ Ultra processors.


  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Frozr Guard: Extended Heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
  • EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
  • Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Free Shipping

Free Shipping

On order over $25

Return for Refund

Return for Refund

Within 30 days

1-YEAR Limited Warranty

3-YEARS Limited Warranty

Base-on purchase date

$159.99
In Stock

DETAIL SPECIFICATION

OPERATING SYSTEM Support for Windows® 11 64-bit
Manufacturer Number PRO H810I WIFI
Product Condition New
CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset INTEL H810 Chipset
CPU Socket LGA 1851
Form Factor Mini-ITX Form Factor
Memory 2 DIMMs, Dual Channel DDR5 - 6400 MT/s (MAX)
LAN Intel® I226 2.5G LAN
Wireless LAN Wi-Fi 7 Solution
Bluetooth Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost
MULTI-GPU N/A
STORAGE 1x M.2
2x SATA 6G
Onboard Graphics 1x HDMI™ 1x DisplayPort
RAID N/A

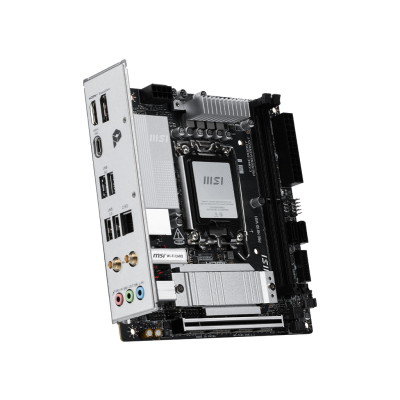

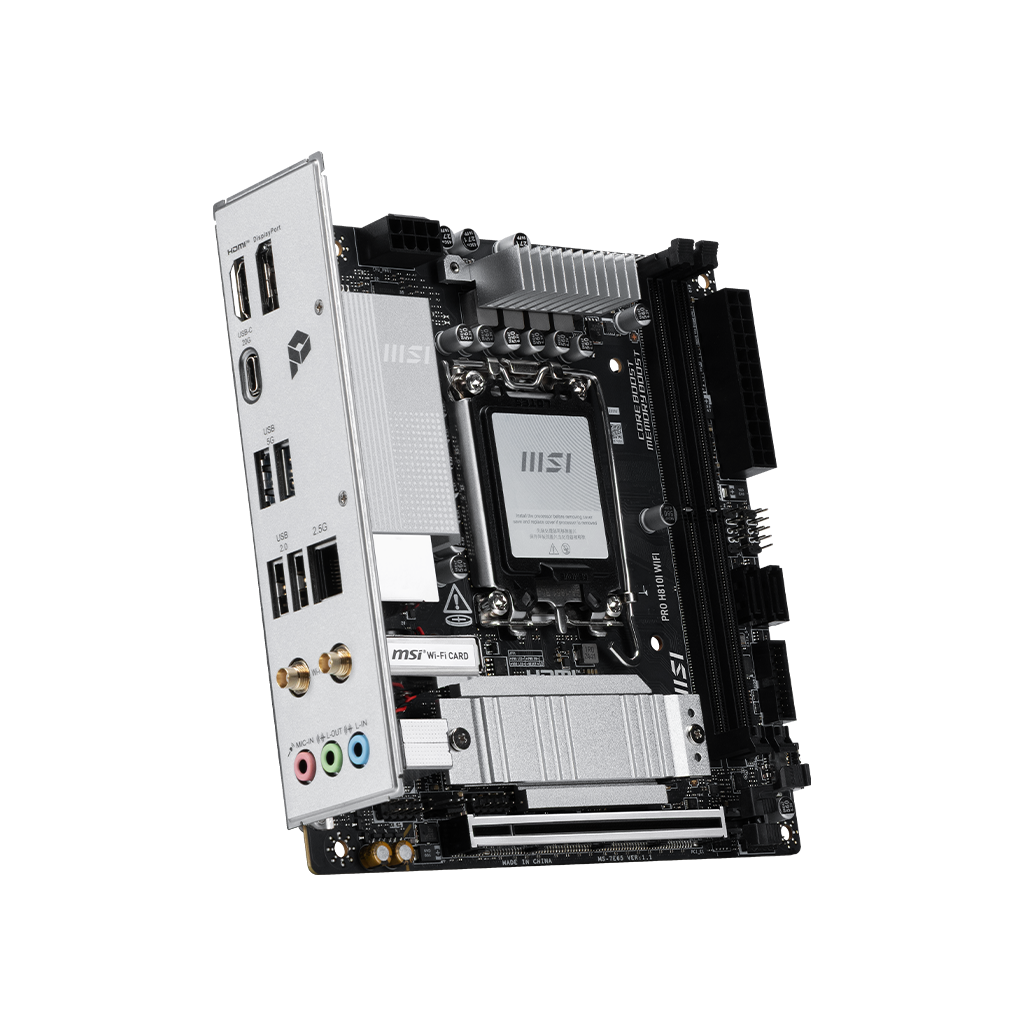

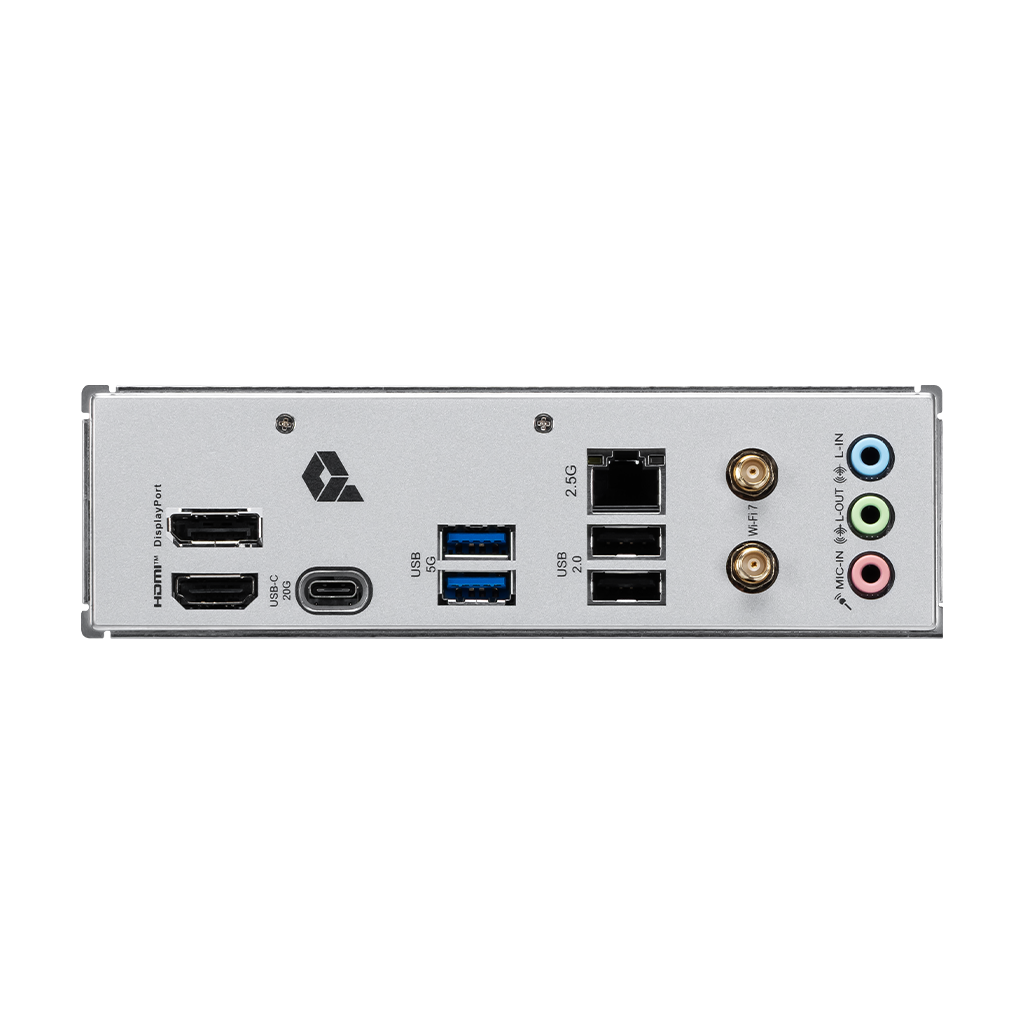

I/O (Rear) DisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMITM
USB 20Gbps Type-C
USB 2.0
Expansion Slots 1 x PCIe 5.0 x16 slot
USB (Front) 4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type C
USB (Rear) 2x USB 2.0
2x USB 5Gbps Type A
1x USB 20Gbps Type C
Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Dimensions 6.70" x 6.70"
Manufacturer Warranty 3 Year

TECHNICAL FEATURES

Document

Business Elegance

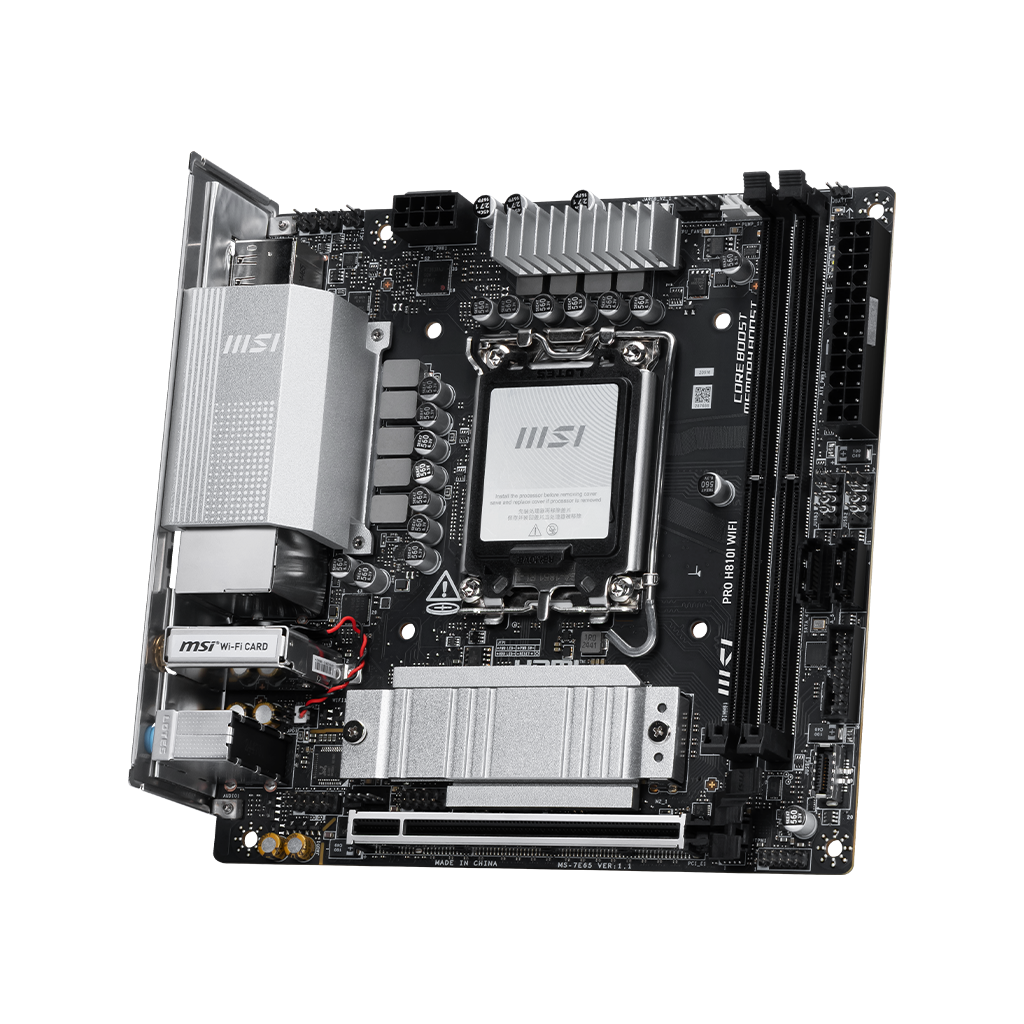

The PRO H810I WIFI is a business-oriented ITX motherboard constructed around the latest Intel H810 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

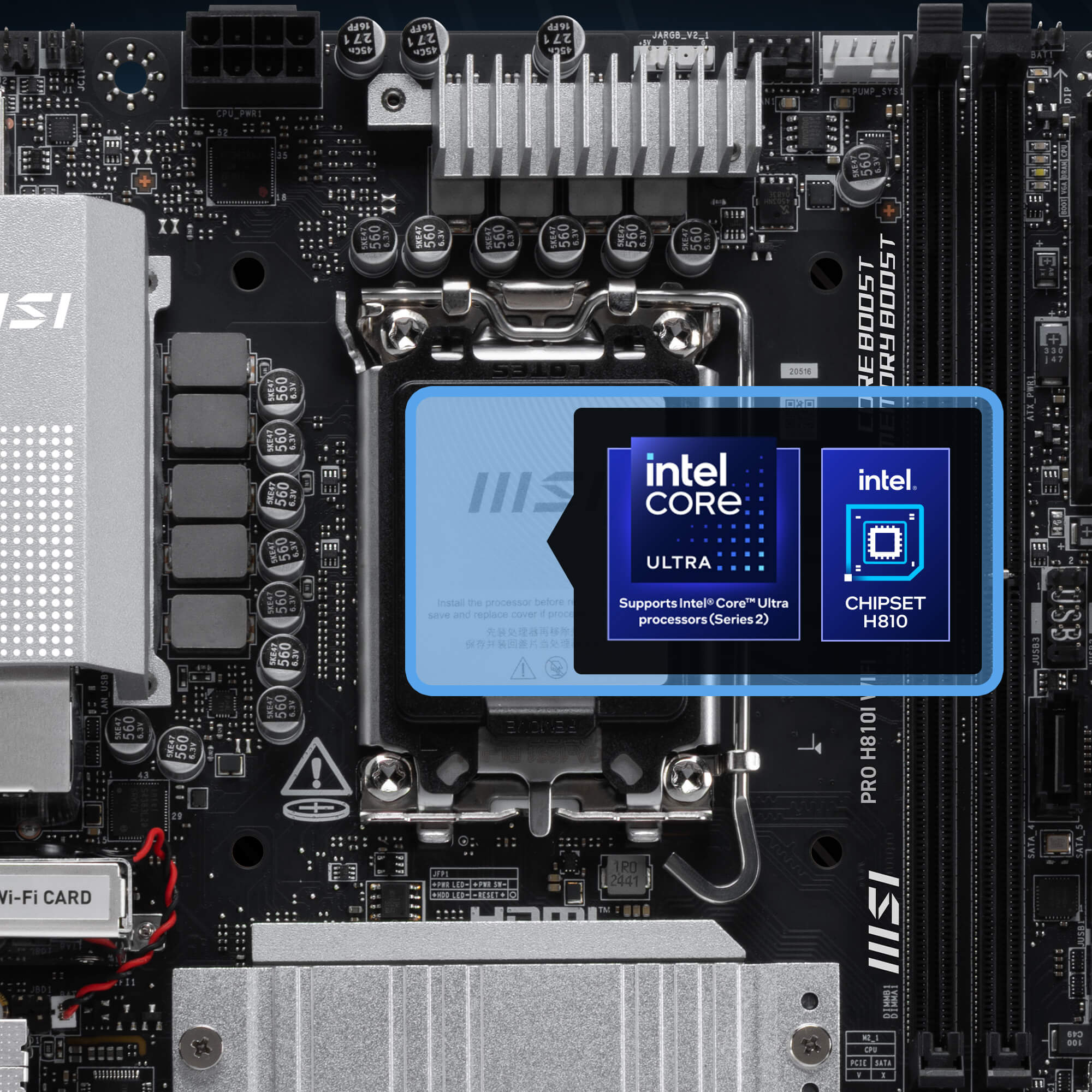

Supports Intel Core Ultra Processors (Series 2)

The PRO H810I WIFI motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: ITX

Socket Type: LGA 1851

Chipset: Intel H810

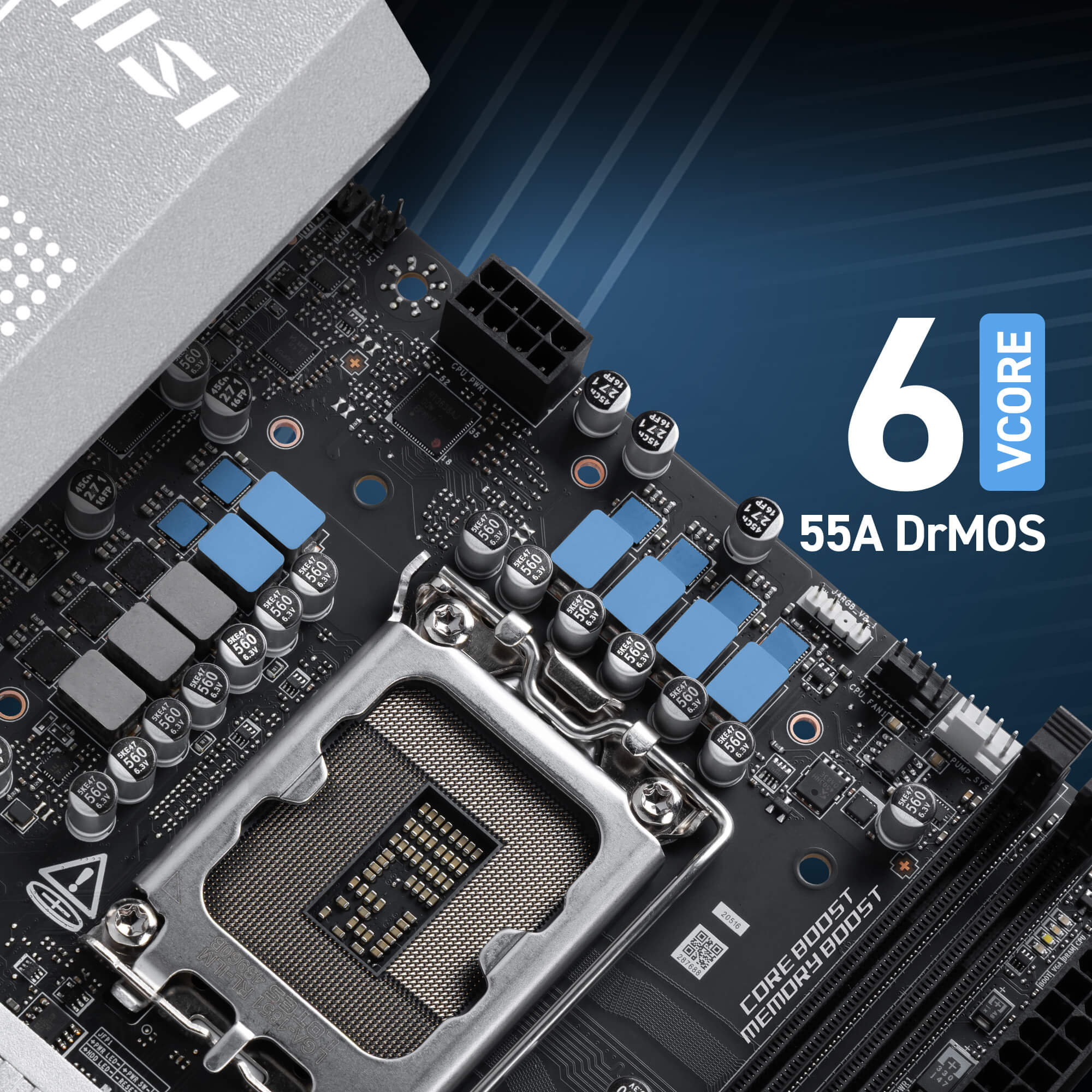

Ultra Power - Direct 6 Phases with 55A DrMOS

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810I WIFI is able to sustain heavy CPU power loads to support system-demanding settings:

Digital PWM IC

6-Phase direct CPU power (55A / DrMOS)

1-Phase SA Power

1-Phase GT Power

1-Phase VNNAON Power

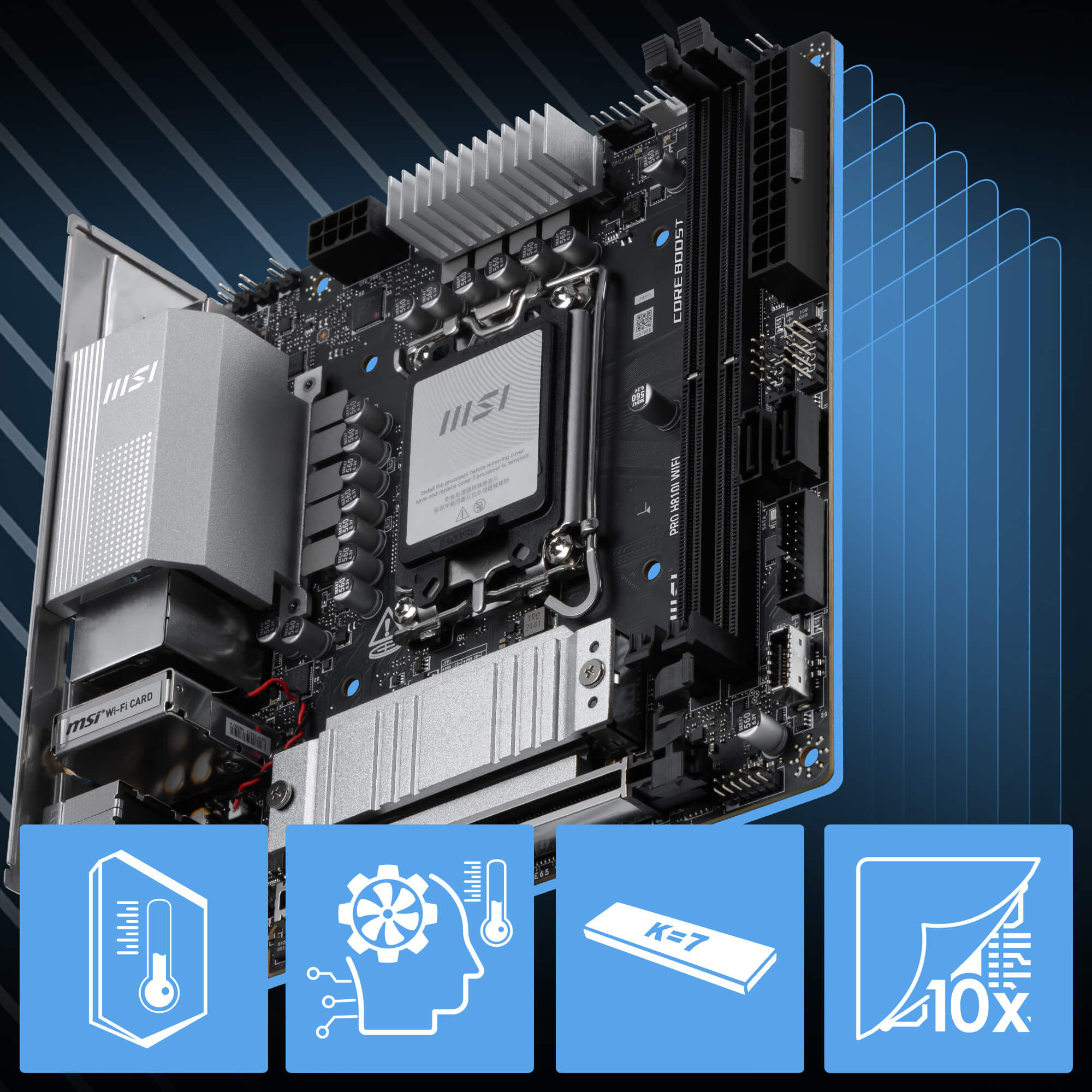

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan), and system fans (1A).

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

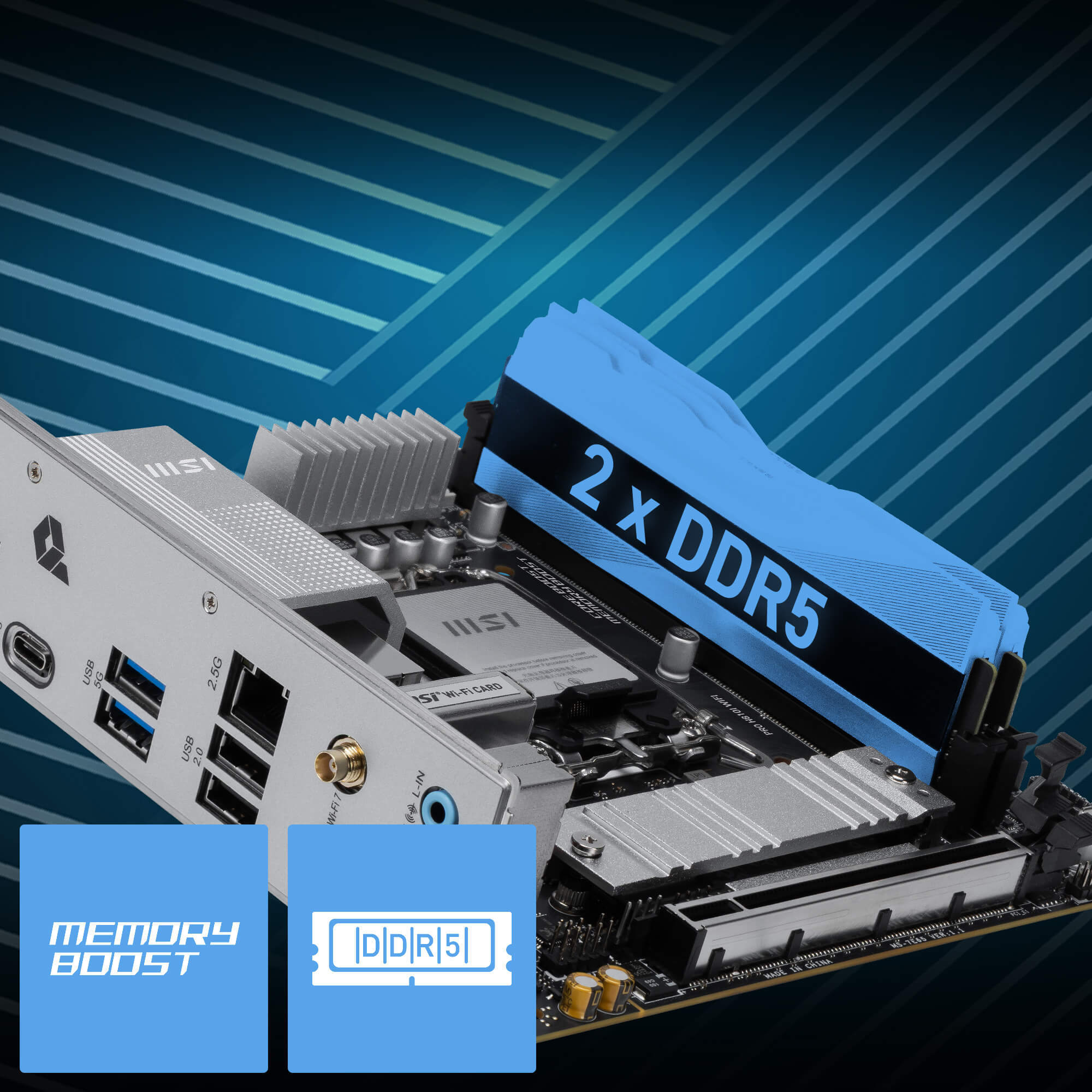

2 x DDR5 Dual Channel (6400 MT/s MAX)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. frequency 6400 MT/s, supports Intel XMP.

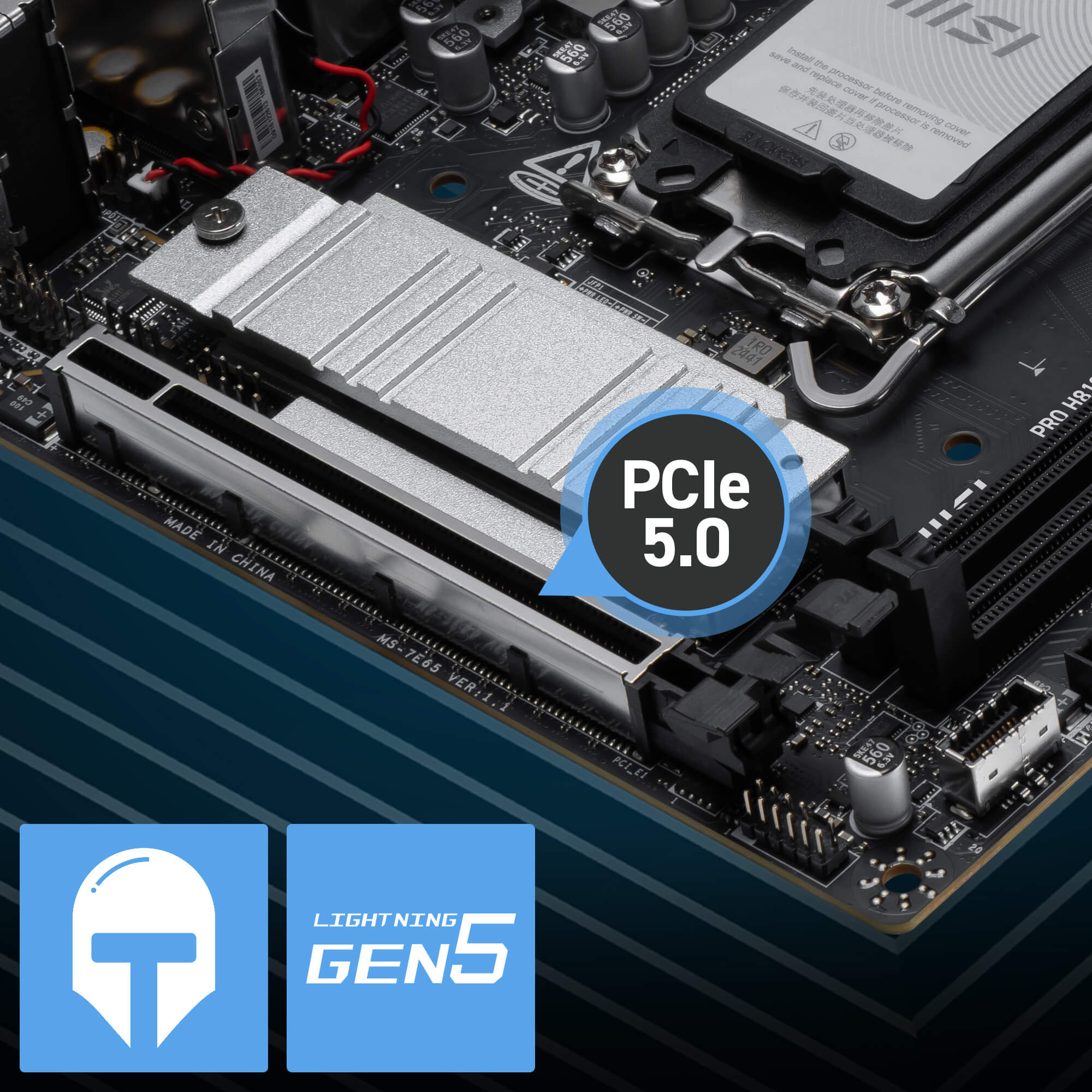

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

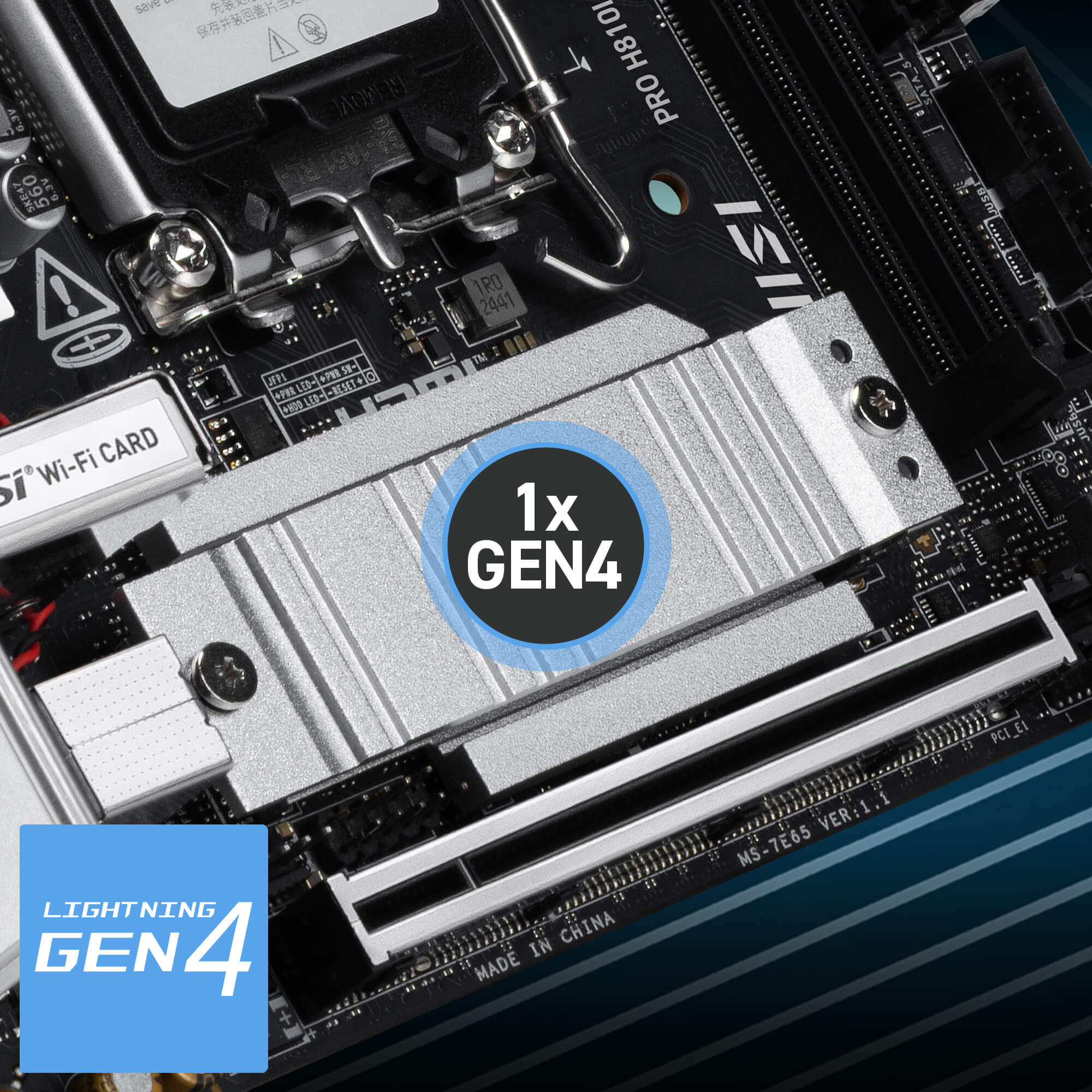

Gen4 M.2 Connector

The PRO H810I WIFI motherboard features MSI's M.2 slot:

1 x Gen4 x4 64Gbps slot

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

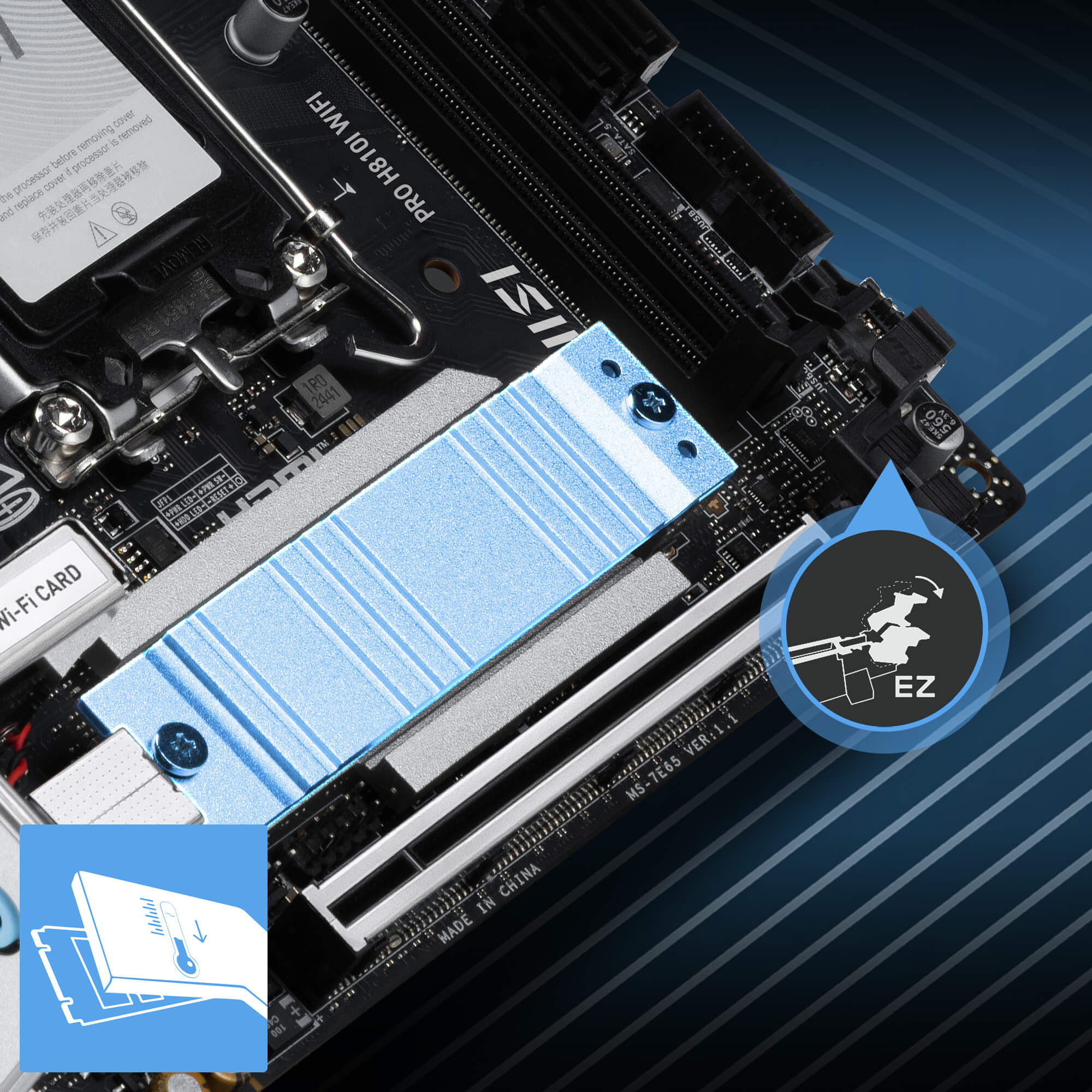

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

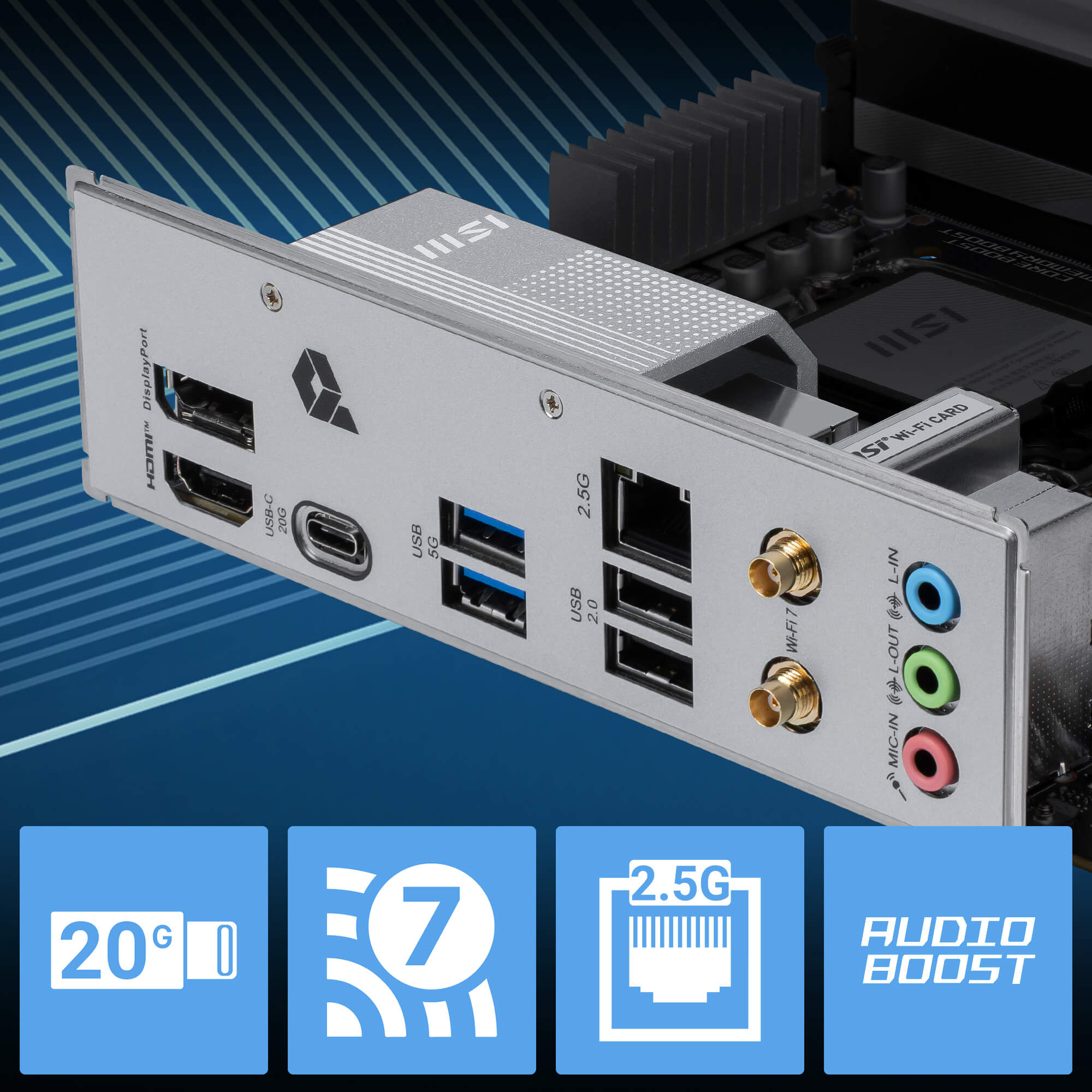

High-speed Connectivity

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network experience.

USB 20Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
