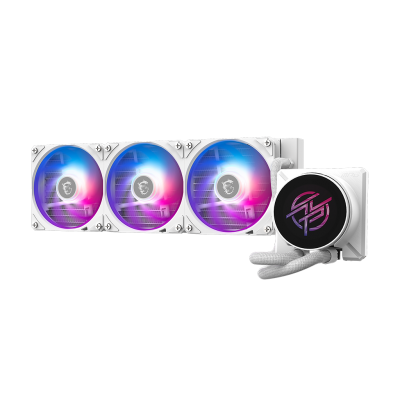

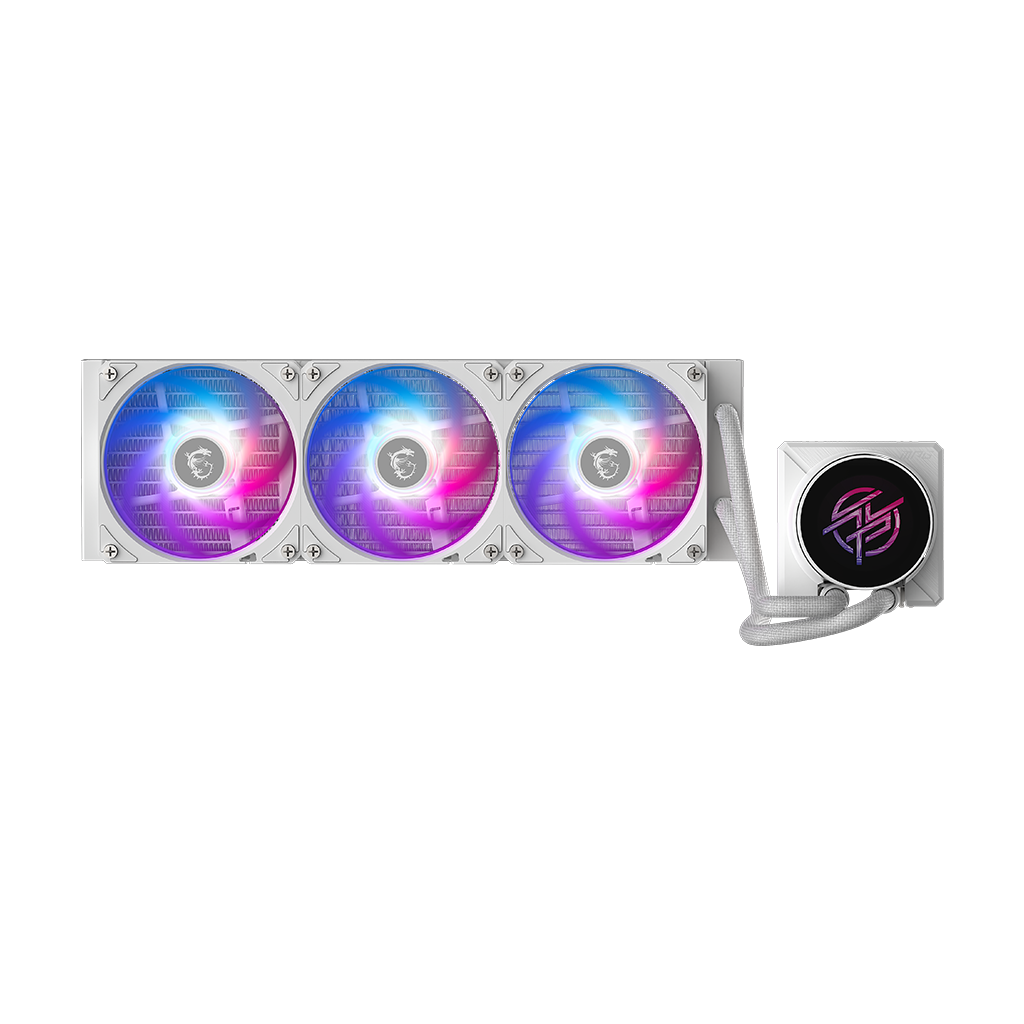

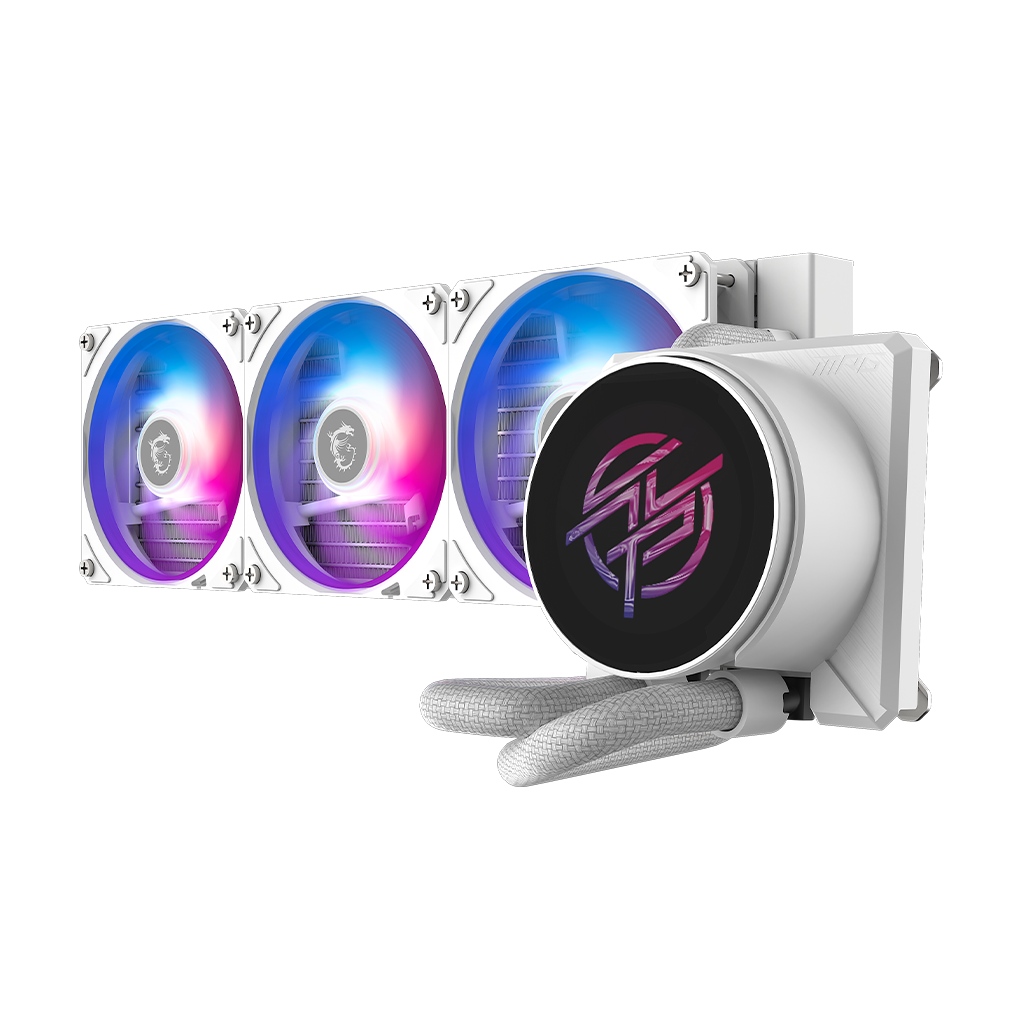

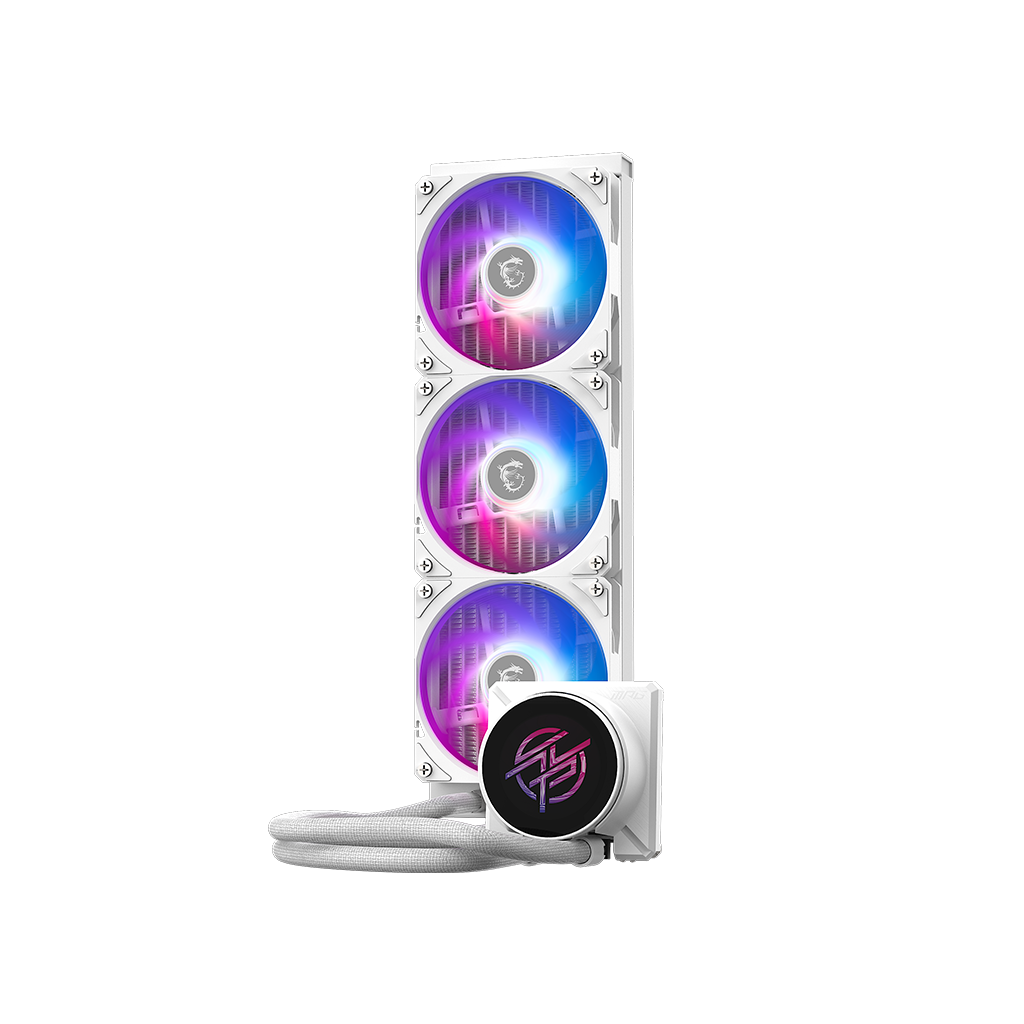

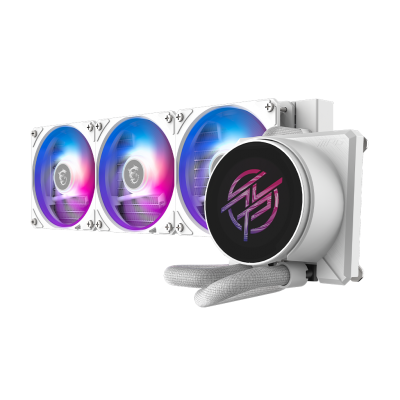

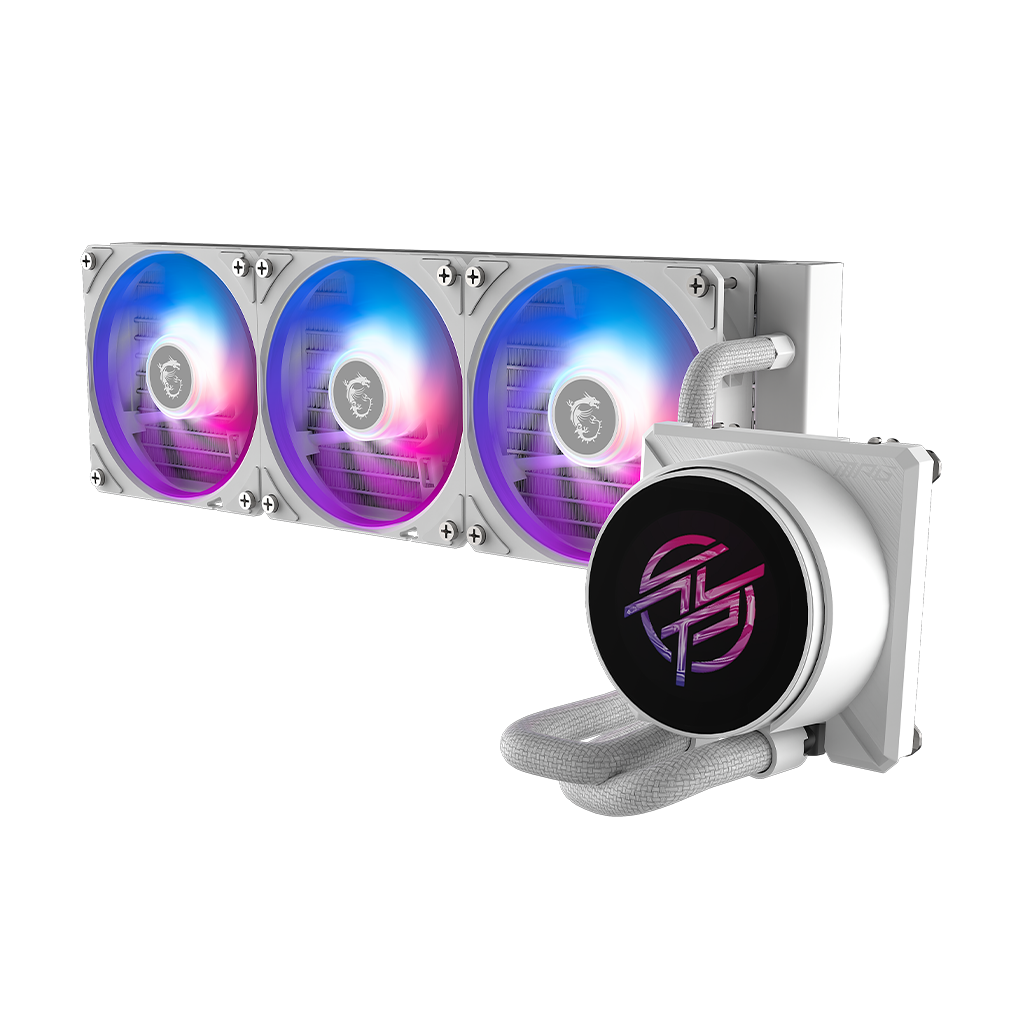

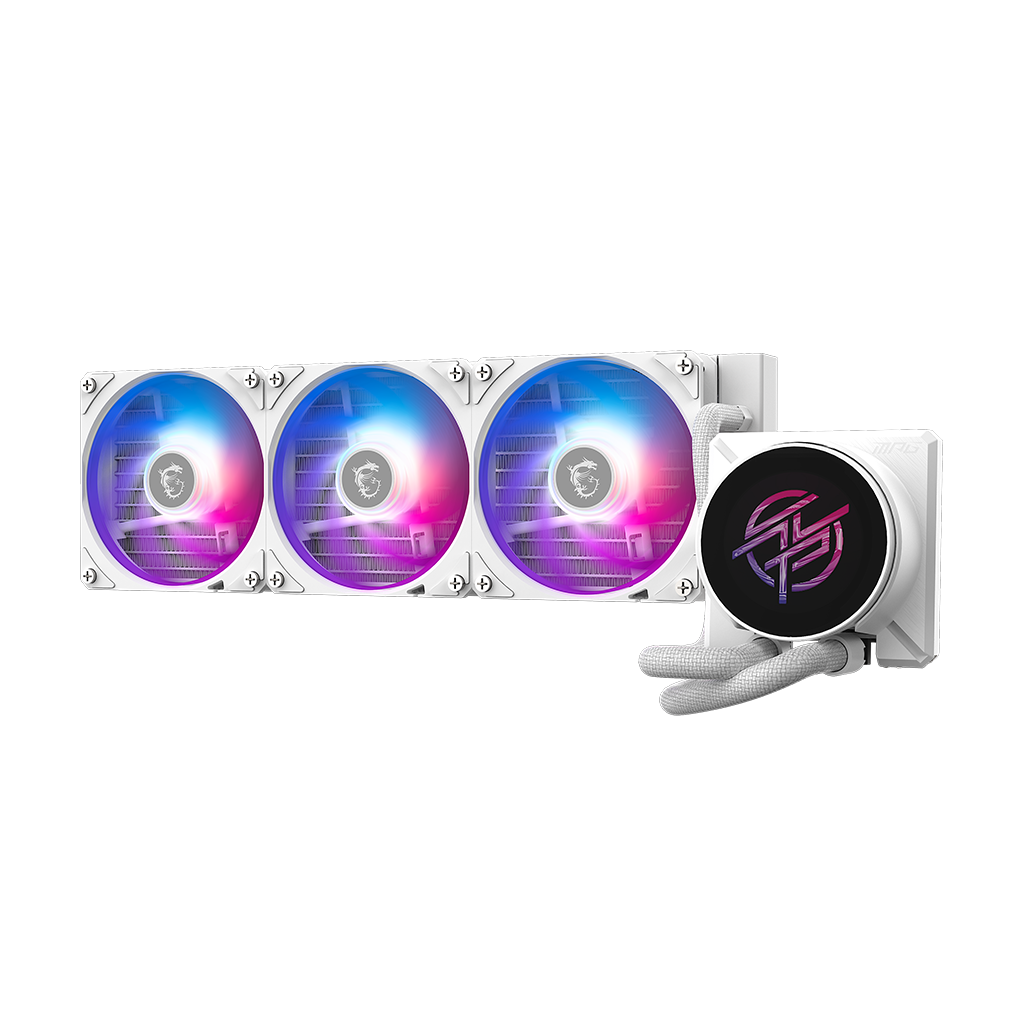

MPG CORELIQUID P22 Series preserving the original elegant aesthetics, subtle new accents have been added to give the product a sharper, more youthful edge. It also features decorative EZ Cap that perfectly conceal exposed hardware, ensuring a cleaner and more streamlined visual presentation.
Free Shipping
On order over $25
Return for Refund
Within 30 days
5-YEARS Limited Warranty
Based on purchase date
| Manufacturer Number | CLP22360W |
|---|---|
| Product Condition | New |
| PANEL SIZE | Water Block: 71.63 x 69.47 x 77.61 mm Panel Size: 2.1 |
| PANEL TYPE | Panel Type: IPS |
| PANEL RESOLUTION | Panel Resolution: 540 x 540 |
| PUMP RATED CURRENT | 0.21±0.042 A |
| NUMBER OF FANS | 3 |
| FAN POWER CONSUMPTION | 1.8±0.36 W (Set) |
| FAN RATED CURRENT | 0.15±0.03 A (Set) |
| FAN BEARING | Rifle Bearing |
| FAN AIR PRESSURE | 2.36 mm-H2O |
| FAN NOISE LEVEL | 31.1 dBA |
| FAN AIR FLOW | 62.6 CFM Speed: 500~2000±200 RPM |
| FAN LIGHTING | ARGB GEN1 |
| RADIATOR MATERIAL | Aluminum |
|---|---|
| RADIATOR DIMENSIONS | 394 x 119.2 x 27.2 mm |
| BLOCK DIMENSIONS | 69.1 mm x 74 mm x 62.45 mm |
| PUMP SPEED | Speed: 3400±340 RPM |
| PUMP POWER CONSUMPTION | 2.52±0.504 W |
| COOLING SOCKET SUPPORT | Intel: LGA 1700/ 1851 AMD: AM5、AM4 |
| FAN LIFE EXPECTANCY | 40℃,40000 hours |
| PUMP LIFE EXPECTANCY | 40℃,50000 hours |
| WATER COOLING TUBE MATERIAL | Length: 390 mm Material: EPDM+IIR |
| RADIATOR SIZE | 360 mm |
| FAN SIZE | 120 × 120 × 25 mm |
| Weight | 3.80 lbs / 6.20 lbs |
| Manufacturer Warranty | 5 Year |
MPG CORELIQUID P22 Series preserving the original elegant aesthetics, subtle new accents have been added to give the product a sharper, more youthful edge. It also features decorative EZ Cap that perfectly conceal exposed hardware, ensuring a cleaner and more streamlined visual presentation.
The new generation copper base eliminates the traditional screw perforation design, significantly enhancing water-tightness and ensuring more reliable system operation. Equipped with a precise 0.1mm micro-channel design, it efficiently absorbs CPU heat and works in tandem with the high-performance pump to quickly dissipate heat, delivering exceptional cooling performance.
The 2.1-inch LCD (540*540) screen supports real-time monitoring, animated visuals, or personalized content. Use it as a secondary display for dynamic system feedback and next-level customization.
Streamline your build with our daisy-chain fan system. By reducing the traditional six cables down to only Two, we’ve made installation faster and more intuitive, keeping your system interior clean and clutter-free.
MSI's CycloBlade 7 fan features a hybrid blade design, delivering powerful airflow and high static pressure. This ensures extreme cooling performance during intense gaming while maintaining low noise levels for an immersive experience.
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths. This improves thermal dissipation between coolant and fan-cooled air.
Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.
Featuring a magnetic snap-on design, the EZ Cap maintains a minimalist aesthetic. After installing the water block, it effortlessly conceals cluttered mounting brackets and screws, allowing the cooler to achieve perfect visual unity with the motherboard.
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through an MSI motherboard:
The pre-installed and easy-to-use UNI Bracket supports both Intel and AMD sockets, significantly reducing assembly time and improving the quality of DIY builds for gamers.
