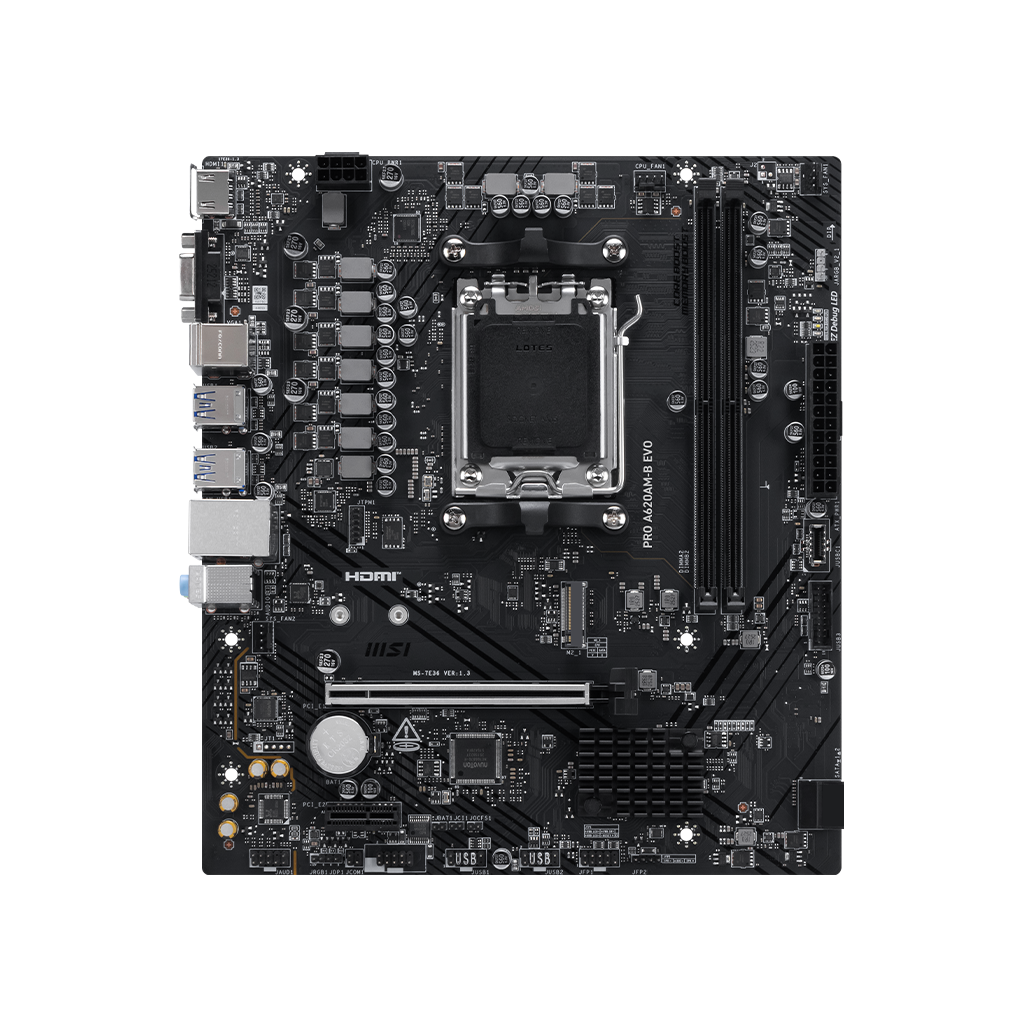

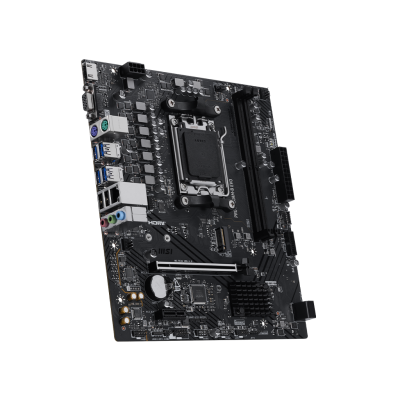

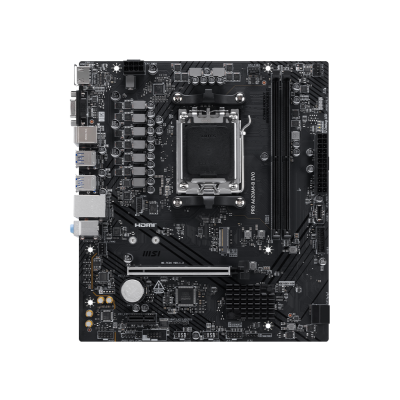

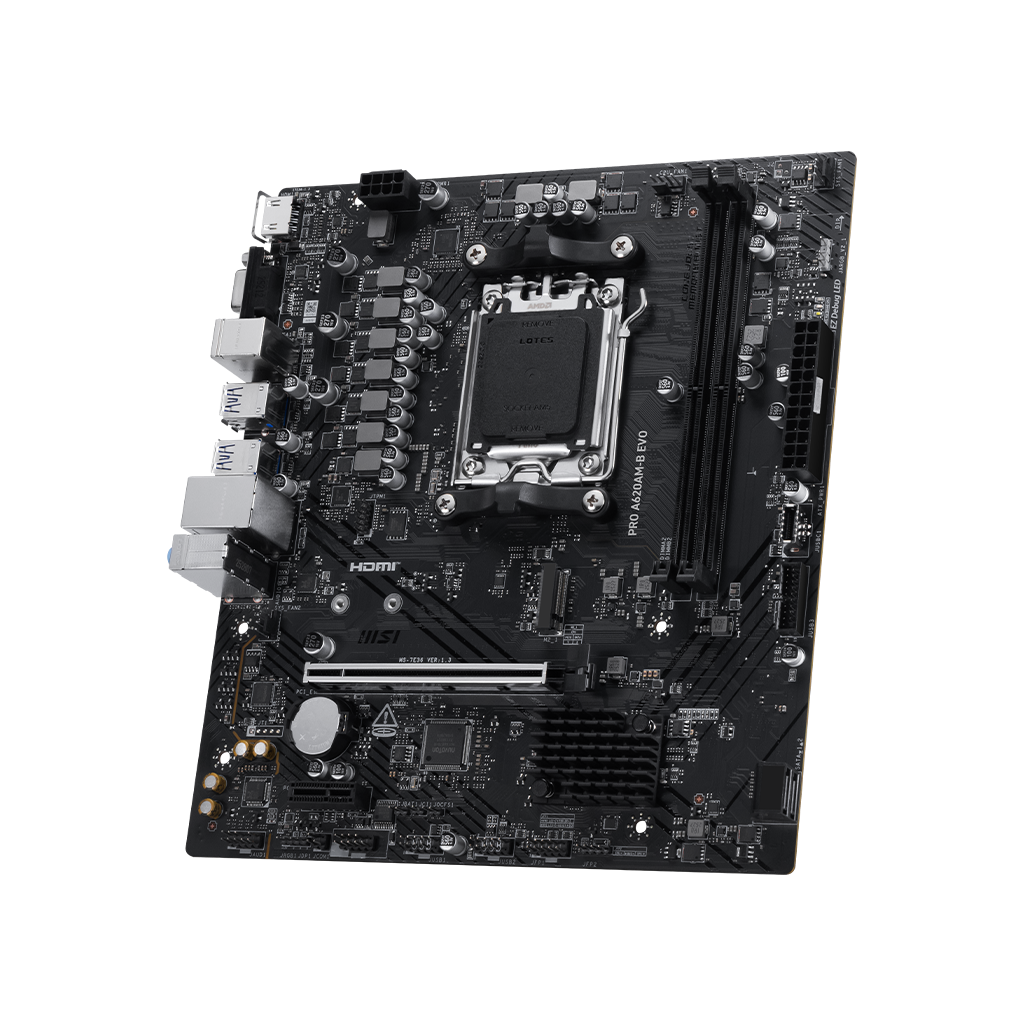

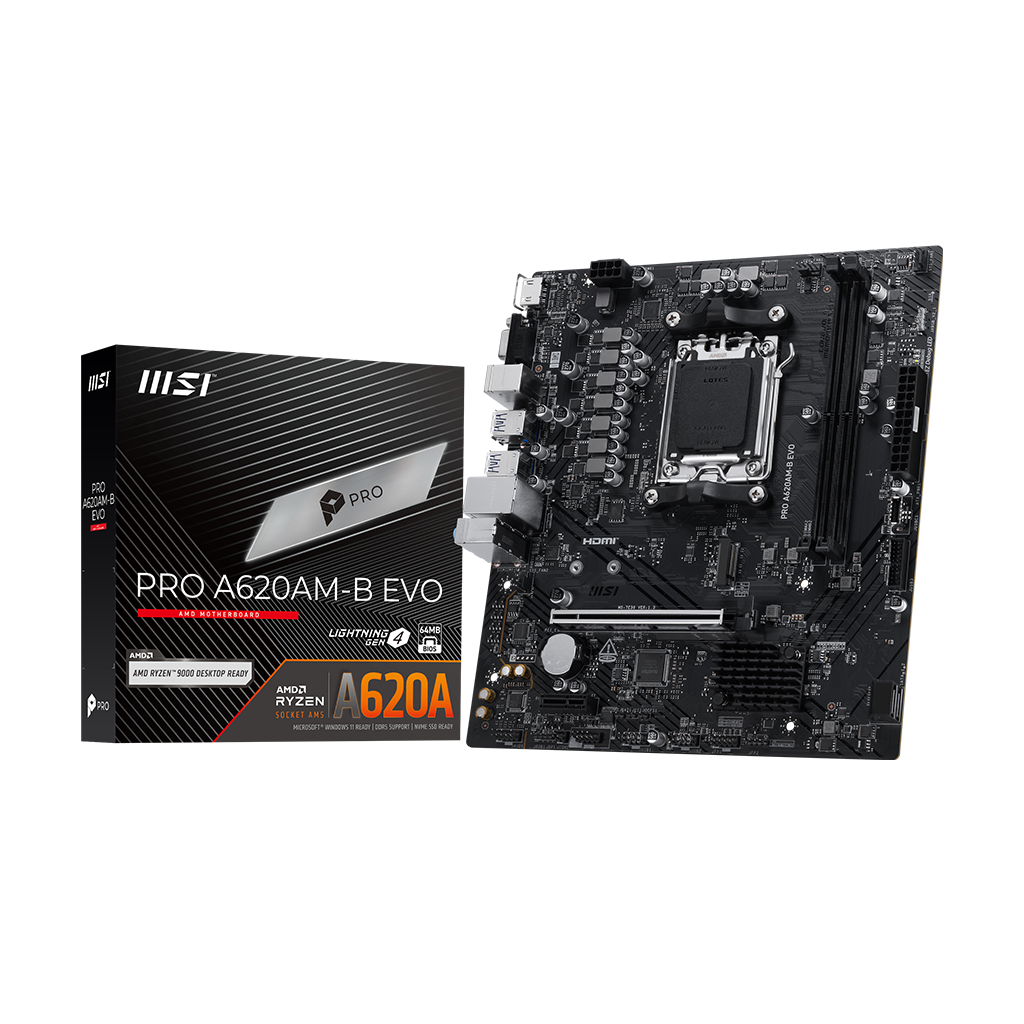

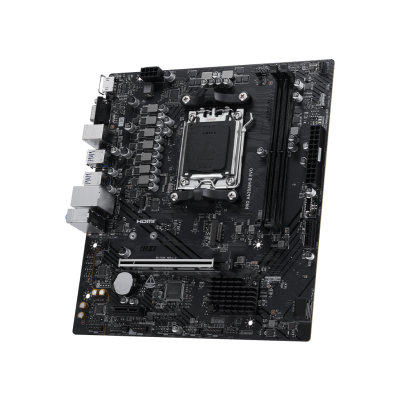

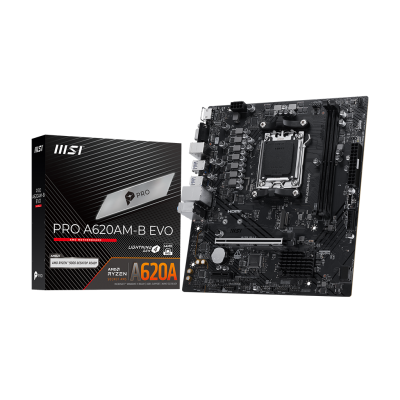

The PRO A620AM-B EVO motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD A620A

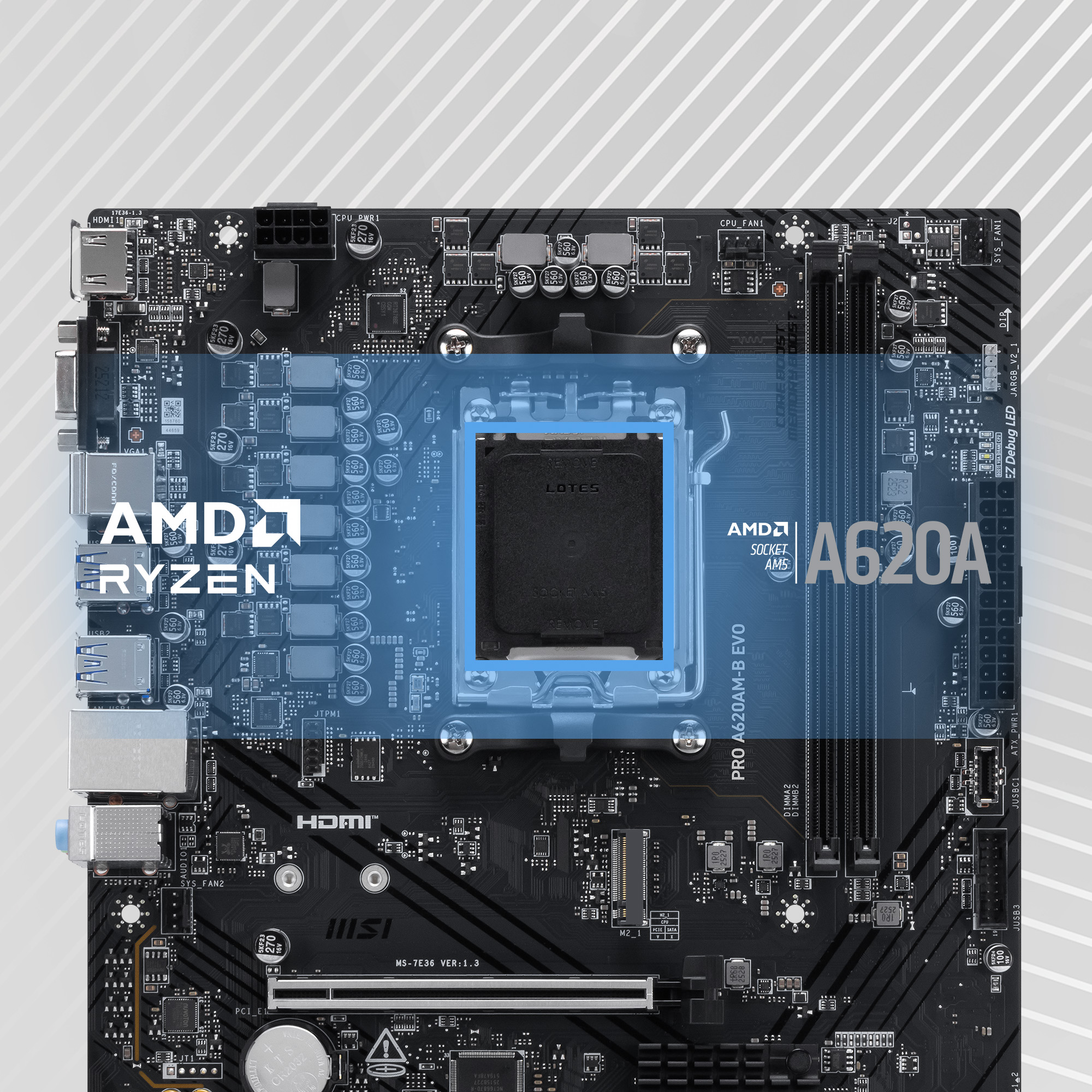

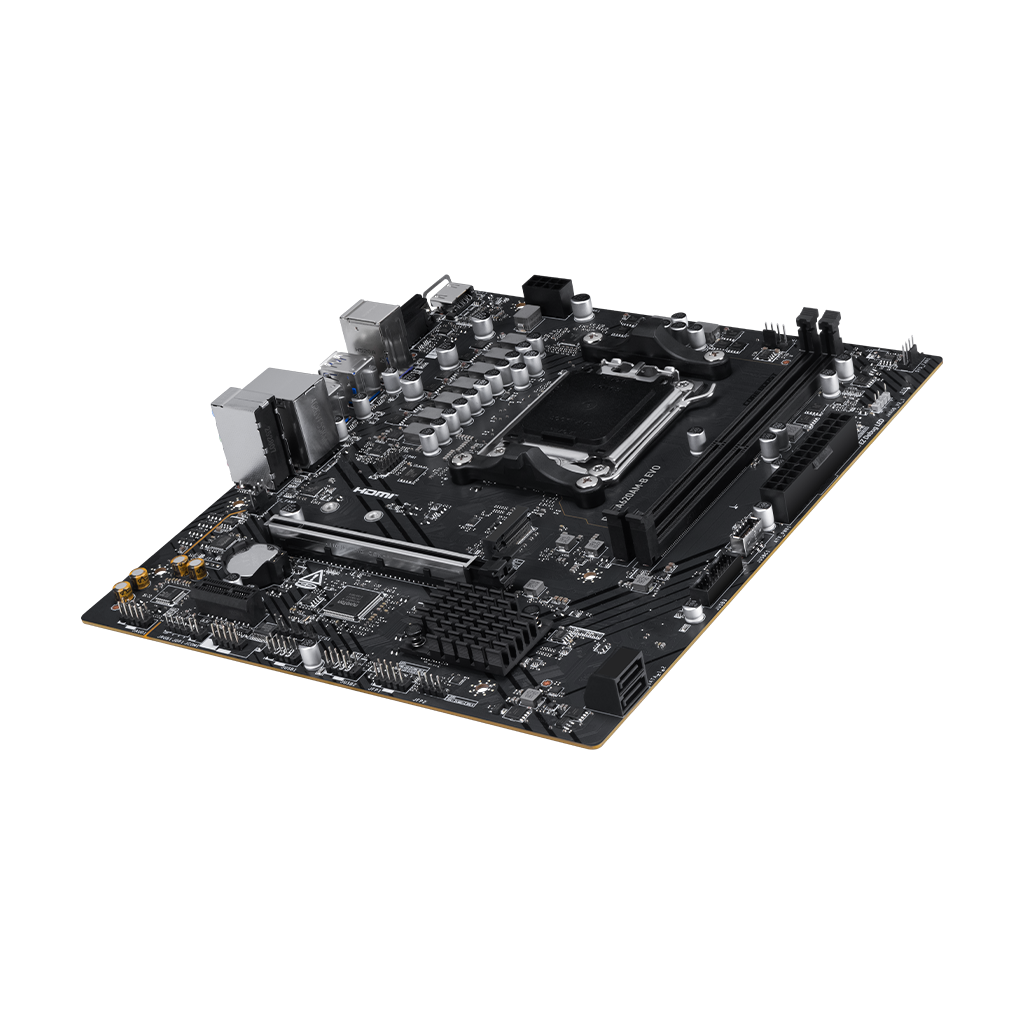

The PRO A620AM-B EVO is a business-oriented mATX motherboard constructed around the AMD A620A chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 4.0, 2.5G LAN, and DDR5 that fulfills business needs.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|---|
| Manufacturer Number | PRO A620AM-B EVO |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD® A620 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | m-ATX |
| Memory | 2 DIMMs, Dual Channel DDR5 - 6800+ MT/s (OC) |
| LAN | Realtek® RTL8125 2.5G LAN |
| Wireless LAN | - |
| Bluetooth | - |
| Audio | 8 -Channel (7.1) HD Audio with Audio Boost |
| MULTI-GPU | - |
|---|---|
| STORAGE | 1 x M.2 Gen4 x4 64Gbps slot 2 x SATA 6Gbps ports |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |

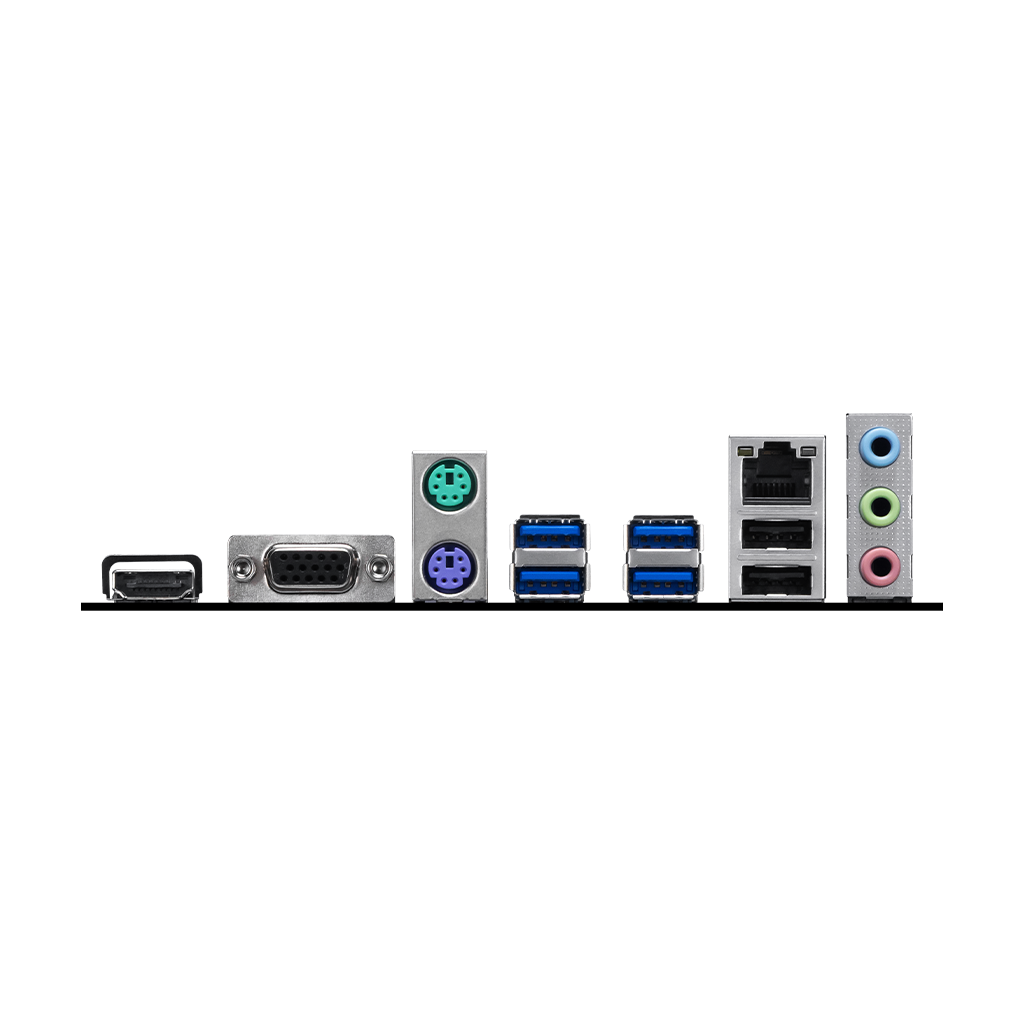

| I/O (Rear) | HDMI™ VGA Keyboard/Mouse USB 5Gbps Type-A LAN port Audio connectors USB 2.0 |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot |
| USB (Front) | 2x USB 5Gbps Type A 1x USB 5Gbps Type C 4 x USB 2.0 |
| USB (Rear) | 4x USB 5Gbps Type A 2 x USB 2.0 |
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Dimensions | 8.58" x 9.60" |
| Manufacturer Warranty | 3 Year |
The PRO A620AM-B EVO is a business-oriented mATX motherboard constructed around the AMD A620A chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 4.0, 2.5G LAN, and DDR5 that fulfills business needs.
The PRO A620AM-B EVO motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD A620A
Chipset Heatsink: Provides passive cooling

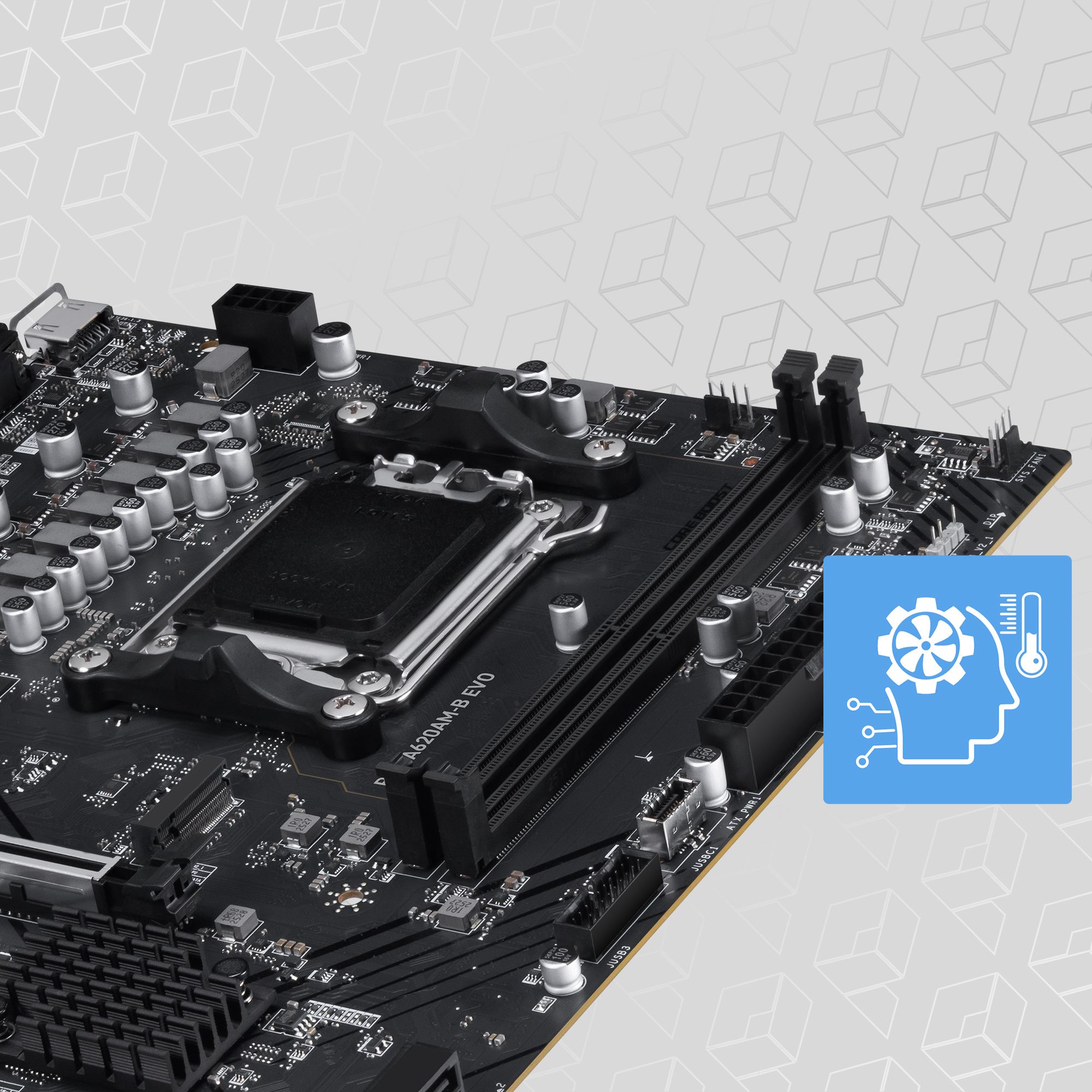

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures

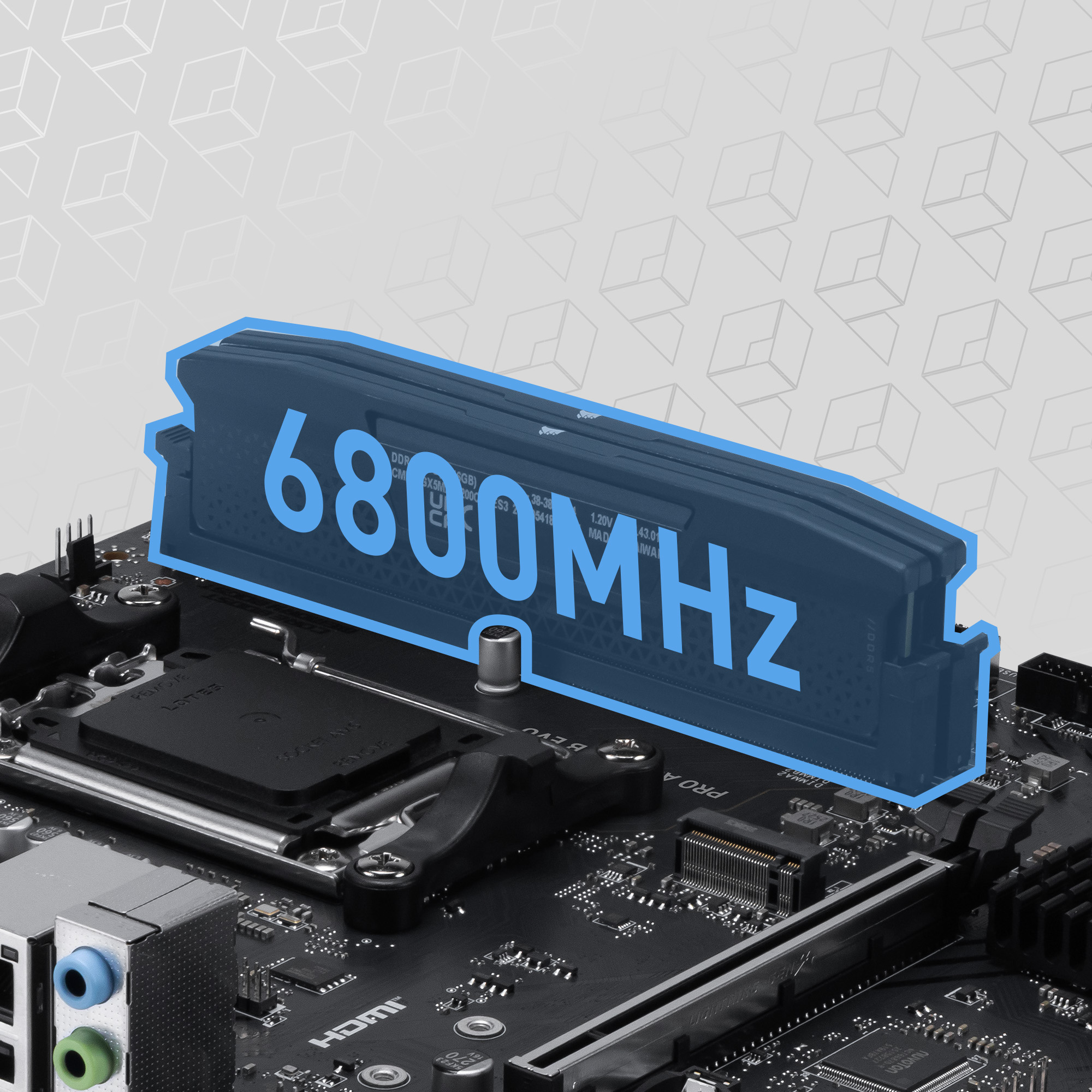

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are checked by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6800+ MT/s, supports AMD EXPO.

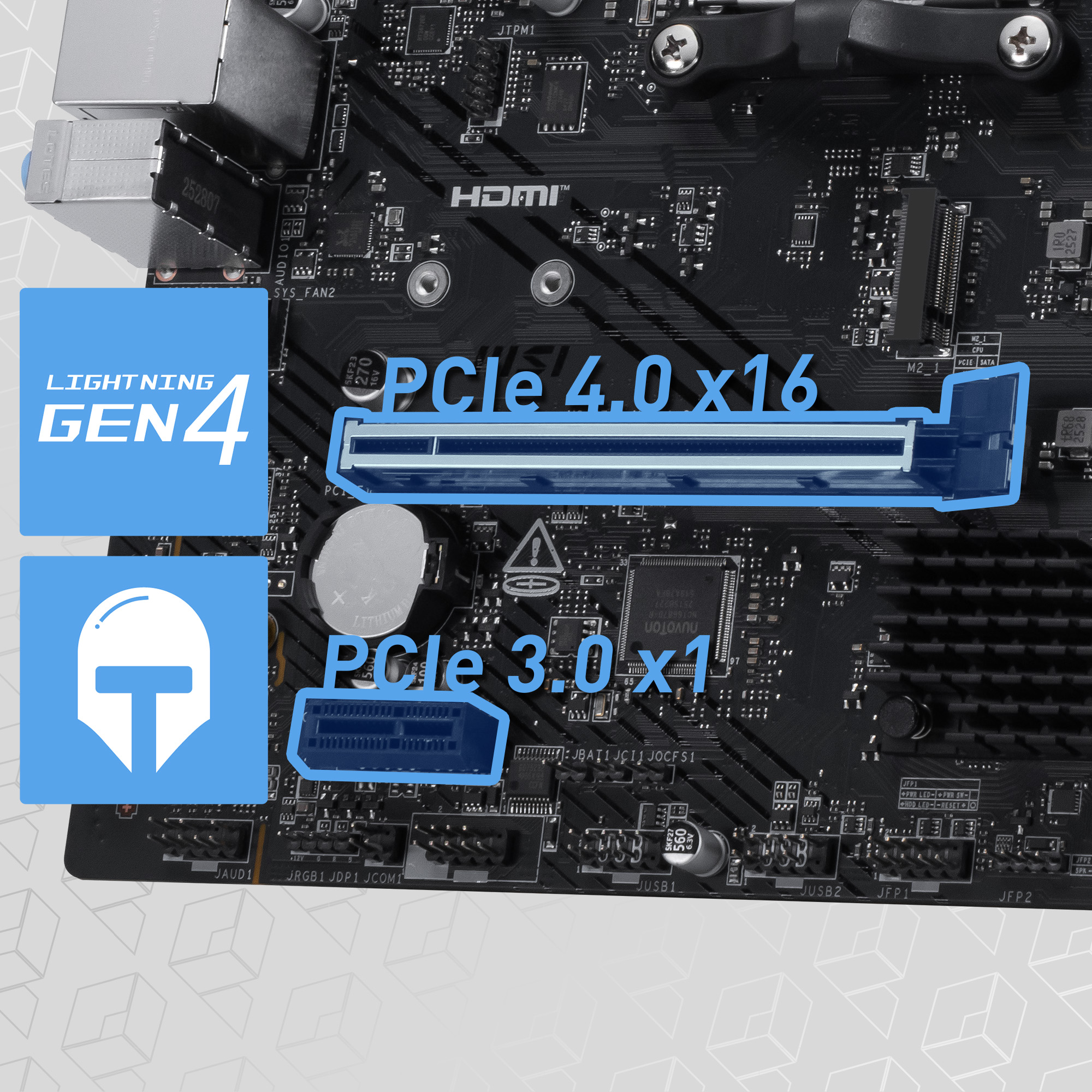

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x1 slot

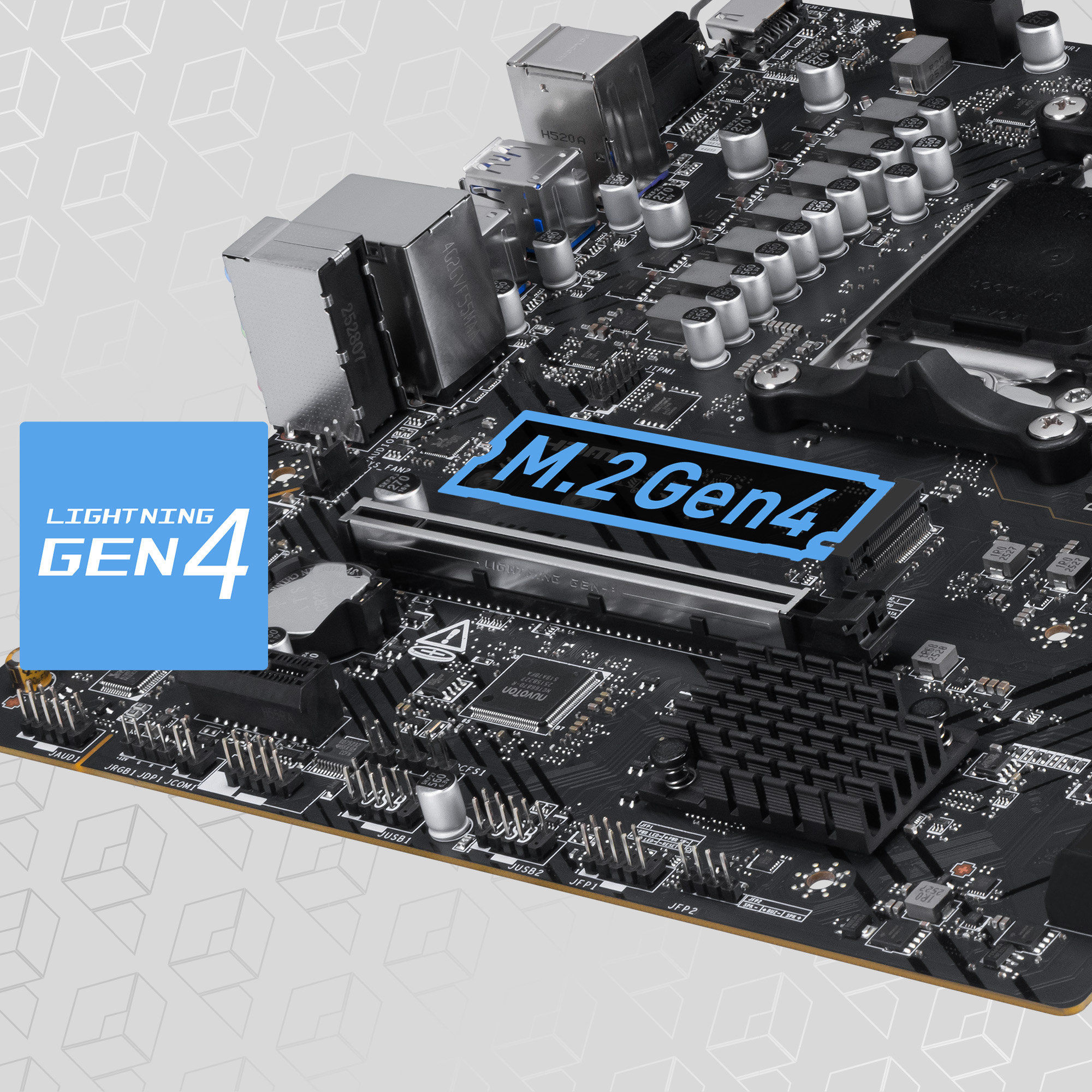

The PRO A620AM-B EVO motherboard features MSI's M.2 slot:
1 x Gen4 x4 64Gbps slot

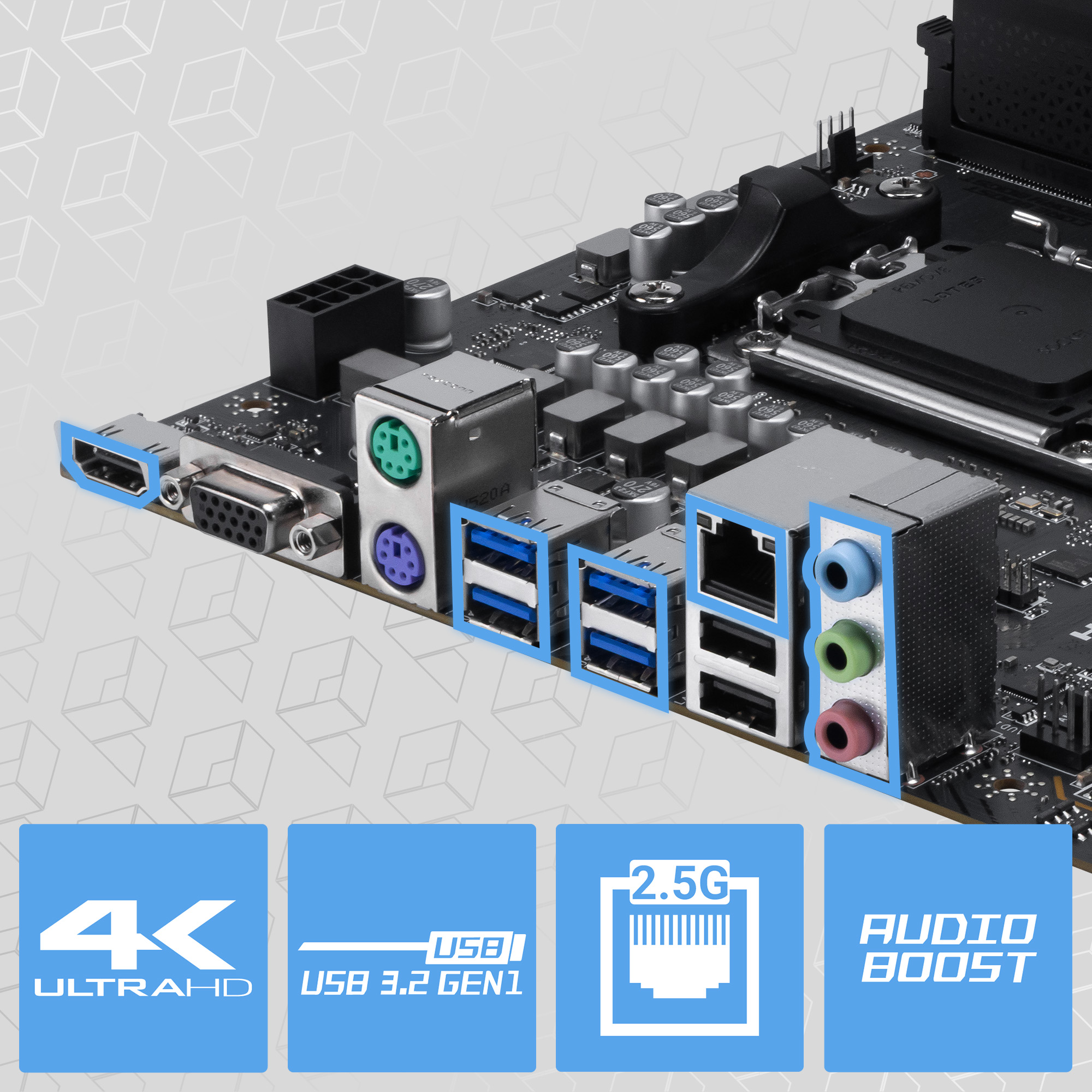

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
USB 5Gbps Type-A: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Outputs: Include HDMI 2.1 (4K/60Hz) and legacy VGA
