The PRO B850M-P WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD B850

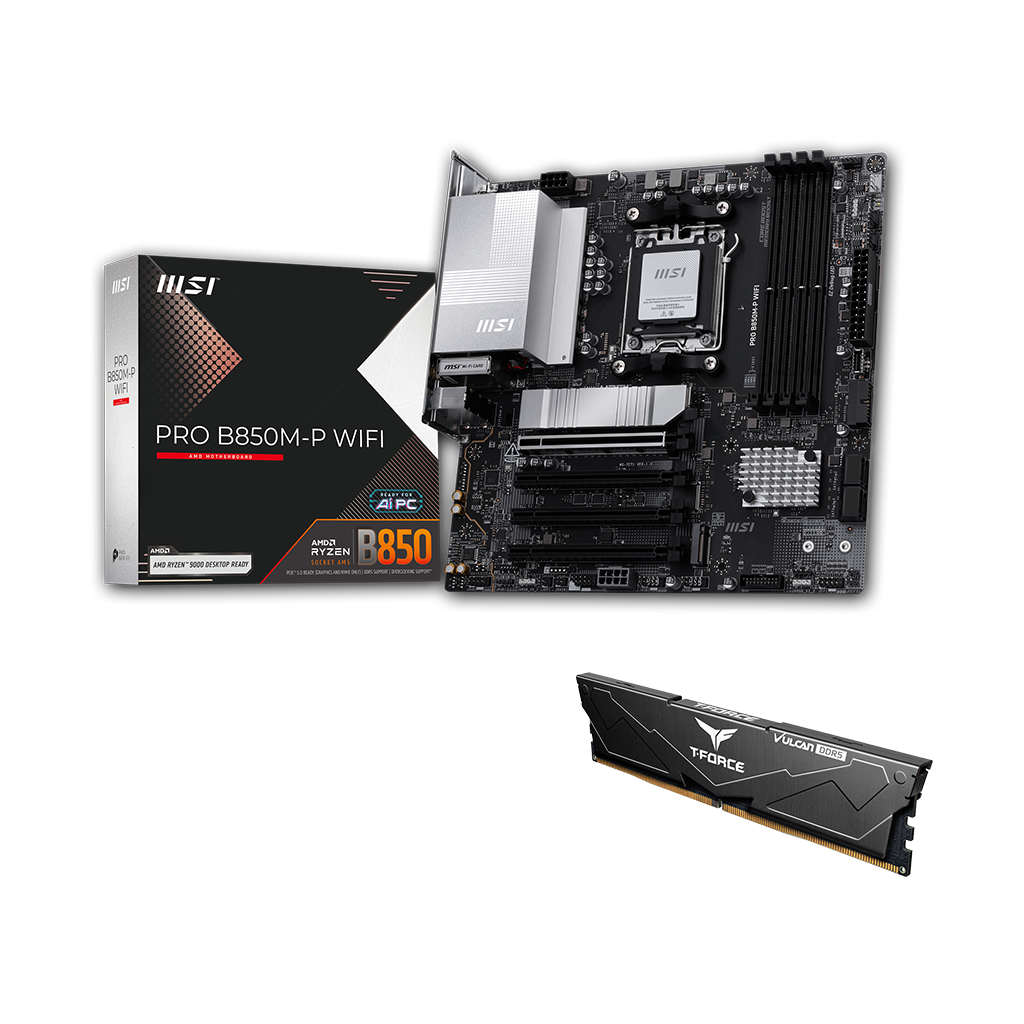

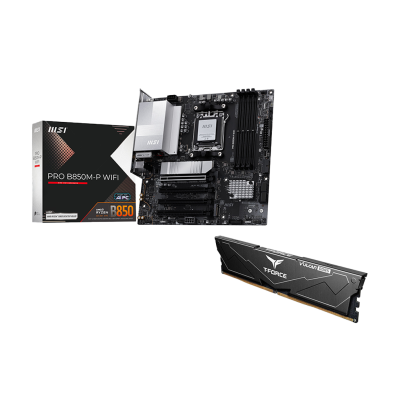

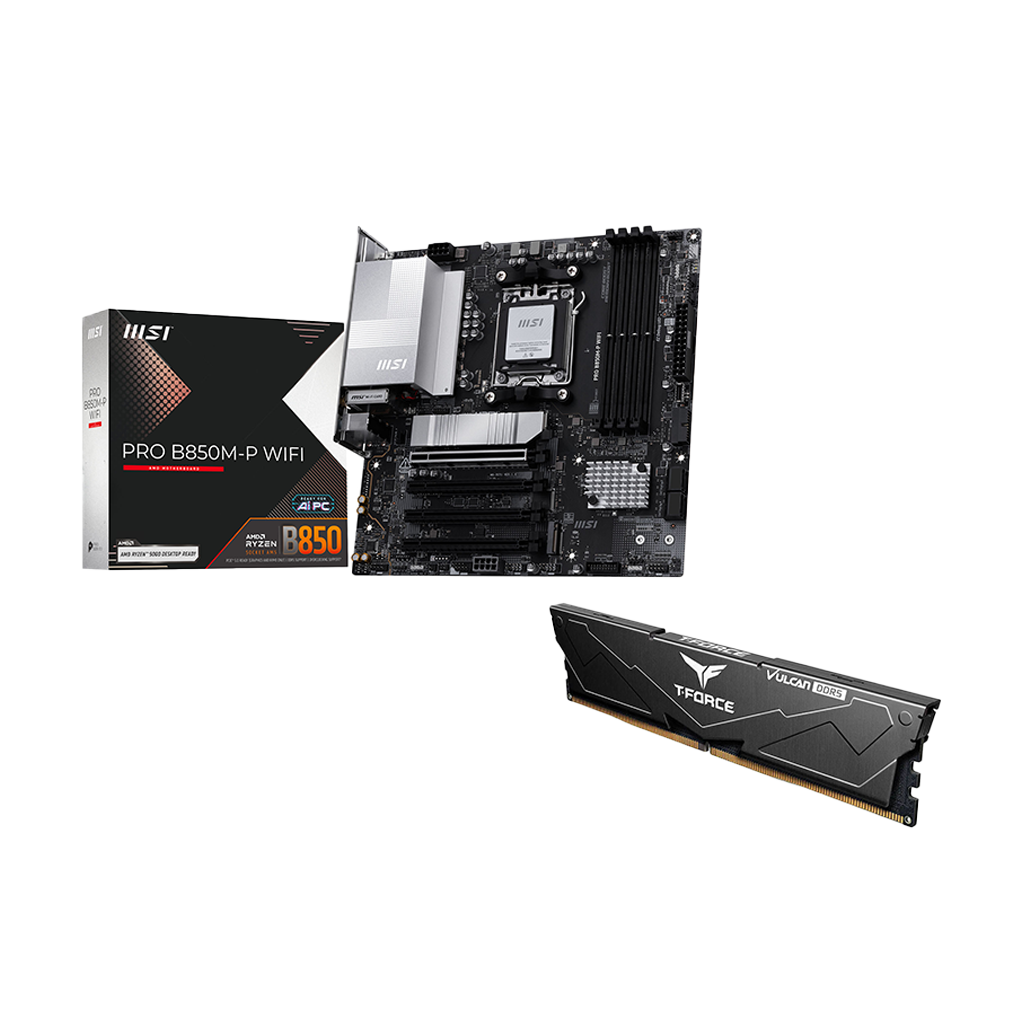

Maximize productivity and performance with the MSI PRO B850M-P WIFI + 16GB DDR5 bundle. Designed for professionals and DIY builders who demand efficiency, this kit provides a seamless entry into the AM5 ecosystem.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Based on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | PRO B850M-P WIFI |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B850 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | mATX Form Factor |
| Memory | 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC) |
| LAN | Realtek® 8126 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution, Bluetooth 5.4 |
| Bluetooth | Supports Bluetooth® 5.4, MLO, 4KQAM |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| MULTI-GPU | - |
|---|---|
| STORAGE | 1 x M.2 Gen5 x4 128Gbps slot 1 x M.2 Gen4 x4 64Gbps slot 1 x M.2 Gen4 x2 32Gbps slot 4 x SATA 6Gbps ports |
| Onboard Graphics | 1 x HDMI™ 1x DisplayPort |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices |
| I/O (Rear) | Clear CMOS Button DisplayPort USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 5Gbps Type-A |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 3 x PCIe 3.0 x1 slots |
| USB (Front) | 4x USB 5Gbps Type A 1x USB 10Gbps Type C 4x USB 2.0 |
| USB (Rear) | 1x USB 10Gbps Type A 2x USB 5Gbps Type A 1x USB 10Gbps Type C 4x USB 2.0 |
| TYPE-C PORT | 1 x USB 10Gbps Type C (Front) 1 x USB 10Gbps Type C (Rear) |
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Dimensions | 9.60" x 9.60" |
| Manufacturer Warranty | 3 Year |
The PRO B850M-P WIFI is a creation-oriented mATX motherboard with a Direct 7 Phase VRM, constructed around the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
The PRO B850M-P WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD B850
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B850M-P WIFI is able to sustain heavy CPU power loads to support system-demanding settings:
Digital PWM IC
7 Phase direct CPU power (P-PAK)
2 Phase SOC Power
1 Phase MISC Power
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor* and EZ PCIe Clip II)
3 x PCIe 3.0 x1 slots
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The PRO B850M-P WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
1 x Gen4 x4 64Gbps slot
1 x Gen4 x2 32Gbps slot
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network experience.
Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
