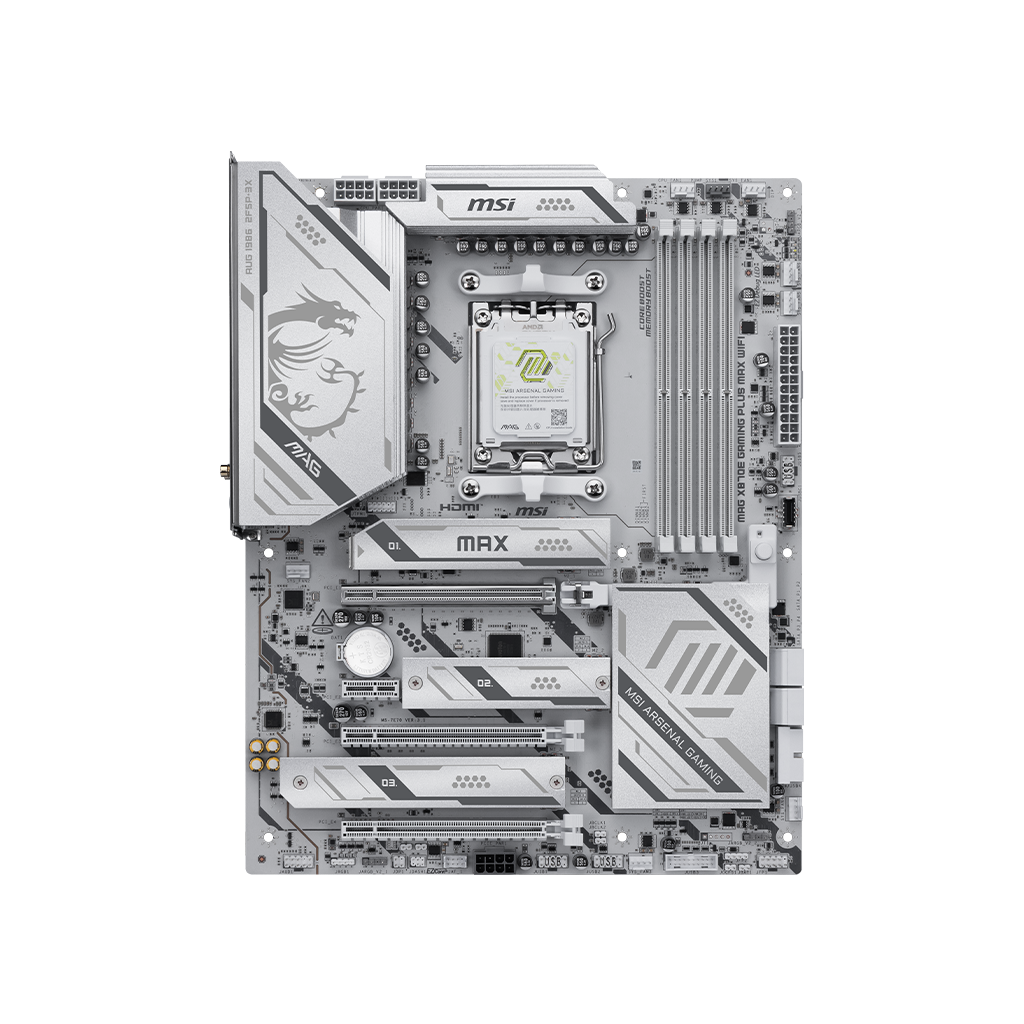

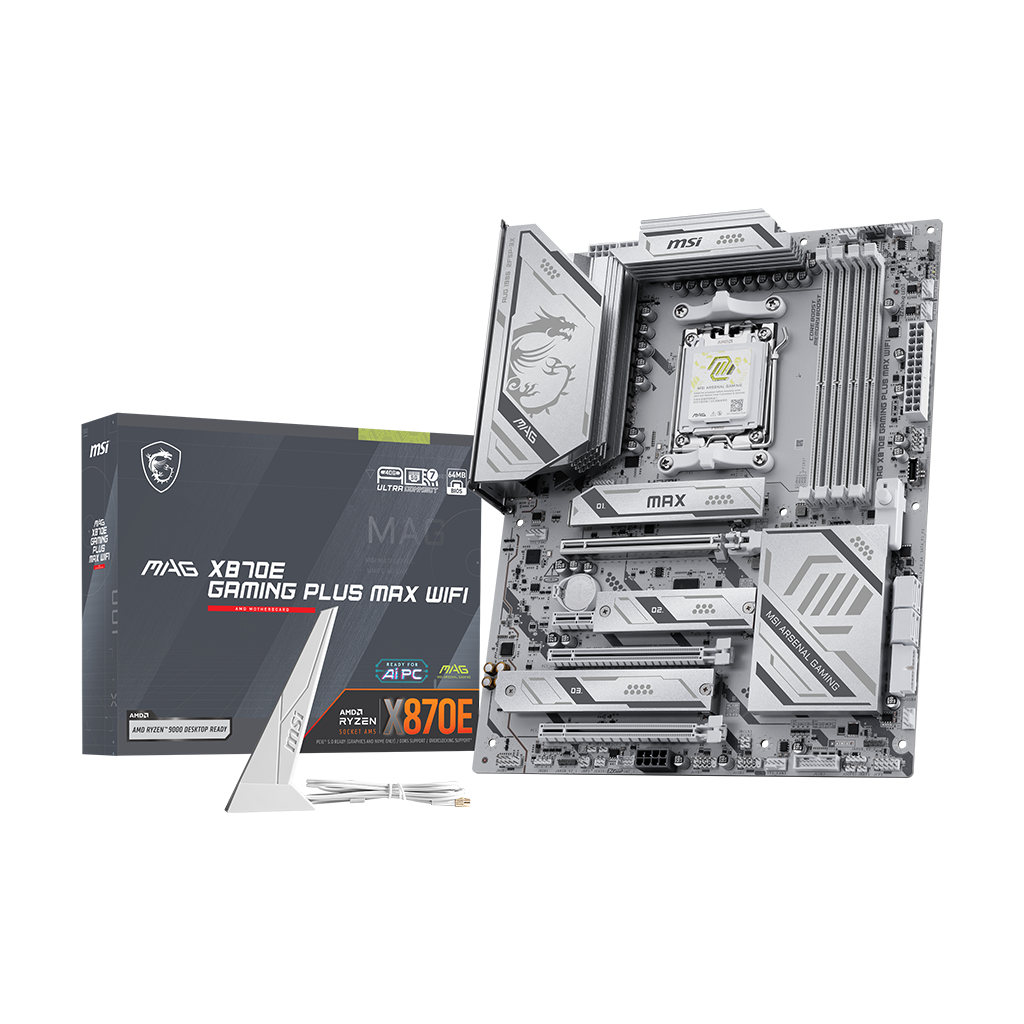

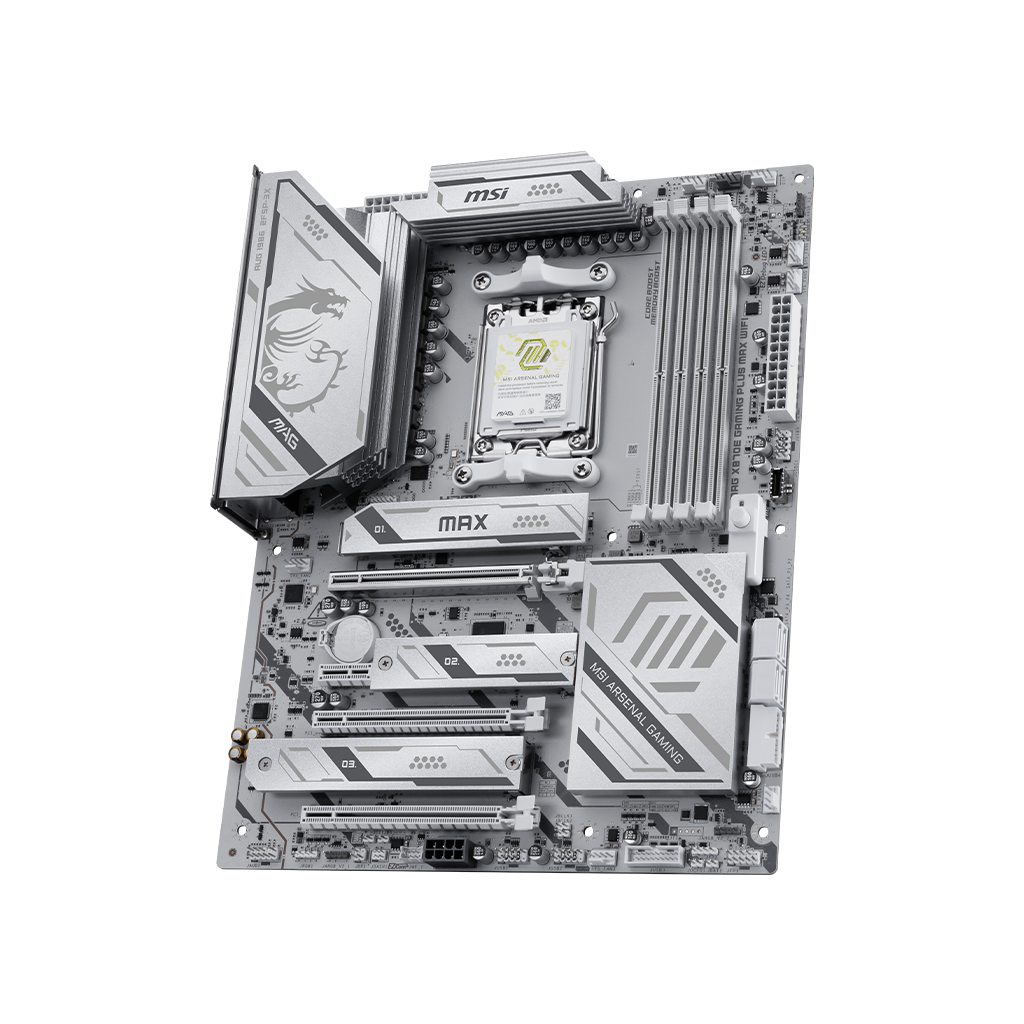

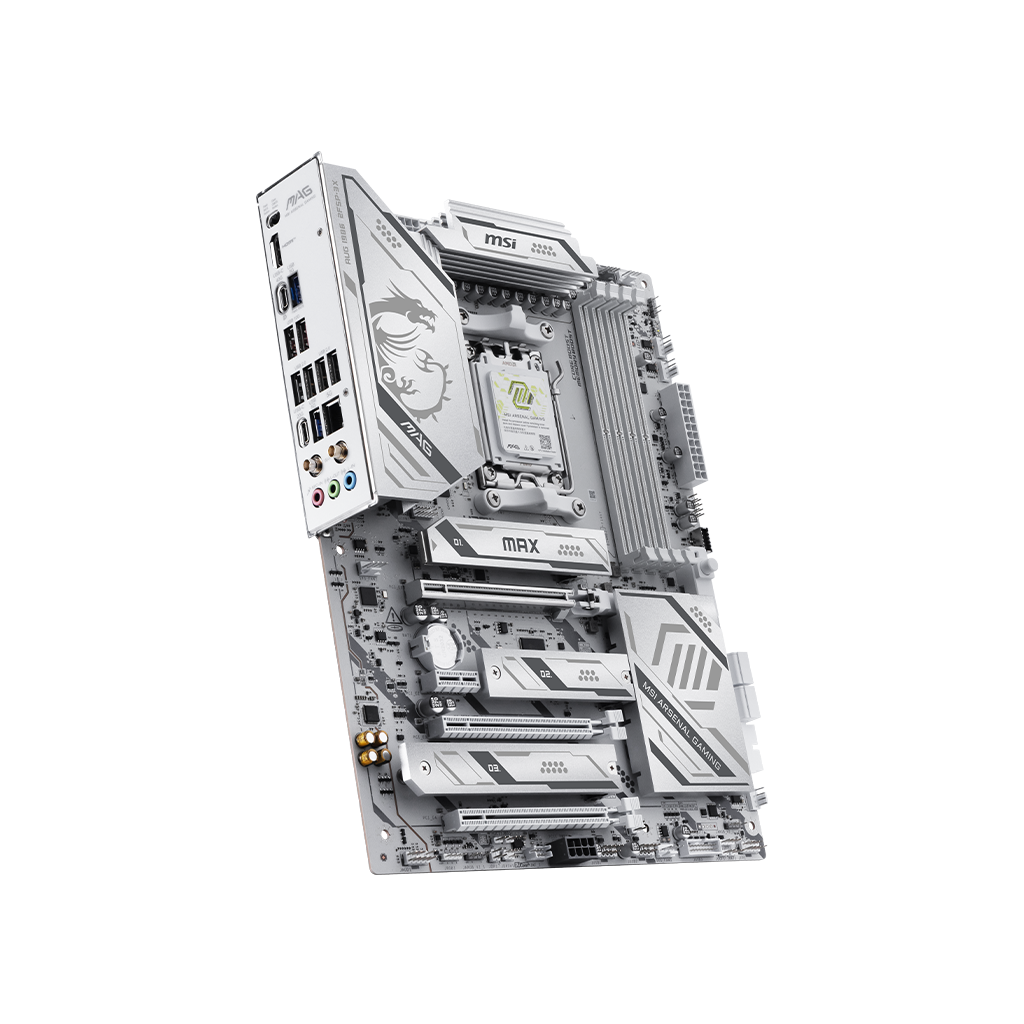

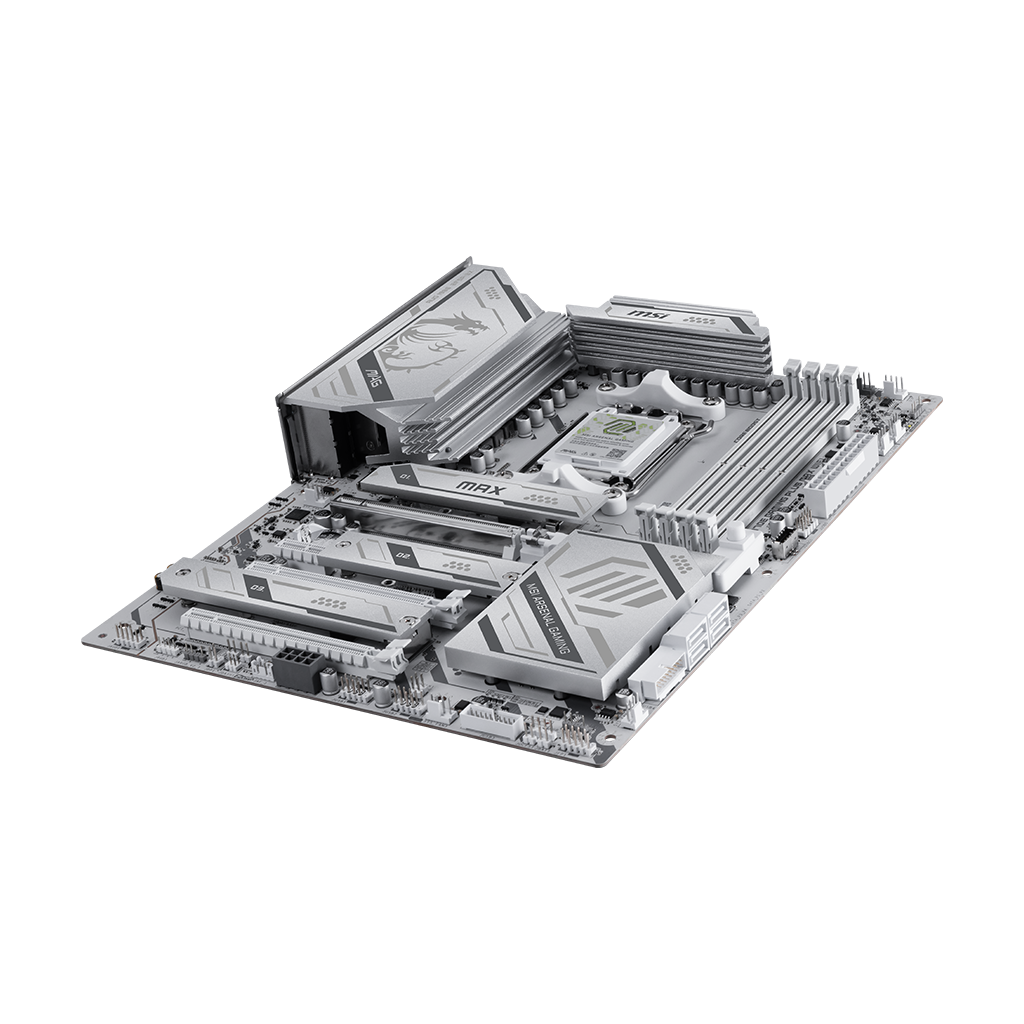

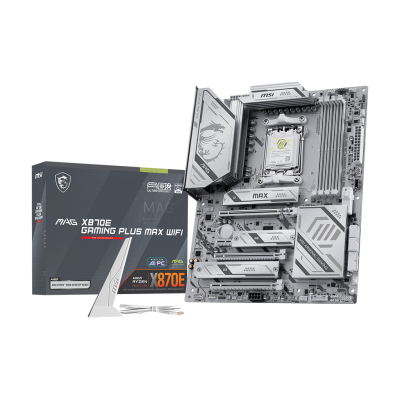

The MAG X870E GAMING PLUS MAX WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5

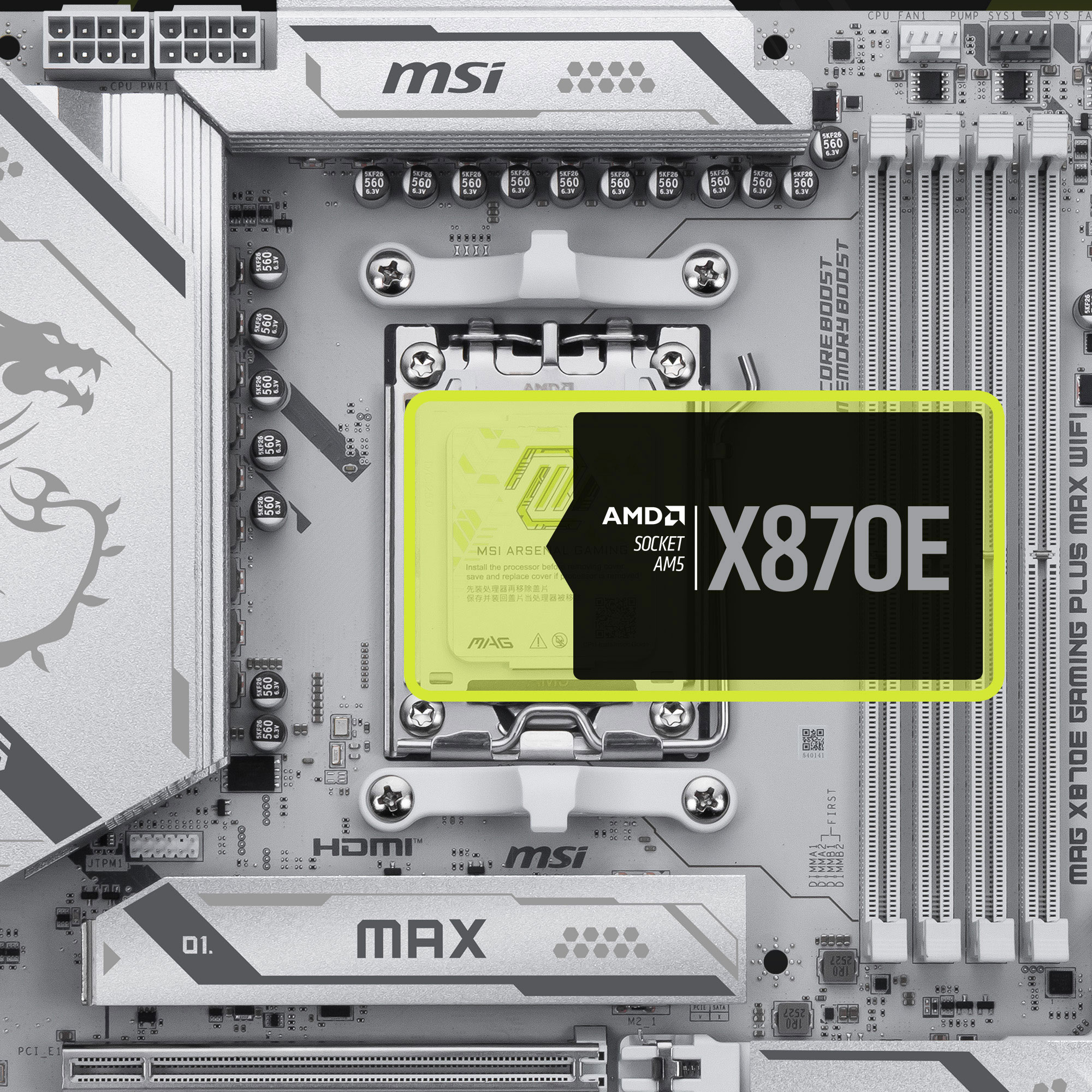

Chipset: AMD X870E
MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | MAG X870E GAMING PLUS MAX WIFI |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| CPU Socket | Socket AM5 |
| Form Factor | ATX |
| Memory | 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC) |
| LAN | Realtek® 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| STORAGE | 1x M.2 Gen5 x4 128Gbps slot 2x M.2 Gen4 x4 64Gbps slots 4x SATA 6Gbps ports |
|---|---|
| Onboard Graphics | 1x HDMI™
|
| RAID | |

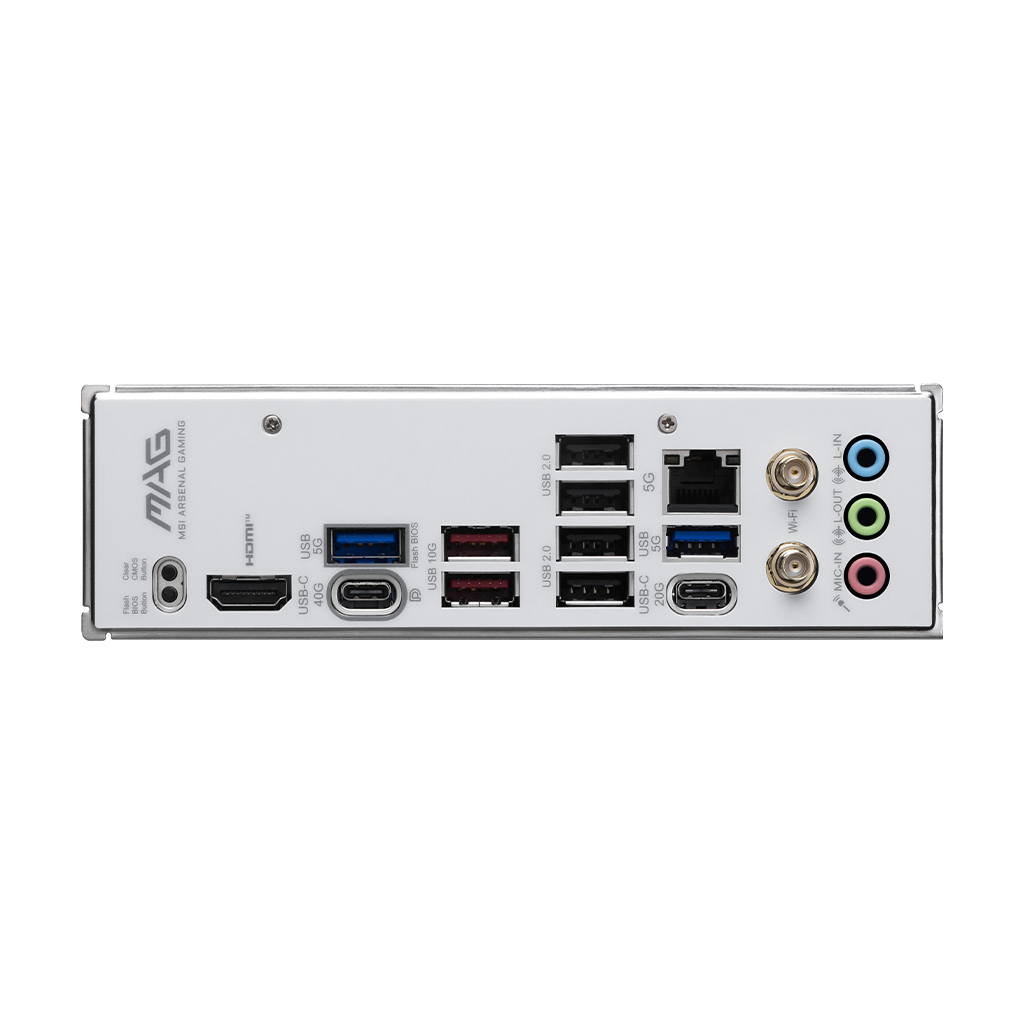

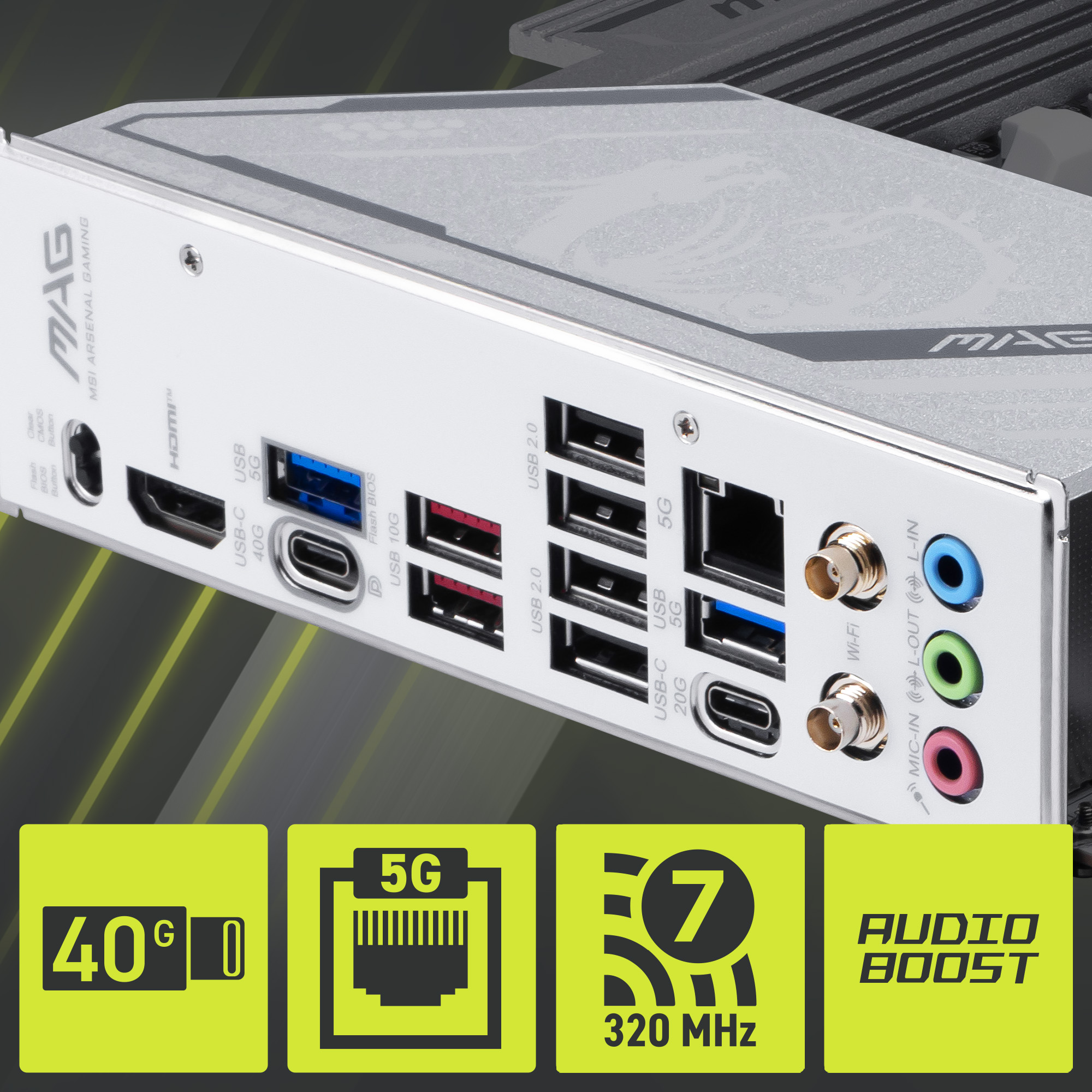

| I/O (Rear) | Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 2x PCIe 3.0 x1 slots |
| USB (Front) | 6x USB 2.0 4x USB 5Gbps Type A 1x USB 10Gbps Type C |
| USB (Rear) | 4x USB 2.0 2x USB 5Gbps Type A 2x USB 10Gbps Type A 1x USB 20Gbps Type C 1x USB 40Gbps Type C |
| TYPE-C PORT | 1x USB 20Gbps Type C 1x USB 40Gbps Type C 1x USB 10Gbps Type C |
| Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 6x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x BCLK Frequency Jumpers(JBCLK) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Dimensions | 9.60" x 12.00" |
| Manufacturer Warranty | 3 Year |
The MAG X870E GAMING PLUS MAX WIFI is a gaming oriented ATX motherboard that is constructed with the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 and DDR5 memory that balances both value and hardware.
The MAG X870E GAMING PLUS MAX WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X870E
With exclusive Core Boost technology and EZ OC Tuning functions, the MAG X870E GAMING PLUS MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
14 Phase Duet Rail Power System (60A / SPS)
2 Phase SOC Power
1 Phase MISC Power

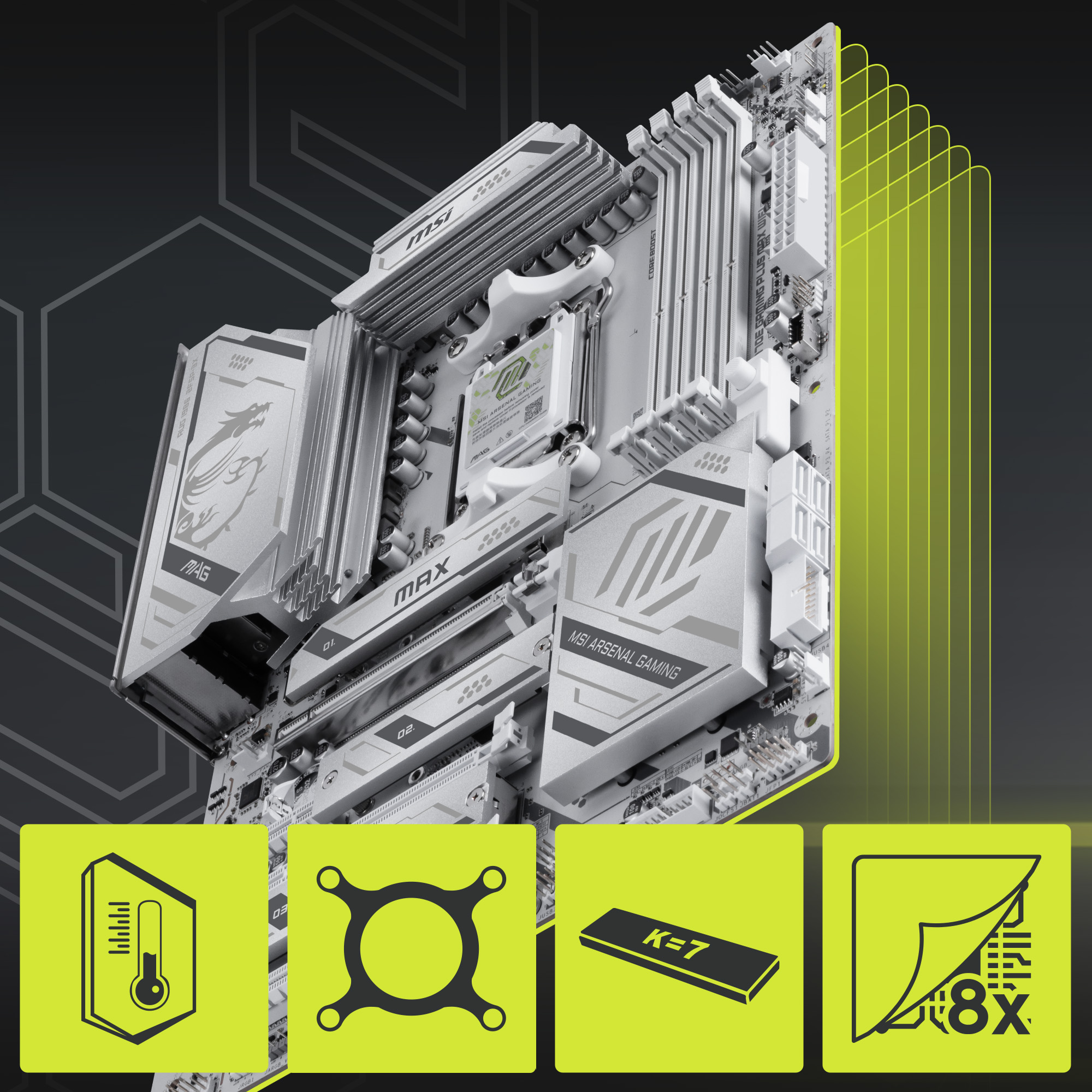

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency up to 8200+ MT/s, supports AMD EXPO.

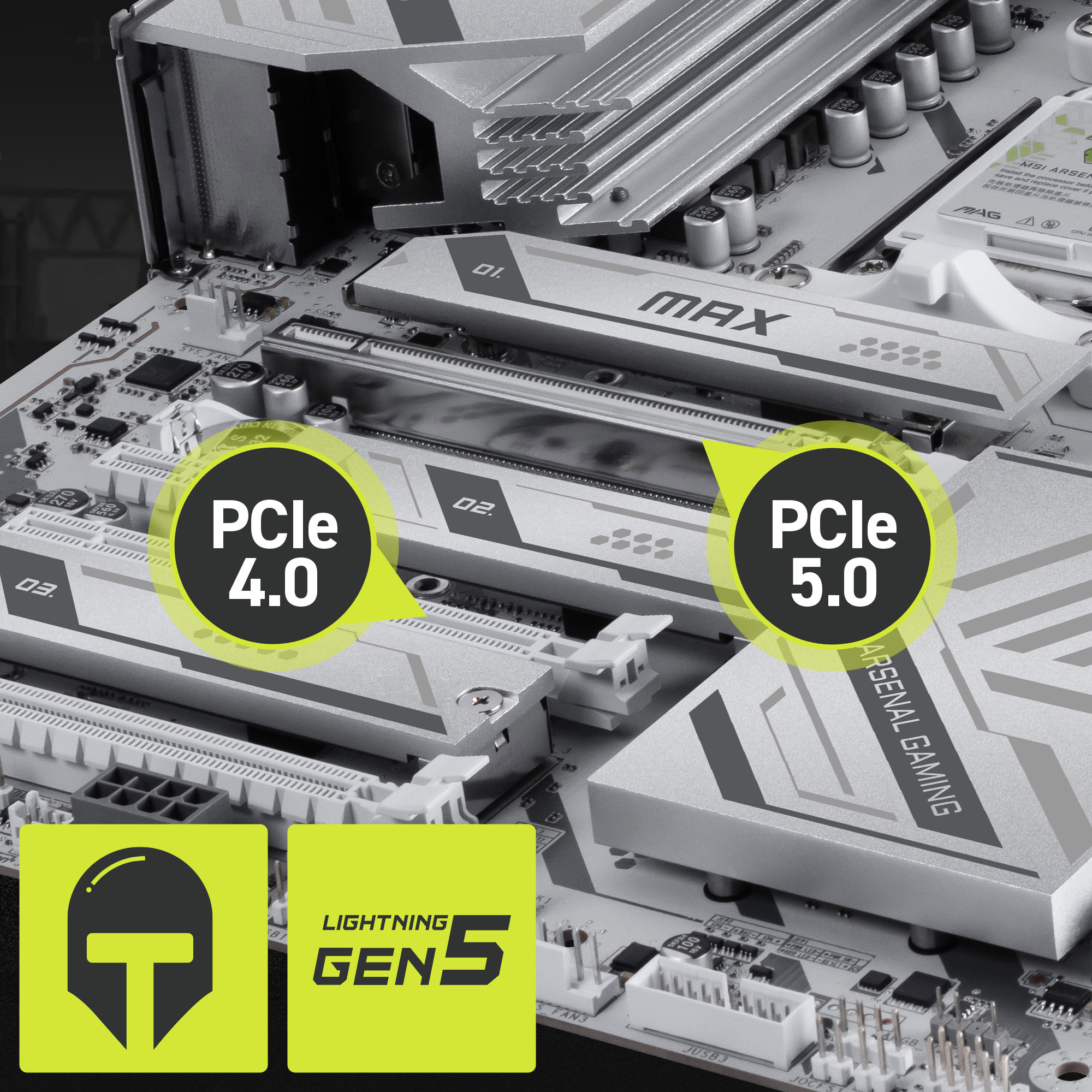

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor II* and EZ PCIe Release)
1 x PCIe 4.0/3.0 x4 slot
1 x PCIe 3.0 x1 slot
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

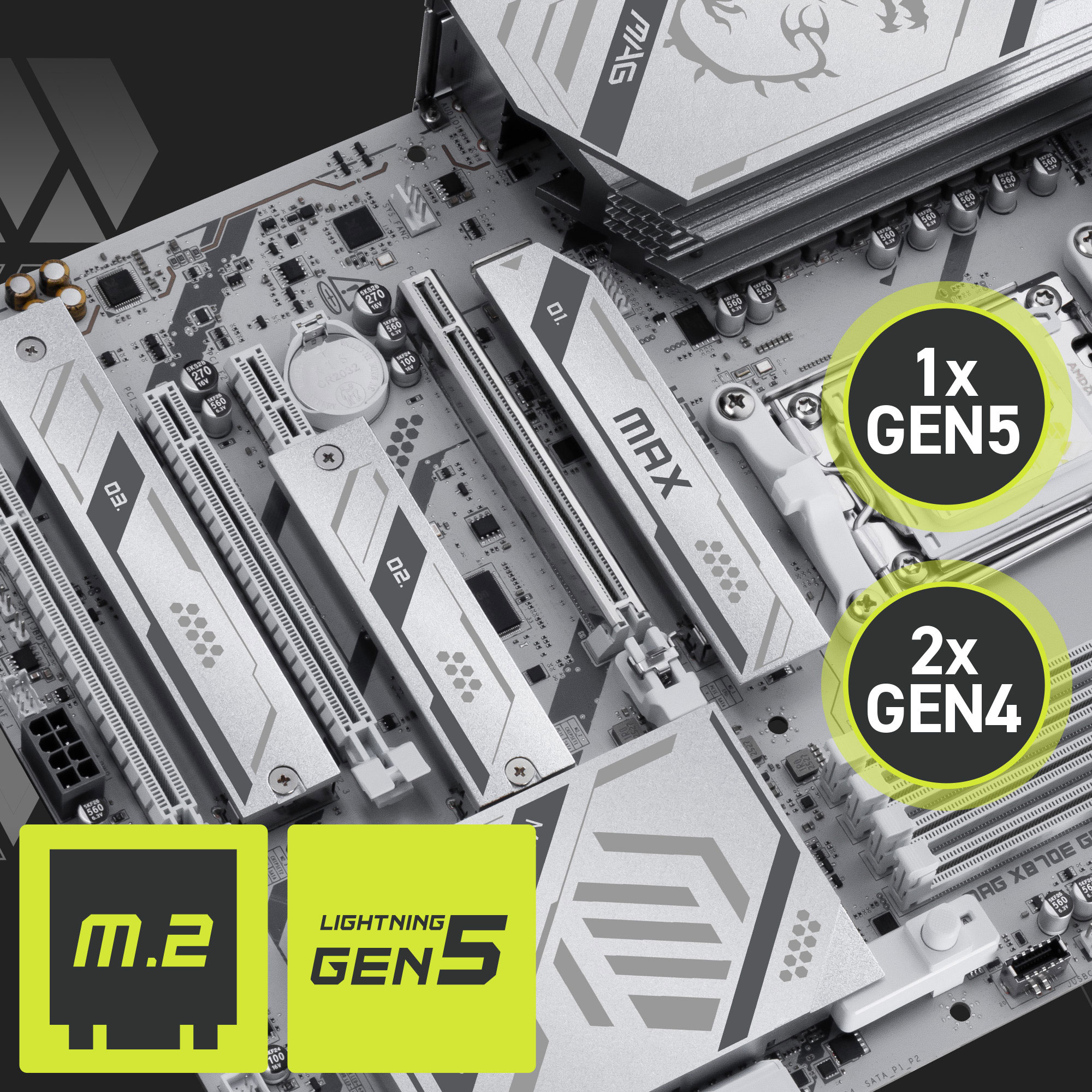

The MAG X870E GAMING PLUS MAX WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
2 x Gen4 x4 64Gbps slots
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Wi-Fi 7: Features the latest full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/120Hz display support*.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
