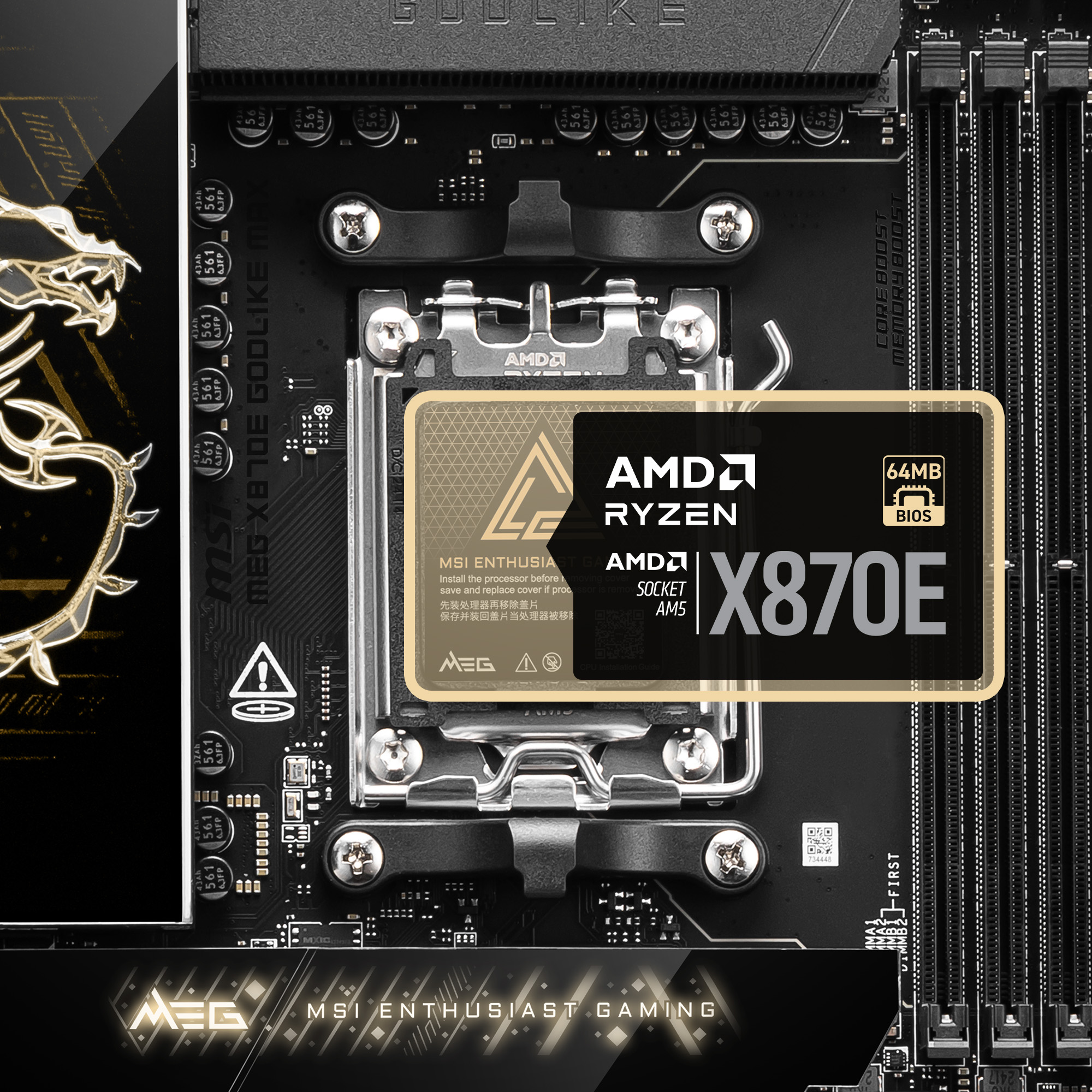

The MEG X870E GODLIKE MAX motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors with a larger 64MB BIOS ROM capacity for ultimate compatibility.
- Form Factor: E-ATX
- Socket Type: AM5
- Chipset: AMD X870E

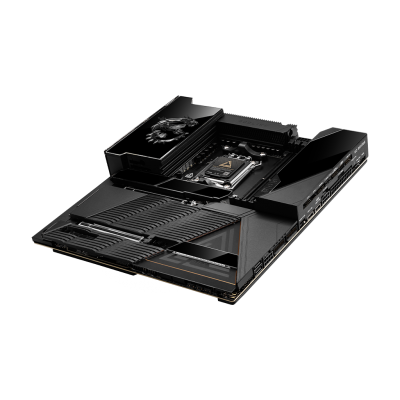

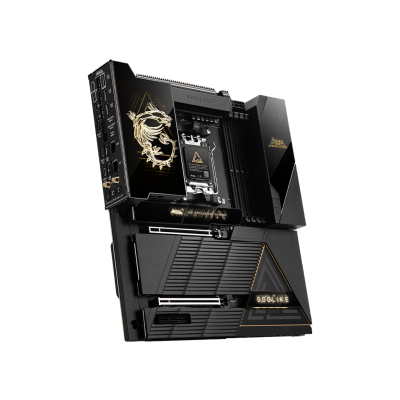

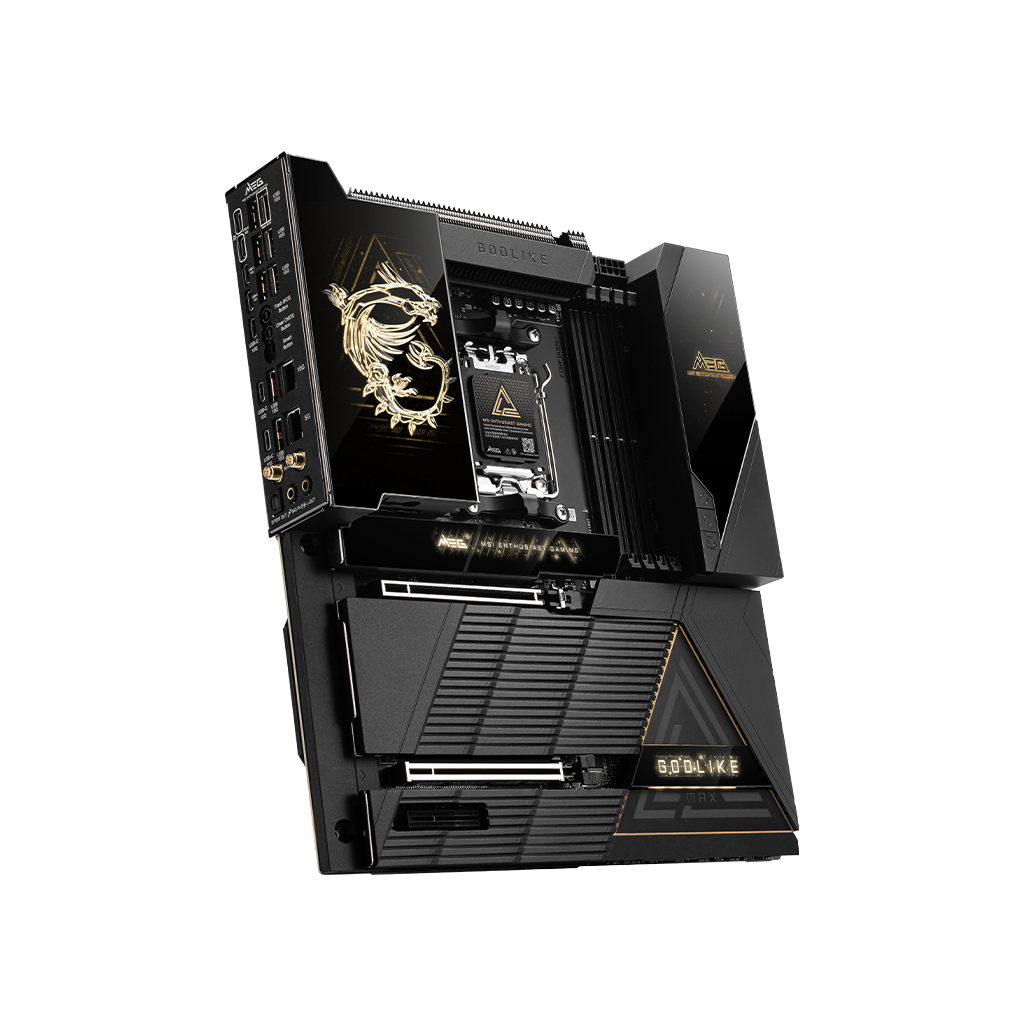

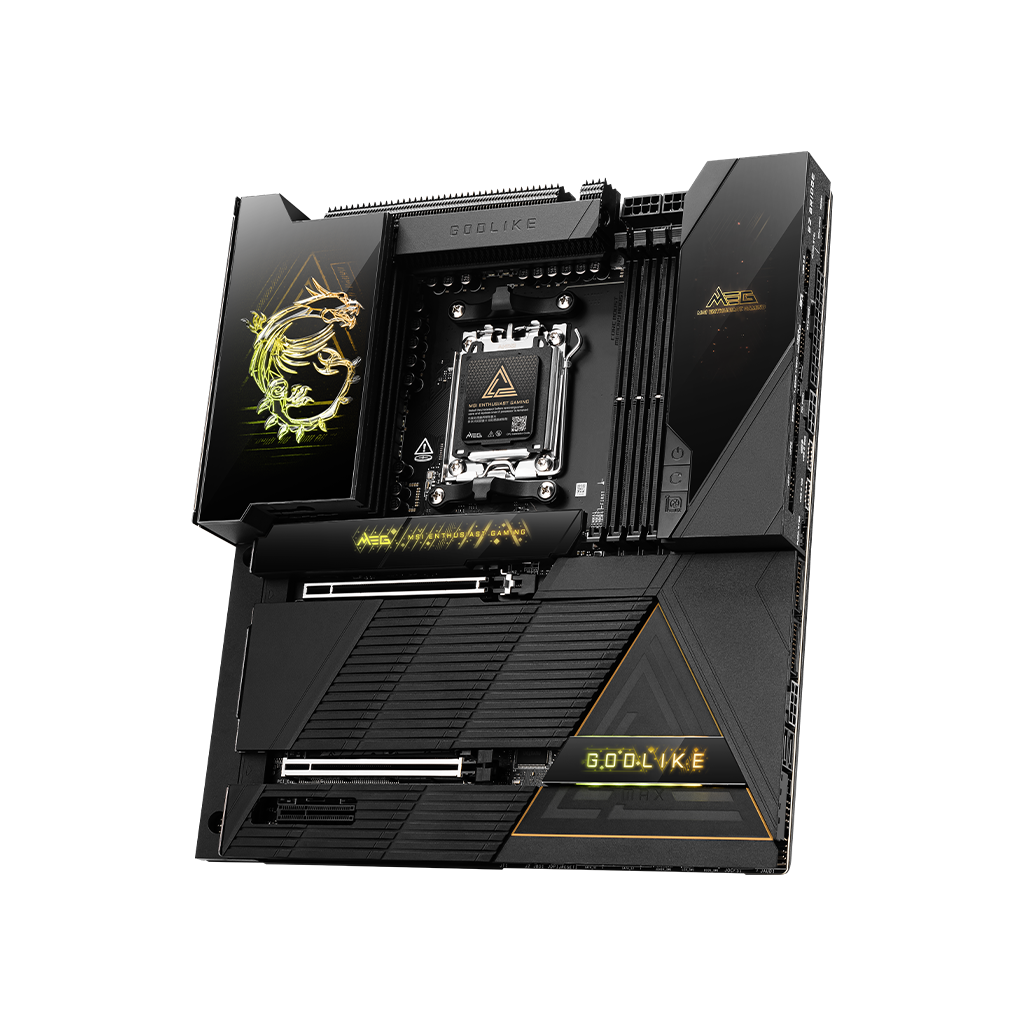

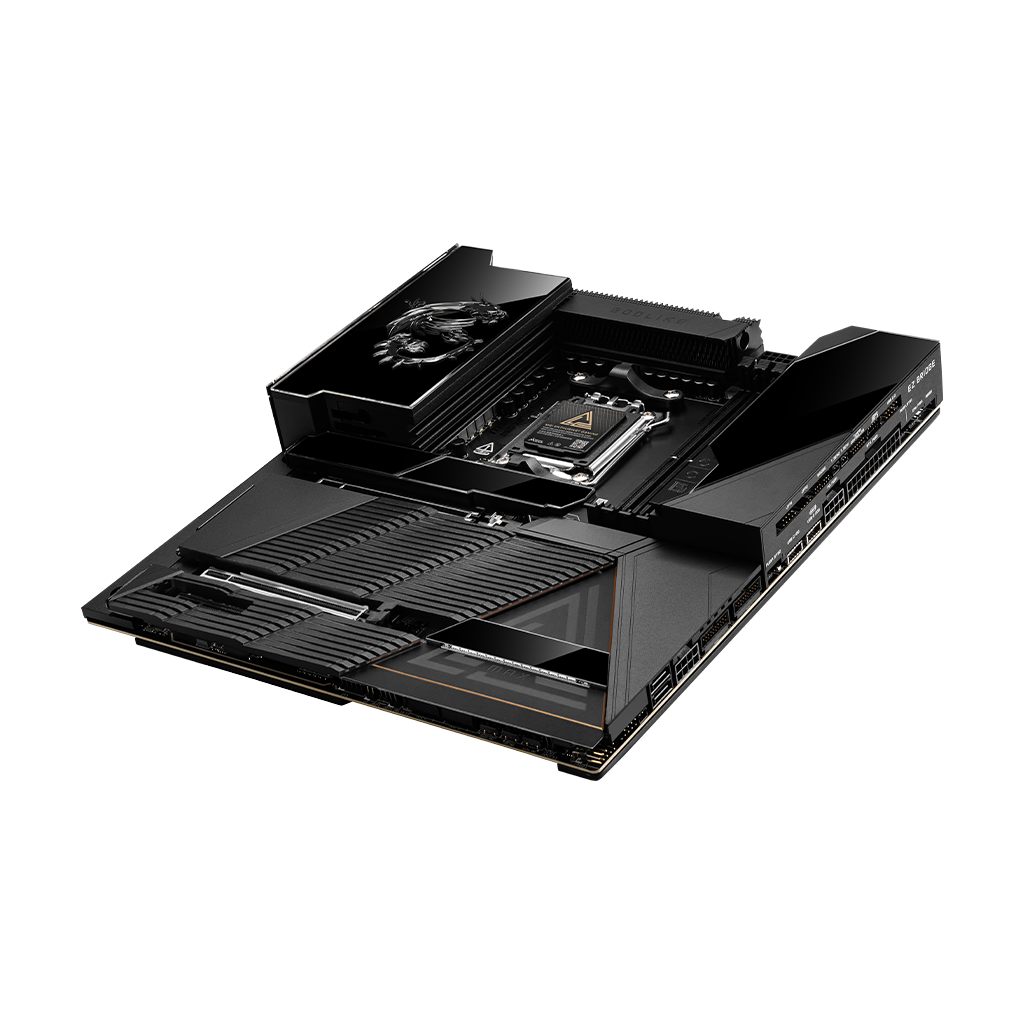

Experience the pinnacle of innovation with the MEG X870E GODLIKE MAX, This E-ATX motherboard features a dark black heatsink with embedded crystal-cut tempered glass, a stereoscopic dragon and the groundbreaking Dynamic Dashboard III. Constructed around the AMD X870E chipset which supports Ryzen 9000/8000/7000 series processors with 64MB BIOS ROM, featuring 24 phases CPU power, PCIe 5.0, 10G + 5G LAN, Wi-Fi 7, premium Frozr and EZ DIY design, setting a new standard for AMD X870E motherboards.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Based on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | MEG X870E GODLIKE MAX |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X870E |
| CPU Socket | Socket AM5 |
| Form Factor | E-ATX |
| Memory | 4 DIMMs, Dual Channel DDR5 - 9200+MT/s (OC) |
| LAN | 1 x Marvell® AQC 10Gbps LAN 1 x Realtek® 5Gbps LAN |
| Wireless LAN | Wi-Fi 7 Solution |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD |
| STORAGE | 2 x M.2 Gen5 x4 128Gbps slots 2 x M.2 Gen5 x4 128Gbps slots via M.2 card 2 x M.2 Gen4 x4 64Gbps slots 1 x M.2 Gen4 x2 32Gbps slot 4 x SATA 6Gbps ports |
|---|---|
| Onboard Graphics | 2x Type-C DisplayPort |
| RAID | |

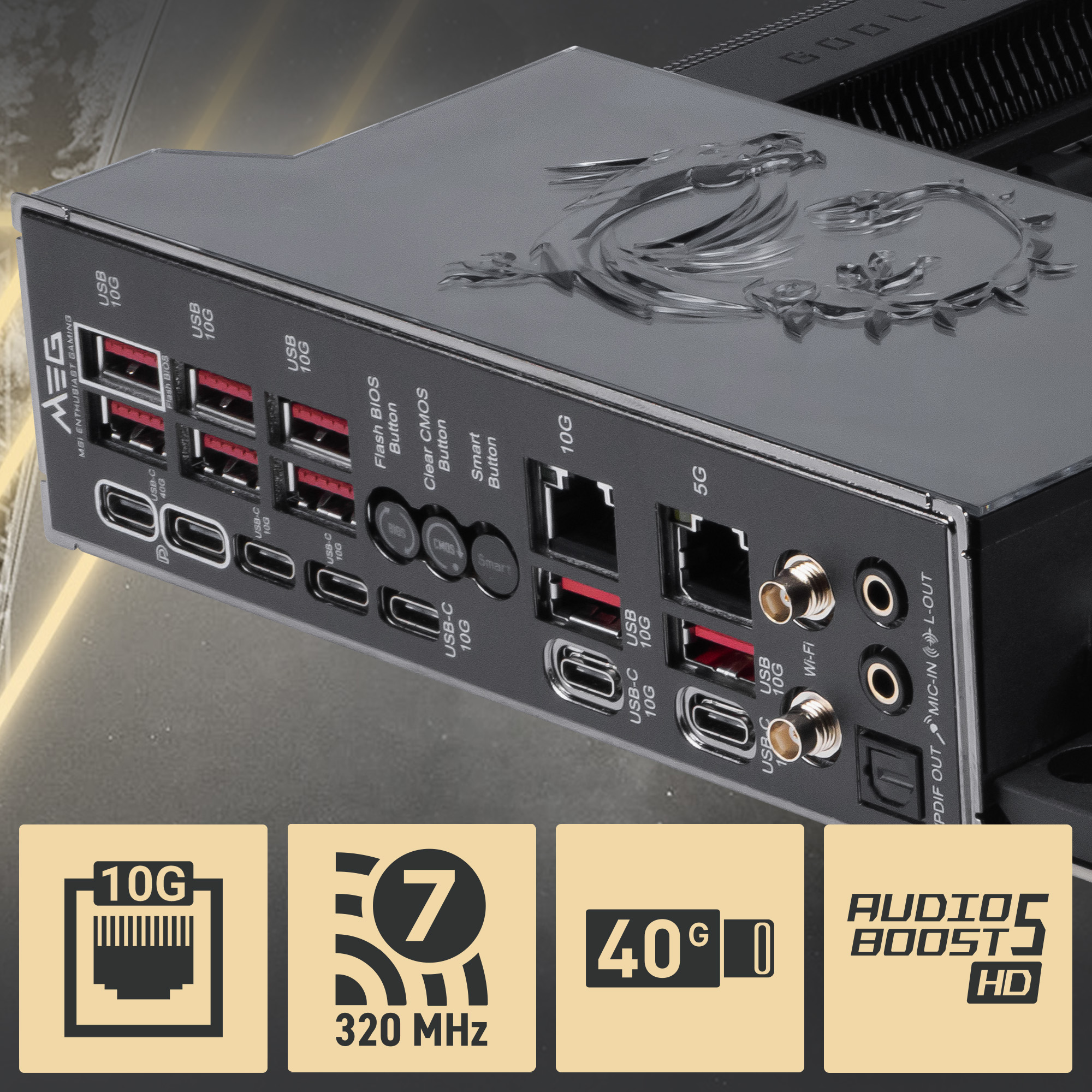

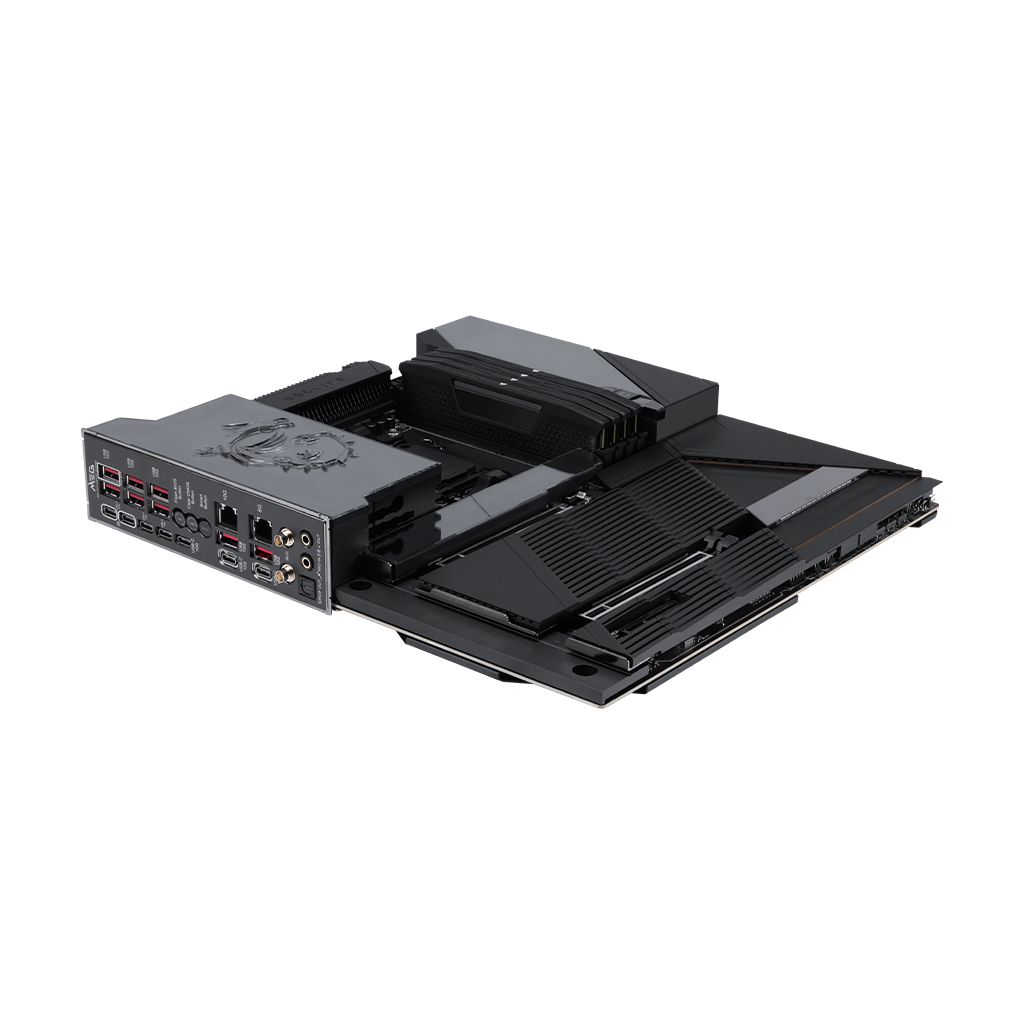

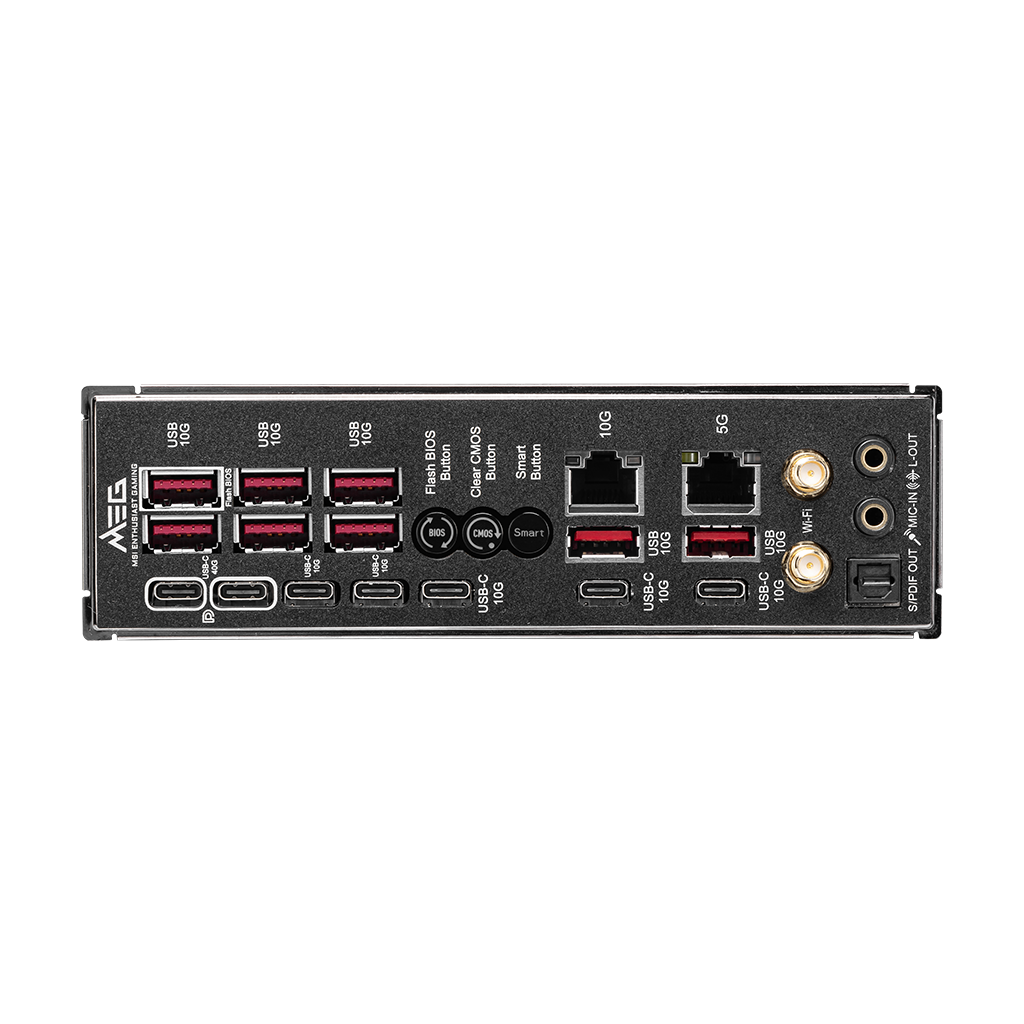

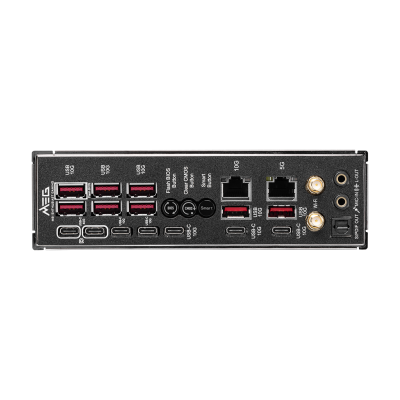

| I/O (Rear) | USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN 5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 5.0 x8 slot 1x PCIe 4.0 x4 slot |
| USB (Front) | 4x USB 2.0 4x USB 5Gbps Type A 1x USB 10Gbps Type C 1x USB 20Gbps Type C |
| USB (Rear) | 8x USB 10Gbps Type A 5x USB 10Gbps Type C 2x USB 40Gbps Type C |
| Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x PUMP_SYS Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| LED FEATURE | 1x Dynamic Dashboard III 1x EZ Digi-Debug LED 1x EZ LED Control switch |
| Dimensions | 10.91" x 12.00" |
| Manufacturer Warranty | 3 Year |
Experience the pinnacle of innovation with the MEG X870E GODLIKE MAX, This E-ATX motherboard features a dark black heatsink with embedded crystal-cut tempered glass, a stereoscopic dragon and the groundbreaking Dynamic Dashboard III. Constructed around the AMD X870E chipset which supports Ryzen 9000/8000/7000 series processors with 64MB BIOS ROM, featuring 24 phases CPU power, PCIe 5.0, 10G + 5G LAN, Wi-Fi 7, premium Frozr and EZ DIY design, setting a new standard for AMD X870E motherboards.
The MEG X870E GODLIKE MAX motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors with a larger 64MB BIOS ROM capacity for ultimate compatibility.

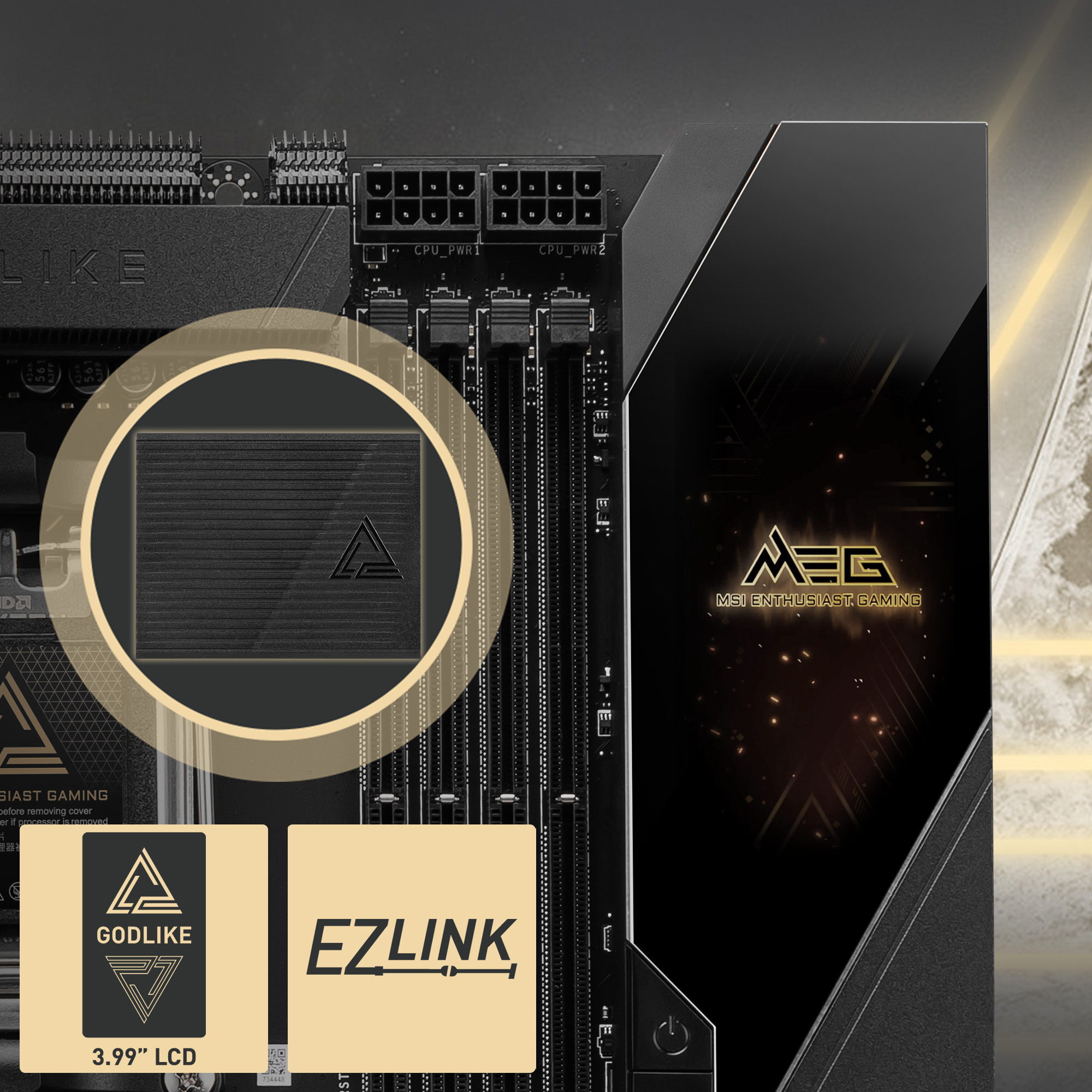

Dynamic Dashboard III: A built-in 3.99-inch full-color dynamic LCD panel offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.
EZ Bridge: Besides serving as a display panel, the Dynamic Dashboard functions as a versatile bridge, providing onboard boot, reset, EZ PCIe Release Buttons, and EZ Digi-Debug LED for easier system management and troubleshooting.
EZ Link: The GODLIKE-exclusive EZ Link design consolidates most of the case front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub. With magnetic design, it simplifies installation and creates a cleaner aesthetic.

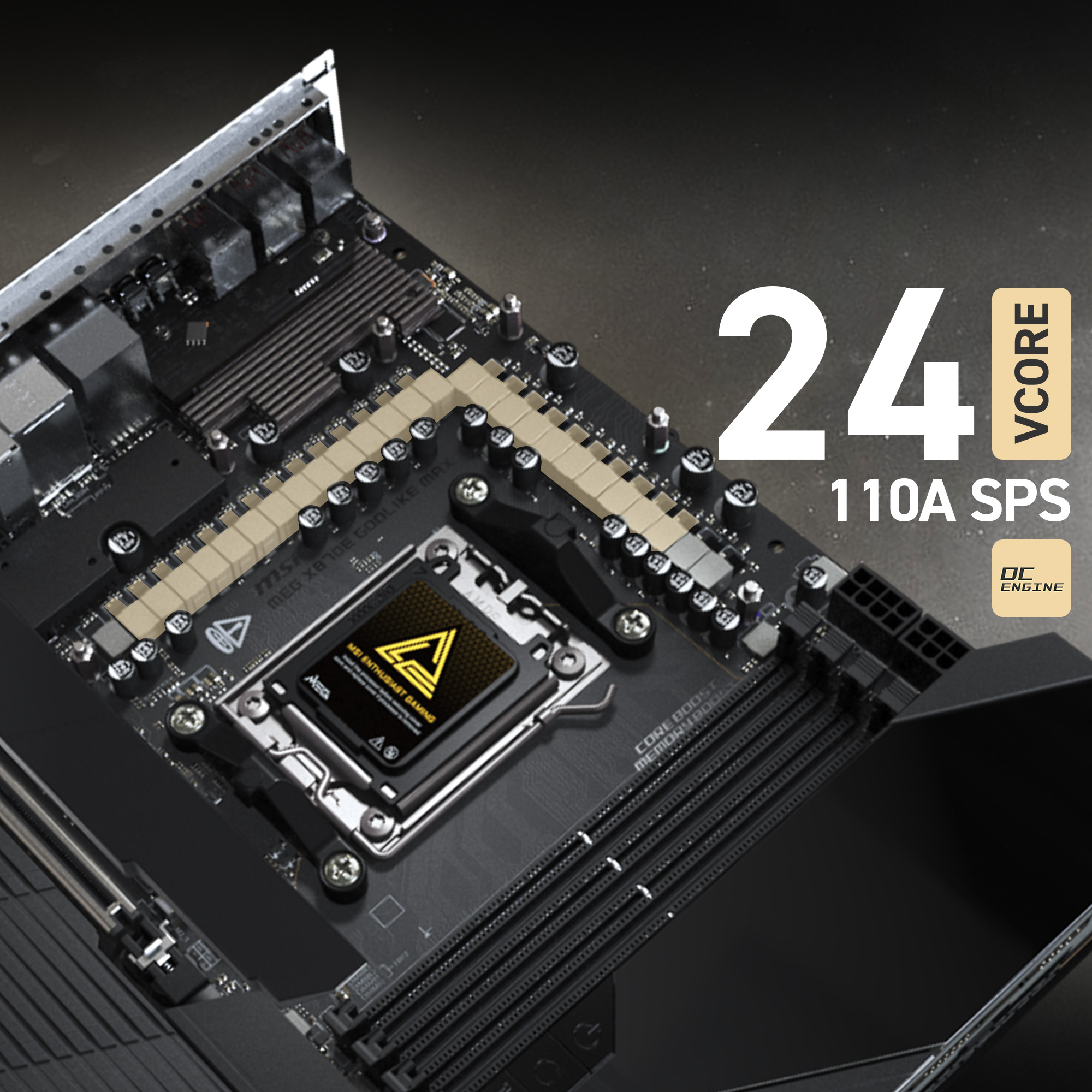

With exclusive Core Boost technology and EZ OC Tuning functions, the MEG X870E GODLIKE MAX is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, Double-sided M.2 Shield Frozr, and a 10-layer server-grade PCB with 2oz of thickened copper for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

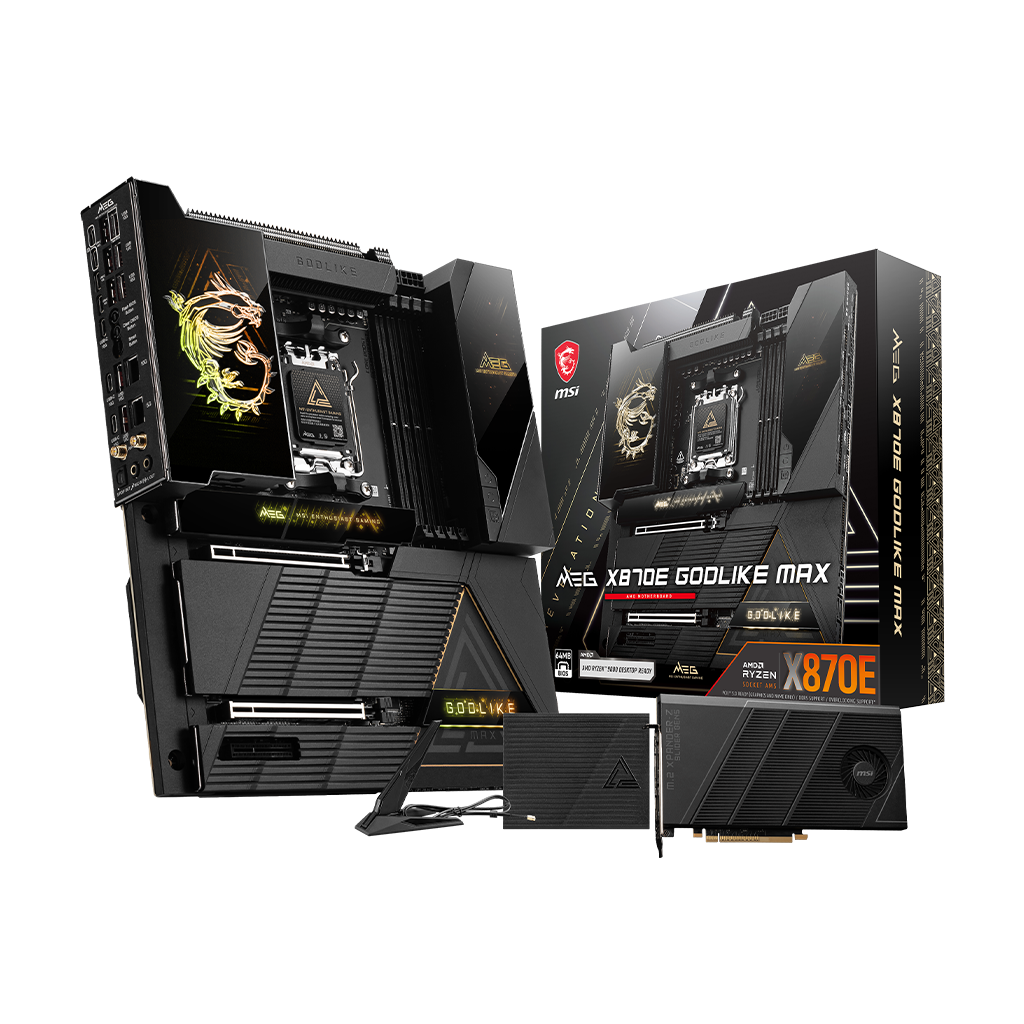

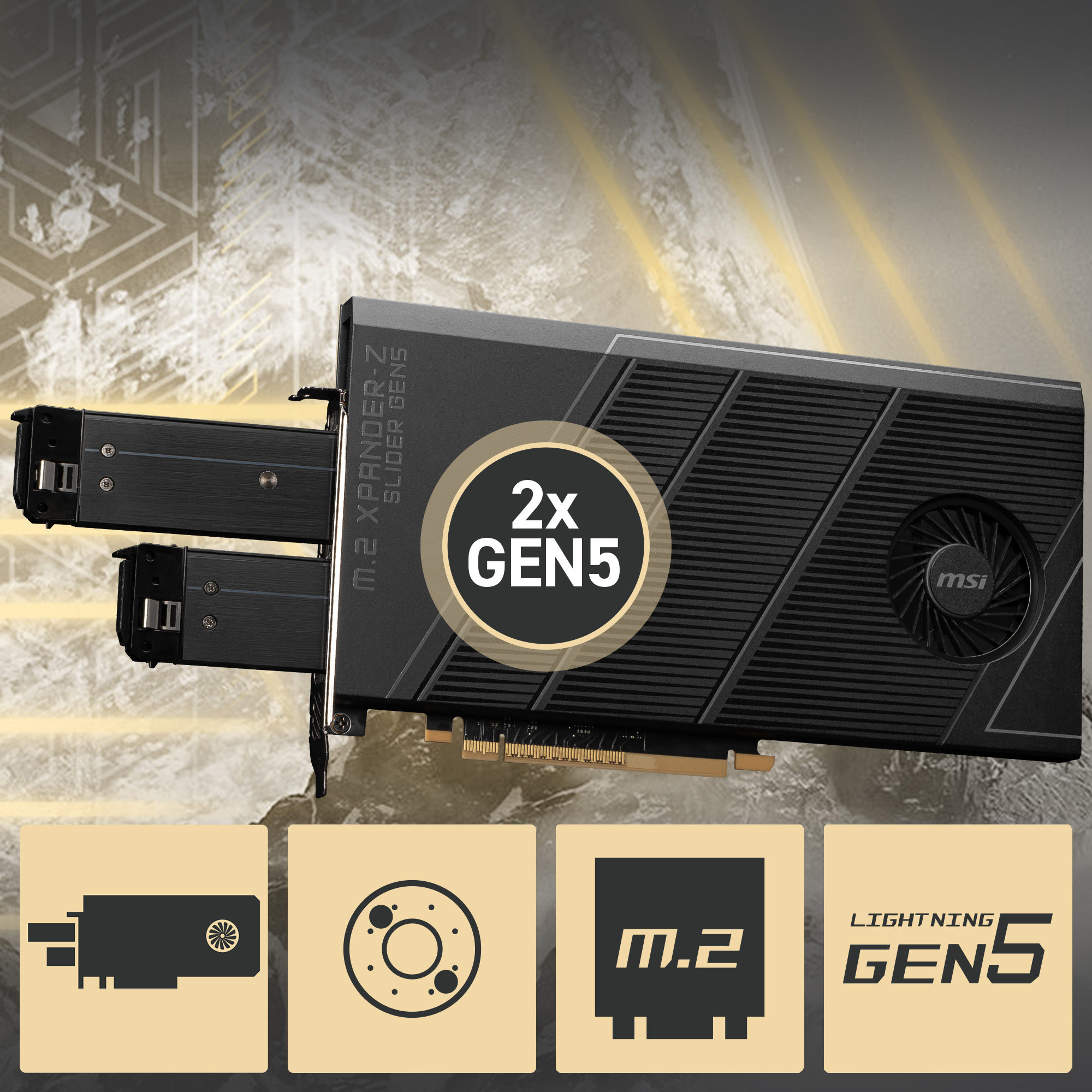

The MEG X870E GODLIKE MAX comes with the all-new M.2 XPANDER-Z SLIDER GEN5 accessory card, providing two extra Gen5 x4 128Gbps M.2 slots for more high-speed storage expansion options.
EZ Slide Design: Make storage upgrade effortless by letting you access your M.2 SSDs from the rear I/O without opening your case.
One Slot Design: No conflict with bulky, thick graphics cards, while ensuring improved airflow for better cooling efficiency.
70 mm Double-ball Bearing Fan: Stronger airflow, extended gaming sessions, and peak performance for enthusiast gamers and prosumers.
LED Indicator: The 4 x indicator LEDs lets you know if the SSD is detected and when it’s transferring files.

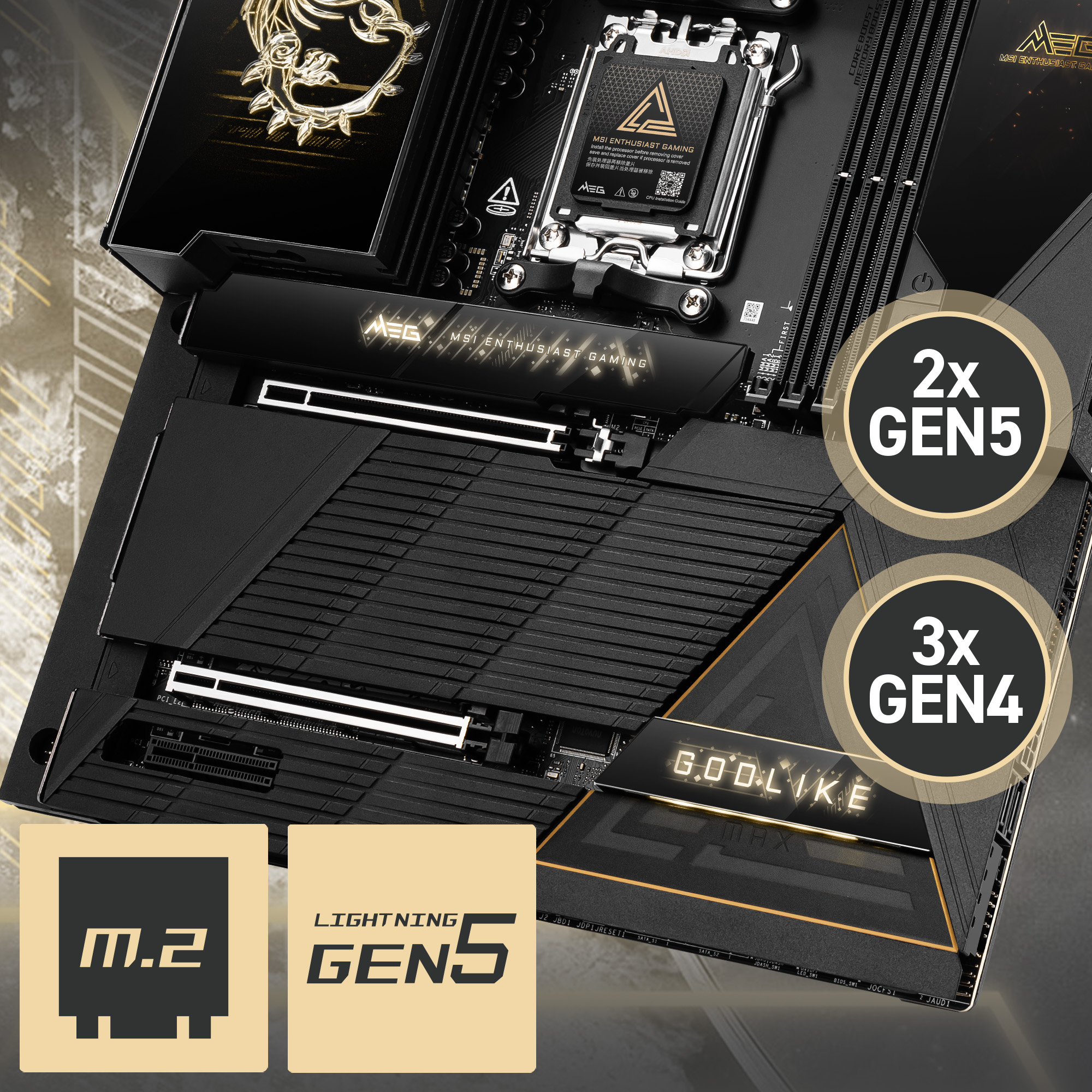

The MEG X870E GODLIKE MAX motherboard features MSI's M.2 slots:

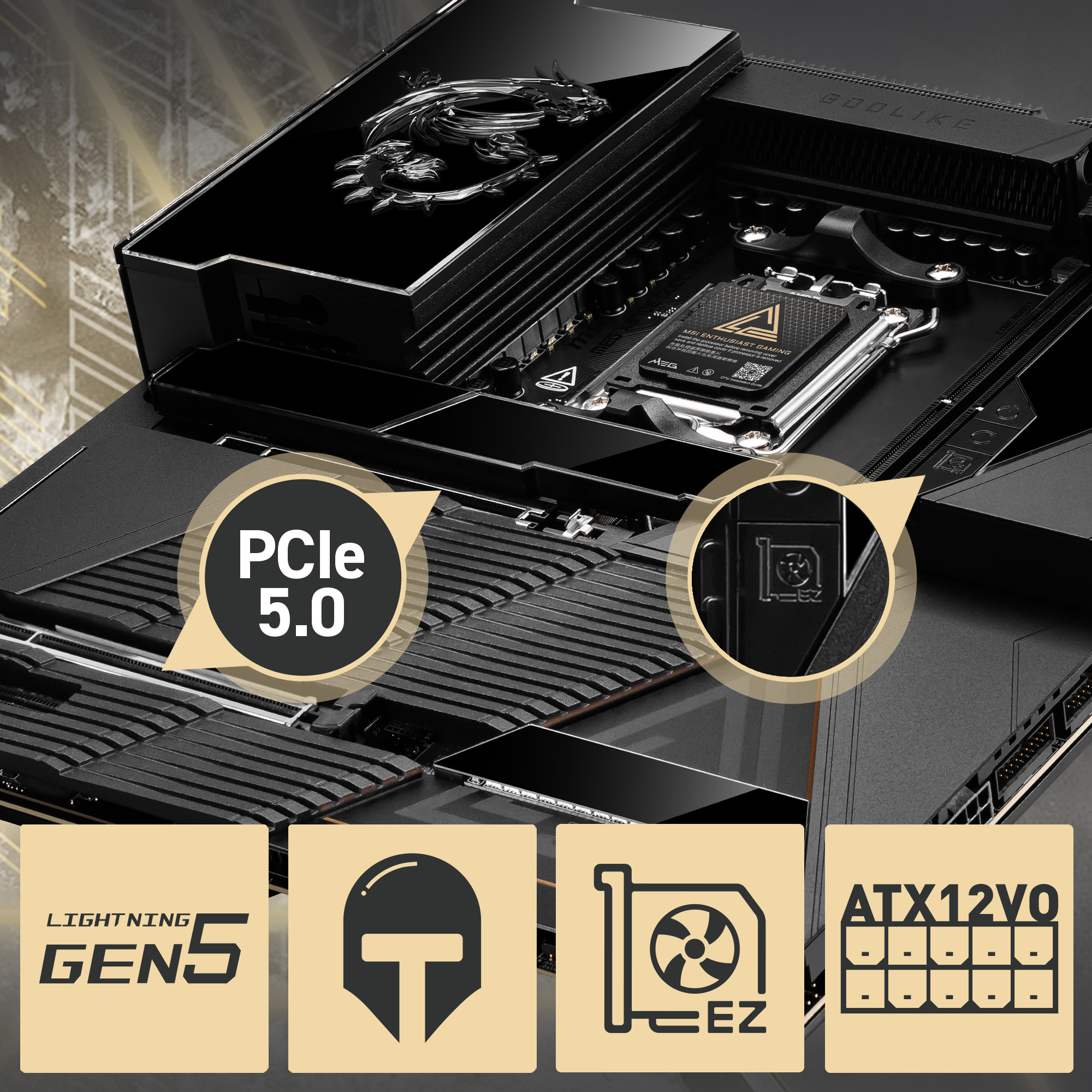

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
*Supports x16/x0/x4, x8/x8/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
10G Super LAN: Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN deliver an utmost network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@120Hz display support*.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
