This intake design optimized panoramic case thermal performance, although creating a custom space for figures, turning hardware into desktop art.

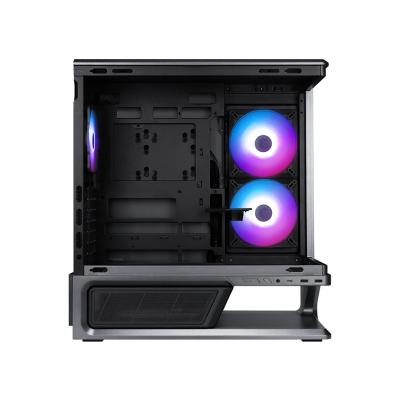

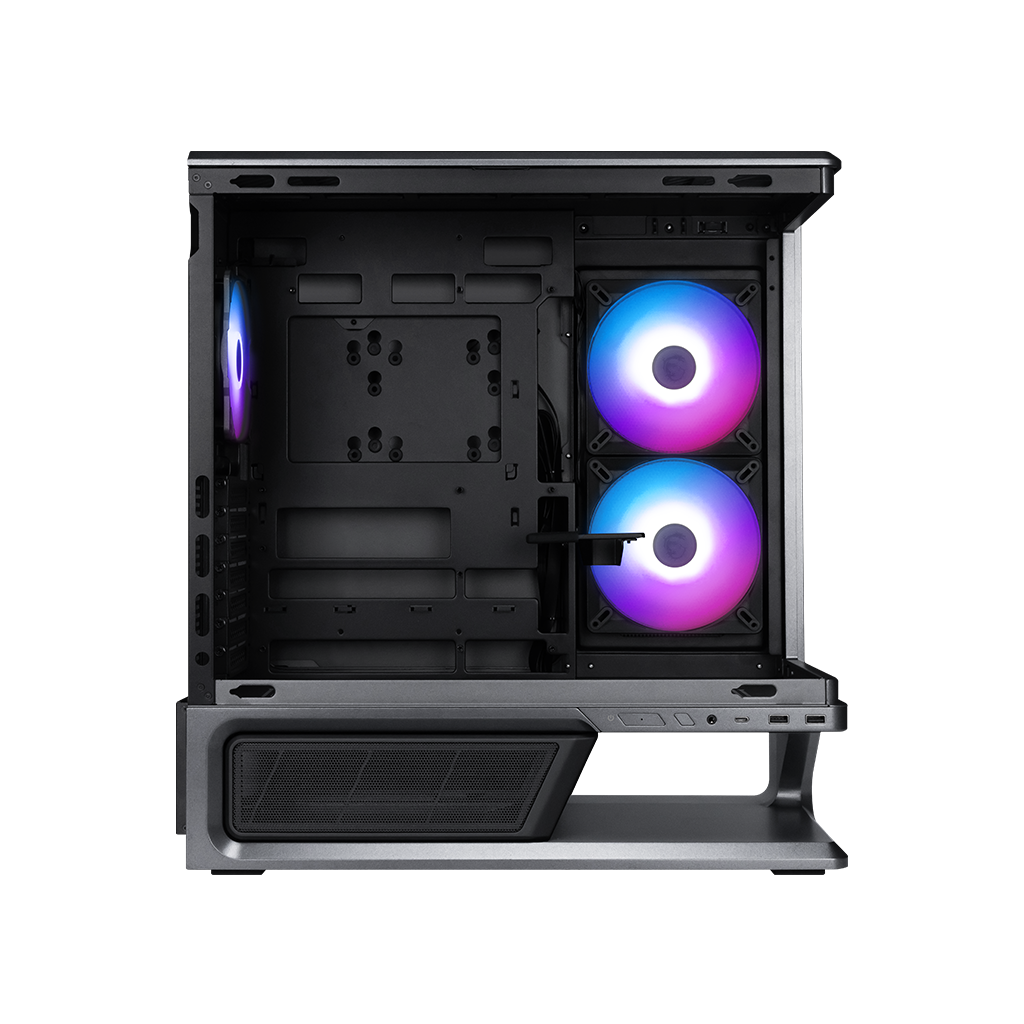

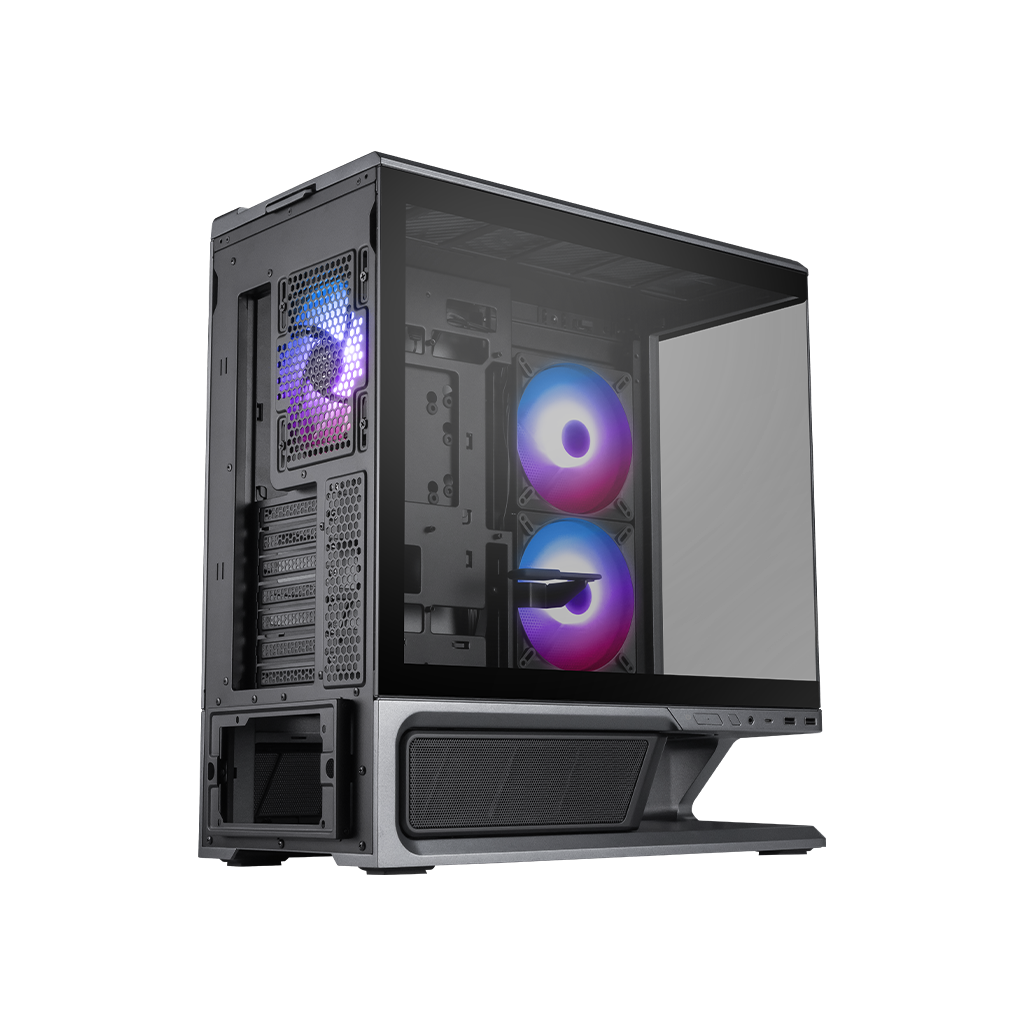

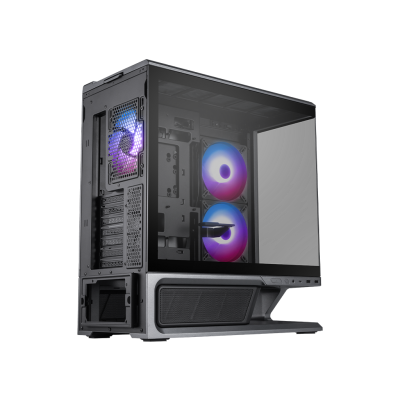

MSI MPG VIXTA 300R PZ / W - Floating Base Design with two color version: black and white, pre-installed with 2 x 140 mm reversed blade ARGB fan at the side and 1 x 120 mm ARGB fan at the rear, support regular and back-connect motherboard.
Free Shipping
On order over $25
Return for Refund
Within 30 days
2-YEARS Limited Warranty
Based on purchase date
| Manufacturer Number | MPG VIXTA 300R PZ |
|---|---|
| Product Condition | New |
| Form Factor | Mid-Tower |
| Power Supply | Standard ATX (PSU Not Included) |
| LED Light | ARGB |
| I/O PORTS | 1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED / Reset Switch Button 1 x Power Button |
| DRIVER BAYS | 1 x 2.5” 1 x 2.5”/ 3.5” (select one) |
| CASE EXPANSION SLOTS | 7 |
| MAXIMUM GPU LENGTH | 420 mm / 16.54 inches |
|---|---|
| MAXIMUM CPU COOLER LENGTH | 165 mm / 6.50 inches |
| RADIATOR COMPATIBILITY | Front: N/A Rear: 120 mm Top: 120 / 240 / 360 mm Side: 120 / 240 mm Bottom: N/A |
| SUPPORT MB FORM FACTOR | Regular: ATX, Micro-ATX, Mini-ITX Back-connect: ATX / Micro-ATX |

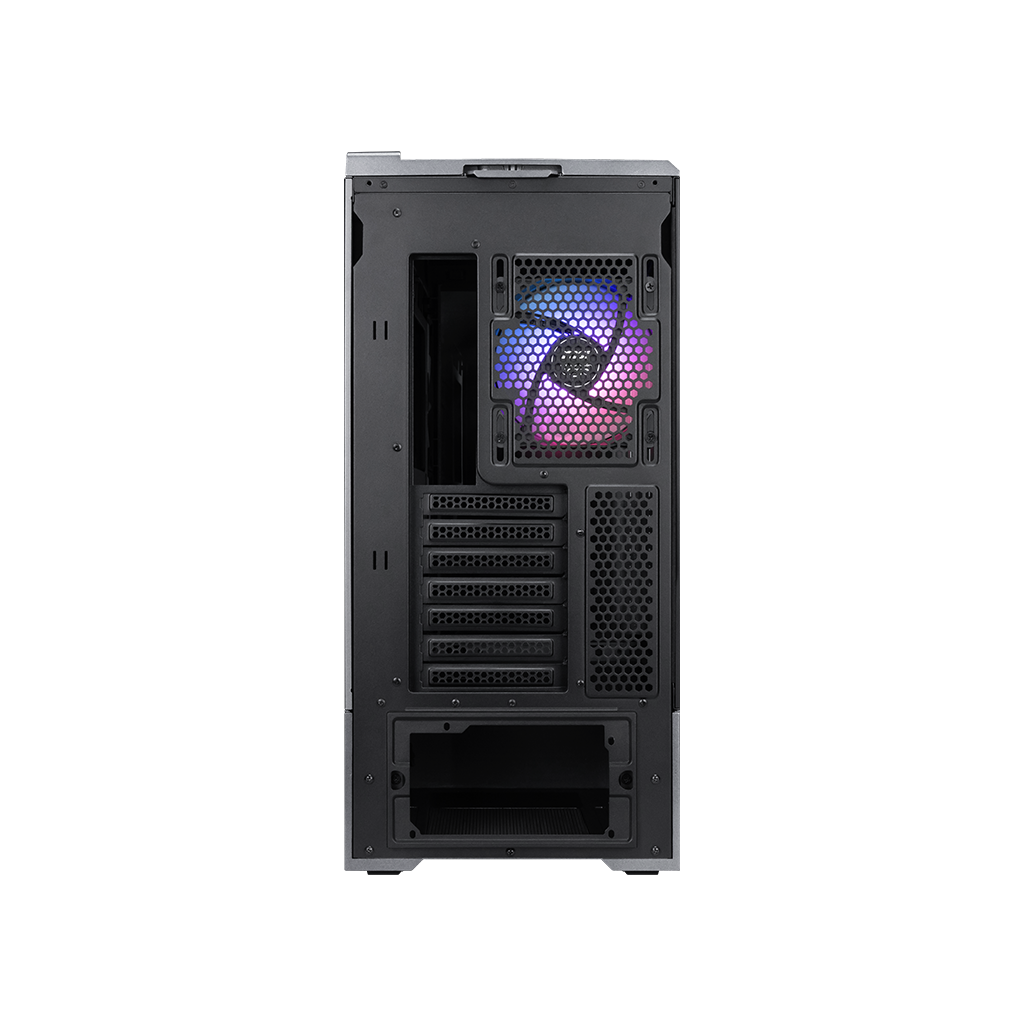

| PRE-INSTALL FAN | Rear: 1 x 120 mm Side: 2 x 140 mm |

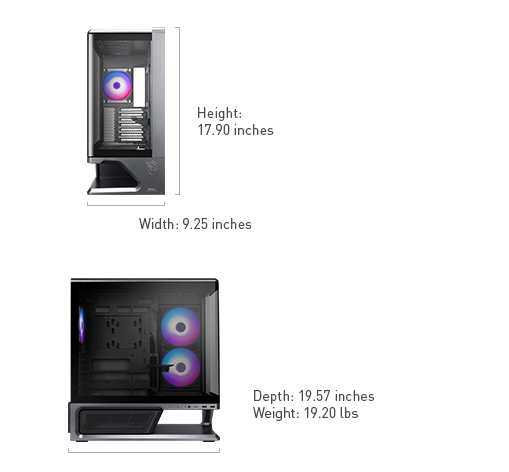

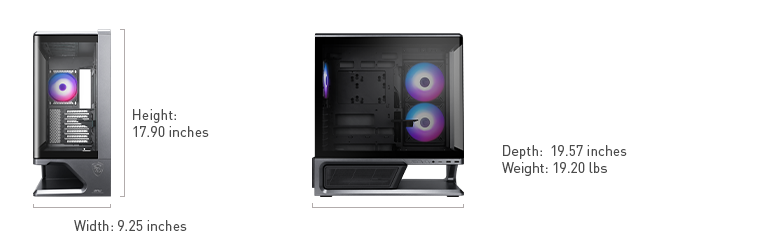

| Dimensions | 455 x 235 x 497 mm / 17.9 x 9.25 x 19.57 inches |
| Weight | 19.2 lbs (Product) / 24.25 lbs (Carton) |
| Manufacturer Warranty | 2 Years |

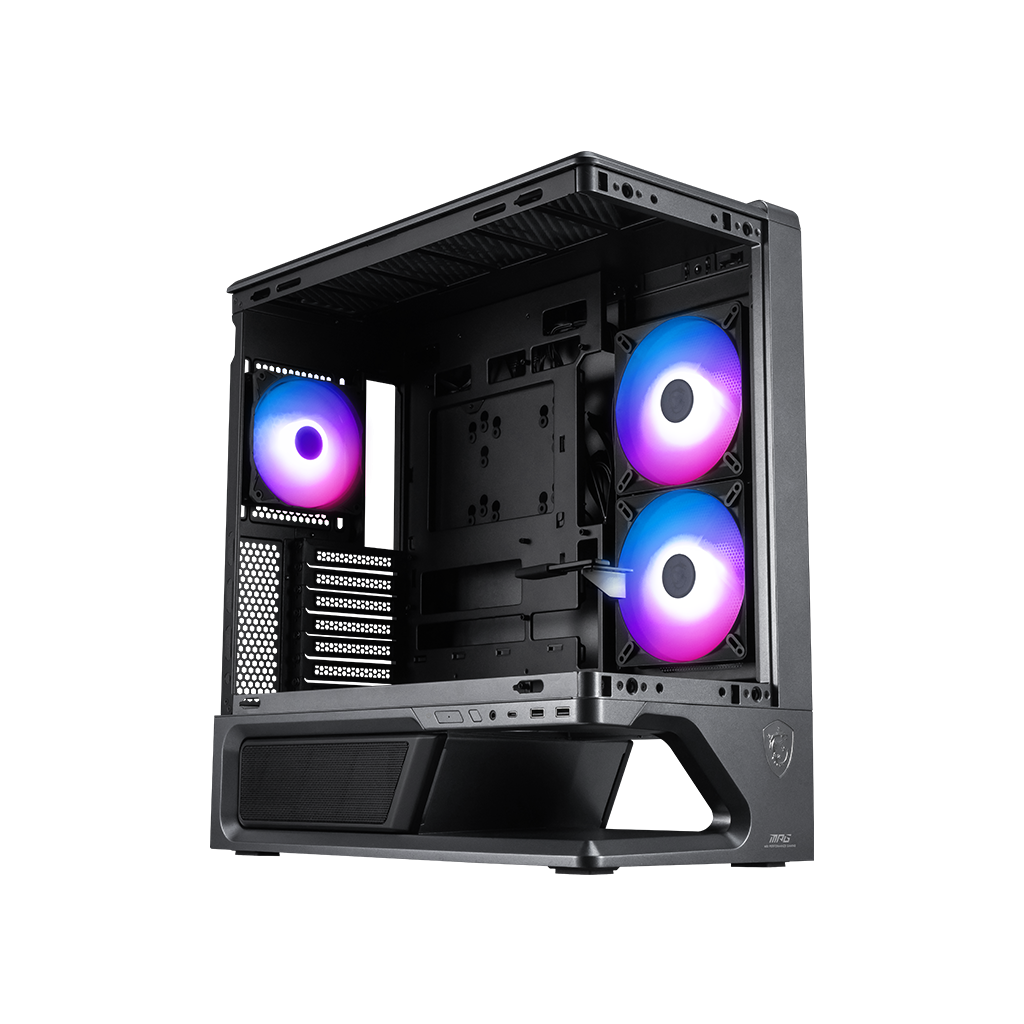

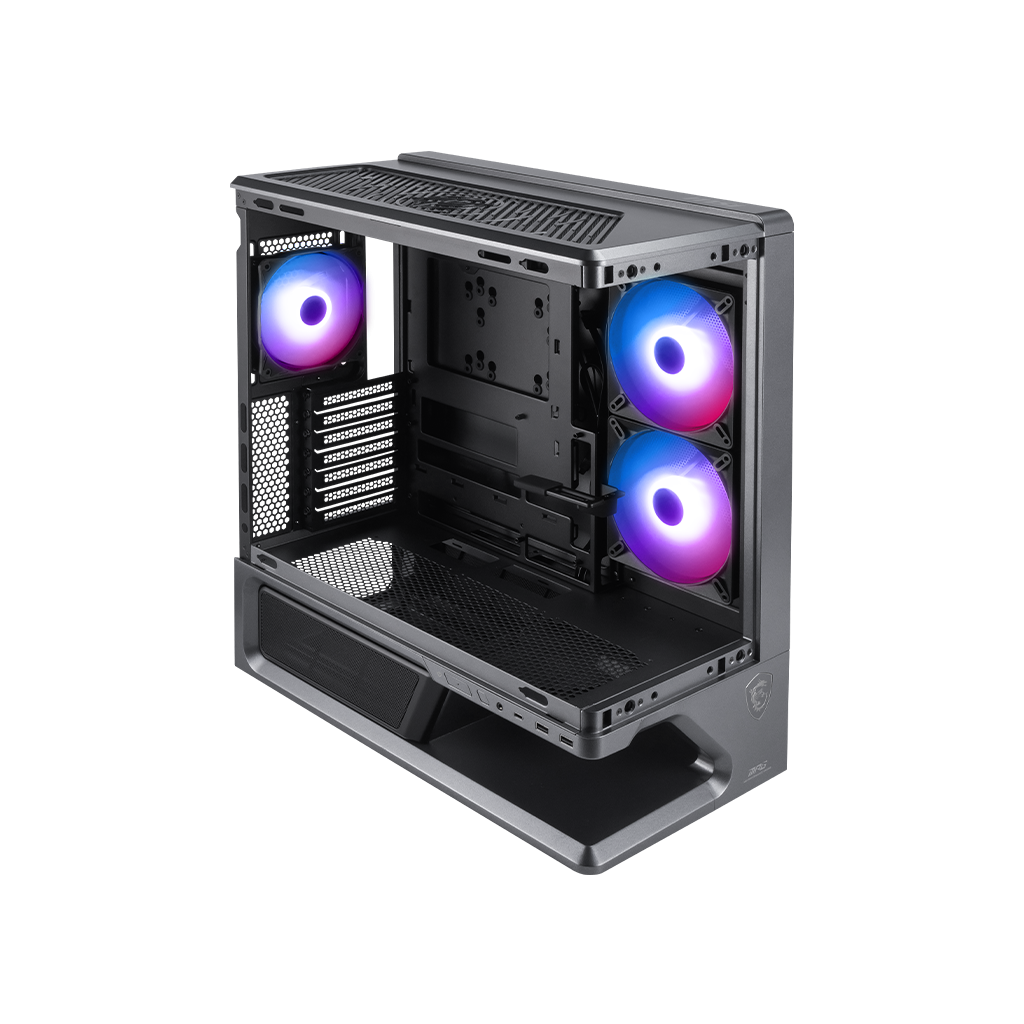

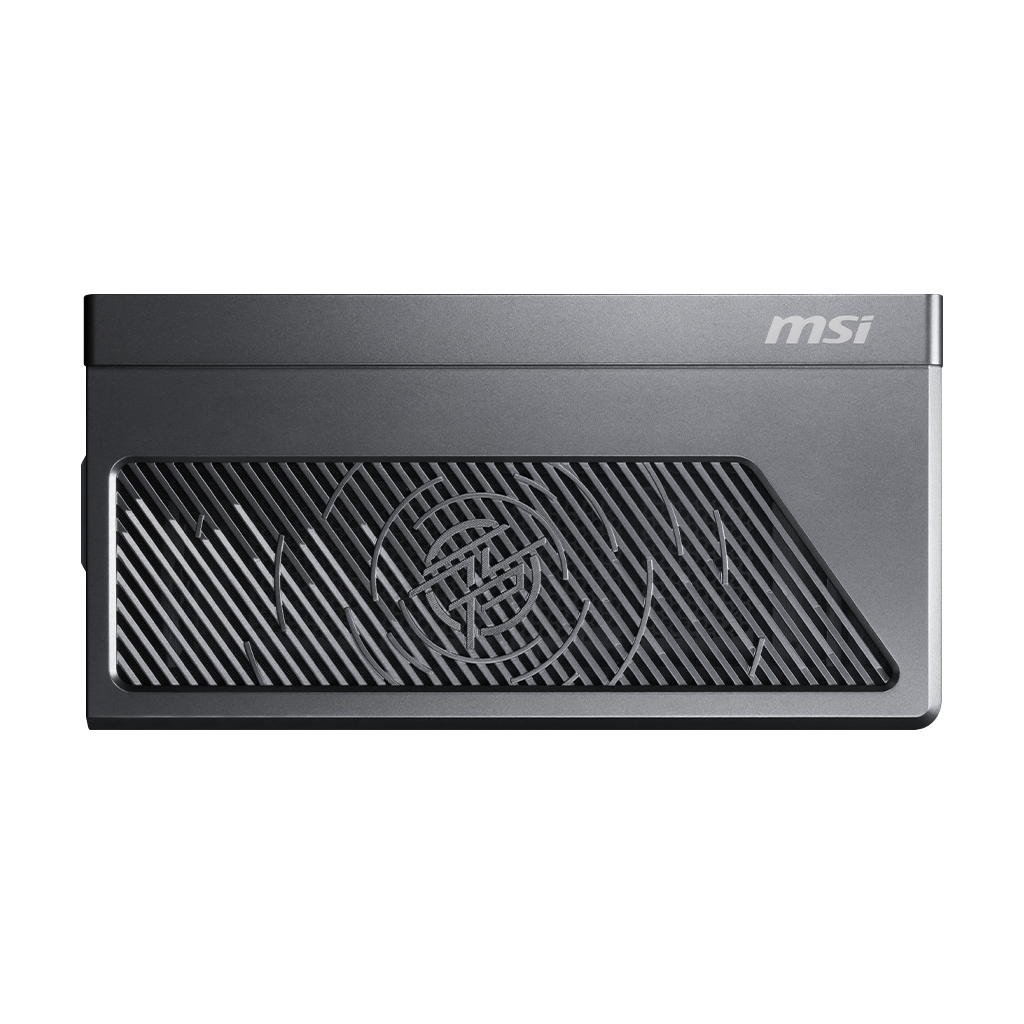

Designed for panoramic builds, the MSI MPG VIXTA 300R PZ features a floating base and pre-installed 140 mm reverse-blade fans to maximize fresh airflow intake. Upgrades are effortless thanks to MSI’s EZ DIY features. With the EZ-detach curved tempered glass and a tool-free design, installing and maintaining components is fast, simple, and hassle-free.
This intake design optimized panoramic case thermal performance, although creating a custom space for figures, turning hardware into desktop art.
The MPG VIXTA 300R PZ offers ample clearance for high-performance components.
Motherboard support:
Regular
ATX, Micro-ATX, Mini-ITX
Back-connect
ATX, Micro-ATX
Component clearances:
CPU Cooler height: 165 mm
GPU length: 420 mm
PSU length: Up to 190 mm
Storage options:
1 x 2.5“
1 x 2.5"/3.5" (select one)

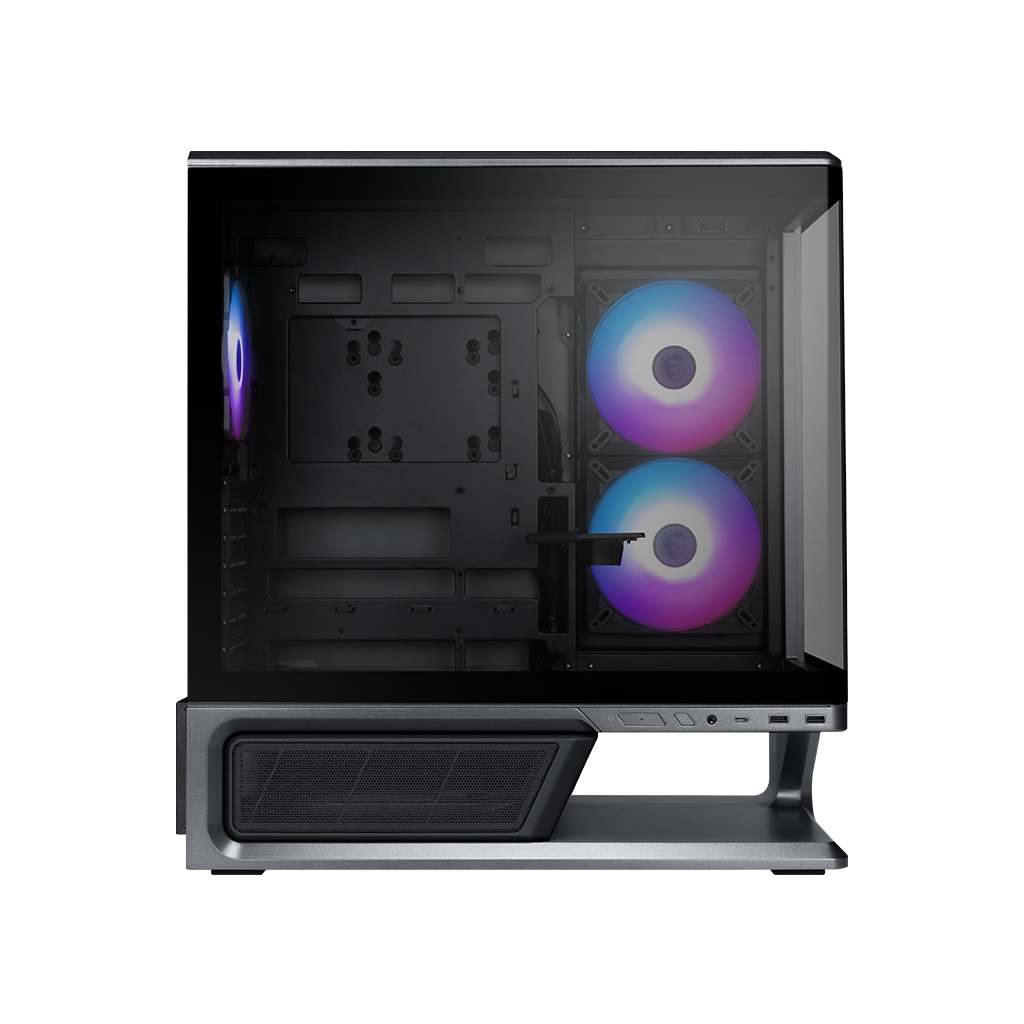

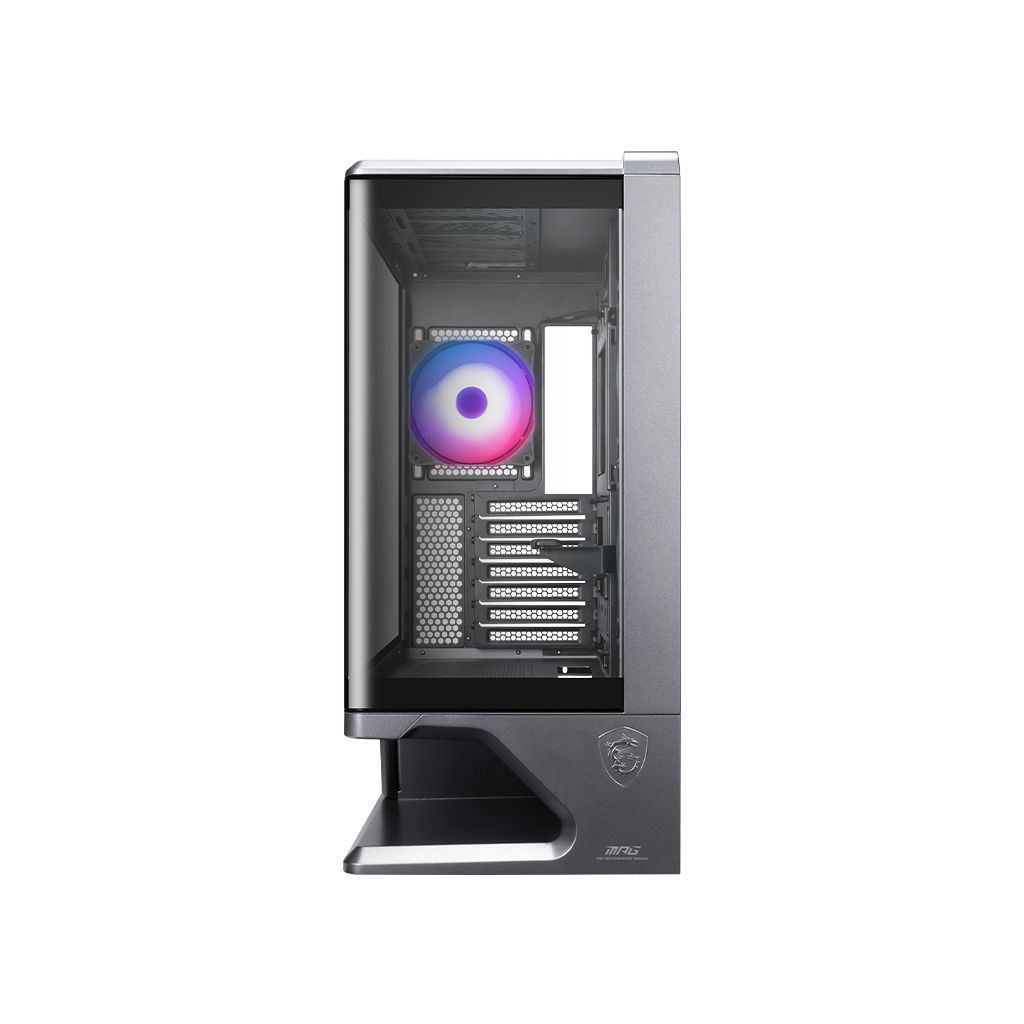

one-piece tempered glass with a safety film , providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.
An adjustable GPU holder is pre-installed in the case allowing users to choose an ideal Horizontal GPU layout and showcase their whole system build.
EZ-detach:
Integrating an ergonomic removal path, safety latches, and rail design for a more intuitive and secure user experience. It allows the curved panel to be removed or adjusted quickly while helping to prevent accidental slips or improper mounting.
Magnetic PSU Shroud Side Cover:
The magnetic PSU shroud side cover makes cable management easier and cleaner by eliminating the need for screws.
1-to-4 ARGB and PWM fan control board, allowing users to easily synchronize lighting effects and manage fan speeds from a centralized hub. It simplifies cable management and makes it convenient to expand the cooling setup with additional fans without needing extra adapter cables.
The MSI MPG VIXTA 300R PZ features an optimized cable routing layout with an expanded 35 mm cable management space, making system organization easier and more efficient.

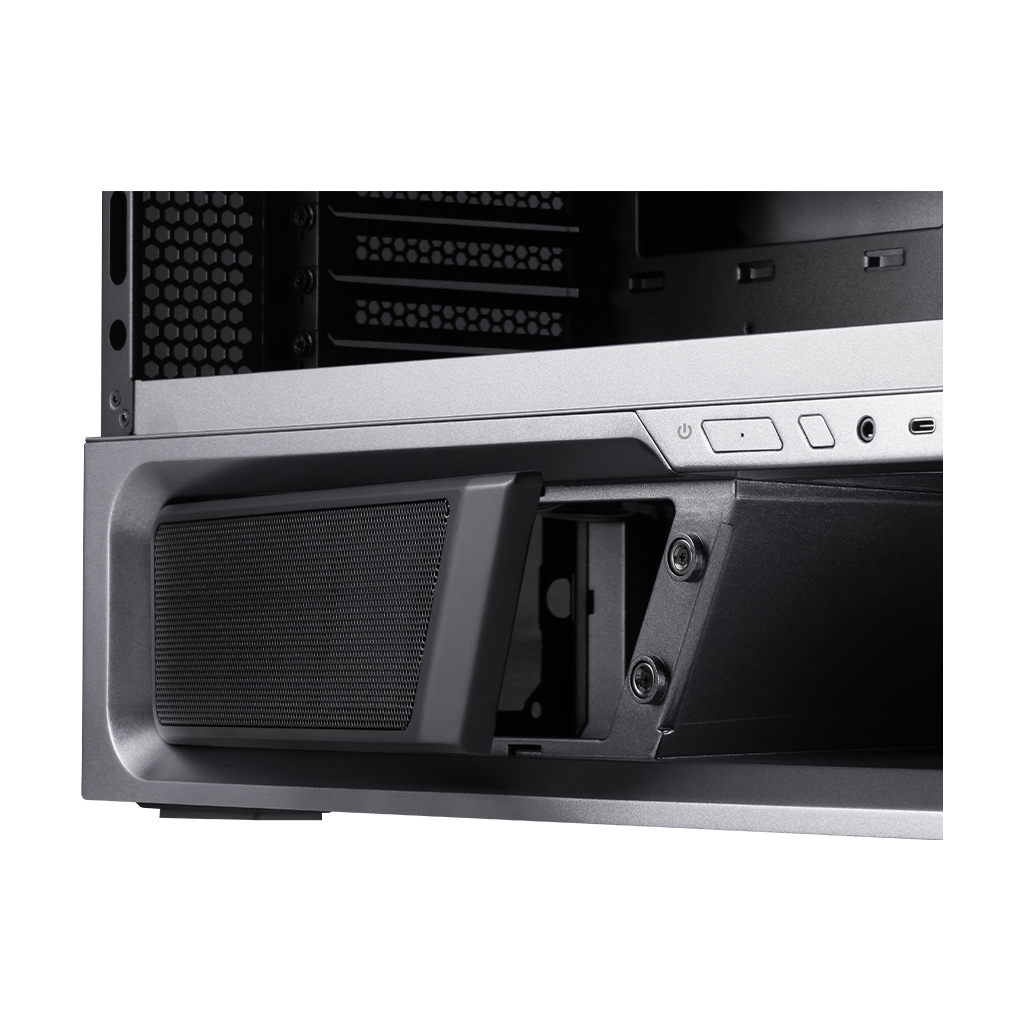

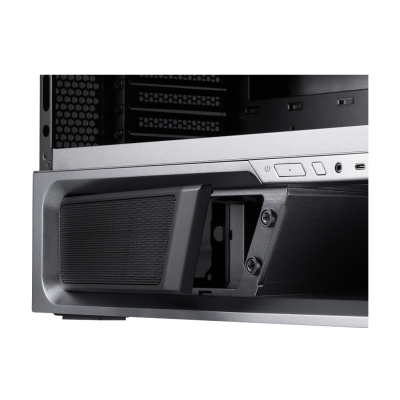

The side I/O panel includes a high-speed USB 20Gbps Type-C port, along with additional essential ports:
1. Power Button
2. LED Button
3. Mic-in / Audio-Out
4. 1 x USB 20Gbps (Type-C)
5. 2 x USB 5Gbps (Type-A)
