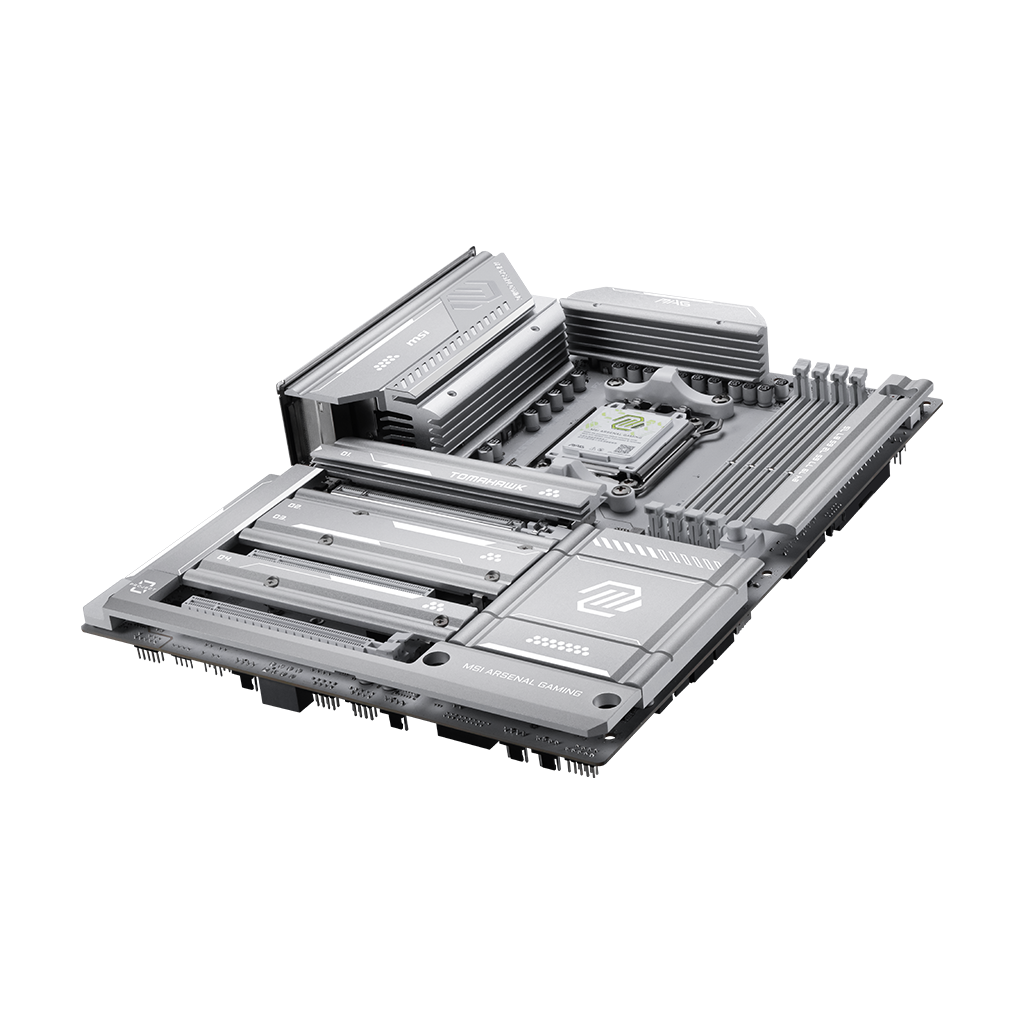

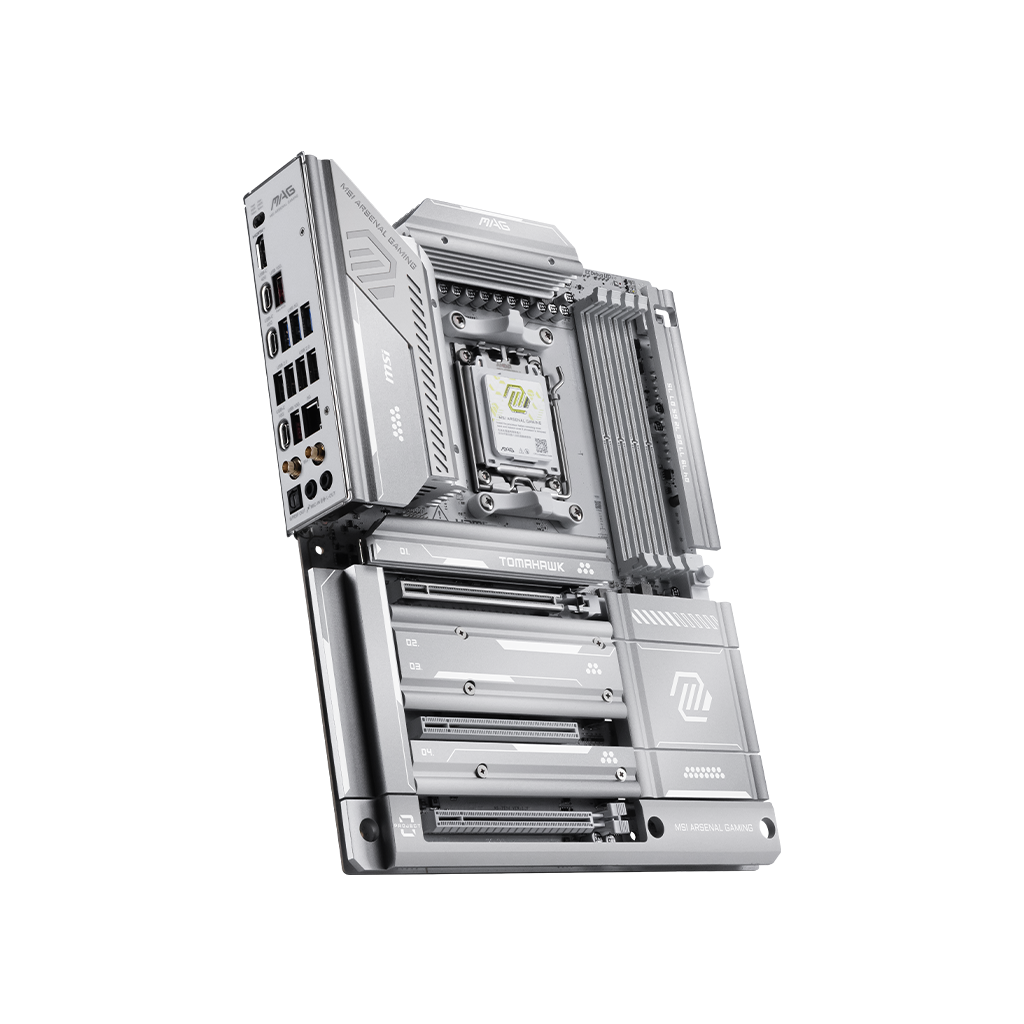

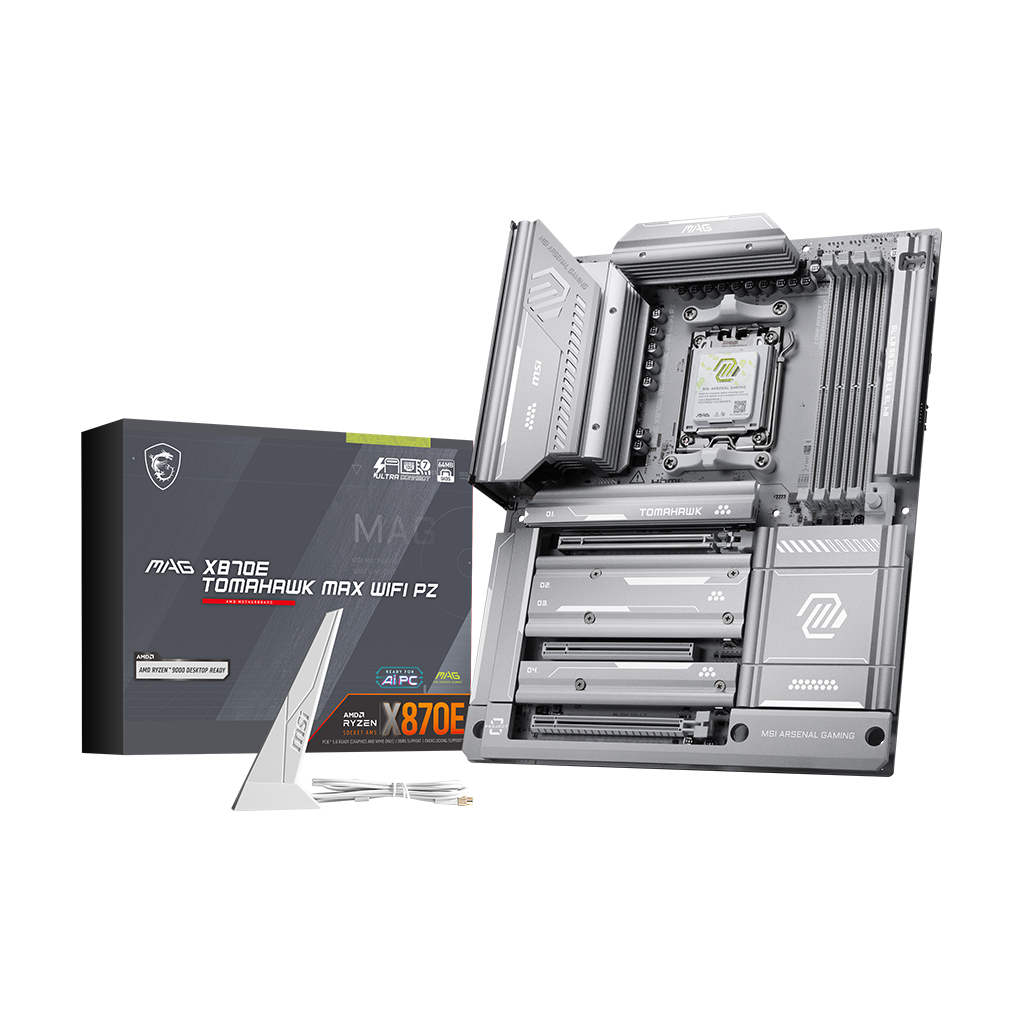

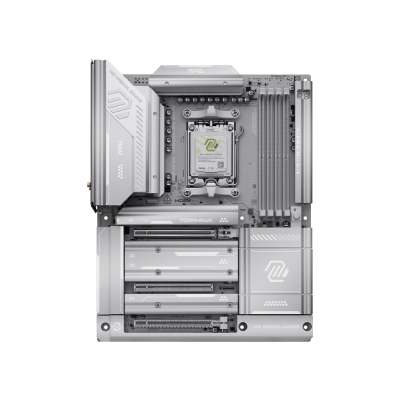

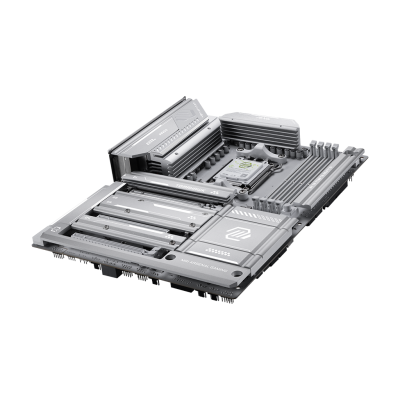

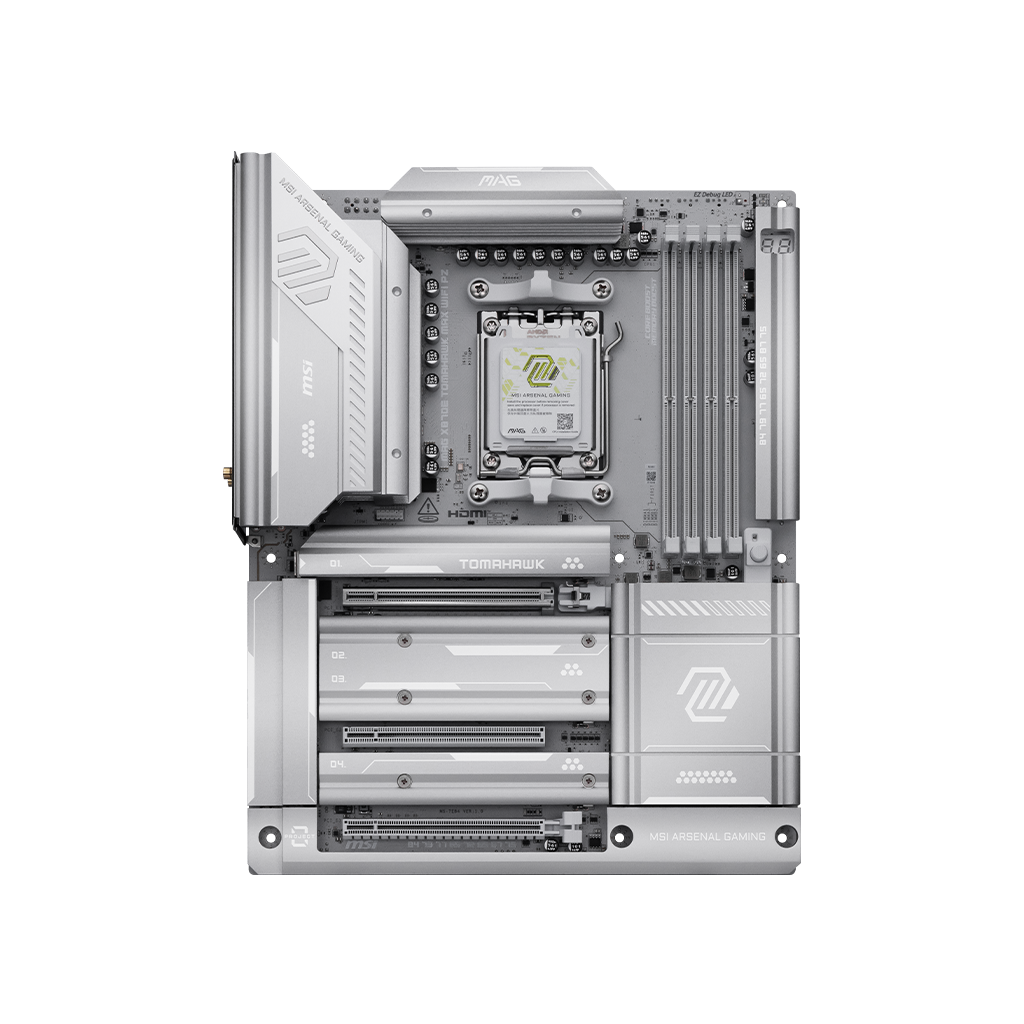

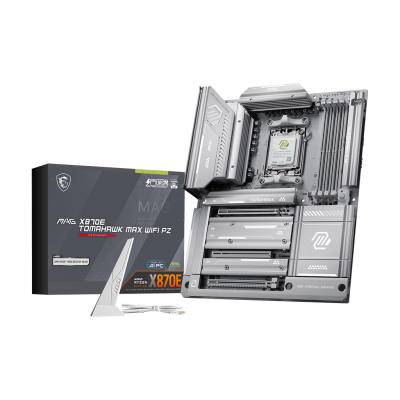

MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | MAG X870E TOMAHAWK MAX WIFI PZ |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| CPU Socket | Socket AM5 |
| Form Factor | ATX |
| Memory | 4 DIMMs, Dual Channel DDR5-8400+ MT/s (OC) |
| LAN | 1x Realtek® 8126 5G LAN |
| Wireless LAN | Wi-Fi 7 Solution |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
|---|---|
| STORAGE | 2x M.2 Gen5 x4 128Gbps slots 2x M.2 Gen4 x4 64Gbps slots 4x SATA 6Gbps ports |
| Onboard Graphics | 1x HDMI™
|
| RAID | |

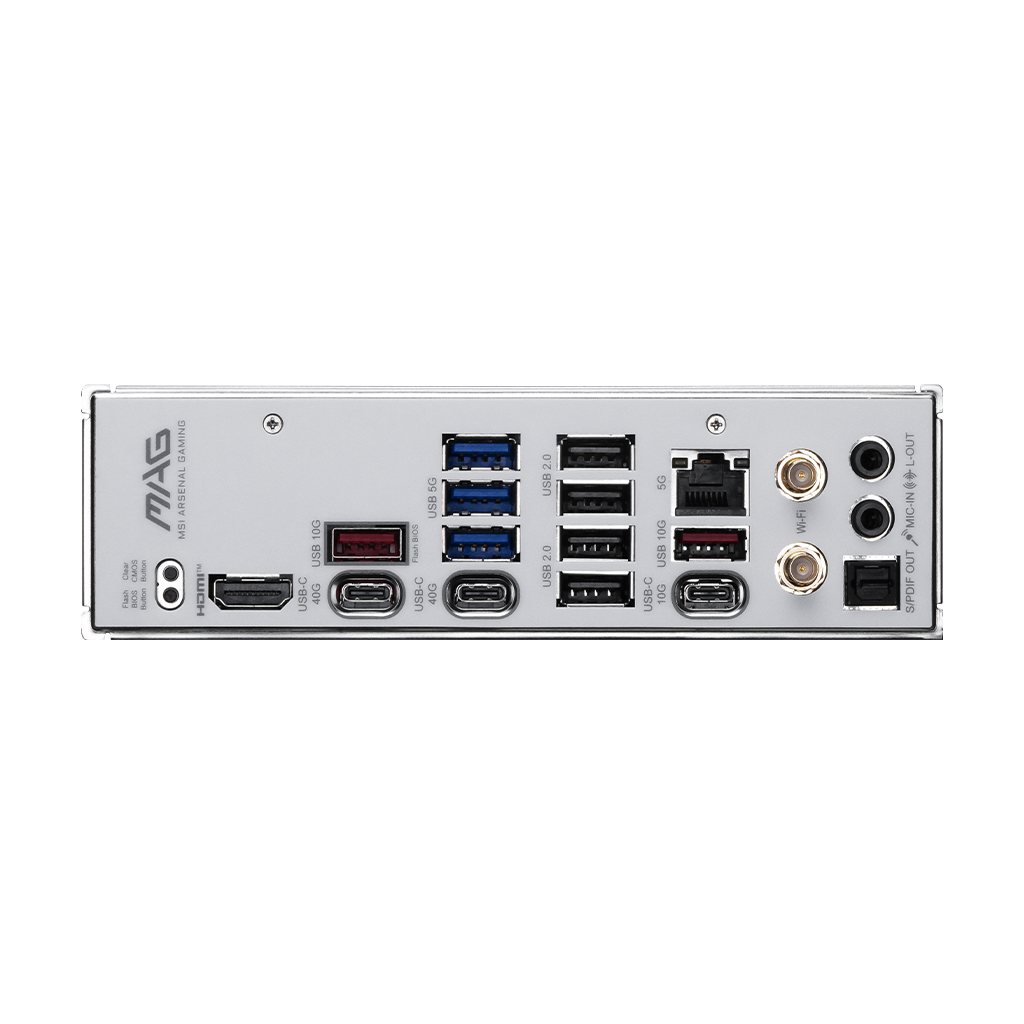

| I/O (Rear) | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot |
| USB (Front) | 4x USB 2.0 4x USB 5Gbps Type A 1x USB 20Gbps Type C |
| USB (Rear) | 4x USB 2.0 3x USB 5Gbps Type A 2x USB 10Gbps Type A 1x USB 10Gbps Type C 2x USB 40Gbps Type C |
| Internal Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Dimensions | 9.60" x 12.00" |
| Manufacturer Warranty | 3 Year |
The MAG X870E TOMAHAWK MAX WIFI PZ is a gaming oriented ATX motherboard that is constructed with the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring Wi-Fi 7, 5G LAN, PCIe 5.0 and DDR5 memory that balances both value and hardware.

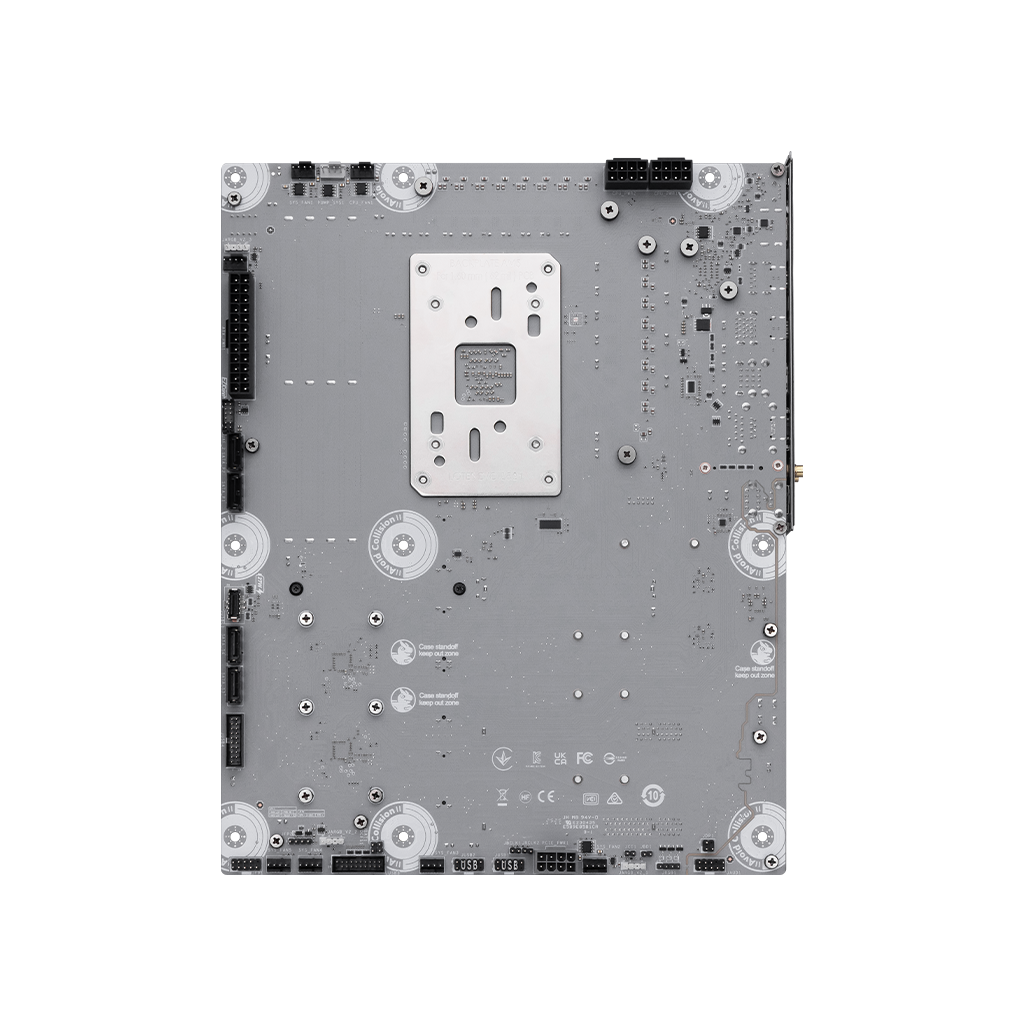

The MAG X870E TOMAHAWK MAX WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.
Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.
The MAG X870E TOMAHAWK MAX WIFI PZ motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
With exclusive Core Boost technology and EZ OC Tuning functions, the MAG X870E TOMAHAWK MAX WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
The MAG X870E TOMAHAWK MAX WIFI PZ motherboard features MSI's M.2 slots:
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
