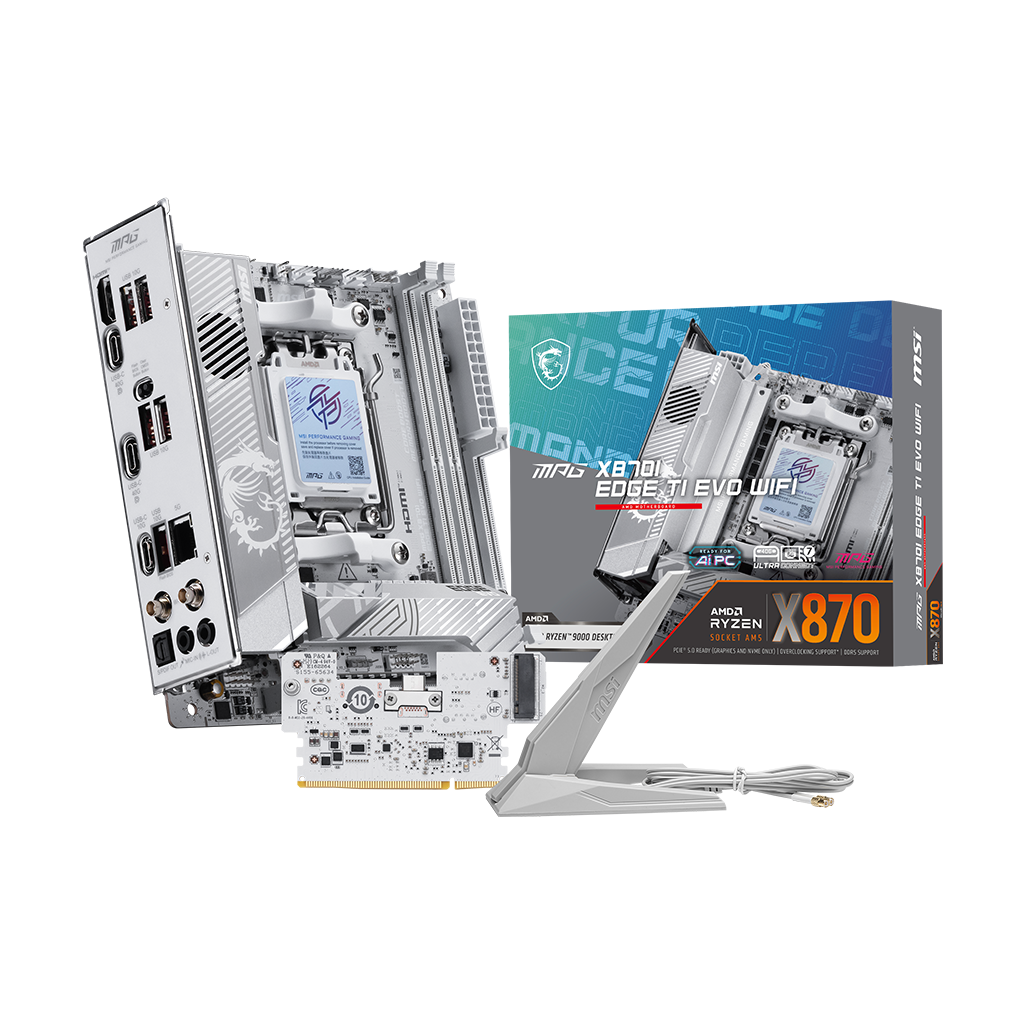

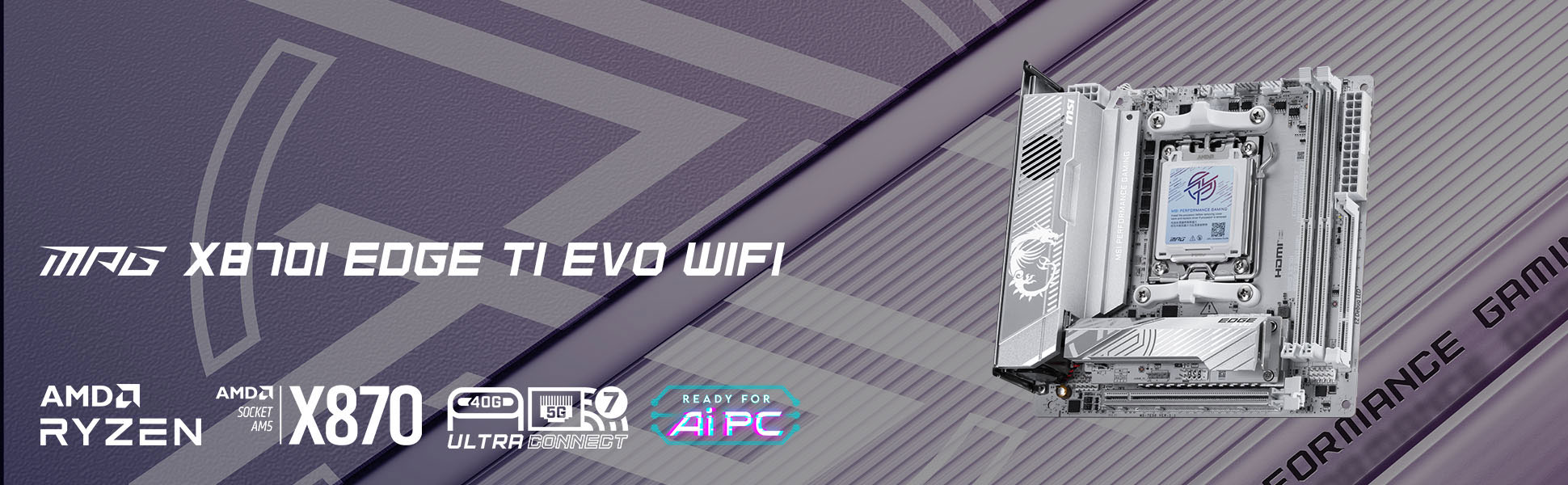

The MPG X870I EDGE TI EVO WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ITX
- Socket Type: AM5
- Chipset: AMD X870

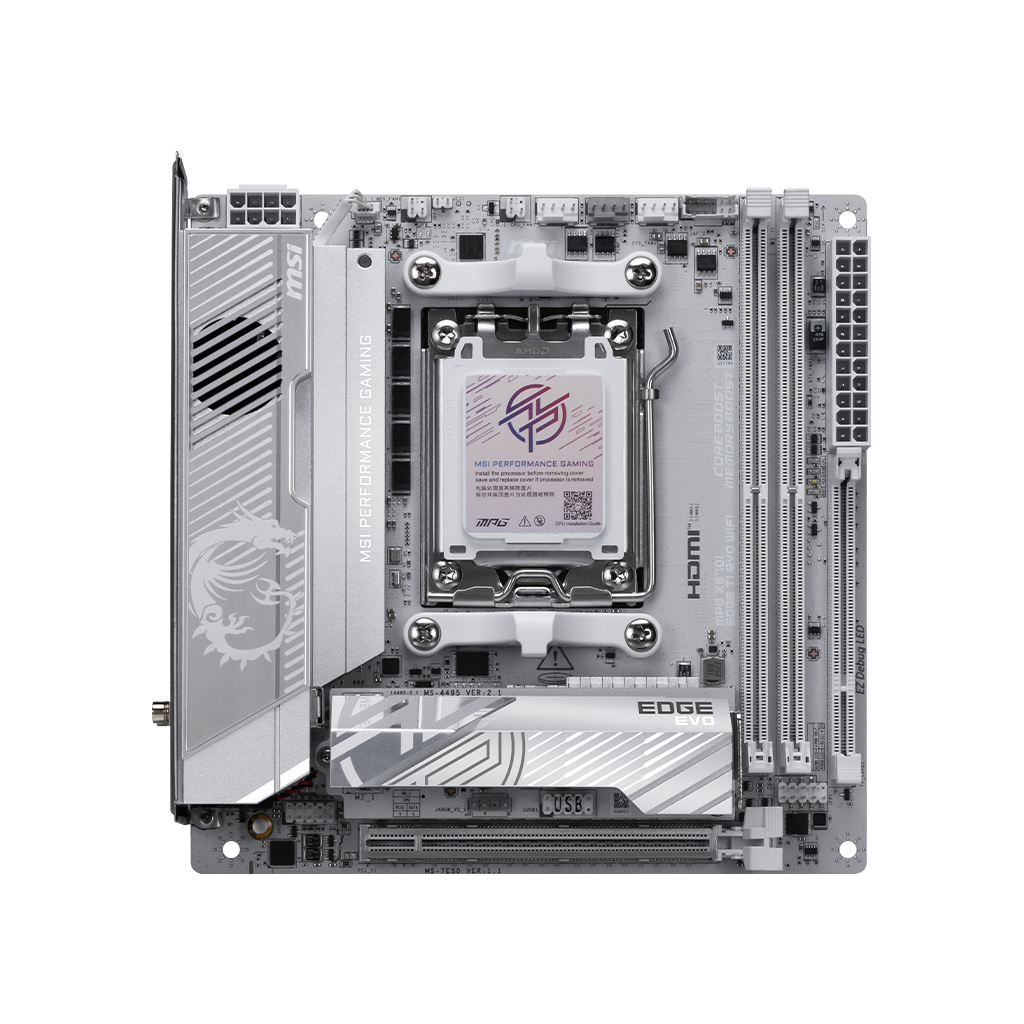

The MPG X870I EDGE TI EVO WIFI is a gaming oriented ITX motherboard with a 8 Duet Rail Power System, constructed around the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Free Shipping
On order over $25
Return for Refund
Within 30 days
3-YEARS Limited Warranty
Base-on purchase date
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
|---|---|
| Manufacturer Number | MPG X870I EDGE TI EVO WIFI |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | Mini-ITX |
| Memory | 2 DIMMs, Dual Channel DDR5 |
| LAN | 1 x Realtek® 5Gbps LAN |
| Wireless LAN | Wi-Fi 7 Solution |
| Bluetooth | Bluetooth 5.4 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
|---|---|
| STORAGE | 1x M.2 Gen5 x4 128Gbps slot 2x M.2 Gen4 x4 64Gbps slots (1 via 5-in-1 Xpander Card) 2x SATA 6Gbps ports (via 5-in-1 Xpander Card) |
| Onboard Graphics | 1x HDMI™ 2x Type-C DisplayPort |
| RAID | |

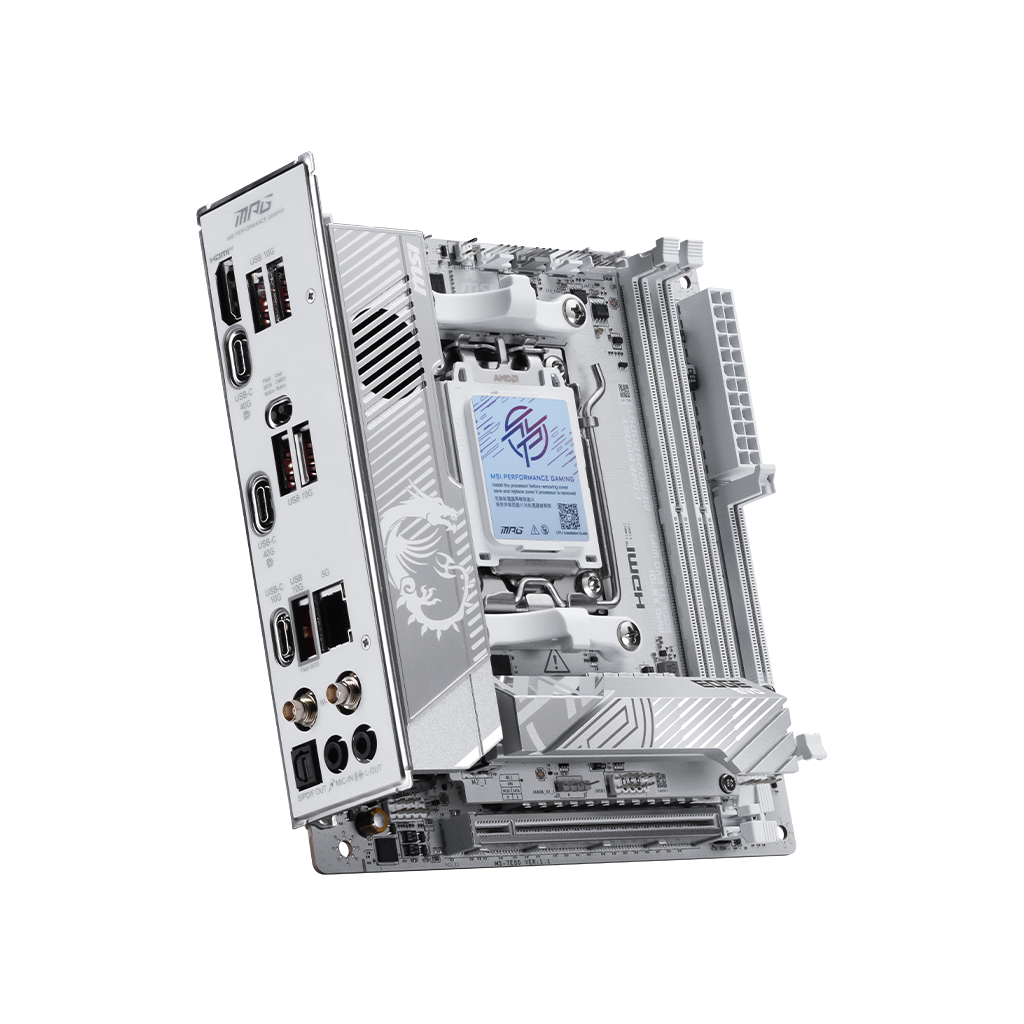

| I/O (Rear) | USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out |
| Expansion Slots | 1x PCIe 5.0 x16 slot |
| USB (Front) | 2x USB 2.0 2x USB 5Gbps Type A 1x USB 20Gbps Type C |
| USB (Rear) | 5x USB 10Gbps Type A 1x USB 10Gbps Type C 2x USB 40Gbps Type C |
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Dimensions | 6.69" x 6.69" |
| Manufacturer Warranty | 3 Year |
The MPG X870I EDGE TI EVO WIFI is a gaming oriented ITX motherboard with a 8 Duet Rail Power System, constructed around the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

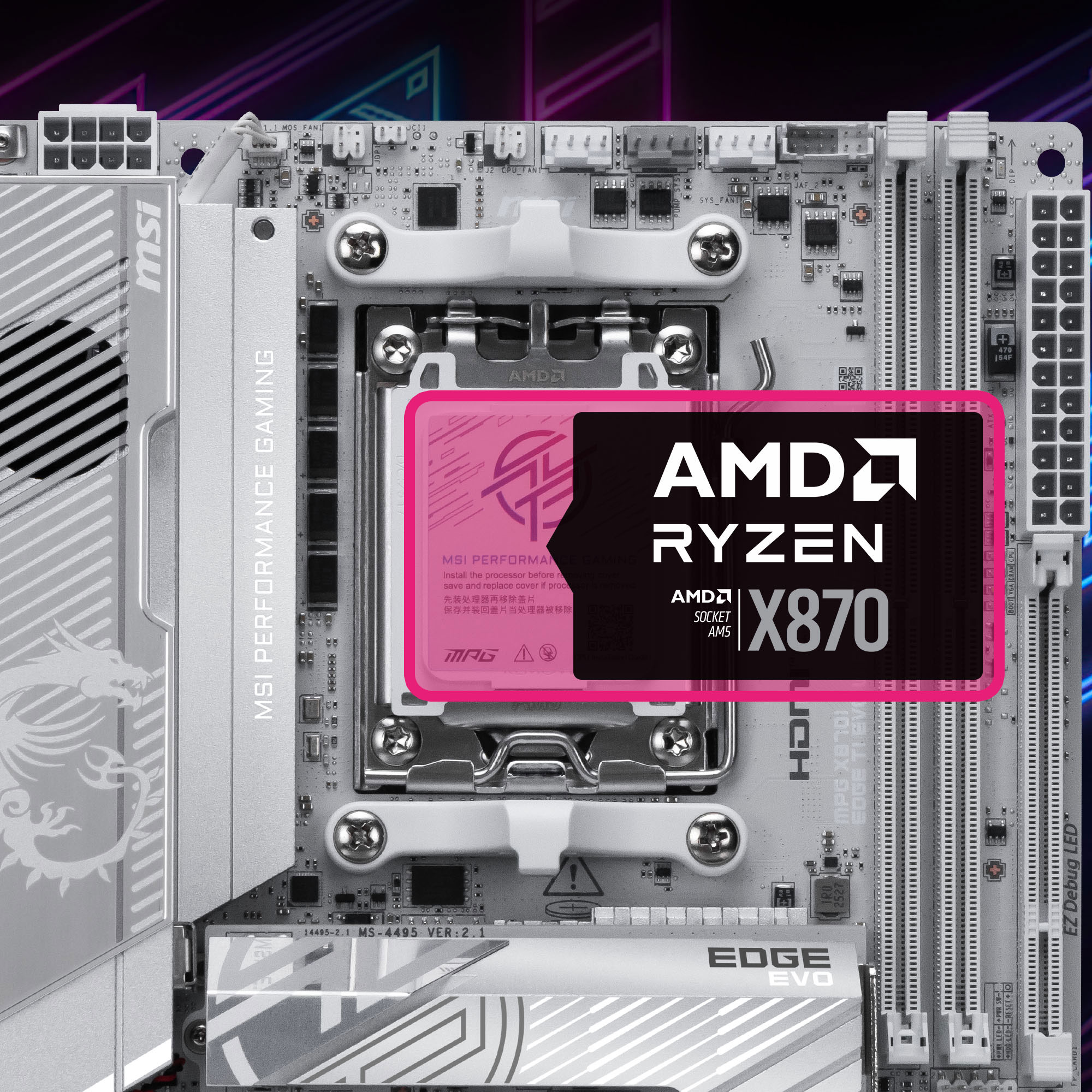

The MPG X870I EDGE TI EVO WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

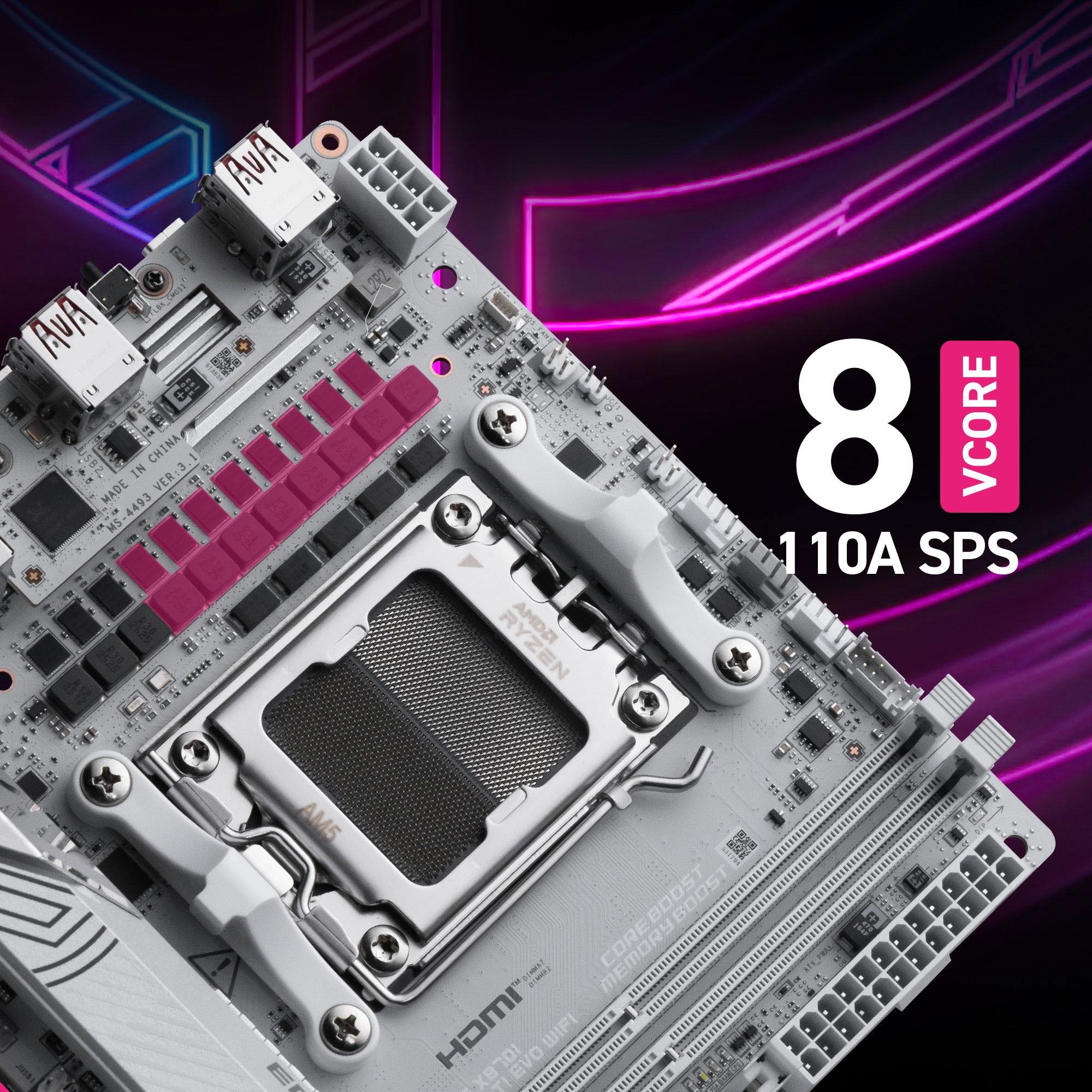

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870I EDGE TI EVO WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

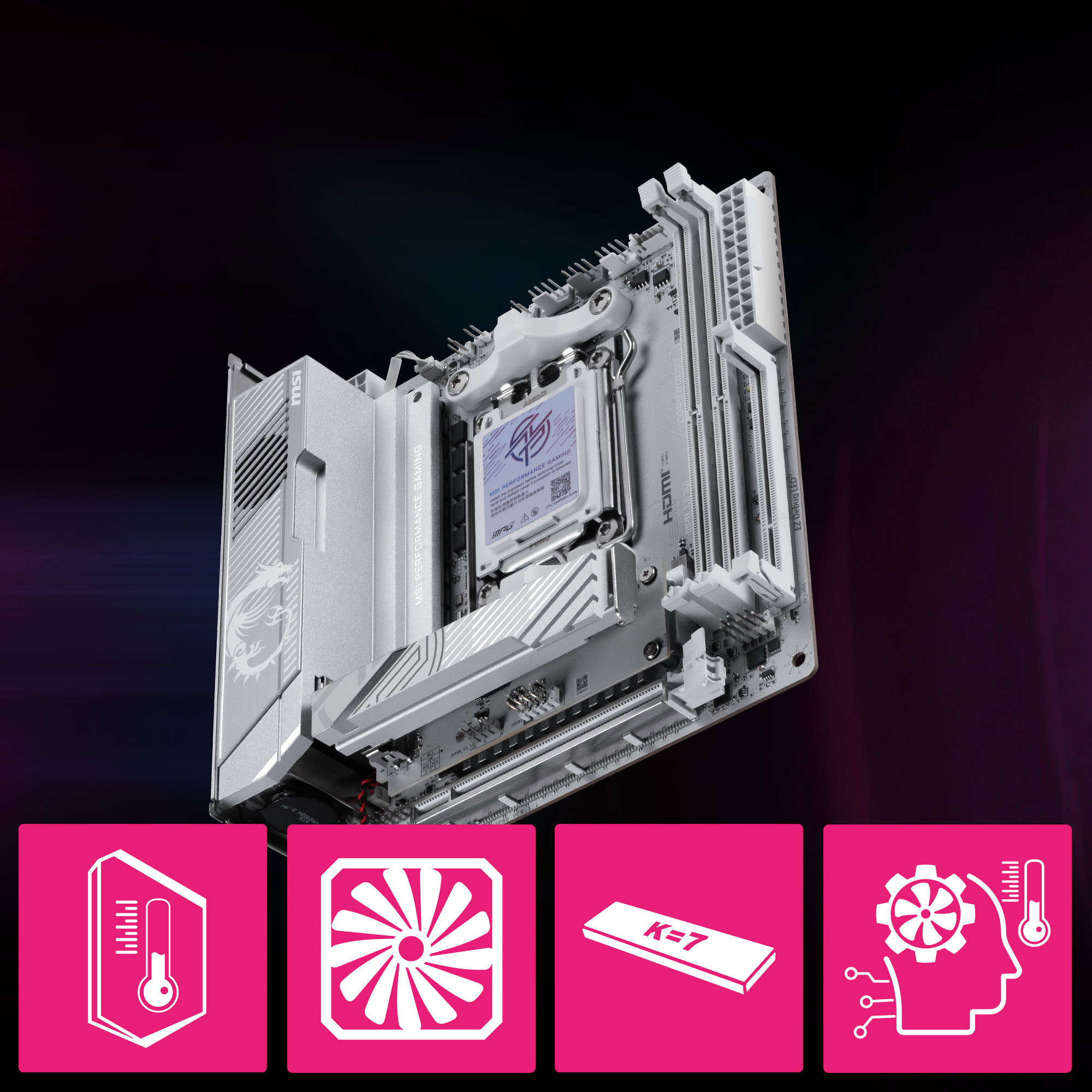

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Heatsink: The fan design enhances cooling efficiency, resulting in improved performance.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

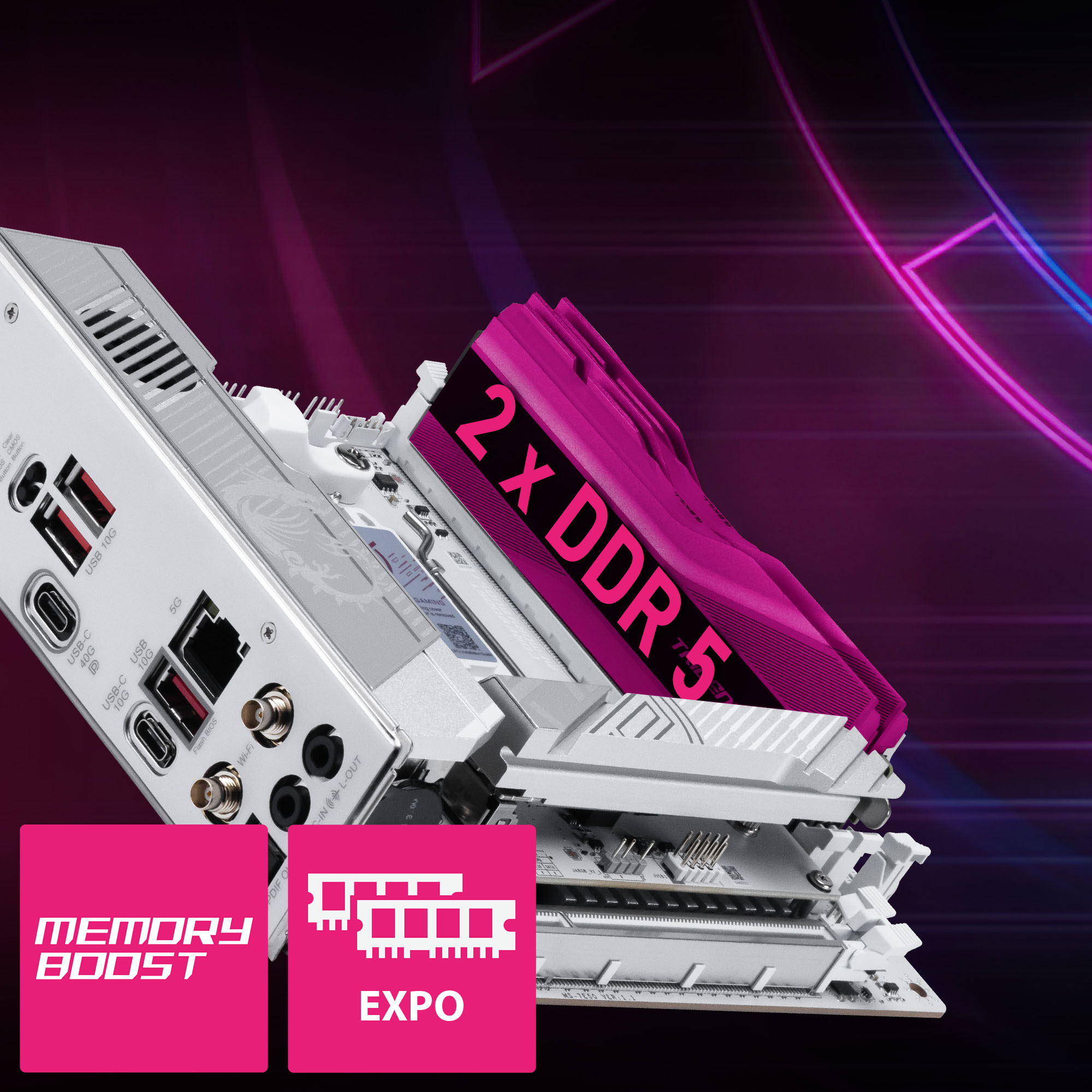

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 10000+ MT/s, supports AMD EXPO. *Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

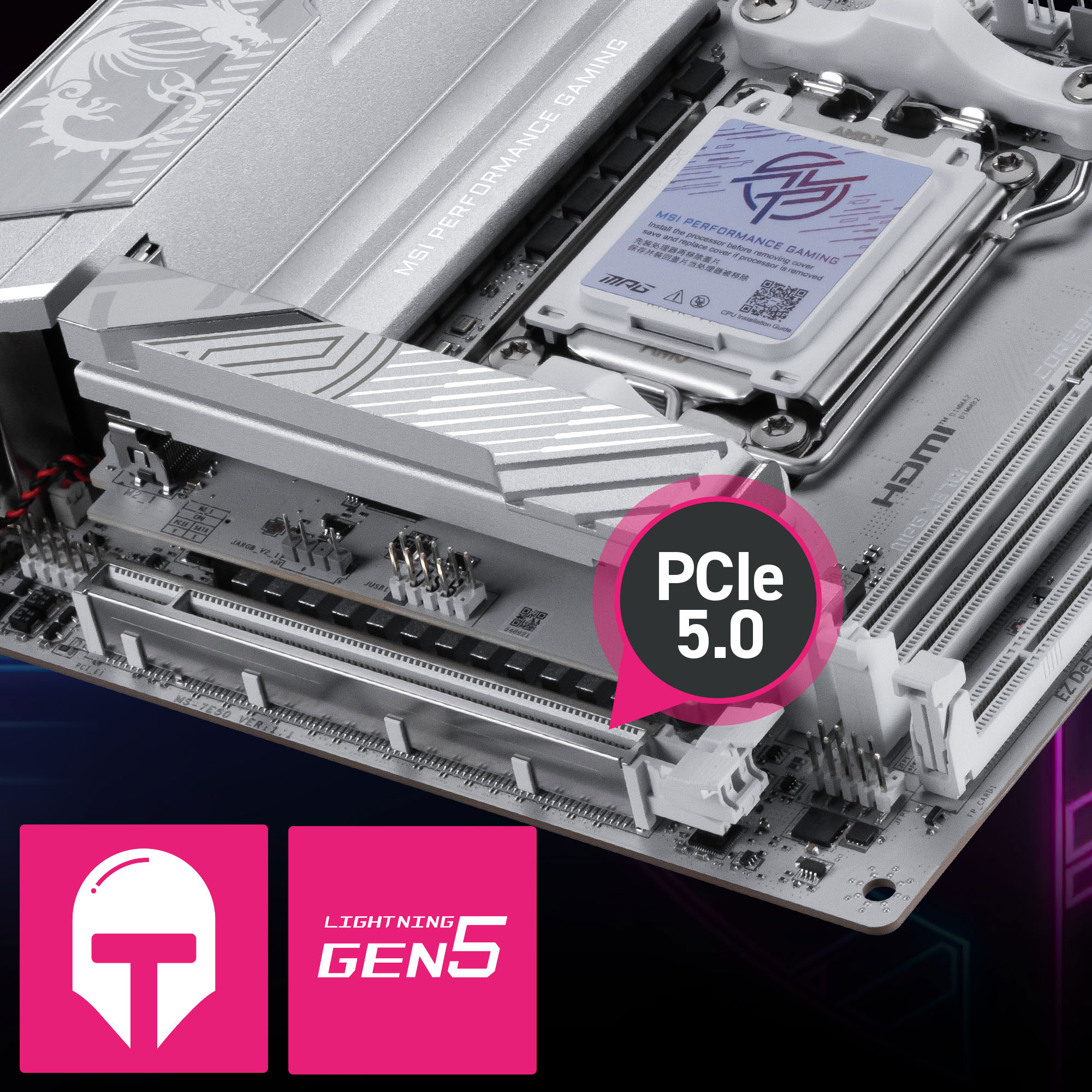

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

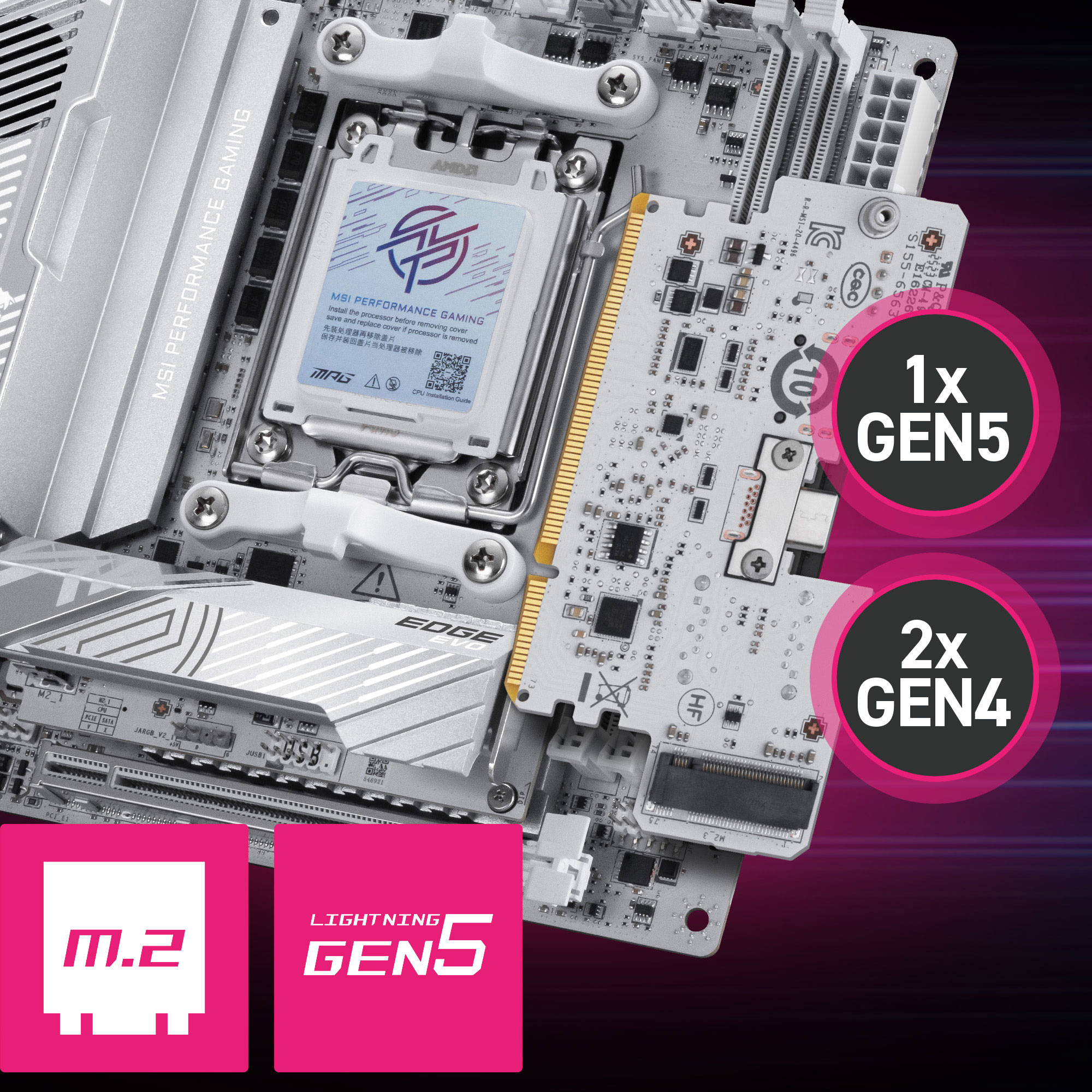

The MPG X870I EDGE TI EVO WIFI motherboard features MSI's M.2 slots:
The DIY Friendly designs optimize the assemble process and experience.

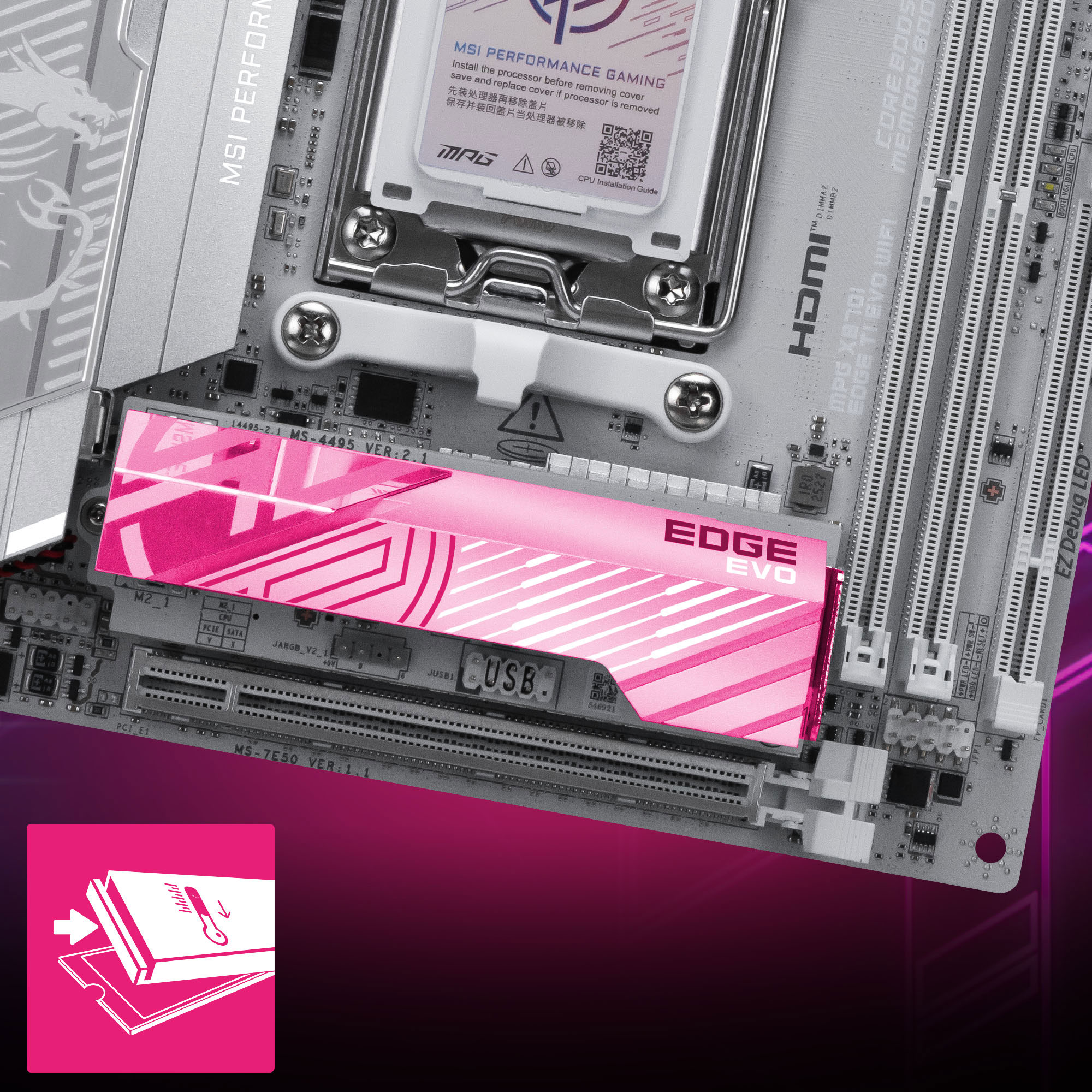

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
EZ Conn Design: Allows users to easily connect MSI EZ series fans or MSI MPG P-series liquid cooling.

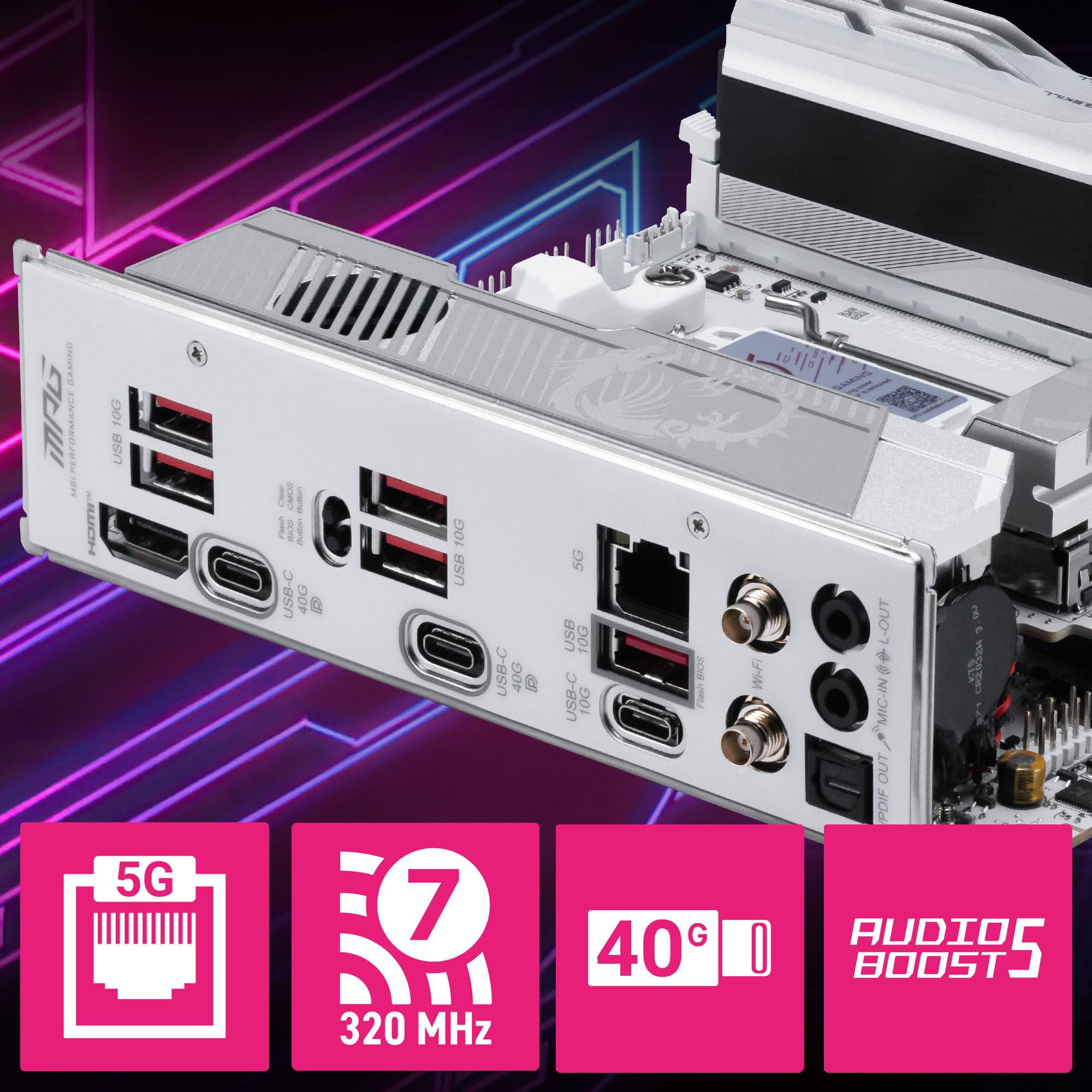

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@60Hz display support.
